|Team of experts at your service
0
Range Expert
  • 200 W
    Wattage 200 W
  • 220-240V AC
    Voltage Range 220-240V AC
  • 40000 lm
    Lumens 40000 lm
  • 292 mm
    Diameter 292 mm
Image of Industrial UFO LED High Bay 200W PHILIPS XITANIUM 200lm/W LEDNIX HBM
    Image of Industrial UFO LED High Bay 200W PHILIPS XITANIUM 200lm/W LEDNIX HBM
    Image of Industrial UFO LED High Bay 200W PHILIPS XITANIUM 200lm/W LEDNIX HBM
    Image of Industrial UFO LED High Bay 200W PHILIPS XITANIUM 200lm/W LEDNIX HBM
    Image of Industrial UFO LED High Bay 200W PHILIPS XITANIUM 200lm/W LEDNIX HBM
    Image of Industrial UFO LED High Bay 200W PHILIPS XITANIUM 200lm/W LEDNIX HBM
1 / 5
  • 200 W

    Wattage

    200 W

  • 220-240V AC

    Voltage Range

    220-240V AC

  • 40000 lm

    Lumens

    40000 lm

  • 292 mm

    Diameter

    292 mm

  • 0.95

    Power Factor

    0.95

  • IP65

    IP Rating

    IP65

  • No

    Battery Operated

    No

  • 105.45 mm x Ø292 mm

    Dimensions

    105.45 mm x Ø292 mm

  • 105.45 mm

    Height

    105.45 mm

  • IK09

    IK Protection

    IK09

  • 200 lm/W

    Luminous Efficiency

    200 lm/W

  • Aluminium, PC

    Fitting Material

    Aluminium, PC

LEDNIX

Industrial UFO LED High Bay 200W PHILIPS XITANIUM 200lm/W LEDNIX HBM

LEDNIX
Download technical datasheet

Ref. Ledkia: 107623

Ref. Fab: CMPN-LDND-HBM-200W-90NW

Colour Temperature Neutral White 4000K

Optic 90º

£110.99

VAT included
Energetic efficiency

PRO CLUB badge

Are you a lighting professional or a company?

  • Great discounts off PVP
  • Extended Warranty
  • Exclusive Services

Buy now, pay later

Credit payment

  • 30 Day Returns

    You can renounce to this product during the first 30 calendar days from receipt, provided that the product remains in perfect condition for use.


    Custom-made products and cut-to-size strips are excluded.


    Full conditions here: After-sales service.

  • 24h Free Delivery

    If you place your order today before 2:30 pm, delivery within 24/48h (working days).


    Shipping is free on purchases over £ 49.99 (incl. VAT).


    Full conditions here: Delivery methods.

  • 100% secure payments

    payment method image 1

    payment method image 2

    At Ledkia we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation.


    More information: Payment methods.

  • Up to 5 year warranty

    Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.


    You will find the exact product warranty in the technical details.


    Full conditions here: After-sales service.

See alternatives

Dimensions

  • Diameter292 mm
  • Height105.45 mm
  • Weight1.8 kg

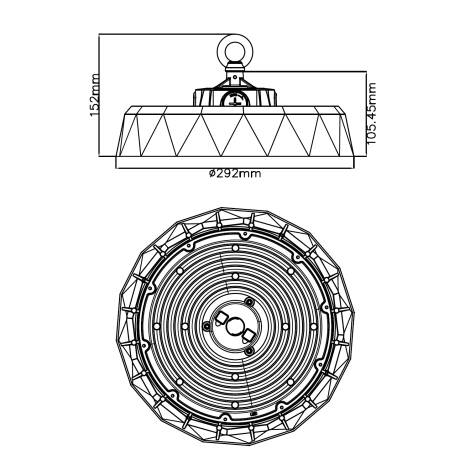

Scheme image

Downloads

  • pdf file

    Technical Data Sheet PDF

Certificates and Stamps

CertificateCertificate

Technical Specifications

  • Technical Information

    • Temperature range in which the product can operate optimally, ensuring its performance without overheating or damage.
      Ambient Working Temperature-20 °C~+50 °C
    • Quality, safety and compliance certifications that the product has obtained, such as CE, RoHS or UL, which guarantees that it meets industry standards and current regulations.
      CertificatesRoHS, CE, DLC, ERP, UKCA
    • Measures how accurately a light source displays colours compared to natural light. A high CRI (close to 100) ensures accurate colour rendering.
      Colour Rendering Index70
    • Defines the light tone, from warm white to cool white, measured in Kelvin (K).
      Colour Temperature4000K
    • DimmableNo
    • Ability to move or rotate the spotlight to direct the light as desired.
      DirectionalNo
    • Electrical Insulation ClassI
    • Fitting MaterialAluminium, PC
    • Frequency50-60 Hz
    • Estimated lifespan of the product before it loses performance. Based on optimal, non-continuous use, and measured in hours of operation under controlled conditions.
      Hours100.000 hours
    • Protection grade that the product offers against physical impacts. It is measured on a scale from IK00 to IK10, with IK10 being the highest level of resistance to impact and mechanical damage.
      IK ProtectionIK09
    • The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
      IP RatingIP65
    • Light ColourNeutral White
    • Lumens40000 lm
    • Ratio between light output (lumens) and energy consumed (watts). A high value indicates better efficiency, ideal for saving energy without compromising lighting.
      Luminous Efficiency200 lm/W
    • Type of lens that determines the distribution and quality of the light. It influences the illumination angle and light efficiency.
      Optic90º
    • Power Factor0.95
    • SupportPendant
    • Voltage level required for the product to function correctly.
      Voltage Range220-240V AC
    • Wattage200 W
    • Internal temperature range in which the product can operate efficiently and safely. It is important to ensure its reliability under different usage conditions.
      Working Temperature-30 °C~+45 °C

  • Product Data

    • Manufacturer or company responsible for designing and producing the product. A recognized name ensures quality and support.
      BrandLEDNIX
    • Guarantee7 years
    • LocationOutdoor, Indoor
    • Product SeriesHBM

  • Product Information

    • Light SourceSMD2835
    • Replaceable Light SourceYes
Outdoor LED bollard

Description

The Industrial UFO LED High Bay 200W PHILIPS XITANIUM 200lm/W LEDNIX HBM is the most advanced and efficient option in our catalog for intensive industrial lighting. Thanks to its cutting-edge technology and a performance of 200 lumens per watt, it reduces energy consumption without sacrificing powerful and uniform brightness. Its robust design and interchangeable optics make it ideal for logistics centers, production plants, warehouses, and large areas.

Maximum energy efficiency with PHILIPS Xitanium technology

It features a high-performance PHILIPS Xitanium driver, renowned for its stability, durability, and precision. This driver-LED combination delivers a luminous efficacy of 200 lm/W, optimizing your investment by significantly reducing electricity consumption in large-scale installations. The driver housing has an IP65 protection rating, suitable for demanding environments with dust or moisture.

Interchangeable optics for tailored lighting

Available in 60º, 90º, and 120º optics versions, this high bay light allows you to adjust light distribution based on the height and layout of the space. The 60º optic concentrates the light beam, ideal for heights above 10 meters where deep penetration is needed. The 90º optic offers a perfect balance for intermediate heights (6–10 meters), providing good coverage without loss of intensity. The 120º optic expands the light footprint, ideal for low ceilings or for illuminating large areas evenly.

Robust and durable industrial design

Its structure has IP65 and IK09 protection ratings, ensuring resistance to impacts, dust, humidity, and harsh industrial environments. The UFO-style design enhances thermal dissipation, extending the system’s lifespan and reducing maintenance needs. It can be installed via hook or high bay bracket, easily integrating into existing structures.

Recommended applications

The Industrial UFO LED High Bay 200W PHILIPS XITANIUM 200lm/W LEDNIX HBM is the perfect solution for logistics centers, factories, industrial warehouses, workshops, charging stations, or hangars. Its combination of efficiency, power, and optical versatility makes it a reliable choice for technical projects that demand high performance, precise coverage, and reduced operating costs.


  • Available in 60º, 90º, or 120º optics versions depending on ceiling height and project needs.
  • Compatible with suspension accessories such as hooks or rigid brackets (see accessories section).


*The customer's visual perception of sizes, colours, textures, and so on, of our products, can be affected by factors such as ambient lighting, screen calibration, viewing angle or the device of each user. The customer must bear in mind that any returns made for reasons not related to the functionality of the product will be at the customer's expense.
