Wattage
200 W
Voltage Range
220-240V AC
Lumens
40000 lm
Diameter
292 mm
Type Of Dimming
DALI
Power Factor
0.9
IP Rating
IP65
Battery Operated
No

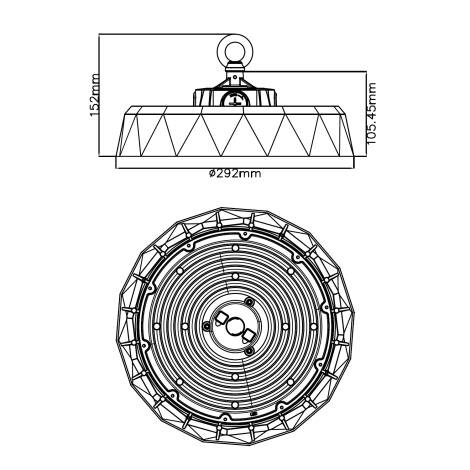

Dimensions
105.45 mm x Ø292 mm
Height
105.45 mm
IK Protection
IK09
Luminous Efficiency
200 lm/W
LEDNIX
Ref. Ledkia: 115640
Manuf. ref.: CMPN-HBM-RDL-150W-LDBC
Colour Temperature Warm White 3000K
Before £121.99
£110.99
VAT includedIn Stock, delivery in 15-20 days
Are you a lighting professional or a company?
Buy now, pay later
Credit paymentDimensions
Downloads
Technical Data Sheet PDF
Certificates and Stamps
Technical Specifications
Technical Information
Product Data
Product Information
The LEDNIX HBM 200W UFO Industrial LED High Bay redefines lighting performance by reaching 200 lm/W, an exceptional efficiency within its category. Designed for industrial warehouses, logistics centers, and sports facilities, it reliably replaces metal halide luminaires of up to 400W, drastically reducing energy consumption.
High-Performance Technology Block
It integrates LUMILEDS SMD 2835 chips of the latest generation, known for their high luminous density and color stability. At its core is the MOSO DALI dimmable driver, offering long-term reliability, flicker-free operation, and compatibility with advanced remote management protocols.
DALI Dimming and Smart Control
The DALI-2 protocol allows programming of on/off cycles and dimming profiles, as well as grouping luminaires to manage entire zones from a single control point. For streamlined and centralized commissioning, it's recommended to use the DALI Master (available as an accessory), which enables the creation of personalized lighting scenes and remote brightness adjustments.
Installation and Thermal Dissipation
The high-conductivity aluminum body features internal fins to optimize heat dissipation, extending the LED lifespan. It comes with a suspension ring for hook or chain mounting and supports bracket mounting via an optional accessory.
Photometric Performance
Consuming just 200W, it delivers 40,000 lumens, ensuring excellent uniformity and illuminance levels compliant with EN 12464-1. The high-transmittance optics minimize glare (UGR < 22), even in picking zones or sensitive production lines.
Industrial and Sports Applications
Suitable for high-bay warehouses, manufacturing plants, sports halls, and logistics centers, the LEDNIX HBM high bay combines extreme efficiency, smart control, and low maintenance—delivering a fast return on investment in energy retrofit projects.
• If the DALI line is not connected, the fixture operates at 100% output as a standard non-dimmable high bay.
