Range Essential
  • 100 W
    Wattage 100 W
  • 220-240V AC
    Voltage Range 220-240V AC
  • 12000 lm
    Lumen 12000 lm
  • 236 mm
    Diameter 236 mm

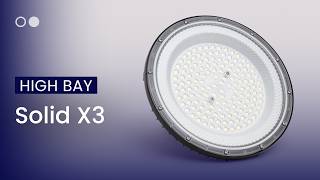

Image of Solid X3 100W UFO LED High Bay 90lm/w
    Image of Solid X3 100W UFO LED High Bay 90lm/w
    Image of Solid X3 100W UFO LED High Bay 90lm/w
    Image of Solid X3 100W UFO LED High Bay 90lm/w
    Image of Solid X3 100W UFO LED High Bay 90lm/w
1 / 4
  • 100 W

    Wattage

    100 W

  • 220-240V AC

    Voltage Range

    220-240V AC

  • 12000 lm

    Lumen

    12000 lm

  • 236 mm

    Diameter

    236 mm

  • 144

    Number of LEDs

    144

  • 0.98

    Power Factor

    0.98

  • UGR <22

    Glare Factor

    UGR <22

  • IP65

    IP Rating

    IP65

  • No

    Battery Operated

    No

  • 80 mm x Ø236 mm

    Dimensions

    80 mm x Ø236 mm

  • 80 mm

    Height

    80 mm

  • IK07

    IK Protection

    IK07

Solid X3 100W UFO LED High Bay 90lm/w

Download technical datasheet

Ref. Ledkia: 177101

Colour Temperature No Flicker Daylight 5000K

£16.99

VAT included
Energetic efficiency

Pre-Order, estimated shipping from 07/07/2026

PRO CLUB badge

Are you a lighting professional or a company?

  • Great discounts off PVP
  • Extended Warranty
  • Exclusive Services

Buy now, pay later

Credit payment

    • 30 calendar days to return

      You can renounce to this product during the first 30 calendar days from receipt, provided that the product remains in perfect condition for use.


      Custom-made products and cut-to-size strips are excluded.


      Full conditions here: After-Sales Service.

    • 24h Delivery

      If you place your order today before 2:30 pm, delivery within 24/48h (working days).


      Shipping is free on purchases over £49.99 (incl. VAT).


      Full conditions here: Shipping methods.

    • 100% secure payments

      payment method image 1

      payment method image 2

      At Ledkia we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation.


      More information: Payment methods.

    • Warranty up to 5 years

      Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.


      You will find the exact product warranty in the technical details.


      Full conditions here: After-Sales Service.

Dimensions

  • Diameter236 mm
  • Height80 mm
Scheme image

Downloads

  • pdf file

    PDF Datasheet 177101_358098 EN

  • pdf file

    DoC_177101_358098

Certificates and Stamps

CertificateCertificateCertificate

Technical Specifications

  • Electrical Features

    • Electrical Insulation ClassI
    • Frequency50-60 Hz
    • Minimum and maximum voltage fluctuation that the product can withstand momentarily.
      Nominal Voltage220 V - 240 V
    • Product's ability to withstand voltage spikes or electrical overloads, protecting internal components from potential damage due to current fluctuations.
      Overvoltage Protection2 kV
    • Voltage level required for the product to function correctly.
      Voltage Range220-240V AC
    • Wattage100 W

  • LED Features

    • Measures in degrees how light spreads from the source. A wide angle covers more area, while a narrow one is ideal for highlighting details.
      Beam Angle90º
    • Measures how accurately a light source displays colours compared to natural light. A high CRI (close to 100) ensures accurate colour rendering.
      Colour Rendering Index80
    • Defines the light tone, from warm white to cool white, measured in Kelvin (K).
      Colour Temperature5000K
    • Low-glare products offer more comfortable lighting, suitable for extended use.
      Glare FactorUGR <22
    • Estimated lifespan of the product before it loses performance. Based on optimal, non-continuous use, and measured in hours of operation under controlled conditions.
      Hours40.000 hours
    • Efficiency of the LEDs, measured as the amount of light generated per unit of energy consumed (lumens per watt). High efficiency ensures energy savings without losing light quality.
      LED Performance130 lm/W
    • Light ColourDaylight
    • Lumen12000 lm
    • Ratio between light output (lumens) and energy consumed (watts). A high value indicates better efficiency, ideal for saving energy without compromising lighting.
      Luminous Efficiency120 lm/W
    • Technology that ensures stable, flicker-free light. It improves visual experience and reduces eye fatigue.
      No FlickerNo Flicker
    • Number of LEDs144
    • Power Factor0.98
    • Standard colour deviation (MacAdam)SDCM ≤ 6

  • Mechanical Features

    • Protection grade that the product offers against physical impacts. It is measured on a scale from IK00 to IK10, with IK10 being the highest level of resistance to impact and mechanical damage.
      IK ProtectionIK07
    • InstallationPendant, Surface
    • The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
      IP RatingIP65
    • LocationOutdoor, Indoor
    • Type of lens that determines the distribution and quality of the light. It influences the illumination angle and light efficiency.
      Optic90º
    • Internal temperature range in which the product can operate efficiently and safely. It is important to ensure its reliability under different usage conditions.
      Working Temperature-20 °C~+40 °C

  • Product Information

    • CertificatesCE, RoHS, UKCA
    • Guarantee3 years
    • Product SeriesUFO Solid

  • Materials and Finishes

    • ColourBlack
    • Fitting MaterialAluminium

  • Driver Information

    • WifiNo

Description

The Solid X3 100W UFO LED High Bay delivers a robust lighting solution for industrial environments, featuring a 100 W power rating, a 90lm/w luminous efficiency, and a high-performance driver. Designed with a 90º optic, this luminaire ensures precise light distribution suitable for demanding indoor and outdoor applications.

General information about Solid X3 100W UFO LED High Bay 90lm/w

This high bay luminaire incorporates a die-cast aluminium fitting that provides mechanical strength and efficient heat dissipation. It features a 90º optic for focused illumination and an IP65 rating ensuring protection against dust and water jets, complemented by an IK07 impact resistance for enhanced durability. The product operates at a 220-240 V nominal voltage with a power factor of 0.98, optimising electrical performance. Its CRI of 80 offers reliable colour rendering, suitable for industrial and logistics environments. The luminaire belongs to the UFO Solid series, known for combining structural robustness with stable performance in intensive applications.

Use and applications

The Solid X3 100W UFO LED High Bay is designed to provide efficient lighting in industrial and logistics settings where robust performance is critical. Its suitability for both indoor and outdoor installations is supported by the IP65 protection, which safeguards the luminaire against environmental factors. This makes it a reliable choice for warehouses and manufacturing plants where dust and moisture are present. The product’s pendant and surface mounting options facilitate flexible installation to adapt to different ceiling heights and structural conditions.

Its electrical insulation class I ensures safety in professional environments, while the overvoltage protection of 2 kilovolts adds an extra layer of security against electrical surges. The luminaire's UGR <22 glare control contributes to visual comfort in workspaces. Designed for projects where consistent performance and maintenance ease are priorities, this high bay fixture integrates a high number of LEDs and a durable aluminium body to withstand demanding operational conditions.

Key benefits

  • Enhanced durability thanks to a robust aluminium body and IK07 impact protection.
  • Reliable performance in harsh environments provided by IP65 ingress protection.
  • Efficient light output with 90lm/w luminous efficiency and precise 90º optic.
  • Improved electrical safety through overvoltage protection and class I insulation.
  • Visual comfort ensured by UGR <22 glare control, reducing eye strain in industrial settings.

Highlighted specifications

Power: 100 W; Luminous flux: 9000 Lumen; Protection rating: IP65; Impact resistance: IK07.

Installation and maintenance

The luminaire supports both pendant and surface mounting, allowing adaptation to various structural requirements. Installation must follow the indicated system to ensure optimal performance and safety. The robust aluminium construction facilitates heat dissipation, contributing to longevity and stability. Disconnect the power supply before any intervention. Maintenance procedures should comply with professional standards to preserve the integrity of the electrical insulation and protection features.
