|Team of experts at your service
0
Range Advanced
  • 200 W
    Wattage 200 W
  • 220-240V AC
    Voltage Range 220-240V AC
  • 34000 lm
    Lumen 34000 lm
  • 300 mm
    Diameter 300 mm
Image of 200W UFO LED High Bay 0-10V Dimmable 170lm/W LIFUD HBD
    Image of 200W UFO LED High Bay 0-10V Dimmable 170lm/W LIFUD HBD
    Image of 200W UFO LED High Bay 0-10V Dimmable 170lm/W LIFUD HBD
    Image of 200W UFO LED High Bay 0-10V Dimmable 170lm/W LIFUD HBD
    Image of 200W UFO LED High Bay 0-10V Dimmable 170lm/W LIFUD HBD
    Image of 200W UFO LED High Bay 0-10V Dimmable 170lm/W LIFUD HBD
    Image of 200W UFO LED High Bay 0-10V Dimmable 170lm/W LIFUD HBD
1 / 6
  • 200 W

    Wattage

    200 W

  • 220-240V AC

    Voltage Range

    220-240V AC

  • 34000 lm

    Lumen

    34000 lm

  • 300 mm

    Diameter

    300 mm

  • 0-10 V

    Type Of Dimming

    0-10 V

  • IP65

    IP Rating

    IP65

  • No

    Battery Operated

    No

  • 173 mm x Ø300 mm

    Dimensions

    173 mm x Ø300 mm

  • 173 mm

    Height

    173 mm

  • IK08

    IK Protection

    IK08

  • 160 lm/W

    Luminous Efficiency

    160 lm/W

  • Aluminium, PC

    Fitting Material

    Aluminium, PC

200W UFO LED High Bay 0-10V Dimmable 170lm/W LIFUD HBD

Download technical datasheet

Ref. Ledkia: 110342

5 reviews stars(8)

5 out of 5 stars

Trustpilot summary stars
Reviews

Colour Temperature Daylight 5000K

Optic 90º

In Stock, delivery in 15-20 days

Before £57.99

-28% (You save £16.00)

£41.99

VAT included
Energetic efficiency

In Stock, delivery in 15-20 days

PRO CLUB badge

Are you a lighting professional or a company?

  • Great discounts off PVP
  • Extended Warranty
  • Exclusive Services

Buy now, pay later

Credit payment

    • 30 calendar days to return

      You can renounce to this product during the first 30 calendar days from receipt, provided that the product remains in perfect condition for use.


      Custom-made products and cut-to-size strips are excluded.


      Full conditions here: After-Sales Service.

    • 24h Delivery

      If you place your order today before 2:30 pm, delivery within 24/48h (working days).


      Shipping is free on purchases over £49.99 (incl. VAT).


      Full conditions here: Shipping methods.

    • 100% secure payments

      payment method image 1

      payment method image 2

      At Ledkia we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation.


      More information: Payment methods.

    • Warranty up to 5 years

      Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.


      You will find the exact product warranty in the technical details.


      Full conditions here: After-Sales Service.

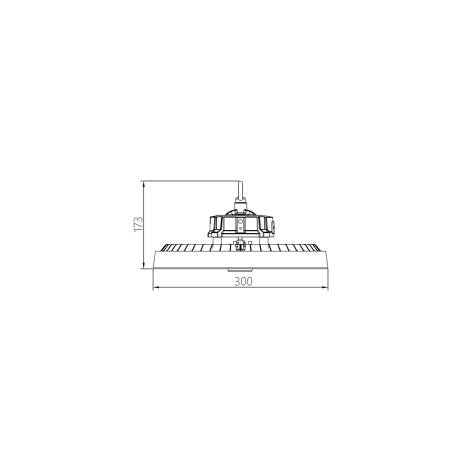

Dimensions

  • Height173 mm
  • Weight2.2 kg
  • Diameter300 mm
Scheme image

Downloads

  • pdf file

    110342_224463_Datasheet_en_GB

  • pdf file

    DoC_110342_224463

Certificates and Stamps

CertificateCertificateCertificateCertificateCertificateCertificate

Technical Specifications

  • LED Features

    • Brightness range34000 lm - 24000 lm - 19200 lm
    • Measures how accurately a light source displays colours compared to natural light. A high CRI (close to 100) ensures accurate colour rendering.
      Colour Rendering Index80
    • Defines the light tone, from warm white to cool white, measured in Kelvin (K).
      Colour Temperature5000K
    • Estimated lifespan of the product before it loses performance. Based on optimal, non-continuous use, and measured in hours of operation under controlled conditions.
      Hours80.000 Horas
    • Efficiency of the LEDs, measured as the amount of light generated per unit of energy consumed (lumens per watt). High efficiency ensures energy savings without losing light quality.
      LED Performance170 lm/W
    • Light ColourDaylight
    • Lumen34000 lm
    • Ratio between light output (lumens) and energy consumed (watts). A high value indicates better efficiency, ideal for saving energy without compromising lighting.
      Luminous Efficiency160 lm/W

  • Mechanical Features

    • Temperature range in which the product can operate optimally, ensuring its performance without overheating or damage.
      Ambient Working Temperature-40 °C~+50 °C
    • Ability to move or rotate the spotlight to direct the light as desired.
      DirectionalNo
    • Protection grade that the product offers against physical impacts. It is measured on a scale from IK00 to IK10, with IK10 being the highest level of resistance to impact and mechanical damage.
      IK ProtectionIK08
    • The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
      IP RatingIP65
    • LocationOutdoor, Indoor
    • Type of lens that determines the distribution and quality of the light. It influences the illumination angle and light efficiency.
      Optic90º

  • Driver Information

    • Driver BrandLIFUD
    • Driver Intensity500 mA - 830 mA
    • Driver Power200 W
    • Voltage level that the driver uses to power the LEDs or electrical components of the product, ensuring their proper functioning.
      Driver Tension180 V DC - 260 V DC
    • Potencia Seleccionable200 W - 150 W - 120 W
    • Type Of Driver0-10V dimmable
    • WifiNo

  • Electrical Features

    • Electrical Insulation ClassI
    • Frequency50-60 Hz
    • Light SourceLUMILEDS SMD2835
    • Minimum and maximum voltage fluctuation that the product can withstand momentarily.
      Nominal Voltage220 V - 240 V
    • Type Of Dimming0-10 V
    • Voltage level required for the product to function correctly.
      Voltage Range220-240V AC
    • Wattage200 W

  • Product Information

    • CertificatesCE, RoHS, CB, CEE, ERP, UKCA
    • Guarantee5 years
    • Product SeriesHBD

  • Materials and Finishes

    • ColourBlack
    • Fitting MaterialAluminium, PC

Description

The UFO Industrial LED High Bay 200W 170lm/W HBD LIFUD 0-10V Dimmable is a high-performance luminaire designed for industrial environments and outdoor spaces that require powerful, efficient lighting. Equipped with professional-grade components, this LED high bay ensures excellent durability and reliability, delivering optimal operation even in demanding conditions.

High efficiency with LUMILEDS LEDs and LIFUD Driver

This LED high bay integrates latest-generation LUMILEDS LED chips with an impressive efficiency of 170 lm/W, providing a high level of brightness with lower energy consumption. LUMILEDS is one of the most recognised brands in the sector, guaranteeing exceptional light quality and a long service life. In addition, it incorporates a high-end LIFUD driver, designed to withstand fluctuations in input current, making it ideal for industrial installations with motors, lifts, or heavy machinery. This driver features surge protection, ensuring the stability of the luminaire and extending its durability.

0-10V dimmable with full switch-off

Thanks to its compatibility with 0-10V dimming, this LED high bay allows the light intensity to be adjusted according to the needs of the environment, providing greater energy efficiency and adaptability.

Available optics: 60º, 90º, and 120º

To ensure maximum luminous efficiency in each application, this LED high bay is offered with three optics options:

- 60º optic: Ideal for installations with high ceilings (+8 metres) where more concentrated light is required in a specific area.
- 90º optic: Intermediate option for heights from 5 to 8 metres, providing a balance between concentration and light spread.
- 120º optic: Perfect for lower heights (-5 metres) or when more homogeneous lighting is needed over large areas.

Robust and resistant design

Its structure, made from high-quality aluminium, provides excellent thermal dissipation, ensuring stable performance and prolonging the LED’s lifespan. With an IP65 protection rating, it is completely resistant to dust and water jets, making it suitable for warehouses, factories, workshops, industrial units, and outdoor spaces.

Available accessories

For optimal installation and customisation, this LED high bay offers a wide range of accessories:

- 90º brackets and reflectors to direct the light beam.
- 0-10V dimmers to control light intensity.
- Emergency kits to ensure lighting in case of power cuts.
- DALI converters for advanced control systems.

The UFO Industrial LED High Bay 200W 170lm/W HBD LIFUD 0-10V Dimmable is a professional-grade solution designed to deliver maximum performance and reliability in industrial and commercial environments. Its high efficiency, resistance to demanding conditions, and compatibility with various accessories make it the best choice for installations seeking durability, energy savings, and quality lighting.
