|Team of experts at your service
0
Range Expert
  • 200 W
    Wattage 200 W
  • 220-240V AC
    Voltage Range 220-240V AC
  • 40000 lm
    Lumens 40000 lm
  • 292 mm
    Diameter 292 mm
Image of Industrial UFO LED High Bay 150W 0-10V Dimmable LEDNIX HBM 200lm/W with PHILIPS Xitanium Driver
    Image of Industrial UFO LED High Bay 150W 0-10V Dimmable LEDNIX HBM 200lm/W with PHILIPS Xitanium Driver
    Image of Industrial UFO LED High Bay 150W 0-10V Dimmable LEDNIX HBM 200lm/W with PHILIPS Xitanium Driver
    Image of Industrial UFO LED High Bay 150W 0-10V Dimmable LEDNIX HBM 200lm/W with PHILIPS Xitanium Driver
    Image of Industrial UFO LED High Bay 150W 0-10V Dimmable LEDNIX HBM 200lm/W with PHILIPS Xitanium Driver
    Image of Industrial UFO LED High Bay 150W 0-10V Dimmable LEDNIX HBM 200lm/W with PHILIPS Xitanium Driver
1 / 5
  • 200 W

    Wattage

    200 W

  • 220-240V AC

    Voltage Range

    220-240V AC

  • 40000 lm

    Lumens

    40000 lm

  • 292 mm

    Diameter

    292 mm

  • 1-10 V

    Type Of Dimming

    1-10 V

  • 0.95

    Power Factor

    0.95

  • IP65

    IP Rating

    IP65

  • No

    Battery Operated

    No

  • 105.45 mm x Ø292 mm

    Dimensions

    105.45 mm x Ø292 mm

  • 105.45 mm

    Height

    105.45 mm

  • IK09

    IK Protection

    IK09

  • 200 lm/W

    Luminous Efficiency

    200 lm/W

LEDNIX

Industrial UFO LED High Bay 150W 0-10V Dimmable LEDNIX HBM 200lm/W with PHILIPS Xitanium Driver

LEDNIX
Download technical datasheet

Ref. Ledkia: 121966

Ref. Fab: HBM-200-C90

Colour Temperature Cool White 5700K

Optic 90º

In stock, estimated delivery 9 to 10 days

£91.99

VAT included
Energetic efficiency

In stock, estimated delivery 9 to 10 days

PRO CLUB badge

Are you a lighting professional or a company?

  • Great discounts off PVP
  • Extended Warranty
  • Exclusive Services

Buy now, pay later

Credit payment

  • 30 Day Returns

    You can renounce to this product during the first 30 calendar days from receipt, provided that the product remains in perfect condition for use.


    Custom-made products and cut-to-size strips are excluded.


    Full conditions here: After-sales service.

  • 24h Free Delivery

    If you place your order today before 2:30 pm, delivery within 24/48h (working days).


    Shipping is free on purchases over £ 49.99 (incl. VAT).


    Full conditions here: Delivery methods.

  • 100% secure payments

    payment method image 1

    payment method image 2

    At Ledkia we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation.


    More information: Payment methods.

  • Up to 5 year warranty

    Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.


    You will find the exact product warranty in the technical details.


    Full conditions here: After-sales service.

See alternatives

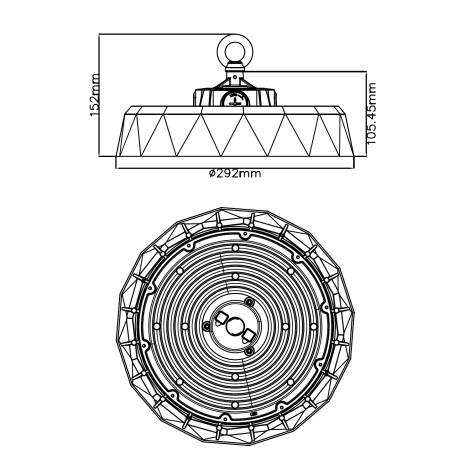

Dimensions

  • Diameter292 mm
  • Height105.45 mm
  • Weight1.8 kg
Scheme image

Downloads

  • pdf file

    Technical Data Sheet PDF

Certificates and Stamps

CertificateCertificate

Technical Specifications

  • Technical Information

    • Temperature range in which the product can operate optimally, ensuring its performance without overheating or damage.
      Ambient Working Temperature-20 °C~+50 °C
    • Quality, safety and compliance certifications that the product has obtained, such as CE, RoHS or UL, which guarantees that it meets industry standards and current regulations.
      CertificatesRoHS, CE, DLC, ERP, UKCA
    • Measures how accurately a light source displays colours compared to natural light. A high CRI (close to 100) ensures accurate colour rendering.
      Colour Rendering Index70
    • Defines the light tone, from warm white to cool white, measured in Kelvin (K).
      Colour Temperature5700K
    • DimmableYes
    • Driver Intensity660 mA - 1100 mA
    • Driver Power10.6 W-200 W
    • Voltage level that the driver uses to power the LEDs or electrical components of the product, ensuring their proper functioning.
      Driver Tension160 V DC - 260 V DC
    • Electrical Insulation ClassI
    • Fitting MaterialAluminium, PC
    • Frequency50-60 Hz
    • Estimated lifespan of the product before it loses performance. Based on optimal, non-continuous use, and measured in hours of operation under controlled conditions.
      Hours100.000 hours
    • Protection grade that the product offers against physical impacts. It is measured on a scale from IK00 to IK10, with IK10 being the highest level of resistance to impact and mechanical damage.
      IK ProtectionIK09
    • The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
      IP RatingIP65
    • Light ColourCool White
    • Lumens40000 lm
    • Ratio between light output (lumens) and energy consumed (watts). A high value indicates better efficiency, ideal for saving energy without compromising lighting.
      Luminous Efficiency200 lm/W
    • Type of lens that determines the distribution and quality of the light. It influences the illumination angle and light efficiency.
      Optic90º
    • Power Factor0.95
    • Voltage level required for the product to function correctly.
      Voltage Range220-240V AC
    • Wattage200 W
    • Internal temperature range in which the product can operate efficiently and safely. It is important to ensure its reliability under different usage conditions.
      Working Temperature-30 °C~+45 °C

  • Product Data

    • Manufacturer or company responsible for designing and producing the product. A recognized name ensures quality and support.
      BrandLEDNIX
    • LocationOutdoor, Indoor
    • Product SeriesHBM
    • Warranty7 years

  • Product Information

    • Light SourceSMD2835
    • Type Of Dimming1-10 V
    • Type Of Driver1-10V dimmable
Outdoor LED bollard

Description

The Industrial UFO LED High Bay 150W 0-10V Dimmable LEDNIX HBM 200lm/W with PHILIPS Xitanium Driver  represents the latest generation in high-performance industrial lighting. Designed for demanding applications, this high bay offers market-leading energy efficiency at 200 lm/W, earning the prestigious Class A certification under the European energy efficiency standard. Its ability to generate exceptional brightness with reduced consumption makes it the best option for those seeking maximum savings without compromising lighting quality.

Superior efficiency with next-generation LEDs and PHILIPS Xitanium Driver

This LED high bay incorporates ultra-efficient LEDs, designed to maximize brightness with the lowest possible consumption. Thanks to its 200 lm/W performance, it significantly outperforms standard models, delivering powerful lighting with considerably lower energy usage.

In addition, it is equipped with a PHILIPS Xitanium driver, one of the most recognized brands in the sector for its reliability and stability. This 1-10V dimmable driver allows integration with motion sensors or dusk-to-dawn dimmers, further optimizing energy consumption. In industrial environments, it is often combined with regulating sensors so that the luminaire operates at 10% of its capacity and only increases to 100% when movement is detected, providing efficient and automated lighting management.

Maximum energy efficiency certification

Complying with the most demanding standards, this high bay holds DLC certification, required in the United States to guarantee maximum energy efficiency and reliability in industrial installations. Its optimized design meets the strictest regulations for sustainability and energy savings, making it an ideal choice for industrial buildings, warehouses, factories, and commercial spaces.

Robust and resistant design

Built from high-quality aluminum, its structure provides excellent thermal dissipation, extending the LED’s lifespan and maintaining stable performance in demanding conditions. With an IP65 protection rating, it is resistant to dust and water jets, ensuring durability even in industrial environments with moisture, dust, or temperature variations.

Applications and versatility

Thanks to its 1-10V dimming and sensor integration capabilities, this LED high bay is perfect for projects where optimizing energy consumption is a priority without sacrificing high-power lighting. It is ideal for industrial warehouses, logistics centers, workshops, production areas, and high-ceiling spaces where efficient and uniform lighting is required.


The Industrial UFO LED High Bay 150W 0-10V Dimmable LEDNIX HBM 200lm/W with PHILIPS Xitanium Driver  is the ultimate solution for those seeking maximum efficiency, advanced technology, and reliability in demanding industrial environments. Its combination of ultra-high efficiency, top-tier certifications, and compatibility with automation systems positions it as the most advanced option in industrial LED lighting.
