Range Expert
  • 100 W
    Wattage 100 W
  • Black
    Colour Black
  • 220-240V AC
    Voltage Range 220-240V AC
  • 20000 lm
    Lumen 20000 lm
Image of 100W UFO LED High Bay DALI Dimmable 200lm/W MOSO HBM
EcoEfficient
    Image of 100W UFO LED High Bay DALI Dimmable 200lm/W MOSO HBM
    Image of 100W UFO LED High Bay DALI Dimmable 200lm/W MOSO HBM
    Image of 100W UFO LED High Bay DALI Dimmable 200lm/W MOSO HBM
    Image of 100W UFO LED High Bay DALI Dimmable 200lm/W MOSO HBM
1 / 4
  • 100 W

    Wattage

    100 W

  • Black

    Colour

    Black

  • 220-240V AC

    Voltage Range

    220-240V AC

  • 20000 lm

    Lumen

    20000 lm

  • 292 mm

    Diameter

    292 mm

  • DALI

    Type Of Dimming

    DALI

  • 0.9

    Power Factor

    0.9

  • UGR <19

    Glare Factor

    UGR <19

  • IP65

    IP Rating

    IP65

  • No

    Battery Operated

    No

  • 105.45 mm x Ø292 mm

    Dimensions

    105.45 mm x Ø292 mm

  • 105.45 mm

    Height

    105.45 mm

100W UFO LED High Bay DALI Dimmable 200lm/W MOSO HBM

Download technical datasheet

Ref. Ledkia: 115635

Colour Temperature Daylight 6000K

Before £63.99

-9% (You save £6.00)

£57.99

VAT included
Energetic efficiency

In Stock, delivery in 16-21 days

PRO CLUB badge

Are you a lighting professional or a company?

  • Great discounts off PVP
  • Extended Warranty
  • Exclusive Services

Buy now, pay later

Credit payment

    • 30 calendar days to return

      You can renounce to this product during the first 30 calendar days from receipt, provided that the product remains in perfect condition for use.


      Custom-made products and cut-to-size strips are excluded.


      Full conditions here: After-Sales Service.

    • 24h Delivery

      If you place your order today before 2:30 pm, delivery within 24/48h (working days).


      Shipping is free on purchases over £49.99 (incl. VAT).


      Full conditions here: Shipping methods.

    • 100% secure payments

      payment method image 1

      payment method image 2

      At Ledkia we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation.


      More information: Payment methods.

    • Warranty up to 5 years

      Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.


      You will find the exact product warranty in the technical details.


      Full conditions here: After-Sales Service.

Dimensions

  • Height105.45 mm
  • Weight2.35 kg
  • Diameter292 mm

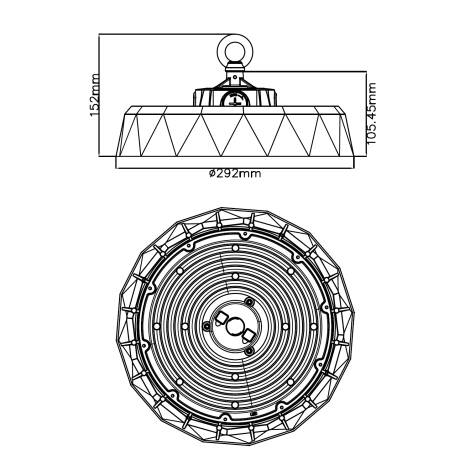

Scheme image

Downloads

  • pdf file

    PDF Datasheet 115635_236246 EN

  • pdf file

    DoC_115635_236246

  • pdf file

    DoC_115635_236246

Certificates and Stamps

CertificateCertificateCertificateCertificate

Technical Specifications

  • Electrical Features

    • Frequency50-60 Hz
    • Light SourceSMD2835
    • Type Of DimmingDALI
    • Voltage level required for the product to function correctly.
      Voltage Range220-240V AC
    • Wattage100 W

  • LED Features

    • Measures how accurately a light source displays colours compared to natural light. A high CRI (close to 100) ensures accurate colour rendering.
      Colour Rendering Index85
    • Defines the light tone, from warm white to cool white, measured in Kelvin (K).
      Colour Temperature6000K
    • Low-glare products offer more comfortable lighting, suitable for extended use.
      Glare FactorUGR <19
    • Estimated lifespan of the product before it loses performance. Based on optimal, non-continuous use, and measured in hours of operation under controlled conditions.
      Hours100.000 hours
    • Light ColourDaylight
    • Lumen20000 lm
    • Ratio between light output (lumens) and energy consumed (watts). A high value indicates better efficiency, ideal for saving energy without compromising lighting.
      Luminous Efficiency200 lm/W
    • Power Factor0.9

  • Mechanical Features

    • Temperature range in which the product can operate optimally, ensuring its performance without overheating or damage.
      Ambient Working Temperature-20 °C~+50 °C
    • Ability to move or rotate the spotlight to direct the light as desired.
      DirectionalNo
    • Indicates whether the product or its materials are fire-resistant, enhancing safety in high-temperature or flame-risk areas.
      Fire RatedNo
    • Protection grade that the product offers against physical impacts. It is measured on a scale from IK00 to IK10, with IK10 being the highest level of resistance to impact and mechanical damage.
      IK ProtectionIK09
    • The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
      IP RatingIP65
    • LocationOutdoor, Indoor
    • Type of lens that determines the distribution and quality of the light. It influences the illumination angle and light efficiency.
      Optic90º
    • Internal temperature range in which the product can operate efficiently and safely. It is important to ensure its reliability under different usage conditions.
      Working Temperature-30 °C~+45 °C

  • Product Information

    • CertificatesCE, RoHS, CEE, UKCA
    • Guarantee7 years
    • Product SeriesHBM

  • Materials and Finishes

    • ColourBlack
    • Fitting MaterialPC, Aluminium

  • Driver Information

    • Driver BrandMOSO
    • WifiNo

Description

The 100W UFO LED High Bay DALI Dimmable 200lm/W MOSO HBM is a high-performance industrial luminaire designed for demanding environments. It features a 100 W power rating, DALI dimming control, and a luminous efficacy of 200 lm/W, delivering efficient and adaptable lighting for large indoor and outdoor spaces.

General information about 100W UFO LED High Bay DALI Dimmable 200lm/W MOSO HBM

This industrial high bay luminaire incorporates a 90º optic for focused light distribution, ideal for high-ceiling installations. Its robust construction combines aluminium and PC materials to ensure durability and effective heat dissipation. The product offers IP65 protection against dust and water ingress, alongside IK09 impact resistance, supporting installation in demanding environments. The integrated MOSO driver supports DALI dimming, enabling precise lighting control and energy management. With a CRI of 85 and UGR below 19, it provides balanced colour rendering and visual comfort. The luminaire operates within an ambient temperature range of -20 °C to +50 °C, making it suitable for a wide variety of industrial and commercial applications.

Use and applications

This high bay luminaire is designed to provide effective lighting solutions in both indoor and outdoor installation scenarios. Its IP65-rated enclosure makes it suitable for exterior industrial zones where protection against dust and water is critical. For example, in warehouses, the luminaire ensures high luminous output and controlled glare thanks to its 90º optic, supporting safe and efficient operations. Additionally, the product is well-suited for manufacturing facilities where IK09 impact protection contributes to the luminaire’s resilience against mechanical stresses.

The luminaire operates on a standard 220–240 V AC supply with a power factor of 0.90, ensuring electrical efficiency. Its 100,000-hour lifespan reduces maintenance frequency, while the DALI dimming control allows integration into smart lighting systems for enhanced operational flexibility. This combination of features makes it a reliable choice for projects where robustness, energy control, and high luminous flux are essential.

Key benefits

  • High luminous efficacy thanks to a 200 lm/W performance ensuring efficient energy use.
  • Enhanced durability provided by IP65 protection and IK09 impact resistance for demanding environments.
  • Visual comfort achieved through a UGR below 19 and a CRI of 85 for balanced colour rendering.
  • Flexible lighting control enabled by the MOSO driver with DALI dimming compatibility.
  • Long operational life of 100,000 hours reducing maintenance needs and operational costs.

Highlighted specifications

Power: 100 W; Luminous flux: 20,000 lm; Optic: 90º; Protection: IP65, IK09; Driver brand: MOSO; Dimming type: DALI; Power factor: 0.90.

Installation and maintenance

The luminaire is designed for straightforward installation according to the indicated system. It includes a secure hanging ring for suspension mounting. Maintenance procedures should always begin by disconnecting the power supply to ensure safety. The robust enclosure supports easy cleaning and upkeep in industrial environments. Its compatibility with DALI systems simplifies integration and remote management, reducing onsite intervention frequency.

Disconnect the power supply before any intervention.


Specialized lighting distribution in United Kingdom. If you are looking to buy 100W UFO LED High Bay DALI Dimmable 200lm/W MOSO HBM with a professional warranty, the HBM series is a leading choice for durability and efficiency. Quality certified by CE, CEE, RoHS, UKCA for professional installations and projects. Check price and availability here.
