Range Expert
  • 150 W
    Wattage 150 W
  • 220-240V AC
    Voltage Range 220-240V AC
  • 30000 lm
    Lumens 30000 lm
  • 292 mm
    Diameter 292 mm
Image of Industrial UFO LED High Bay 150W 0-10V Dimmable LEDNIX 200lm/W HBM with PHILIPS Xitanium Driver
    Image of Industrial UFO LED High Bay 150W 0-10V Dimmable LEDNIX 200lm/W HBM with PHILIPS Xitanium Driver
    Image of Industrial UFO LED High Bay 150W 0-10V Dimmable LEDNIX 200lm/W HBM with PHILIPS Xitanium Driver
    Image of Industrial UFO LED High Bay 150W 0-10V Dimmable LEDNIX 200lm/W HBM with PHILIPS Xitanium Driver
    Image of Industrial UFO LED High Bay 150W 0-10V Dimmable LEDNIX 200lm/W HBM with PHILIPS Xitanium Driver
    Image of Industrial UFO LED High Bay 150W 0-10V Dimmable LEDNIX 200lm/W HBM with PHILIPS Xitanium Driver
1 / 5
  • 150 W

    Wattage

    150 W

  • 220-240V AC

    Voltage Range

    220-240V AC

  • 30000 lm

    Lumens

    30000 lm

  • 292 mm

    Diameter

    292 mm

  • 1-10 V

    Type Of Dimming

    1-10 V

  • 0.95

    Power Factor

    0.95

  • IP65

    IP Rating

    IP65

  • No

    Battery Operated

    No

  • 105.45 mm x Ø292 mm

    Dimensions

    105.45 mm x Ø292 mm

  • 105.45 mm

    Height

    105.45 mm

  • IK09

    IK Protection

    IK09

  • 200 lm/W

    Luminous Efficiency

    200 lm/W

LEDNIX

Industrial UFO LED High Bay 150W 0-10V Dimmable LEDNIX 200lm/W HBM with PHILIPS Xitanium Driver

LEDNIX
Download technical datasheet

Ref. Ledkia: 121971

Manuf. ref.: HBM-150-N90

Colour Temperature Neutral White 4000K

Optic 90º

In Stock, delivery in 15-20 days

£75.99

VAT included
Energetic efficiency

In Stock, delivery in 15-20 days

PRO CLUB badge

Are you a lighting professional or a company?

  • Great discounts off PVP
  • Extended Warranty
  • Exclusive Services

Buy now, pay later

Credit payment

    • 30 Day Return

      You can renounce to this product during the first 30 calendar days from receipt, provided that the product remains in perfect condition for use.


      Custom-made products and cut-to-size strips are excluded.


      Full conditions here: After-sales service.

    • 24h Free Delivery

      If you place your order today before 2:30 pm, delivery within 24/48h (working days).


      Shipping is free on purchases over £ 49.99 (incl. VAT).


      Full conditions here: Delivery methods.

    • 100% secure payments

      payment method image 1

      payment method image 2

      At Ledkia we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation.


      More information: Payment methods.

    • Up to 5 year warranty

      Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.


      You will find the exact product warranty in the technical details.


      Full conditions here: After-sales service.

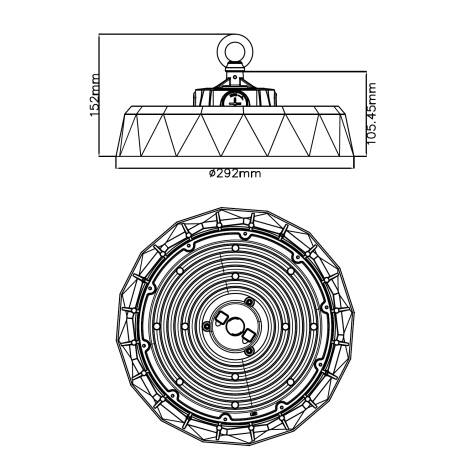

Dimensions

  • Diameter292 mm
  • Height105.45 mm
  • Weight1.8 kg
Scheme image

Downloads

  • pdf file

    Technical Data Sheet PDF

Certificates and Stamps

CertificateCertificateCertificateCertificateCertificate

Technical Specifications

  • Technical Information

    • Temperature range in which the product can operate optimally, ensuring its performance without overheating or damage.
      Ambient Working Temperature-20 °C~+50 °C
    • Quality, safety and compliance certifications that the product has obtained, such as CE, RoHS or UL, which guarantees that it meets industry standards and current regulations.
      CertificatesRoHS, CE, DLC, ERP, UKCA
    • Measures how accurately a light source displays colours compared to natural light. A high CRI (close to 100) ensures accurate colour rendering.
      Colour Rendering Index85
    • Defines the light tone, from warm white to cool white, measured in Kelvin (K).
      Colour Temperature4000K
    • DimmableYes
    • Driver BrandPHILIPS Xitanium
    • Driver Intensity520 mA - 840 mA
    • Driver Power8.3 W-150 W
    • Voltage level that the driver uses to power the LEDs or electrical components of the product, ensuring their proper functioning.
      Driver Tension160 V DC - 260 V DC
    • Electrical Insulation ClassI
    • Fitting MaterialAluminium, PC
    • Frequency50-60 Hz
    • Estimated lifespan of the product before it loses performance. Based on optimal, non-continuous use, and measured in hours of operation under controlled conditions.
      Hours100.000 hours
    • Protection grade that the product offers against physical impacts. It is measured on a scale from IK00 to IK10, with IK10 being the highest level of resistance to impact and mechanical damage.
      IK ProtectionIK09
    • The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
      IP RatingIP65
    • Light ColourNeutral White
    • Lumens30000 lm
    • Ratio between light output (lumens) and energy consumed (watts). A high value indicates better efficiency, ideal for saving energy without compromising lighting.
      Luminous Efficiency200 lm/W
    • Type of lens that determines the distribution and quality of the light. It influences the illumination angle and light efficiency.
      Optic90º
    • Power Factor0.95
    • Voltage level required for the product to function correctly.
      Voltage Range220-240V AC
    • Wattage150 W
    • Internal temperature range in which the product can operate efficiently and safely. It is important to ensure its reliability under different usage conditions.
      Working Temperature-30 °C~+45 °C

  • Product Data

    • Manufacturer or company responsible for designing and producing the product. A recognized name ensures quality and support.
      BrandLEDNIX
    • Guarantee7 years
    • Product SeriesHBM

  • Product Information

    • Light SourceSMD2835
    • LocationOutdoor, Indoor
    • Type Of Dimming1-10 V
    • Type Of Driver1-10V dimmable
OutLED: TOP products at incredible prices

Description

The UFO Industrial LED High Bay 150W 200 lm/W PHILIPS Xitanium Dimmable 1-10V LEDNIX HBM represents the latest generation in high-performance industrial lighting. Designed for demanding applications, this high bay offers market-leading energy efficiency at 200 lm/W, achieving the prestigious Class A certification under the European energy efficiency standard. Its ability to produce exceptional brightness with low consumption makes it the best choice for those seeking maximum savings without compromising lighting quality.

Superior efficiency with next-generation LEDs and PHILIPS Xitanium Driver

This LED high bay incorporates ultra-efficient LEDs, designed to maximise brightness with the lowest possible consumption. Thanks to its performance of 200 lm/W, it far surpasses standard models, allowing powerful lighting with significantly reduced energy consumption.

Additionally, it is equipped with a PHILIPS Xitanium Driver, one of the most recognised brands in the sector for its reliability and stability. This 1-10V dimmable driver allows integration with motion sensors or dusk-to-dawn regulators, further optimising energy consumption. In industrial environments, the luminaire is often combined with dimming sensors to remain at 10% capacity and only increase to 100% when motion is detected, providing efficient and automated lighting management.

Maximum energy efficiency certification

Meeting the most demanding standards, this high bay holds the DLC certification, required in the United States to guarantee its maximum energy efficiency and reliability in industrial installations. Its optimised design complies with the strictest regulations regarding sustainability and energy savings, making it an ideal choice for industrial warehouses, storage facilities, factories, and commercial spaces.

Robust and durable design

Constructed from high-quality aluminium, its structure provides excellent thermal dissipation, extending the LED’s lifespan and maintaining stable performance under demanding conditions. With an IP65 protection rating, it is resistant to dust and water jets, ensuring durability even in industrial environments with moisture, dust, or temperature variations.

Applications and versatility

Thanks to its 1-10V dimming and ability to integrate sensors, this LED high bay is perfect for projects aiming to optimise energy consumption without sacrificing high-power lighting. It is ideal for use in industrial warehouses, logistics centres, workshops, production areas, and high-ceiling spaces where efficient and uniform lighting is required.

The UFO Industrial LED High Bay 150W 200 lm/W PHILIPS Xitanium Dimmable 1-10V LEDNIX HBM is the ultimate solution for those seeking maximum efficiency, advanced technology, and reliability in demanding industrial environments. Its combination of ultra-high efficiency, top-level certifications, and compatibility with automation systems positions it as the most advanced option in industrial LED lighting.
