|Team of experts at your service
0
Range Expert
  • 150 W
    Wattage 150 W
  • 220-240V AC
    Voltage Range 220-240V AC
  • 30000 lm
    Lumen 30000 lm
  • 292 mm
    Diameter 292 mm
Image of 150W UFO LED High Bay DALI Dimmable 200lm/W MOSO HBM
EcoEfficient
    Image of 150W UFO LED High Bay DALI Dimmable 200lm/W MOSO HBM
    Image of 150W UFO LED High Bay DALI Dimmable 200lm/W MOSO HBM
    Image of 150W UFO LED High Bay DALI Dimmable 200lm/W MOSO HBM
    Image of 150W UFO LED High Bay DALI Dimmable 200lm/W MOSO HBM
1 / 4
  • 150 W

    Wattage

    150 W

  • 220-240V AC

    Voltage Range

    220-240V AC

  • 30000 lm

    Lumen

    30000 lm

  • 292 mm

    Diameter

    292 mm

  • DALI

    Type Of Dimming

    DALI

  • 0.9

    Power Factor

    0.9

  • UGR <19

    Glare Factor

    UGR <19

  • IP65

    IP Rating

    IP65

  • No

    Battery Operated

    No

  • 105.45 mm x Ø292 mm

    Dimensions

    105.45 mm x Ø292 mm

  • 105.45 mm

    Height

    105.45 mm

  • IK09

    IK Protection

    IK09

150W UFO LED High Bay DALI Dimmable 200lm/W MOSO HBM

Download technical datasheet

Ref. Ledkia: 115637

PROMO

Before £76.99

-29% (You save £22.00)

£54.99

VAT included
Energetic efficiency

Colour Temperature Daylight 6000K

In Stock, delivery in 15-20 days

PRO CLUB badge

Are you a lighting professional or a company?

  • Great discounts off PVP
  • Extended Warranty
  • Exclusive Services

Buy now, pay later

Credit payment

    • 30 calendar days to return

      You can renounce to this product during the first 30 calendar days from receipt, provided that the product remains in perfect condition for use.


      Custom-made products and cut-to-size strips are excluded.


      Full conditions here: After-Sales Service.

    • 24h Delivery

      If you place your order today before 2:30 pm, delivery within 24/48h (working days).


      Shipping is free on purchases over £49.99 (incl. VAT).


      Full conditions here: Shipping methods.

    • 100% secure payments

      payment method image 1

      payment method image 2

      At Ledkia we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation.


      More information: Payment methods.

    • Warranty up to 5 years

      Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.


      You will find the exact product warranty in the technical details.


      Full conditions here: After-Sales Service.

Dimensions

  • Dimensions105.45 mm x Ø292 mm
  • Weight2.35 kg

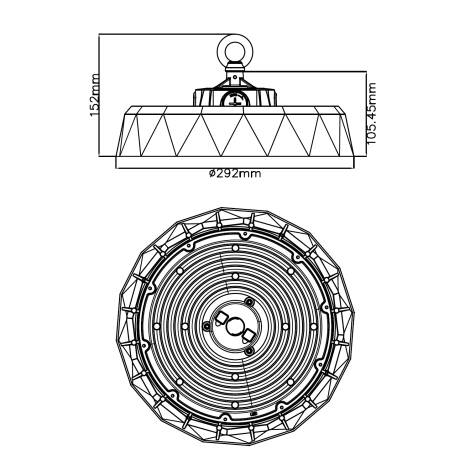

Scheme image

Downloads

  • pdf file

    PDF Datasheet 115637_236257 EN

  • pdf file

    DoC_115637_236257

Certificates and Stamps

CertificateCertificateCertificateCertificate

Technical Specifications

  • Electrical Features

    • Electrical Insulation ClassI
    • Frequency50-60 Hz
    • Light SourceSMD2835
    • Minimum and maximum voltage fluctuation that the product can withstand momentarily.
      Nominal Voltage120 V - 277 V
    • Product's ability to withstand voltage spikes or electrical overloads, protecting internal components from potential damage due to current fluctuations.
      Overvoltage Protection6 kV
    • Remote ControlNo
    • Type Of DimmingDALI
    • Voltage level required for the product to function correctly.
      Voltage Range220-240V AC
    • Wattage150 W

  • LED Features

    • Measures how accurately a light source displays colours compared to natural light. A high CRI (close to 100) ensures accurate colour rendering.
      Colour Rendering Index85
    • Defines the light tone, from warm white to cool white, measured in Kelvin (K).
      Colour Temperature6000K
    • Low-glare products offer more comfortable lighting, suitable for extended use.
      Glare FactorUGR <19
    • Estimated lifespan of the product before it loses performance. Based on optimal, non-continuous use, and measured in hours of operation under controlled conditions.
      Hours100.000 hours
    • Light ColourDaylight
    • Lumen30000 lm
    • Ratio between light output (lumens) and energy consumed (watts). A high value indicates better efficiency, ideal for saving energy without compromising lighting.
      Luminous Efficiency200 lm/W
    • Power Factor0.9

  • Mechanical Features

    • Temperature range in which the product can operate optimally, ensuring its performance without overheating or damage.
      Ambient Working Temperature-20 °C~+50 °C
    • Ability to move or rotate the spotlight to direct the light as desired.
      DirectionalNo
    • Indicates whether the product or its materials are fire-resistant, enhancing safety in high-temperature or flame-risk areas.
      Fire RatedNo
    • Protection grade that the product offers against physical impacts. It is measured on a scale from IK00 to IK10, with IK10 being the highest level of resistance to impact and mechanical damage.
      IK ProtectionIK09
    • The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
      IP RatingIP65
    • LocationOutdoor, Indoor
    • Type of lens that determines the distribution and quality of the light. It influences the illumination angle and light efficiency.
      Optic90º
    • Internal temperature range in which the product can operate efficiently and safely. It is important to ensure its reliability under different usage conditions.
      Working Temperature-30 °C~+45 °C

  • Product Information

    • CertificatesCE, RoHS, CEE, UKCA
    • Guarantee7 years
    • Product SeriesHBM

  • Materials and Finishes

    • ColourBlack
    • Fitting MaterialPC, Aluminium

  • Driver Information

    • Driver BrandMOSO
    • WifiNo
Sales

Description

The 150W UFO LED High Bay DALI Dimmable 200lm/W MOSO HBM is a high bay luminaire designed for demanding industrial and commercial environments. It delivers a luminous flux of 30,000 lumens with an impressive efficacy of 200 lm/W, featuring a MOSO driver and DALI dimming control for precise lighting management.

General information about 150W UFO LED High Bay DALI Dimmable 200lm/W MOSO HBM

This high bay luminaire is built with a robust aluminium and PC housing, offering IP65 protection and IK09 impact resistance, making it suitable for harsh indoor and outdoor conditions. It incorporates a 90º optic that ensures focused and efficient light distribution, ideal for spaces with high ceilings. The MOSO driver supports DALI dimming, enhancing energy management and lighting control. With a power factor of 0.90 and overvoltage protection at 6 kV, it guarantees stable operation under variable electrical conditions. The product belongs to the HBM series, known for high luminous flux and narrow-angle optics, providing uniform coverage in buildings over 15 m in height.

Use and applications

This high bay luminaire is designed for both indoor and outdoor installations, addressing the needs of sectors such as industry and production due to its high luminous output and durability. It performs well in industrial units and warehouses, where its IP65 rating protects against dust and water ingress, and its IK09 resistance ensures safety in environments prone to mechanical impacts.

The luminaire operates efficiently within an ambient temperature range of -20 °C to +50 °C and supports a voltage range of 220-240 V AC, suitable for various electrical infrastructures. Its DALI dimming capability allows integration into advanced lighting control systems, facilitating energy savings and adaptable lighting conditions. This product offers a reliable solution for projects where robustness, control, and luminous efficiency are essential.

Key benefits

  • High luminous efficiency thanks to the 200 lm/W output, ensuring effective illumination with reduced energy consumption.
  • Robust protection with IP65 and IK09 ratings, providing reliability in demanding environments.
  • Precise lighting control enabled by the MOSO driver with DALI dimming for flexible operation.
  • Stable electrical performance with a power factor of 0.90 and 6 kV overvoltage protection.
  • Long operational life of 100,000 hours, minimising maintenance needs and downtime.

Highlighted specifications

Power: 150 W; Luminous flux: 30,000 lumen; CRI: 85; Beam angle: 90º; Protection: IP65, IK09; Operating temperature: -20 °C to +50 °C.

Installation and maintenance

Installation must follow the specified mounting system to ensure optimal performance and safety. The luminaire’s robust aluminium and PC construction facilitates secure fixing and heat dissipation. It is essential to disconnect the power supply before any intervention to guarantee safety. The product supports integration with DALI control systems for straightforward commissioning and maintenance.

Disconnect the power supply before any intervention.


Specialized lighting distribution in United Kingdom. If you are looking to buy 150W UFO LED High Bay DALI Dimmable 200lm/W MOSO HBM with a professional warranty, the HBM is a leading choice for durability and efficiency.  Quality certified by CE, CEE, RoHS, UKCA for professional installations and projects. Check price and availability here.
