  • 220-240V AC
    Voltage Range 220-240V AC
  • 72 mm
    Diameter 72 mm
  • IP20
    IP Rating IP20
  • 45 mm x Ø72 mm
    Dimensions 45 mm x Ø72 mm
Image of Recessed DALI2 Motion Sensor with Remote
    Image of Recessed DALI2 Motion Sensor with Remote
    Image of Recessed DALI2 Motion Sensor with Remote
    Image of Recessed DALI2 Motion Sensor with Remote
    Image of Recessed DALI2 Motion Sensor with Remote
1 / 4
  • 220-240V AC

    Voltage Range

    220-240V AC

  • 72 mm

    Diameter

    72 mm

  • IP20

    IP Rating

    IP20

  • 45 mm x Ø72 mm

    Dimensions

    45 mm x Ø72 mm

  • 45 mm

    Height

    45 mm

  • PC

    Fitting Material

    PC

  • 12 m

    Detention Range Metres

    12 m

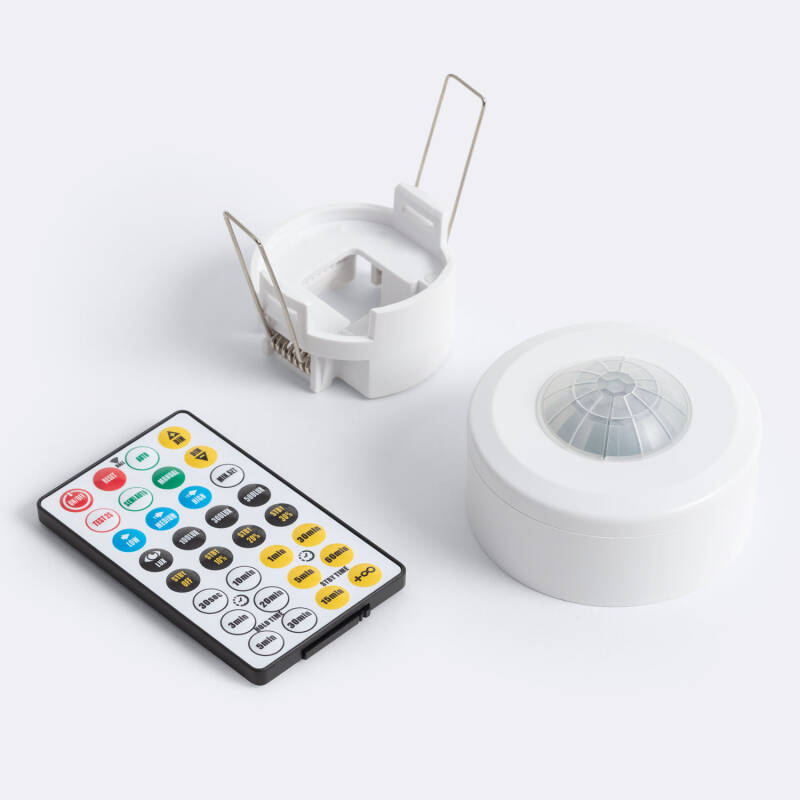

Recessed DALI2 Motion Sensor with Remote

Download technical datasheet

Ref. Ledkia: 125570

Colour White

£47.99

VAT included

PRO CLUB badge

Are you a lighting professional or a company?

  • Great discounts off PVP
  • Extended Warranty
  • Exclusive Services

Buy now, pay later

Credit payment

  • 30 Day Returns

    You can renounce to this product during the first 30 calendar days from receipt, provided that the product remains in perfect condition for use.


    Custom-made products and cut-to-size strips are excluded.


    Full conditions here: After-sales service.

  • 24h Free Delivery

    If you place your order today before 2:30 pm, delivery within 24/48h (working days).


    Shipping is free on purchases over £ 49.99 (incl. VAT).


    Full conditions here: Delivery methods.

  • 100% secure payments

    payment method image 1

    payment method image 2

    At Ledkia we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation.


    More information: Payment methods.

  • Up to 5 year warranty

    Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.


    You will find the exact product warranty in the technical details.


    Full conditions here: After-sales service.

Dimensions

  • Diameter72 mm
  • Height45 mm
  • Weight69 g

Downloads

  • pdf file

    Technical Data Sheet PDF

  • pdf file

    Instruction Manual

Certificates and Stamps

CertificateCertificateCertificate

Technical Specifications

  • Technical Information

    • Temperature range in which the product can operate optimally, ensuring its performance without overheating or damage.
      Ambient Working Temperature-20 °C~+40 °C
    • Quality, safety and compliance certifications that the product has obtained, such as CE, RoHS or UL, which guarantees that it meets industry standards and current regulations.
      CertificatesRoHS, CE, UKCA
    • ColourWhite
    • Defines the sensitivity area of a sensor in degrees. A wider angle will detect motion over a larger area.
      Detection Range360 °
    • Maximum range at which a sensor can detect motion.
      Detention Range Metres12 m
    • Fitting MaterialPC
    • InstallationRecessed
    • The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
      IP RatingIP20
    • Sensitivity10 Lux~2000 Lux
    • SensorIR
    • Sensor TypeDALI
    • Voltage level required for the product to function correctly.
      Voltage Range220-240V AC

  • Product Data

    • Guarantee3 years
    • Product SeriesSenise

  • Product Information

    • LocationIndoor

Description

The recessed sensor with DALI2 control and remote control is a high-level solution for indoor presence and ambient light detection using the digital DALI2 protocol. Its compact, configurable, and precise design makes it ideal for applications in offices, classrooms, technical corridors, or any professional environment with DALI lighting control. It integrates a PIR sensor, dual light sensor, and advanced programming functions via IR remote, offering intelligent, efficient control adaptable to multiple scenarios.

DALI2 technology and dual ambient sensor

This model features a DALI output and integrated power supply (16V, 55mA), allowing it to act as a controller in installations with DALI luminaires. It includes a PIR presence sensor and dual light sensor, enabling it to adjust lighting based on the available natural light level, optimizing energy consumption and enhancing visual comfort. It is compatible with the DALI2 standard, ensuring interoperability with current drivers and systems.

Flexible configuration via remote control

The sensor can be conveniently programmed using a multi function IR remote, allowing configuration of parameters such as:

  • Delay time: adjustable from 5 seconds to 60 minutes
  • Standby power: between 0 and 30% (default 10%)
  • Detection range: minimum, medium, high, or maximum (default maximum)
  • Light intensity: 5 to 1000 lux

It is also possible to select preconfigured operating modes tailored to the desired lighting control type:

  • Occupancy + CLO Mode: the sensor detects human presence and automatically adjusts the light level to maintain constant illumination over time, progressively compensating for the aging of light sources or reduction of natural light. This mode is ideal for offices, classrooms, or spaces requiring stable lighting uniformity.
  • Occupancy-only Mode: lighting is activated only when the sensor detects motion or presence within the coverage area, and turns off after the programmed delay time if no activity is detected. This is the most energy-efficient setting for passageways, restrooms, storage rooms, or common areas.
  • CLO-only Mode (Constant Light Output): in this mode, the sensor does not respond to presence, but regulates luminaire intensity solely based on the available ambient light, maintaining the programmed target lux level. It is useful in areas with continuous lighting such as receptions, hallways, or open workspaces.

Recessed or surface mounting

Its structure is designed for installation in drop ceilings or surface mounting, with compact dimensions: 73.6 x 73.6 x 66 mm (recessed) or 46.5 mm height for surface mounting. It includes spring clips for direct installation into false ceilings or adaptation to existing structures without the need for additional frames. The sensor includes optical adjustment masks that allow detection zones to be delimited based on the application.

Technical and professional applications

This sensor is ideal for educational centers, meeting rooms, work areas, office corridors, shared spaces in tertiary buildings, or energy efficiency projects. Its detection range reaches up to 7.5 meters in diameter at 5 meters height. It offers reliability, precise control, and automated lighting optimization with full integration into DALI2 intelligent lighting systems.
