Voltage Range 220-240V AC
Max Wattage 300 W
Cut Out Dimensions Ø60 mm
Diameter 80 mm
Voltage Range
220-240V AC
Max Wattage
300 W
Cut Out Dimensions
Ø60 mm
Diameter
80 mm
IP Rating
IP20
Dimensions
75 mm x Ø80 mm
Height
75 mm
Fitting Material
PCB
Recessed 360º Radar Motion Sensor
Ref. Ledkia: 1094
£11.99
VAT includedIn Stock, delivery in 24/48h
Buy before 2:30 pm we’ll ship it today.
Are you a lighting professional or a company?
- Great discounts off PVP
- Extended Warranty
- Exclusive Services
Buy now, pay later
Credit payment30 calendar days to return
You can renounce to this product during the first 30 calendar days from receipt, provided that the product remains in perfect condition for use.
Custom-made products and cut-to-size strips are excluded.
Full conditions here: After-Sales Service.
24h Delivery
If you place your order today before 2:30 pm, delivery within 24/48h (working days).
Shipping is free on purchases over £49.99 (incl. VAT).
Full conditions here: Shipping methods.
100% secure payments
At Ledkia we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation.
More information: Payment methods.
Warranty up to 5 years
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.
You will find the exact product warranty in the technical details.
Full conditions here: After-Sales Service.

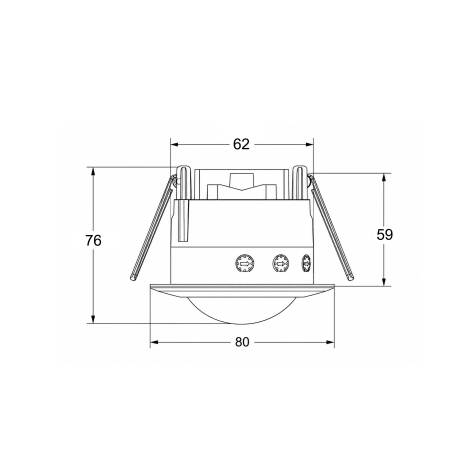

Dimensions
- Height75 mm
- Diameter80 mm
- Cut Out DimensionsØ60 mm
Downloads
Technical Data Sheet PDF
DoC_1094_0
Certificates and Stamps
Technical Specifications
Mechanical Features
- Ambient Working Temperature-20 °C~+50 °CTemperature range in which the product can operate optimally, ensuring its performance without overheating or damage.
- Detection distance range8 m
- Detection Range360 °Defines the sensitivity area of a sensor in degrees. A wider angle will detect motion over a larger area.
- InstallationRecessed
- IP RatingIP20The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
- LocationIndoor
- SensorRadar
- Sensor TypeRadar Motion
Electrical Features
- Electrical Insulation ClassII
- Frequency50-60 Hz
- Max Wattage300 W
- Sensitivity10 Lux~2000 Lux
- Voltage Range220-240V ACVoltage level required for the product to function correctly.
Materials and Finishes
- ColourWhite
- Fitting MaterialPCB
Product Information
- CertificatesCE, RoHS, UKCA
- Guarantee3 years
Driver Information
- WifiNo
Description
This Motion Sensor, which can be recessed in the ceiling, has a 360º coverage angle and a 1 to 8 metre detection field when installed at a height of 1.5 to 3.5 metres.
The detector activates its output circuit when motion is detected within its range and deactivates when the movement is no longer detected, after an adjustable amount of time. It includes a detection distance regulator, light sensitivity (day/night) and a timer.
Detection angle: 360°
Detection distance: a 1 to 8 metre radius.
Minimum power-ON time: 10 seconds ±3 seconds.
Minimum power-OFF time: 12 minutes ±1 minute.
Installation height: 1.5 to 3.5 metres.
Detection speed: 0.6-1.5 m/s.
Charges: 300W LED and 1200W Incansdescent.
