Voltage Range 220-240V AC
Max Wattage 1000 W
Cut Out Dimensions Ø73 mm
Diameter 93 mm
Voltage Range
220-240V AC
Max Wattage
1000 W
Cut Out Dimensions
Ø73 mm
Diameter
93 mm
IP Rating
IP20
Dimensions
36 mm x Ø93 mm
Height
36 mm
Fitting Material
PC
Recessed or Surface Mounted PIR Motion Sensor 360º
Ref. Ledkia: 100163
Colour White
£13.29
VAT includedIn Stock, delivery in 15-20 days
Are you a lighting professional or a company?
- Great discounts off PVP
- Extended Warranty
- Exclusive Services
Buy now, pay later
Credit payment30 calendar days to return
You can renounce to this product during the first 30 calendar days from receipt, provided that the product remains in perfect condition for use.
Custom-made products and cut-to-size strips are excluded.
Full conditions here: After-Sales Service.
24h Delivery
If you place your order today before 2:30 pm, delivery within 24/48h (working days).
Shipping is free on purchases over £49.99 (incl. VAT).
Full conditions here: Shipping methods.
100% secure payments
At Ledkia we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation.
More information: Payment methods.
Warranty up to 5 years
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.
You will find the exact product warranty in the technical details.
Full conditions here: After-Sales Service.

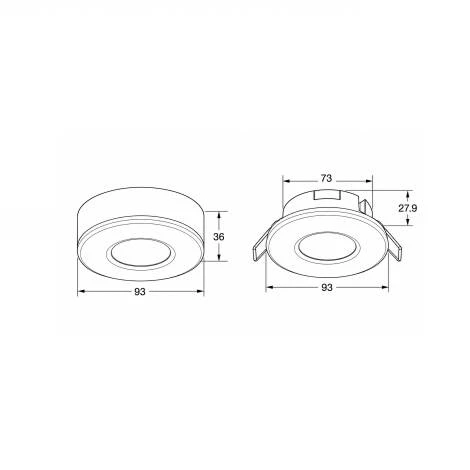

Dimensions
- Height36 mm
- Diameter93 mm
- Cut Out DimensionsØ73 mm
Downloads
Technical Data Sheet PDF
DoC_100163_206703
Certificates and Stamps
Technical Specifications
Mechanical Features
- Ambient Working Temperature-20 °C~+50 °CTemperature range in which the product can operate optimally, ensuring its performance without overheating or damage.
- Detection distance range8 m
- Detection Range360 °Defines the sensitivity area of a sensor in degrees. A wider angle will detect motion over a larger area.
- InstallationSurface
- IP RatingIP20The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
- SensorPIR
- Sensor TypePIR
Electrical Features
- Frequency50-60 Hz
- Max Wattage1000 W
- Sensitivity10 Lux~2000 Lux
- Voltage Range220-240V ACVoltage level required for the product to function correctly.
Product Information
- CertificatesCE, RoHS, UKCA
- Guarantee3 years
Materials and Finishes
- ColourWhite
- Fitting MaterialPC
Description
The 360º PIR Motion Sensor Recessed/Surface Mounted is a 2-in-1 recessed and surface mounted fixture that is ideal for indoor lighting . With a 360º detection range and a maximum detection distance of 8 meters (<24℃), it can detect movements in all directions.
The delay time is adjustable from 10 seconds ±3 seconds to 7 minutes ±2 minutes , making it suitable for various applications. It has a power supply of 220-240V/AC 50/60Hz and a maximum load of 2000W (incandescent lamp) or 1000W (energy saving lamp/LED lamp).
In addition, the ambient light is also adjustable in the range of 10-2000LUX. With an IP20 protection level, this sensor is suitable for indoor use in areas such as hallways, stairways, garages, and bathrooms.
