Range Advanced
  • 30 W
    Wattage 30 W
  • 220-240V AC
    Voltage Range 220-240V AC
  • 3000 lm
    Lumens 3000 lm
  • 87 mm
    Diameter 87 mm

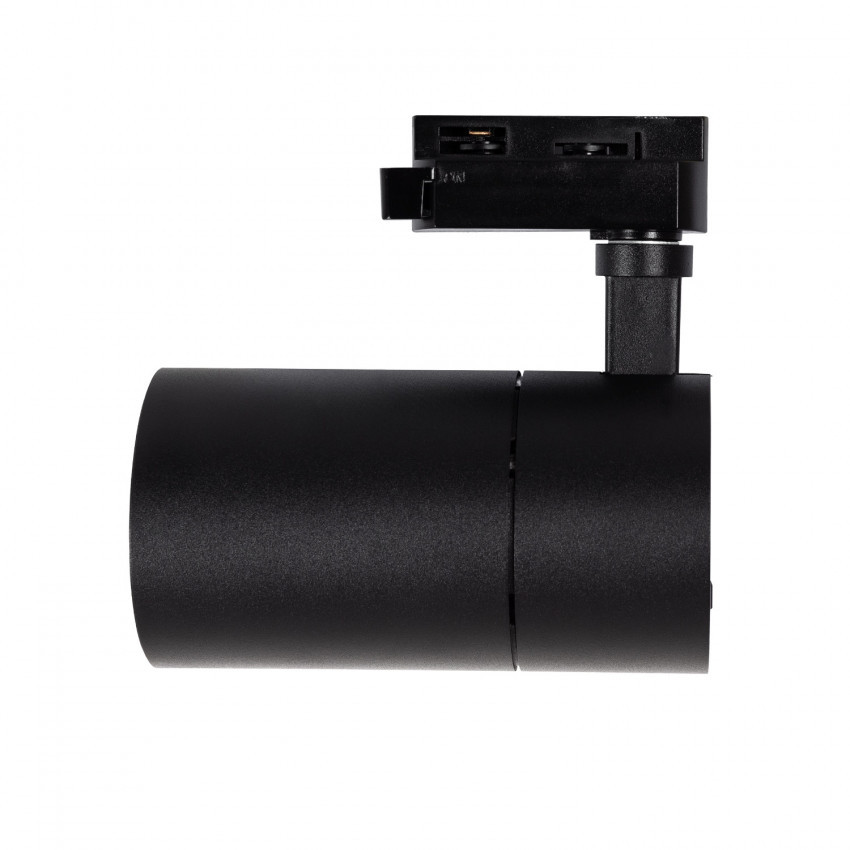

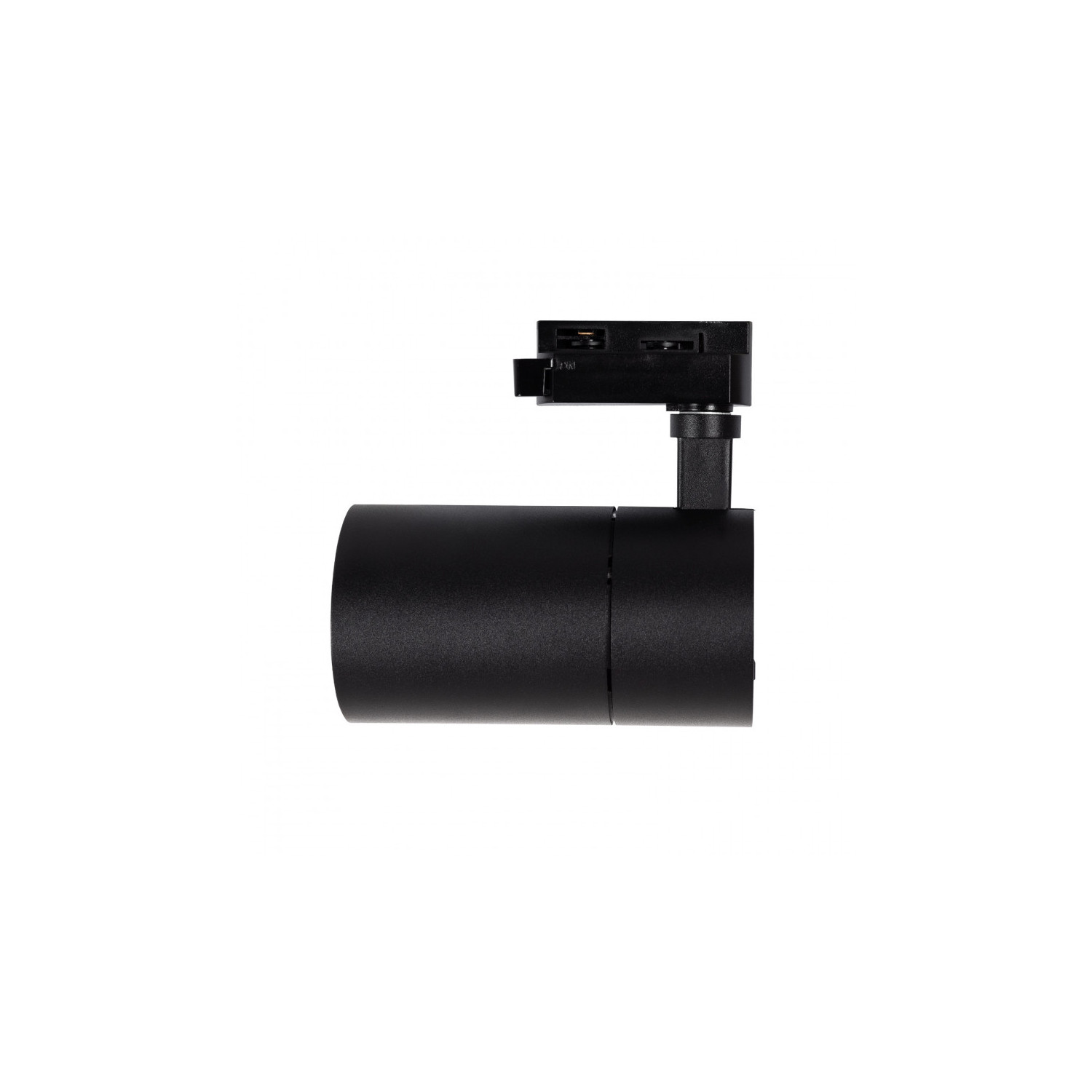

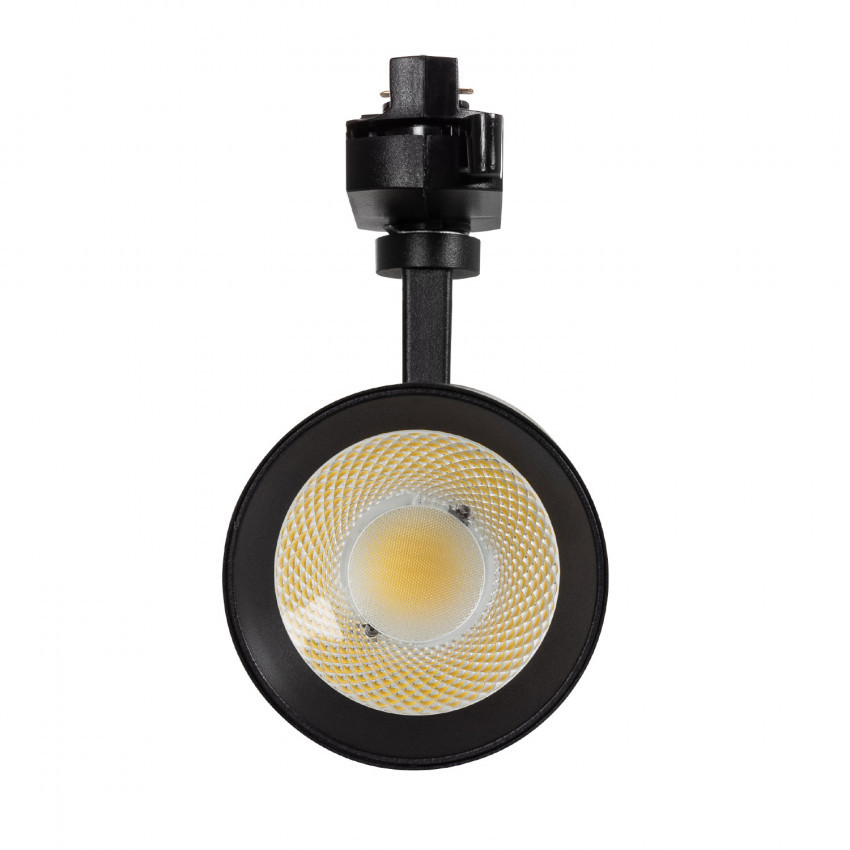

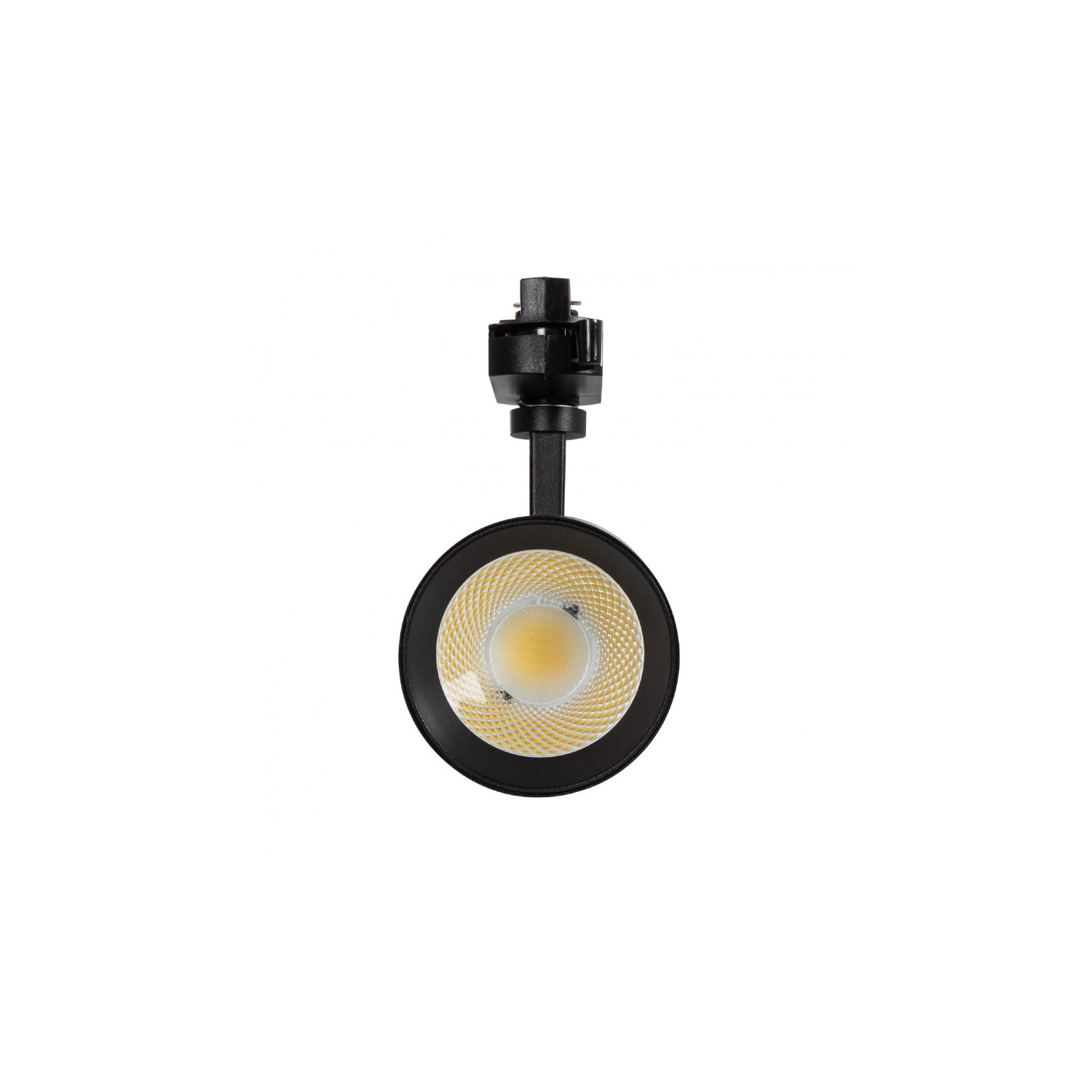

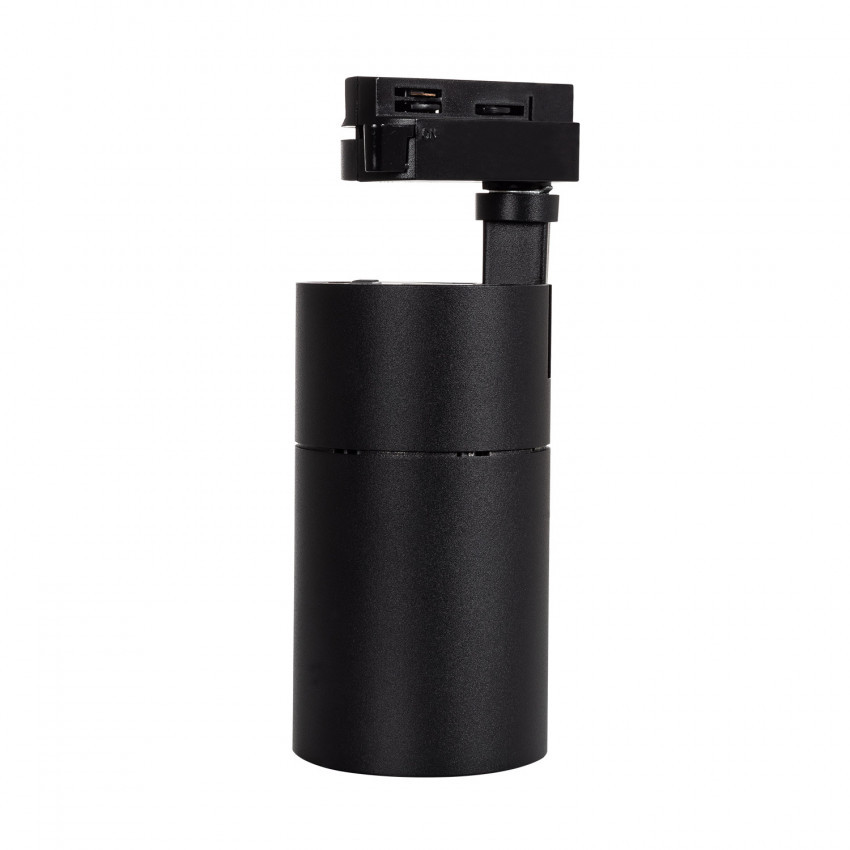

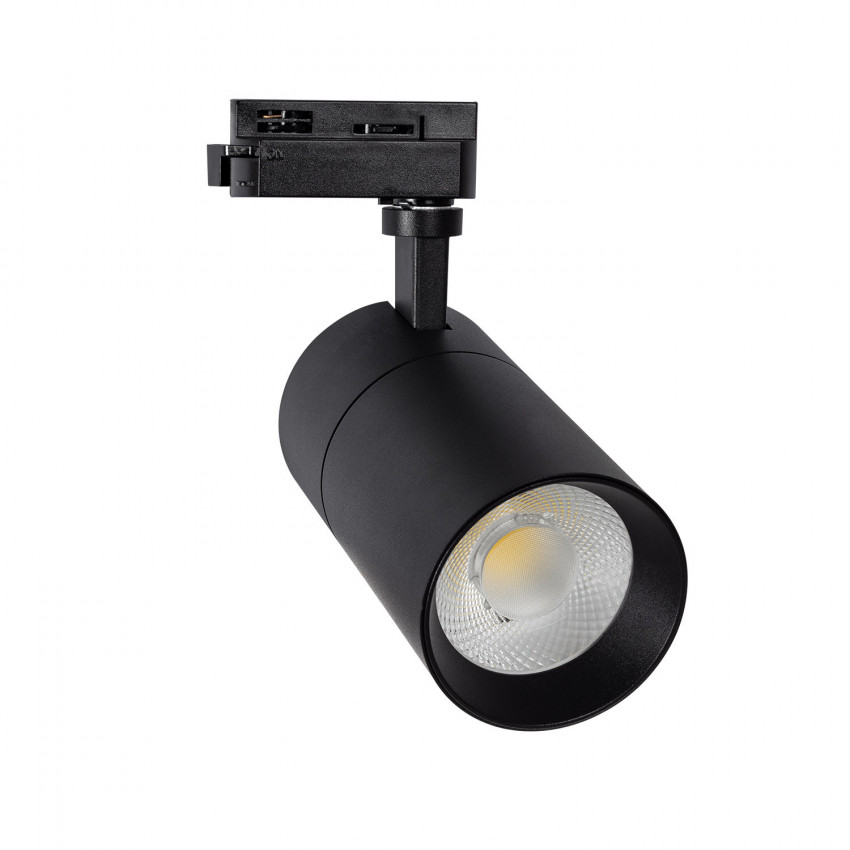

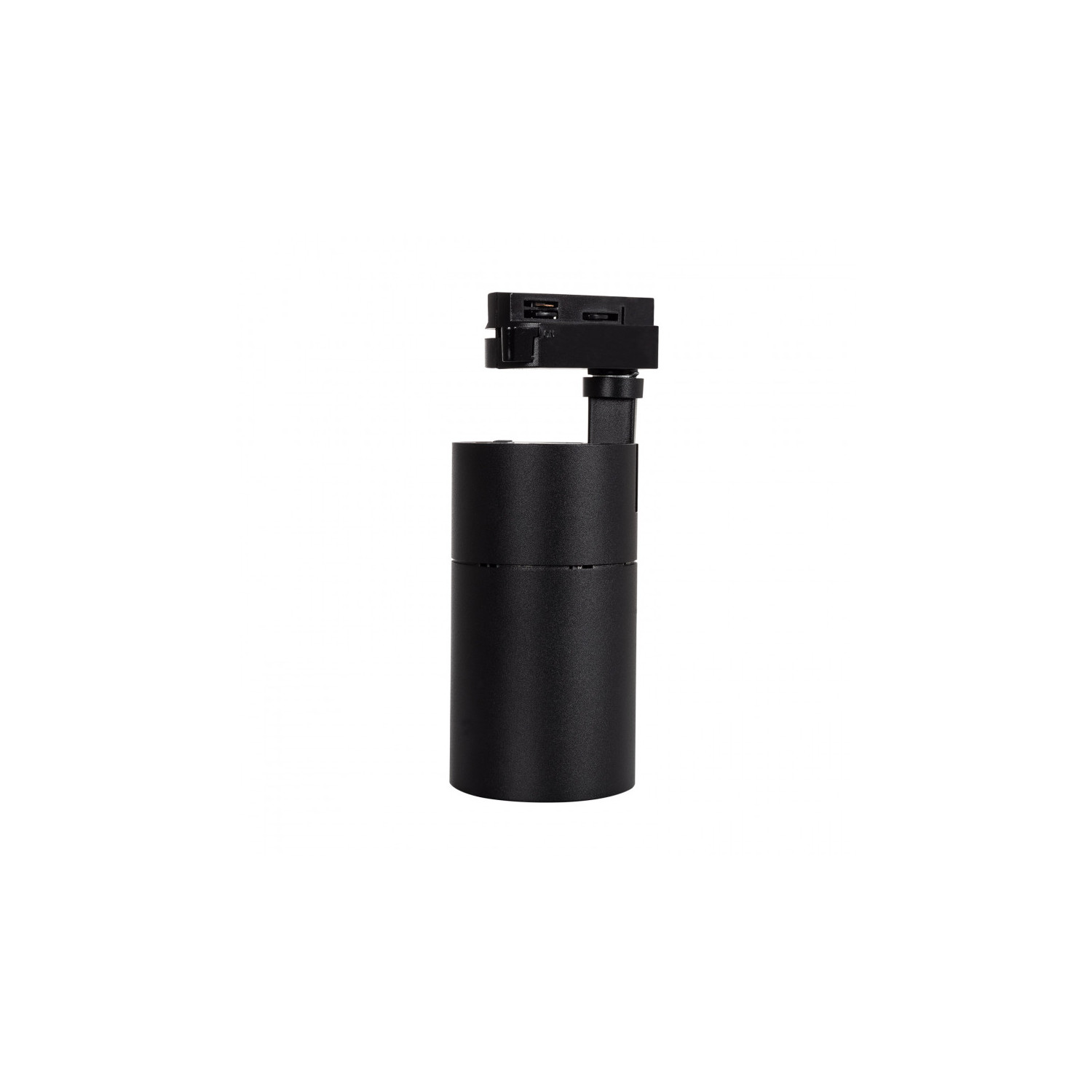

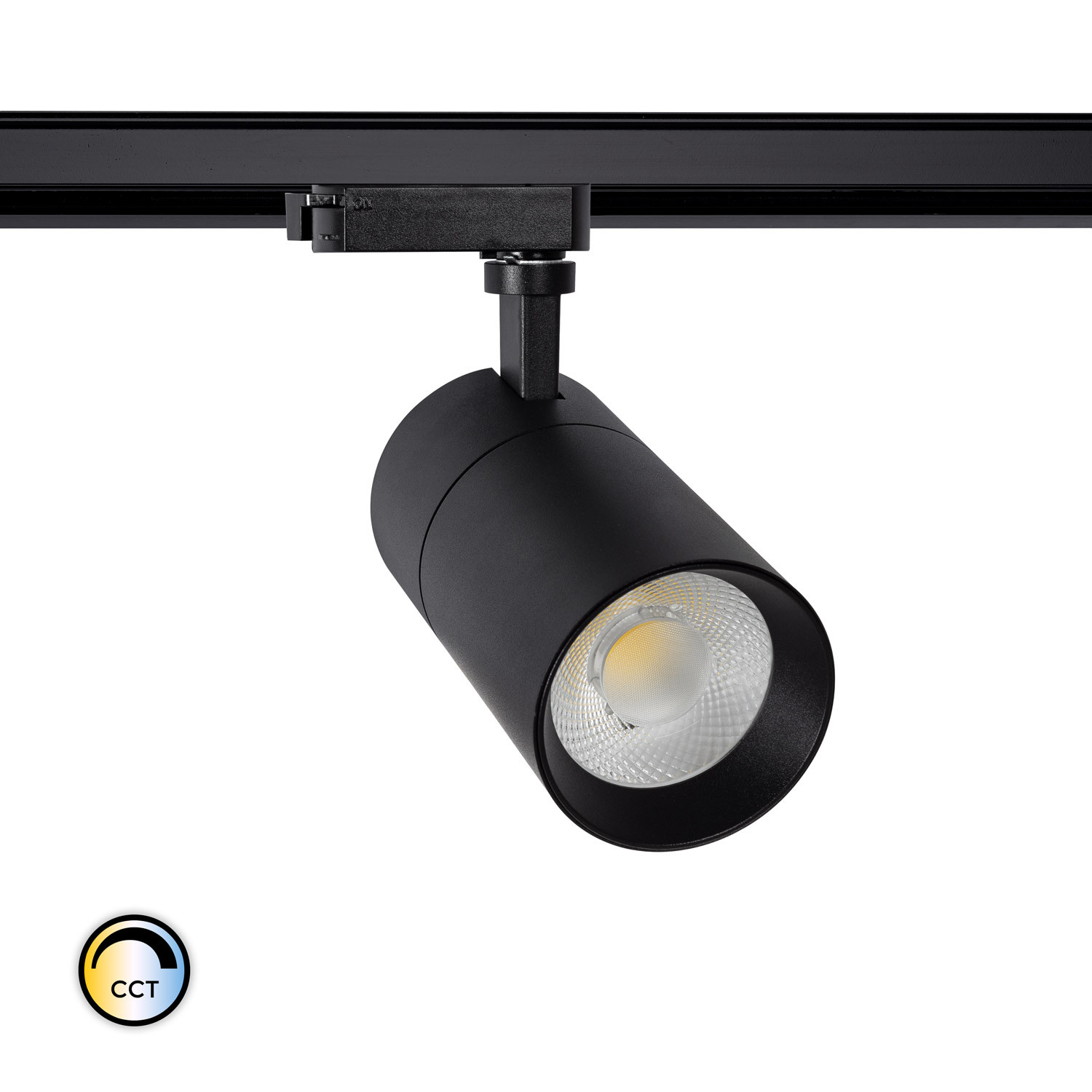

Image of 1-Circuit Track LED Spotlight 30W Mallet CCT Dimmable
    Image of 1-Circuit Track LED Spotlight 30W Mallet CCT Dimmable
    Image of 1-Circuit Track LED Spotlight 30W Mallet CCT Dimmable
    Image of 1-Circuit Track LED Spotlight 30W Mallet CCT Dimmable
    Image of 1-Circuit Track LED Spotlight 30W Mallet CCT Dimmable
    Image of 1-Circuit Track LED Spotlight 30W Mallet CCT Dimmable
1 / 5
  • 30 W

    Wattage

    30 W

  • 220-240V AC

    Voltage Range

    220-240V AC

  • 3000 lm

    Lumens

    3000 lm

  • 87 mm

    Diameter

    87 mm

  • TRIAC

    Type Of Dimming

    TRIAC

  • 0.9

    Power Factor

    0.9

  • UGR 15

    Glare Factor

    UGR 15

  • IP20

    IP Rating

    IP20

  • 212 mm

    Width

    212 mm

  • 100 lm/W

    Luminous Efficiency

    100 lm/W

  • 36º

    Beam Angle

    36º

  • Aluminium, PC

    Fitting Material

    Aluminium, PC

1-Circuit Track LED Spotlight 30W Mallet CCT Dimmable

Download technical datasheet

Ref. Ledkia: 62811

Colour White

£38.99

VAT included
Energetic efficiency

In Stock, delivery in 15-20 days

PRO CLUB badge

Are you a lighting professional or a company?

  • Great discounts off PVP
  • Extended Warranty
  • Exclusive Services

Buy now, pay later

Credit payment

  • 30 Day Returns

    You can renounce to this product during the first 30 calendar days from receipt, provided that the product remains in perfect condition for use.


    Custom-made products and cut-to-size strips are excluded.


    Full conditions here: After-sales service.

  • 24h Free Delivery

    If you place your order today before 2:30 pm, delivery within 24/48h (working days).


    Shipping is free on purchases over £ 49.99 (incl. VAT).


    Full conditions here: Delivery methods.

  • 100% secure payments

    payment method image 1

    payment method image 2

    At Ledkia we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation.


    More information: Payment methods.

  • Up to 5 year warranty

    Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.


    You will find the exact product warranty in the technical details.


    Full conditions here: After-sales service.

Dimensions

  • Diameter87 mm
  • Width212 mm

Downloads

  • pdf file

    Technical Data Sheet PDF

Certificates and Stamps

CertificateCertificate

Technical Specifications

  • Technical Information

    • Temperature range in which the product can operate optimally, ensuring its performance without overheating or damage.
      Ambient Working Temperature-30 °C~+50 °C
    • Measures in degrees how light spreads from the source. A wide angle covers more area, while a narrow one is ideal for highlighting details.
      Beam Angle36º
    • Quality, safety and compliance certifications that the product has obtained, such as CE, RoHS or UL, which guarantees that it meets industry standards and current regulations.
      CertificatesRoHS, CE, UKCA
    • Specification of the color of the product or its light (in the case of products such as lamps or light bulbs), which may affect the aesthetics and functionality of its use.
      ColourWhite
    • Measures how accurately a light source displays colours compared to natural light. A high CRI (close to 100) ensures accurate colour rendering.
      Colour Rendering Index80
    • Ability to move or rotate the spotlight to direct the light as desired.
      DirectionalYes
    • Composition of the product or its components, such as aluminum, steel, plastic or glass. The material influences the durability, design and thermal properties of the product.
      Fitting MaterialAluminium, PC
    • Range of cycles per second at which the product operates, measured in hertz (Hz). A standard value ensures compatibility with local electrical networks.
      Frequency50-60 Hz
    • Low-glare products offer more comfortable lighting, suitable for extended use.
      Glare FactorUGR 15
    • Estimated lifespan of the product before it loses performance. Based on optimal, non-continuous use, and measured in hours of operation under controlled conditions.
      Hours50.000 hours
    • Information on how the product should be placed or mounted, such as instructions on whether it requires professional installation or is easy to do by the end user.
      InstallationTrack
    • The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
      IP RatingIP20
    • Characteristic that describes the tone of light emitted by the product, such as warm, neutral or cool. It is measured in degrees Kelvin (K) and affects the atmosphere and the proper use of space.
      Light ColourSelectable (Warm - Cool - Daylight)
    • Specification that describes the purpose or application of the product, such as lighting, air conditioning, or security, among others.
      LocationIndoor
    • Total amount of light emitted by the product, measured in lumens (lm). A high value ensures well-lit spaces.
      Lumens3000 lm
    • Ratio between light output (lumens) and energy consumed (watts). A high value indicates better efficiency, ideal for saving energy without compromising lighting.
      Luminous Efficiency100 lm/W
    • Minimum and maximum voltage fluctuation that the product can withstand momentarily.
      Nominal Voltage190-260V AC
    • Indicates the electrical efficiency of the product by measuring the relationship between the useful power and that consumed. A value close to 1 represents more efficient consumption.
      Power Factor0.9
    • Voltage level required for the product to function correctly.
      Voltage Range220-240V AC
    • Indicates how much energy the light source consumes, measured in watts (W). In LED lighting, the power is much lower than in traditional sources, and is related to the light intensity (lumens).
      Wattage30 W

  • Product Data

    • Number or name that identifies the series or product line to which an item belongs, generally indicating the style, characteristics or version of a range.
      Product SeriesMallet
    • Period during which the customer has the right to have their product repaired or replaced in the event of manufacturing defects or malfunctions under normal conditions of use. For more information, consult our After-sales page.
      Warranty3 years

  • Product Information

    • Element or component that emits light in the product, such as LEDs, incandescent or fluorescent bulbs. In LED systems, the light source is highly efficient and long-lasting.
      Light SourceCOB
    • System used to control product characteristics, such as intensity regulation, color temperature or speed, adjusting its performance according to the user's needs.
      Type Of DimmingTRIAC
    • Indicates the type of mounting rail used to install the product, such as DIN rail or suspension rail, depending on the application or installation.
      Type Of TrackSingle Phase
Illuminate your outdoor spaces

Description

The New Mallet 30W No Flicker UGR15 CCT Dimmable LED Spotlight for Single Circuit Track is the perfect solution to highlight a particular element in space with a bright, high quality light, without sacrificing energy savings.

Features of the New Mallet 30W No Flicker UGR15 CCT Dimmable LED Spotlight for Single Circuit Track


The COB source that it integrates provides distributed luminosity at an angle of 36º, which provides a high quality compact light beam that reproduces colours without distorting them, perfect for complementing the general lighting of the space.

Designed for interior spaces, it is manufactured in quality materials such as aluminium and can withstand temperature variations between -25ºC and 45ºC. It has a life span of 30,000 hours.

Its installation is very simple and is carried out on a single-phase track that we will have previously installed.

This LED spotlight for Singles-Circuit Tracks has a modern finish in black and white colours. Its installation in the rail is really simple and, thanks to the quality of the components that it integrates, it will satisfy the needs of the most demanding users.

The 30W New Mallet Dimmable LED CCT Spotlight for Single-Circuit Track is fully adjustable, allowing the light from the spotlight to be directed in any direction. This makes it possible to modify the lighting of the space according to the elements that compose it as well as the colour temperature. This is why this type of LED lighting is specially designed to focus attention on specific elements or areas.

Applications of the New Mallet 30W No Flicker UGR15 CCT Dimmable LED Spotlight for Single Circuit Track


Its applications are mainly in spaces such as showrooms, premises with different atmospheres, lounges, shopping centres, clothing shops, furniture shops and, in general, commercial spaces that are always being readapted according to the products to be exhibited. Even so, thanks to its elegant design you can see use in the design of highly attractive interior environments, and even in the home.

It can be oriented in any direction, allowing the lighting to be changed according to the presentation of the products on display at any given time. This spotlight can be used to enhance specific decorative elements, contributing to the creation of multiple atmospheres.

What does CCT (Correlated Colour Temperature) mean?


When a product is marked as CCT it means that we can change the colour temperature. CCT is defined in degrees Kelvin, according to the colour perception of a white LED to the human eye, we can differentiate them into 3 types of colour; a warm light, a neutral light and a cold light, of 2700-3500K, 4000-4500K and 5000-6500K respectively. The CCT values do not indicate anything about the colour rendering capacity of the LED
