Range Essential
  • 100 W
    Wattage 100 W
  • 220-240V AC
    Voltage Range 220-240V AC
  • 10000 lm
    Lumen 10000 lm
  • 230 mm
    Diameter 230 mm

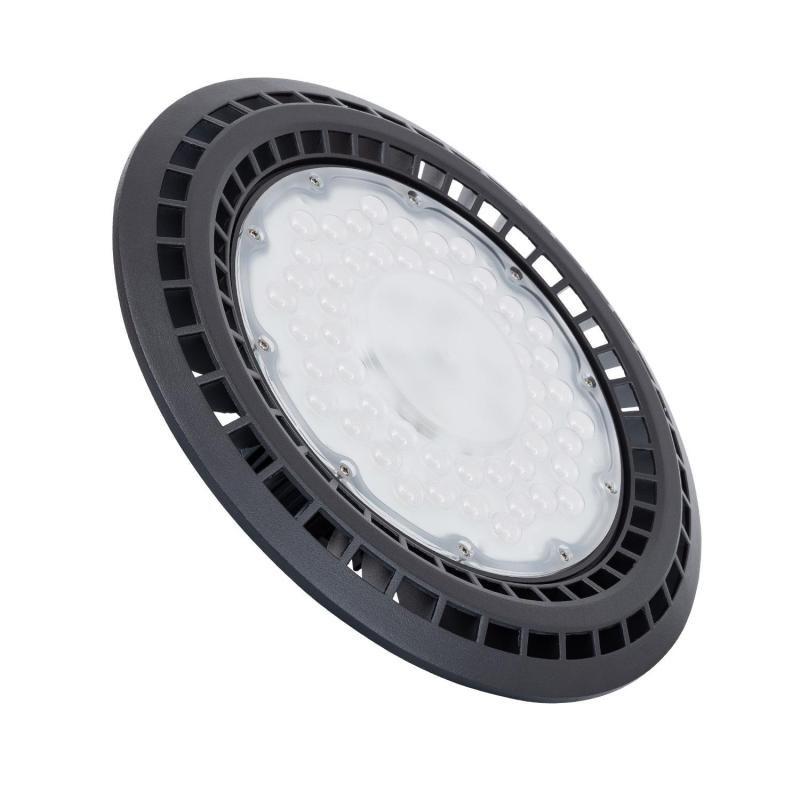

Image of 100W Solid Slim 120lm/W UFO LED High Bay
    Image of 100W Solid Slim 120lm/W UFO LED High Bay
    Image of 100W Solid Slim 120lm/W UFO LED High Bay
    Image of 100W Solid Slim 120lm/W UFO LED High Bay
    Image of 100W Solid Slim 120lm/W UFO LED High Bay
    Image of 100W Solid Slim 120lm/W UFO LED High Bay
    Image of 100W Solid Slim 120lm/W UFO LED High Bay
1 / 6
  • 100 W

    Wattage

    100 W

  • 220-240V AC

    Voltage Range

    220-240V AC

  • 10000 lm

    Lumen

    10000 lm

  • 230 mm

    Diameter

    230 mm

  • 168

    Number of LEDs

    168

  • 0.9

    Power Factor

    0.9

  • IP65

    IP Rating

    IP65

  • No

    Battery Operated

    No

  • 160 mm x Ø230 mm

    Dimensions

    160 mm x Ø230 mm

  • 160 mm

    Height

    160 mm

  • IK04

    IK Protection

    IK04

  • 100 lm/W

    Luminous Efficiency

    100 lm/W

100W Solid Slim 120lm/W UFO LED High Bay

Download technical datasheet

Ref. Ledkia: 50034

Colour Temperature Neutral White 4000K

Before £46.99

-63% (You save £29.50)

£17.49

VAT included
Energetic efficiency

In Stock, delivery in 15-20 days

PRO CLUB badge

Are you a lighting professional or a company?

  • Great discounts off PVP
  • Extended Warranty
  • Exclusive Services

Buy now, pay later

Credit payment

    • 30 Day Return

      You can renounce to this product during the first 30 calendar days from receipt, provided that the product remains in perfect condition for use.


      Custom-made products and cut-to-size strips are excluded.


      Full conditions here: After-sales service.

    • 24h Free Delivery

      If you place your order today before 2:30 pm, delivery within 24/48h (working days).


      Shipping is free on purchases over £ 49.99 (incl. VAT).


      Full conditions here: Delivery methods.

    • 100% secure payments

      payment method image 1

      payment method image 2

      At Ledkia we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation.


      More information: Payment methods.

    • Up to 5 year warranty

      Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.


      You will find the exact product warranty in the technical details.


      Full conditions here: After-sales service.

Dimensions

  • Weight1 kg
  • Height160 mm
  • Diameter230 mm

Downloads

  • pdf file

    Technical Data Sheet PDF

Certificates and Stamps

CertificateCertificateCertificate

Technical Specifications

  • Technical Information

    • Temperature range in which the product can operate optimally, ensuring its performance without overheating or damage.
      Ambient Working Temperature-30 °C~+50 °C
    • Measures how accurately a light source displays colours compared to natural light. A high CRI (close to 100) ensures accurate colour rendering.
      Colour Rendering Index80
    • Defines the light tone, from warm white to cool white, measured in Kelvin (K).
      Colour Temperature4000K
    • DimmableNo
    • Driver BrandSSD
    • Electrical Insulation ClassI
    • Fitting MaterialPC, Aluminium
    • Frequency50-60 Hz
    • Estimated lifespan of the product before it loses performance. Based on optimal, non-continuous use, and measured in hours of operation under controlled conditions.
      Hours60.000 hours
    • Protection grade that the product offers against physical impacts. It is measured on a scale from IK00 to IK10, with IK10 being the highest level of resistance to impact and mechanical damage.
      IK ProtectionIK04
    • InstallationSurface
    • The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
      IP RatingIP65
    • Efficiency of the LEDs, measured as the amount of light generated per unit of energy consumed (lumens per watt). High efficiency ensures energy savings without losing light quality.
      LED Performance120 lm/W
    • Light ColourNeutral White
    • Lumen10000 lm
    • Ratio between light output (lumens) and energy consumed (watts). A high value indicates better efficiency, ideal for saving energy without compromising lighting.
      Luminous Efficiency100 lm/W
    • Minimum and maximum voltage fluctuation that the product can withstand momentarily.
      Nominal Voltage190 V - 260 V
    • Number of LEDs168
    • Power Factor0.9
    • Voltage level required for the product to function correctly.
      Voltage Range220-240V AC
    • Wattage100 W
    • Internal temperature range in which the product can operate efficiently and safely. It is important to ensure its reliability under different usage conditions.
      Working Temperature-20 °C~+40 °C

  • Product Information

    • Light SourceSMD2835
    • LocationOutdoor, Indoor

  • Product Data

    • CertificatesCE, RoHS, TÜV
    • Guarantee3 years

Description

The Solid Slim Industrial UFO LED High Bay provides high luminous power in a very small space thanks to the latest advances and next-generation technologies it incorporates.

Features of the Solid Slim Industrial UFO LED High Bay 100W 120 lm/W

It features high-efficiency, energy-saving EPISTAR SMD 2835 LEDs which, together with the other high-quality components it includes, deliver a luminaire output of up to 120 lm/W.
Its innovative aluminium-finished heat sink keeps the operating temperature stable and optimally dissipates the heat generated by converting electrical energy into light.

Applications of the Solid Slim Industrial UFO LED High Bay 100W 120 lm/W

Its slim design allows this luminaire to be used in all kinds of industrial facilities, both indoors and outdoors, even in the most challenging situations. It is used in all types of industrial or work areas, such as industrial units, workshops, factories, warehouses or car parks.

The LED High Bay for industrial units is particularly attractive in professional settings due to the savings it offers in terms of energy consumption and luminaire maintenance. It also stands out for its instant, flicker-free start-up, allowing activity to be resumed immediately after, for example, a power cut.

What does Solid mean?

The Solid system is based on eliminating any perishable element that could shorten the LED’s lifespan. SSD stands for Solid State Drive.
SSD technology helps extend the life of LEDs so that the product’s efficiency, quality and performance are superior to other LED products on the market. By removing the DRIVER, one of the main components that causes the luminaire to stop working and become unusable, we have achieved a longer lifespan for our LED luminaires.

*If you wish to install this luminaire model in an industrial setting with three-phase machinery, electronics or servomotors, we recommend consulting the sales department.
