Wattage 150 W
Voltage Range 220-240V AC
Lumen 24000 lm
Type Of Dimming 0-10 V, Remote Control
Wattage
150 W
Voltage Range
220-240V AC
Lumen
24000 lm
Type Of Dimming
0-10 V, Remote Control
Power Factor
0.96
IP Rating
IP65
Battery Operated
No
Dimensions
105 mm x 122 mm x 1020 mm
Width
122 mm
Height
105 mm
IK Protection
IK10
Luminous Efficiency
160 lm/W

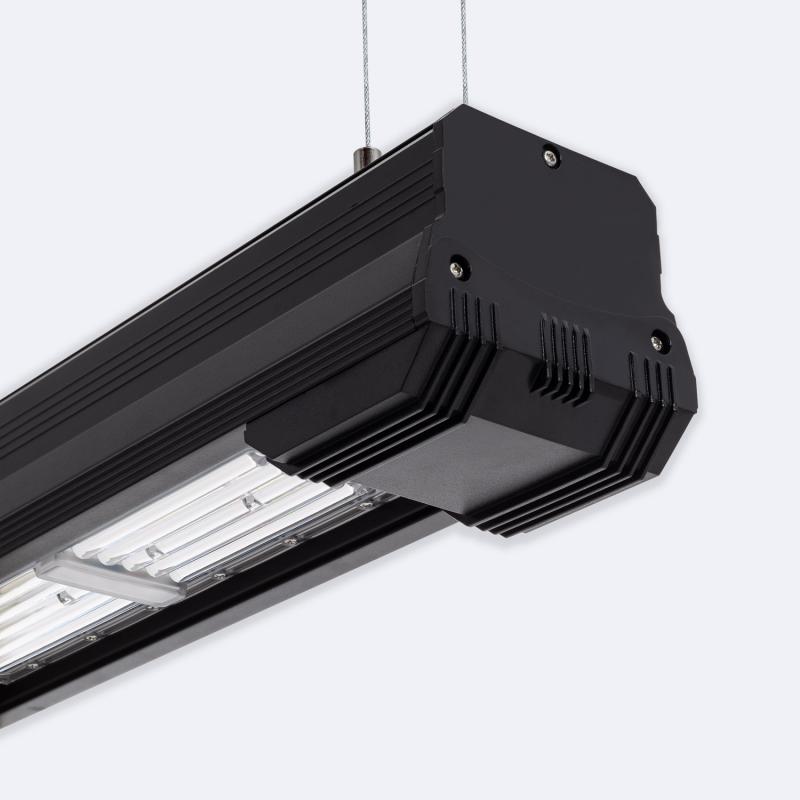

Linear 150W LED High Bay Smart Zhaga Plug & Play IP65 160 lm/W
Ref. Ledkia: 117743
Before £161.99
£119.99
VAT included
Colour Temperature Daylight 5700K
Optic 120ºx60º
Sensor Type Without sensor
Pre-Order, estimated shipping from 20/09/2026
Are you a lighting professional or a company?
- Great discounts off PVP
- Extended Warranty
- Exclusive Services
Buy now, pay later
Credit payment30 calendar days to return
You can renounce to this product during the first 30 calendar days from receipt, provided that the product remains in perfect condition for use.
Custom-made products and cut-to-size strips are excluded.
Full conditions here: After-Sales Service.
24h Delivery
If you place your order today before 2:30 pm, delivery within 24/48h (working days).
Shipping is free on purchases over £49.99 (incl. VAT).
Full conditions here: Shipping methods.
100% secure payments
At Ledkia we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation.
More information: Payment methods.
Warranty up to 5 years
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.
You will find the exact product warranty in the technical details.
Full conditions here: After-Sales Service.
Dimensions
- Dimensions105 mm x 122 mm x 1020 mm
- Weight2.27 kg
Downloads
PDF Datasheet 117743_249246 EN
Instruction Manual
Instruction Manual
Instruction Manual
DoC_117743_249246
Certificates and Stamps
Technical Specifications
Electrical Features
- Electrical Insulation ClassI
- Frequency50-60 Hz
- Light SourceSANAN SMD2835
- Nominal Voltage100 V - 277 VMinimum and maximum voltage fluctuation that the product can withstand momentarily.
- Remote ControlNo
- Type Of Dimming0-10 V, Remote Control
- Voltage Range220-240V ACVoltage level required for the product to function correctly.
- Wattage150 W
Materials and Finishes
- ColourBlack
- Fitting MaterialAluminium, Polycarbonate
- Type Of LensTransparent
Mechanical Features
- Ambient Working Temperature-10 °C~+50 °CTemperature range in which the product can operate optimally, ensuring its performance without overheating or damage.
- Detection distance range12 m
- DirectionalNoAbility to move or rotate the spotlight to direct the light as desired.
- Fire RatedNoIndicates whether the product or its materials are fire-resistant, enhancing safety in high-temperature or flame-risk areas.
- IK ProtectionIK10Protection grade that the product offers against physical impacts. It is measured on a scale from IK00 to IK10, with IK10 being the highest level of resistance to impact and mechanical damage.
- InstallationPendant
- IP RatingIP65The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
- LocationOutdoor, Indoor
- Optic120ºx60ºType of lens that determines the distribution and quality of the light. It influences the illumination angle and light efficiency.
- Sensor TypeWithout sensor
Product Information
- CertificatesCE, RoHS, ENEC, EMC
- Guarantee7 years
- Product SeriesZhaga
LED Features
- Colour Rendering Index80Measures how accurately a light source displays colours compared to natural light. A high CRI (close to 100) ensures accurate colour rendering.
- Colour Temperature5700KDefines the light tone, from warm white to cool white, measured in Kelvin (K).
- Hours100.000 hoursEstimated lifespan of the product before it loses performance. Based on optimal, non-continuous use, and measured in hours of operation under controlled conditions.
- Light ColourDaylight
- Lumen24000 lm
- Luminous Efficiency160 lm/WRatio between light output (lumens) and energy consumed (watts). A high value indicates better efficiency, ideal for saving energy without compromising lighting.
- Power Factor0.96
Driver Information
- Driver BrandSOSEN
- Driver Intensity220 mA-380 mA
- Driver Power75 W
- Driver Tension180 V-260 VVoltage level that the driver uses to power the LEDs or electrical components of the product, ensuring their proper functioning.
- WifiNo
Description
The 150W IP65 160lm/W Smart Zhaga Industrial Linear LED High Bay is part of our Expert range, designed to meet the needs of demanding industrial environments. With a power of 150W and an efficiency of 160 lumens per watt, it guarantees powerful, uniform lighting in large spaces such as warehouses, factories, and logistics centres. Its IP65 rating ensures resistance to dust and water, while its robustness is confirmed by its IK10 impact resistance.
Zhaga technology and smart sensors
This high bay features innovative Zhaga Compliant technology, allowing integration and upgrading of standard components from other brands, offering a long-term investment in cutting-edge lighting. Thanks to its standard Zhaga connector, the installation of smart sensors is completely Plug and Play. You can choose between PIR and Radar motion sensors, as well as advanced options such as DALI and Photocell.
The motion sensors offer tailored solutions: PIR, perfect for areas with moderate traffic, and Radar, capable of detecting movement through obstacles, ideal for large spaces or those with barriers. The Daylight sensor, which adjusts lighting according to ambient light, can be configured with a remote control to set levels between 30 and 400 lux.
Specialised optics for every environment
The Industrial Linear LED High Bay offers three types of optics to suit different lighting needs:
- 120°x40° optic: Designed to illuminate long, narrow corridors, such as warehouses with shelving.
- 120°x60° optic: Perfect for workshops and large spaces where focused lighting is required.
- 120°x90° optic: Provides a uniform light distribution, ideal for large open areas.
Efficiency and sustainability
With exceptional energy efficiency, this LED high bay significantly reduces power consumption, optimising operating costs. In addition, its robust design and IK10 rating minimise maintenance needs, offering a durable and reliable solution for industrial environments.
Applications of the 100W Industrial Linear LED High Bay
This high bay is ideal for use in warehouses, factories, logistics centres, and covered outdoor areas. Thanks to its high efficiency and versatility, it can be adapted to a wide variety of industrial applications, providing durable and efficient lighting.
The most advanced solution in industrial lighting
The 150W IP65 160lm/W Smart Zhaga Industrial Linear LED High Bay combines advanced technology, robust materials, and innovative design to deliver a lighting solution that meets the most demanding needs. With its Plug and Play integration, smart sensors and specialised optics, this high bay is the ideal choice for industrial projects seeking quality, efficiency, and adaptability.
