Range Advanced
  • 20 W
    Wattage 20 W
  • 220-240V AC
    Voltage Range 220-240V AC
  • 2400 lm
    Lumen 2400 lm
  • 60 mm
    Diameter 60 mm
Image of Carlo 20W 3-Circuit Track LED Spotlight Black
    Image of Carlo 20W 3-Circuit Track LED Spotlight Black
    Image of Carlo 20W 3-Circuit Track LED Spotlight Black
    Image of Carlo 20W 3-Circuit Track LED Spotlight Black
    Image of Carlo 20W 3-Circuit Track LED Spotlight Black
    Image of Carlo 20W 3-Circuit Track LED Spotlight Black
1 / 5
  • 20 W

    Wattage

    20 W

  • 220-240V AC

    Voltage Range

    220-240V AC

  • 2400 lm

    Lumen

    2400 lm

  • 60 mm

    Diameter

    60 mm

  • 0.9

    Power Factor

    0.9

  • UGR <19

    Glare Factor

    UGR <19

  • IP20

    IP Rating

    IP20

  • 160 mm x Ø60 mm

    Dimensions

    160 mm x Ø60 mm

  • 160 mm

    Height

    160 mm

  • 120 lm/W

    Luminous Efficiency

    120 lm/W

  • 36º

    Beam Angle

    36º

  • Aluminium

    Fitting Material

    Aluminium

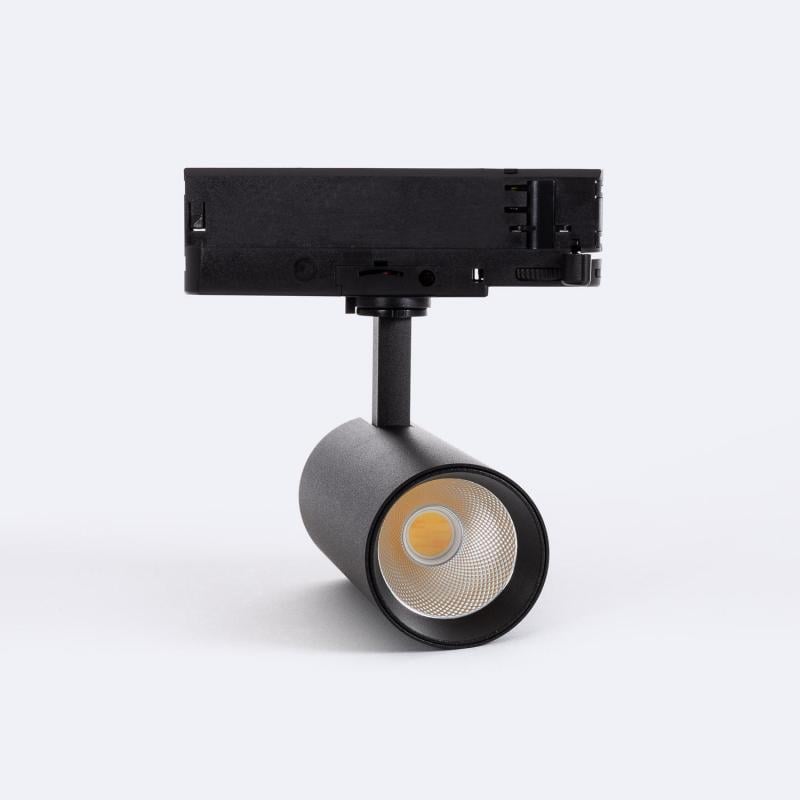

Carlo 20W 3-Circuit Track LED Spotlight Black

Download technical datasheet

Ref. Ledkia: 99334

Colour Temperature Cool White 4000K

Before £34.99

-15% (You save £5.30)

£29.69

VAT included
Energetic efficiency

In Stock, delivery in 16-21 days

PRO CLUB badge

Are you a lighting professional or a company?

  • Great discounts off PVP
  • Extended Warranty
  • Exclusive Services

Buy now, pay later

Credit payment

    • 30 calendar days to return

      You can renounce to this product during the first 30 calendar days from receipt, provided that the product remains in perfect condition for use.


      Custom-made products and cut-to-size strips are excluded.


      Full conditions here: After-Sales Service.

    • 24h Delivery

      If you place your order today before 2:30 pm, delivery within 24/48h (working days).


      Shipping is free on purchases over £49.99 (incl. VAT).


      Full conditions here: Shipping methods.

    • 100% secure payments

      payment method image 1

      payment method image 2

      At Ledkia we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation.


      More information: Payment methods.

    • Warranty up to 5 years

      Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.


      You will find the exact product warranty in the technical details.


      Full conditions here: After-Sales Service.

Dimensions

  • Height160 mm
  • Diameter60 mm
Scheme image

Downloads

  • pdf file

    PDF Datasheet 99334_205306 EN

  • pdf file

    DoC_99334_205306

Certificates and Stamps

CertificateCertificateCertificate

Technical Specifications

  • Electrical Features

    • Electrical Insulation ClassII
    • Frequency50-60 Hz
    • Voltage level required for the product to function correctly.
      Voltage Range220-240V AC
    • Wattage20 W

  • LED Features

    • Measures in degrees how light spreads from the source. A wide angle covers more area, while a narrow one is ideal for highlighting details.
      Beam Angle36º
    • Measures how accurately a light source displays colours compared to natural light. A high CRI (close to 100) ensures accurate colour rendering.
      Colour Rendering Index90
    • Defines the light tone, from warm white to cool white, measured in Kelvin (K).
      Colour Temperature4000K
    • Low-glare products offer more comfortable lighting, suitable for extended use.
      Glare FactorUGR <19
    • Estimated lifespan of the product before it loses performance. Based on optimal, non-continuous use, and measured in hours of operation under controlled conditions.
      Hours50.000 hours
    • Light ColourCool White
    • Lumen2400 lm
    • Ratio between light output (lumens) and energy consumed (watts). A high value indicates better efficiency, ideal for saving energy without compromising lighting.
      Luminous Efficiency120 lm/W
    • Technology that ensures stable, flicker-free light. It improves visual experience and reduces eye fatigue.
      No FlickerNo Flicker
    • Power Factor0.9

  • Mechanical Features

    • Temperature range in which the product can operate optimally, ensuring its performance without overheating or damage.
      Ambient Working Temperature-20 °C~+50 °C
    • Ability to move or rotate the spotlight to direct the light as desired.
      DirectionalYes
    • InstallationTrack
    • The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
      IP RatingIP20
    • LocationIndoor
    • Type Of TrackThree Phase
    • Internal temperature range in which the product can operate efficiently and safely. It is important to ensure its reliability under different usage conditions.
      Working Temperature-20 °C~+50 °C

  • Product Information

    • CertificatesCE, RoHS, UKCA
    • Guarantee3 years
    • Product SeriesCarlo

  • Materials and Finishes

    • ColourBlack
    • Fitting MaterialAluminium

  • Driver Information

    • Driver BrandLIFUD
    • Driver Intensity250 mA-500 mA
    • Voltage level that the driver uses to power the LEDs or electrical components of the product, ensuring their proper functioning.
      Driver Tension36 V
    • Type Of DriverLIFUD
    • WifiNo

Description

The Carlo 20W 3-Circuit Track LED Spotlight Black is a professional-grade track spotlight featuring a 20 W power rating and a LIFUD driver. It delivers an efficient luminous output of 2400 lumens with a beam angle of 36º, ensuring precise and controlled illumination for commercial and office environments.

General information about Carlo 20W 3-Circuit Track LED Spotlight Black

This spotlight is constructed with a robust aluminium housing that combines durability with a sleek black finish, suitable for modern interiors. It features a directional design compatible with three-phase track systems, allowing flexible positioning and targeted lighting. The product operates with a power factor of 0.9 and includes a LIFUD driver that ensures stable current delivery between 250 mA and 500 mA at 36 V. The spotlight offers a high colour rendering index of 90, providing accurate colour reproduction, and maintains a comfortable visual environment with a glare factor of UGR <19. With an electrical insulation class II and a long service life of 50,000 hours, this spotlight is engineered for reliability and efficiency in indoor applications.

Use and applications

The Carlo 20W track spotlight is designed to enhance lighting in professional settings such as offices, where precise and controlled illumination is essential for visual comfort and productivity, thanks to its directional beam and high CRI. It also fits well in retail environments, where the spotlight’s 36º beam angle highlights products effectively, improving visual appeal through quality light output. Additionally, it suits technical rooms or corridors within commercial premises, where its compact form and track compatibility facilitate easy installation and adjustment to meet changing lighting needs.

Operating within an ambient temperature range of -20 °C to +50 °C and powered by a 220-240 V AC supply, this spotlight is compatible with standard three-phase tracks. Although it has an IP20 rating, it is optimized for indoor use where environmental exposure is controlled. The combination of aluminium material and LIFUD driver technology ensures stable performance and longevity, making it a practical solution for dynamic lighting projects in commercial and office sectors.

Key benefits

  • High luminous efficacy thanks to 120 lm/W efficiency, maximising energy use.
  • Precise light control through a 36º beam angle, ideal for accent lighting.
  • Excellent colour fidelity with a CRI of 90, enhancing visual clarity and product appearance.
  • Durability ensured by an aluminium body that combines strength and lightweight design.
  • Long service life of 50,000 hours, reducing maintenance frequency.

Highlighted specifications

Power: 20 W; Luminous output: 2400 lm; Beam angle: 36º; Colour rendering index: 90; Driver brand: LIFUD; Electrical insulation class: II; Power factor: 0.9.

Installation and maintenance

This spotlight is designed for track installation, compatible with three-phase systems, allowing easy positioning and adjustment. Installation must follow the indicated track mounting system to ensure secure fixing and optimal electrical connection. The product’s aluminium construction facilitates heat dissipation, contributing to its long lifespan and stable performance. Disconnect the power supply before any intervention to guarantee safety during installation or maintenance. The spotlight does not support dimming and requires a compatible track system for operation.


Specialized lighting distribution in United Kingdom. If you are looking to buy Carlo 20W 3-Circuit Track LED Spotlight Black with a professional warranty, it is a leading choice for durability and efficiency. Estimated shipping in 15 to 20 days (subject to stock availability). Quality certified by CE, RoHS, UKCA for professional installations and projects. Check price and availability here.

Frequently asked questions

  • Is this spotlight suitable for outdoor use? — It is designed for indoor environments with an IP20 rating, so outdoor use is not recommended.
  • Can the beam angle be adjusted? — The spotlight features a fixed beam angle of 36º for precise lighting control.
  • Is the spotlight dimmable? — This model does not support dimming functionality.
  • What type of track system is compatible? — It is compatible with three-phase track installations.
  • What is the expected lifespan of the spotlight? — The product offers a service life of 50,000 hours under normal operating conditions.
