Range Advanced
  • 20 W
    Wattage 20 W
  • 220-240V AC
    Voltage Range 220-240V AC
  • 2400 lm
    Lumen 2400 lm
  • 60 mm
    Diameter 60 mm
Image of Carlo 20W 3-Circuit Track CCT Selectable LED Spotlight White
    Image of Carlo 20W 3-Circuit Track CCT Selectable LED Spotlight White
    Image of Carlo 20W 3-Circuit Track CCT Selectable LED Spotlight White
    Image of Carlo 20W 3-Circuit Track CCT Selectable LED Spotlight White
    Image of Carlo 20W 3-Circuit Track CCT Selectable LED Spotlight White
    Image of Carlo 20W 3-Circuit Track CCT Selectable LED Spotlight White
1 / 5
  • 20 W

    Wattage

    20 W

  • 220-240V AC

    Voltage Range

    220-240V AC

  • 2400 lm

    Lumen

    2400 lm

  • 60 mm

    Diameter

    60 mm

  • 0.9

    Power Factor

    0.9

  • UGR <19

    Glare Factor

    UGR <19

  • IP20

    IP Rating

    IP20

  • 160 mm x Ø60 mm

    Dimensions

    160 mm x Ø60 mm

  • 160 mm

    Height

    160 mm

  • 120 lm/W

    Luminous Efficiency

    120 lm/W

  • 36º

    Beam Angle

    36º

  • Aluminium

    Fitting Material

    Aluminium

Carlo 20W 3-Circuit Track CCT Selectable LED Spotlight White

Download technical datasheet

Ref. Ledkia: 99266

Colour Temperature Selectable 4000K - 5000K - 6000K

Before £34.99

-15% (You save £5.30)

£29.69

VAT included
Energetic efficiency

In Stock, delivery in 24/48h

PRO CLUB badge

Are you a lighting professional or a company?

  • Great discounts off PVP
  • Extended Warranty
  • Exclusive Services

Buy now, pay later

Credit payment

    • 30 calendar days to return

      You can renounce to this product during the first 30 calendar days from receipt, provided that the product remains in perfect condition for use.


      Custom-made products and cut-to-size strips are excluded.


      Full conditions here: After-Sales Service.

    • 24h Delivery

      If you place your order today before 2:30 pm, delivery within 24/48h (working days).


      Shipping is free on purchases over £49.99 (incl. VAT).


      Full conditions here: Shipping methods.

    • 100% secure payments

      payment method image 1

      payment method image 2

      At Ledkia we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation.


      More information: Payment methods.

    • Warranty up to 5 years

      Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.


      You will find the exact product warranty in the technical details.


      Full conditions here: After-Sales Service.

Dimensions

  • Height160 mm
  • Diameter60 mm
Scheme image

Downloads

  • pdf file

    PDF Datasheet 99266_205151 EN

  • pdf file

    DoC_99266_205151

Certificates and Stamps

CertificateCertificateCertificate

Technical Specifications

  • Electrical Features

    • Electrical Insulation ClassII
    • Frequency50-60 Hz
    • Voltage level required for the product to function correctly.
      Voltage Range220-240V AC
    • Wattage20 W

  • LED Features

    • Measures in degrees how light spreads from the source. A wide angle covers more area, while a narrow one is ideal for highlighting details.
      Beam Angle36º
    • Measures how accurately a light source displays colours compared to natural light. A high CRI (close to 100) ensures accurate colour rendering.
      Colour Rendering Index90
    • Defines the light tone, from warm white to cool white, measured in Kelvin (K).
      Colour Temperature4000K - 5000K - 6000K
    • Low-glare products offer more comfortable lighting, suitable for extended use.
      Glare FactorUGR <19
    • Estimated lifespan of the product before it loses performance. Based on optimal, non-continuous use, and measured in hours of operation under controlled conditions.
      Hours50.000 hours
    • Light ColourSelectable
    • Lumen2400 lm
    • Ratio between light output (lumens) and energy consumed (watts). A high value indicates better efficiency, ideal for saving energy without compromising lighting.
      Luminous Efficiency120 lm/W
    • Technology that ensures stable, flicker-free light. It improves visual experience and reduces eye fatigue.
      No FlickerNo Flicker
    • Power Factor0.9

  • Mechanical Features

    • Temperature range in which the product can operate optimally, ensuring its performance without overheating or damage.
      Ambient Working Temperature-20 °C~+50 °C
    • Ability to move or rotate the spotlight to direct the light as desired.
      DirectionalYes
    • InstallationTrack
    • The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
      IP RatingIP20
    • LocationIndoor
    • Type Of TrackThree Phase
    • Internal temperature range in which the product can operate efficiently and safely. It is important to ensure its reliability under different usage conditions.
      Working Temperature-20 °C~+50 °C

  • Product Information

    • CertificatesCE, RoHS, UKCA
    • Guarantee3 years
    • Product SeriesCarlo

  • Materials and Finishes

    • ColourWhite
    • Fitting MaterialAluminium

  • Driver Information

    • Driver BrandLIFUD
    • Driver Intensity250 mA-500 mA
    • Voltage level that the driver uses to power the LEDs or electrical components of the product, ensuring their proper functioning.
      Driver Tension36 V
    • Type Of DriverLIFUD
    • WifiNo

Description

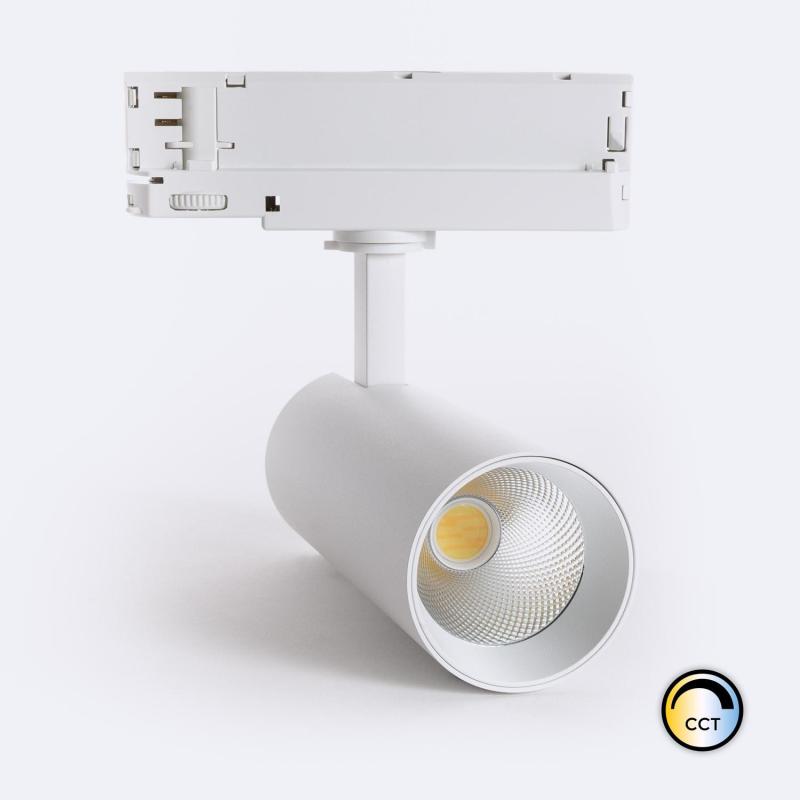

The Carlo 20W 3-Circuit Track CCT Selectable LED Spotlight White is a track spotlight featuring a 20 W power consumption, equipped with a high-performance LIFUD driver. It offers selectable colour temperatures and delivers a precise 36º beam angle for targeted illumination, making it suitable for professional lighting projects.

General information about Carlo 20W 3-Circuit Track CCT Selectable LED Spotlight White

This spotlight is constructed with a robust aluminium fitting that ensures durability and a sleek aesthetic. It operates within an ambient temperature range of -20 °C to +50 °C, suitable for indoor environments. The product incorporates a III phase track system for flexible positioning and directional control, enhancing lighting precision. It features a CRI of 90 to provide accurate colour rendering and a UGR<19 rating for visual comfort without glare. The luminous efficacy reaches 120 lm/W, delivering a total luminous flux of 2400 lumens. Its electrical insulation is class II, and it maintains a power factor of 0.9. The spotlight is certified under CE, RoHS, and UKCA standards, ensuring compliance with safety and environmental regulations.

Use and applications

This track spotlight is designed to provide focused illumination in professional indoor settings such as offices, retail spaces, and commercial premises. It fits perfectly in office environments where precise lighting is necessary to enhance work areas, thanks to its directional capability and high colour fidelity (CRI 90). For retail businesses, the spotlight highlights products effectively due to its selectable beam angle and efficient luminous output. Additionally, it suits commercial premises requiring adaptable lighting solutions with easy repositioning on a three-phase track system, ensuring flexibility in lighting design.

Operating under standard mains voltage of 220-240 V AC and driven by a LIFUD driver with a tension output of 36 V and current range from 250 mA to 500 mA, this spotlight functions reliably within typical indoor temperature conditions. Its installation on three-phase track systems facilitates quick setup and repositioning, making it a practical solution for dynamic lighting needs. The product’s design and technical features make it a solution oriented to projects where visual quality, energy efficiency, and installation flexibility are priorities.

Key benefits

  • High luminous efficiency thanks to a 120 lm/W rating, optimising energy use.
  • Excellent colour reproduction with a CRI of 90, ensuring accurate and vibrant lighting.
  • Visual comfort provided by a UGR<19 rating, reducing glare in workspaces.
  • Durable aluminium construction that supports longevity and aesthetic integration.
  • Flexible installation and directional control enabled by the three-phase track system.

Highlighted specifications

Power: 20 W; Beam angle: 36º; Luminous flux: 2400 lumens; Driver brand: LIFUD; Electrical insulation class: II.

Installation and maintenance

The spotlight is installed on a three-phase track, allowing for straightforward mounting and repositioning without additional tools. Its compact dimensions of 160 mm x Ø60 mm facilitate integration into various indoor ceilings. The installation process follows the standard track system guidelines, ensuring compatibility and ease of maintenance. The product requires disconnection of power before any intervention to guarantee safety during installation or maintenance.

Disconnect the power supply before any intervention.


Specialized lighting distribution in United Kingdom. If you are looking to buy Carlo 20W 3-Circuit Track CCT Selectable LED Spotlight White with a professional warranty, it is a leading choice for durability and efficiency. Estimated shipping in 15 to 20 days (subject to stock availability). Quality certified by CE, RoHS, UKCA for professional installations and projects. Check price and availability here.

Frequently asked questions

  • Is the spotlight dimmable? — This model is not dimmable and operates at a fixed output.
  • What type of installation does it require? — It is designed for installation on a three-phase track system.
  • Can the beam angle be adjusted? — The spotlight offers a fixed beam angle of 36º for focused lighting.
  • What is the expected lifespan of the product? — It has a rated operational life of 50,000 hours.
  • Does it include emergency lighting? — This product does not contain emergency lighting functionality.
