Range Expert

Wattage 40 W
Voltage Range 220-240V AC
Lumen 3700 lm
Power Factor 0.9

1 / 5

Wattage
40 W
Voltage Range
220-240V AC
Lumen
3700 lm
Power Factor
0.9
Glare Factor
UGR <21
IP Rating
IP20
Dimensions
250 mm x 94 mm x 94 mm
Width
94 mm
Height
250 mm
Luminous Efficiency
92.5 lm/W
Beam Angle
15º, 36º
Fitting Material
Aluminium

Optic 15º

15º
In Stock, delivery in 15-20 days
36º
Pre-Order, estimate delivery from 90 days

New

£77.99

VAT included

In Stock, delivery in 15-20 days

Are you a lighting professional or a company?

Great discounts off PVP
Extended Warranty
Exclusive Services

Dimensions

Height250 mm
Depth94 mm
Width94 mm

Downloads

Technical Data Sheet PDF
DoC_72577_147809

Certificates and Stamps

Technical Specifications

Electrical Features
- Electrical Insulation ClassII
- Frequency50-60 Hz
- Light SourceBRIDGELUX COB
- Voltage level required for the product to function correctly.
  Voltage Range220-240V AC
- Wattage40 W
LED Features
- Measures in degrees how light spreads from the source. A wide angle covers more area, while a narrow one is ideal for highlighting details.
  Beam Angle15º, 36º
- Measures how accurately a light source displays colours compared to natural light. A high CRI (close to 100) ensures accurate colour rendering.
  Colour Rendering Index90
- Defines the light tone, from warm white to cool white, measured in Kelvin (K).
  Colour Temperature3000K - 4000K - 6000K
- Low-glare products offer more comfortable lighting, suitable for extended use.
  Glare FactorUGR <21
- Estimated lifespan of the product before it loses performance. Based on optimal, non-continuous use, and measured in hours of operation under controlled conditions.
  Hours60.000 hours
- Light ColourSelectable (Warm - Cool - Daylight)
- Lumen3700 lm
- Ratio between light output (lumens) and energy consumed (watts). A high value indicates better efficiency, ideal for saving energy without compromising lighting.
  Luminous Efficiency92.5 lm/W
- Technology that ensures stable, flicker-free light. It improves visual experience and reduces eye fatigue.
  No FlickerNo Flicker
- Power Factor0.9
Mechanical Features
- Temperature range in which the product can operate optimally, ensuring its performance without overheating or damage.
  Ambient Working Temperature-20 °C~+40 °C
- Ability to move or rotate the spotlight to direct the light as desired.
  DirectionalYes
- InstallationTrack
- The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
  IP RatingIP20
- LocationIndoor
- Type of lens that determines the distribution and quality of the light. It influences the illumination angle and light efficiency.
  Optic15º
- Type Of TrackThree Phase
Product Information
- CertificatesCE, RoHS, UKCA
- Guarantee3 years
- Product Seriesd'Angelo
Materials and Finishes
- ColourBlack
- Fitting MaterialAluminium
Driver Information
- WifiNo

Description

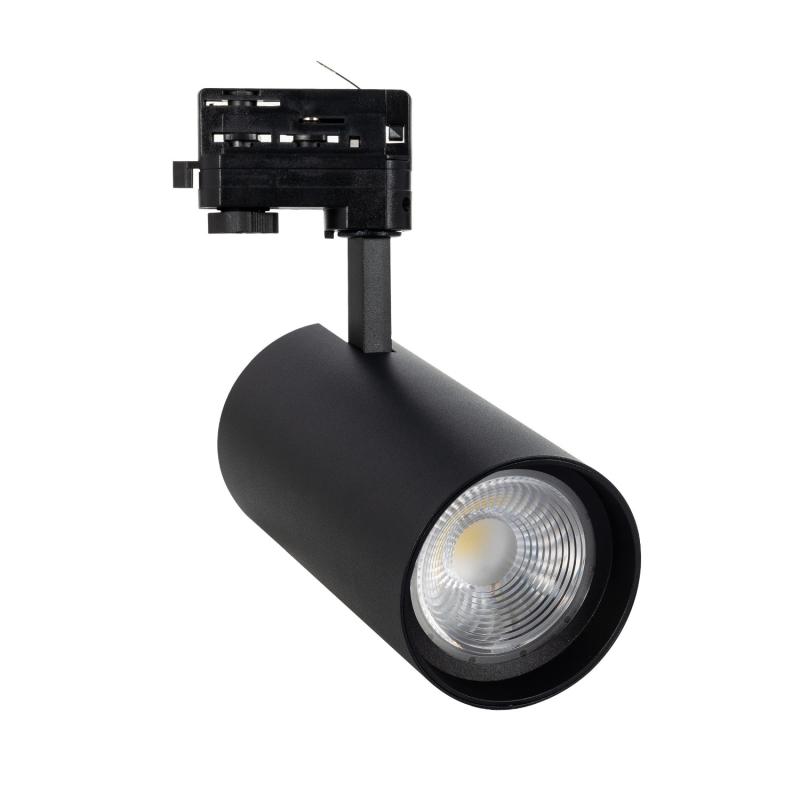

The d'Angelo 40W 3-Circuit Track Spotlight is a high-performance LED luminaire featuring a PHILIPS Xitanium driver and selectable beam angles of 15º and 36º. It delivers a luminous output of 3,700 lumens with a luminous efficacy of 92,50 lm/W, combined with a CRI of 90 for accurate colour rendering. This directional spotlight operates at 220-240V AC and incorporates a Class II electrical insulation for enhanced safety.

General information about d'Angelo 40W 3-Circuit Track CCT Selectable PHILIPS Xitanium 15-36º LED Spotlight Frost Black

This track spotlight from the d'Angelo range presents a robust aluminium construction finished in black, designed for indoor environments. It integrates a BRIDGELUX COB LED module with selectable colour temperatures of 3000K, 4000K, and 6000K, allowing tailored lighting atmospheres. The luminaire is equipped with a PHILIPS Xitanium driver ensuring reliable performance and energy efficiency. Its directional design facilitates precise light placement, supported by selectable beam angles of 15º and 36º, optimising visual comfort with a glare factor UGR <21. The product is compatible with three-phase track systems, enhancing installation flexibility.

Use and applications

The d'Angelo 40W track spotlight is designed to provide adaptable lighting solutions in indoor commercial spaces such as retail stores, offices, and galleries. Its high CRI of 90 ensures faithful colour reproduction, which is essential for product visibility and presentation in retail environments. The directional beam and selectable optics allow precise accentuation of focal points, meeting the demands of professional installations where lighting quality and control are critical.

Operating within an ambient temperature range of -20 °C to +40 °C and powered at 220-240V AC, this spotlight is suited for controlled indoor conditions. Its compatibility with three-phase track systems facilitates modular and scalable lighting layouts. The aluminium body contributes to heat dissipation, supporting the luminaire’s long service life of 60,000 hours. This makes it a practical solution for projects requiring durable, high-quality accent lighting.

Key benefits

Selectable beam angles of 15º and 36º provide versatile light distribution for different spatial needs.
High colour rendering index (CRI 90) ensures accurate and vibrant colour presentation.
Efficient luminous performance at 92,50 lm/W delivers bright illumination with controlled energy consumption.
Robust aluminium housing enhances durability and thermal management.
Directional control supports targeted lighting, ideal for accent and task illumination.

Highlighted specifications

Power: 40 W; Luminous flux: 3,700 lumens; Colour temperature: selectable 3000K, 4000K, 6000K; Beam angle: selectable 15º, 36º; Electrical insulation class: II; Power factor: 0,90; Glare control: UGR <21; Dimensions: 250 mm x 94 mm x 94 mm.

Installation and maintenance

The spotlight is designed for installation on three-phase track systems, facilitating flexible positioning and easy integration into existing lighting infrastructures. Installation follows the designated track mounting system, ensuring secure fixation and electrical connection. The aluminium body requires standard maintenance to preserve finish and thermal performance. Due to the electrical nature of the product, disconnect the power supply before any intervention. Regular inspections are recommended to maintain optimal operation and longevity.

Specialized lighting distribution in United Kingdom. If you are looking to buy d'Angelo 40W 3-Circuit Track CCT Selectable PHILIPS Xitanium 15-36º LED Spotlight Frost Black with a professional warranty, it is a leading choice for durability and efficiency. Estimated shipping in 15 to 20 days (subject to stock availability). Quality certified by CE, RoHS, UKCA for professional installations and projects. Check price and availability here.

Frequently asked questions

What type of driver is used in this spotlight? — It incorporates a PHILIPS Xitanium driver known for reliability and energy efficiency.
Is the spotlight dimmable? — This model is not dimmable.
What track system is compatible? — Compatible with three-phase track systems for flexible installation.
What is the expected lifespan of the product? — The luminaire offers a service life of 60,000 hours.
Can the beam angle be adjusted on site? — Yes, the beam angle is selectable between 15º and 36º to suit different lighting needs.
