Range Advanced
  • 20 W
    Wattage 20 W
  • 220-240V AC
    Voltage Range 220-240V AC
  • 2000 lm
    Lumen 2000 lm
  • 79 mm
    Diameter 79 mm
Image of 1-Circuit Track LED Spotlight 20W Mallet Dimmable White
    Image of 1-Circuit Track LED Spotlight 20W Mallet Dimmable White
    Image of 1-Circuit Track LED Spotlight 20W Mallet Dimmable White
    Image of 1-Circuit Track LED Spotlight 20W Mallet Dimmable White
    Image of 1-Circuit Track LED Spotlight 20W Mallet Dimmable White
    Image of 1-Circuit Track LED Spotlight 20W Mallet Dimmable White
    Image of 1-Circuit Track LED Spotlight 20W Mallet Dimmable White
1 / 6
  • 20 W

    Wattage

    20 W

  • 220-240V AC

    Voltage Range

    220-240V AC

  • 2000 lm

    Lumen

    2000 lm

  • 79 mm

    Diameter

    79 mm

  • 0.9

    Power Factor

    0.9

  • UGR <15

    Glare Factor

    UGR <15

  • IP20

    IP Rating

    IP20

  • 204 mm x Ø79 mm

    Dimensions

    204 mm x Ø79 mm

  • 204 mm

    Height

    204 mm

  • 100 lm/W

    Luminous Efficiency

    100 lm/W

  • 36º

    Beam Angle

    36º

  • PC, Aluminium

    Fitting Material

    PC, Aluminium

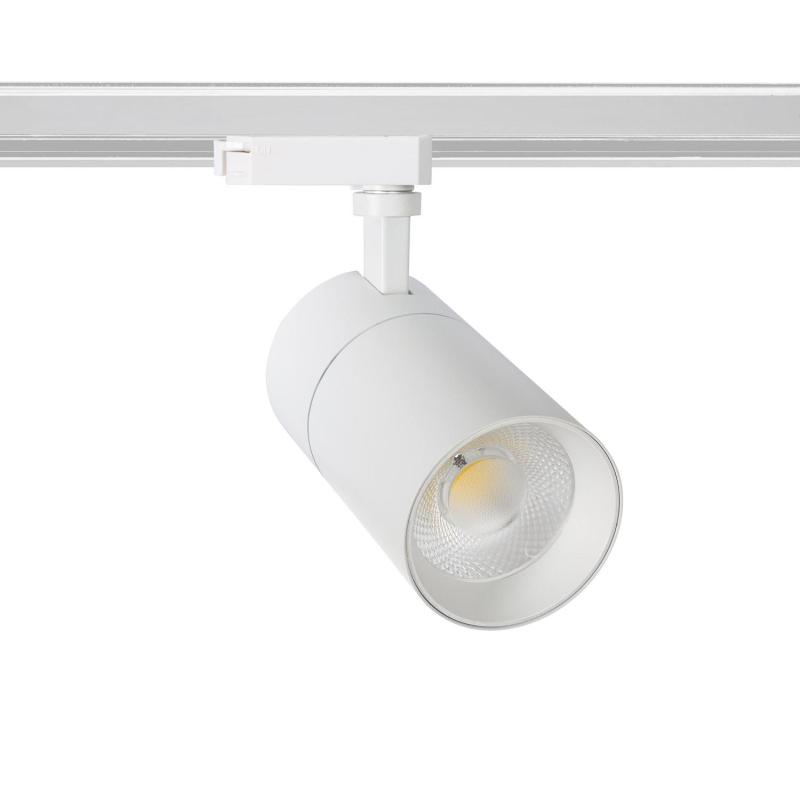

1-Circuit Track LED Spotlight 20W Mallet Dimmable White

Download technical datasheet

Ref. Ledkia: 65424

5 reviews stars(3)

5 out of 5 stars

Trustpilot summary stars
Reviews

Colour Temperature Cool White 4000K

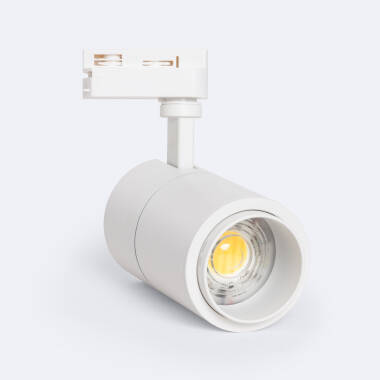

1-Circuit Track LED Spotlight 20W Pulyx Multi Angle 15-60º Dimmable Selectable CCT

Premium range

£31.19

£27.79

VAT included
Energetic efficiency

In Stock, delivery in 16-21 days

PRO CLUB badge

Are you a lighting professional or a company?

  • Great discounts off PVP
  • Extended Warranty
  • Exclusive Services

Buy now, pay later

Credit payment

    • 30 calendar days to return

      You can renounce to this product during the first 30 calendar days from receipt, provided that the product remains in perfect condition for use.


      Custom-made products and cut-to-size strips are excluded.


      Full conditions here: After-Sales Service.

    • 24h Delivery

      If you place your order today before 2:30 pm, delivery within 24/48h (working days).


      Shipping is free on purchases over £49.99 (incl. VAT).


      Full conditions here: Shipping methods.

    • 100% secure payments

      payment method image 1

      payment method image 2

      At Ledkia we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation.


      More information: Payment methods.

    • Warranty up to 5 years

      Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.


      You will find the exact product warranty in the technical details.


      Full conditions here: After-Sales Service.

Dimensions

  • Height204 mm
  • Diameter79 mm

Downloads

  • pdf file

    65424_130852_Datasheet_en_GB

  • pdf file

    DoC_65424_130852

Certificates and Stamps

CertificateCertificateCertificate

Technical Specifications

  • LED Features

    • Measures in degrees how light spreads from the source. A wide angle covers more area, while a narrow one is ideal for highlighting details.
      Beam Angle36º
    • Measures how accurately a light source displays colours compared to natural light. A high CRI (close to 100) ensures accurate colour rendering.
      Colour Rendering Index80
    • Defines the light tone, from warm white to cool white, measured in Kelvin (K).
      Colour Temperature4000K
    • Low-glare products offer more comfortable lighting, suitable for extended use.
      Glare FactorUGR <15
    • Estimated lifespan of the product before it loses performance. Based on optimal, non-continuous use, and measured in hours of operation under controlled conditions.
      Hours50.000 hours
    • Light ColourCool White
    • Lumen2000 lm
    • Ratio between light output (lumens) and energy consumed (watts). A high value indicates better efficiency, ideal for saving energy without compromising lighting.
      Luminous Efficiency100 lm/W
    • Technology that ensures stable, flicker-free light. It improves visual experience and reduces eye fatigue.
      No FlickerNo Flicker
    • Power Factor0.9

  • Driver Information

    • Replaceable DriverYes
    • WifiNo

  • Electrical Features

    • Frequency50-60 Hz
    • Light SourceCOB
    • Minimum and maximum voltage fluctuation that the product can withstand momentarily.
      Nominal Voltage190 V - 260 V
    • Replaceable Light SourceYes
    • Voltage level required for the product to function correctly.
      Voltage Range220-240V AC
    • Wattage20 W

  • Mechanical Features

    • Temperature range in which the product can operate optimally, ensuring its performance without overheating or damage.
      Ambient Working Temperature-20 °C~+45 °C
    • Ability to move or rotate the spotlight to direct the light as desired.
      DirectionalYes
    • InstallationTrack
    • The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
      IP RatingIP20
    • LocationIndoor
    • Type Of TrackSingle Phase

  • Product Information

    • CertificatesCE, RoHS, UKCA
    • Guarantee3 years
    • Product SeriesMallet

  • Materials and Finishes

    • ColourWhite
    • Fitting MaterialPC, Aluminium

Description

Single-phase track spotlight with COB module and integrated driver, delivering 20 W and a focused 36º beam for accent lighting. Provides 2,000 lm and an efficacy of 100 lm/W for balanced performance in commercial layouts. Finished in white for discreet integration.

General information about 1-Circuit Track LED Spotlight 20W Mallet Dimmable White

The Mallet series is a cylindrical LED track spotlight designed for indoor retail and workplace environments where product highlighting and visual comfort matter. It incorporates a COB light source for consistent output and uses an integrated driver to simplify wiring on single-phase tracks. With aluminium housing and PC components, the fitting is built for everyday professional use and easy aiming thanks to its directional head.

The 36º beam creates a controlled cone ideal for accenting merchandise or focal points, while a UGR <15 layout supports glare control and comfortable viewing. Operating on 220–240 V AC with a PF of 0,9, it balances power quality and efficiency. The compact form factor (204 mm x Ø79 mm) integrates neatly into continuous track lines for clean project aesthetics.

Use and applications

This track spotlight concentrates light to define areas and emphasise products without visual strain. In offices and retail counters, the controlled 36º distribution supports task and display lighting with improved visual comfort thanks to UGR <15. In contract fit-outs seeking flexible layouts, the directional head and single-phase track mounting allow quick repositioning as merchandising or layout evolves.

Its electrical parameters suit typical indoor installations: 220–240 V AC input with PF 0,9 and an operating range from -20 °C to +45 °C. The COB engine delivers uniform light for clear product visibility. As a result, it offers a practical solution when precise accent lighting is required in professional interiors.

Key benefits

  • Accurate accent lighting by means of a 36º beam that focuses attention on products and features.
  • Comfortable viewing in sales and work areas thanks to UGR <15 glare control.
  • Consistent colour rendering supported by CRI 80 for reliable product appearance.
  • Efficient operation via 100 lm/W efficacy to optimise installed power.
  • Flexible aiming with a directional body for quick retargeting on the track.
  • Neat integration in projects due to compact cylindrical design and white finish.

Highlighted specifications

Voltage: 220–240 V AC; Power factor: 0,9; Operating temperature: -20 °C a +45 °C; Lifetime: 50.000 hours.

Installation and maintenance

Mounting is performed on a single-phase track, inserting the adapter into the rail and securing it with the locking tab as indicated by the system. Electrical connection is completed through the integrated driver, following the live and neutral rails of the installation. For maintenance, keep the optical area clean with a dry cloth and check the mechanical fixing periodically to preserve the aiming. Disconnect the power supply before any intervention. Use only compatible single-circuit accessories and respect the ambient operating range to maintain performance over time.


Specialized lighting distribution in United Kingdom. If you are looking to buy 1-Circuit Track LED Spotlight 20W Mallet Dimmable White with a professional warranty, the Mallet is a leading choice for durability and efficiency. Estimated shipping in 15 to 20 days (subject to stock availability). Quality certified by CE, RoHS, UKCA for professional installations and projects. Check price and availability here.

Frequently asked questions

  • What type of track is it compatible with? — It is designed for single-phase track systems.
  • Is the head adjustable? — The luminaire is directional, allowing orientation to the target area.
  • What maintenance is recommended? — Keep the reflector and front lens free of dust and verify that the track adapter remains locked.
  • Can it operate in variable temperatures? — The unit works within -20 °C to +45 °C, suitable for standard indoor conditions.
  • What certifications does it include? — The product lists CE, RoHS and UKCA.
