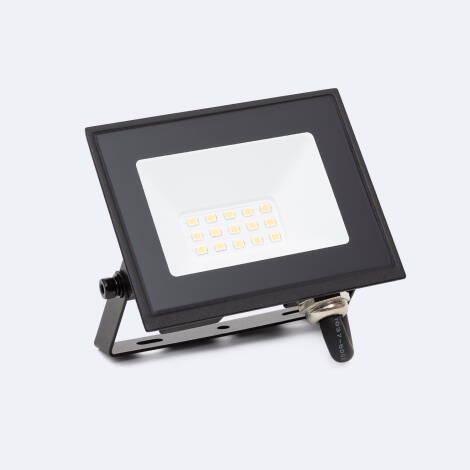

S2 10W LED Floodlight 120lm/W IP65

Technical Specifications

• Electrical Features

  • Electrical Insulation ClassI
  • Frequency50-60 Hz
  • Light SourceSMD2835
  • Minimum and maximum voltage fluctuation that the product can withstand momentarily.
    Nominal Voltage220 V - 240 V
  • Voltage level required for the product to function correctly.
    Voltage Range220-240V AC
  • Wattage10 W

• LED Features

  • Measures in degrees how light spreads from the source. A wide angle covers more area, while a narrow one is ideal for highlighting details.
    Beam Angle110º
  • Measures how accurately a light source displays colours compared to natural light. A high CRI (close to 100) ensures accurate colour rendering.
    Colour Rendering Index70
  • Defines the light tone, from warm white to cool white, measured in Kelvin (K).
    Colour Temperature4000K
  • Estimated lifespan of the product before it loses performance. Based on optimal, non-continuous use, and measured in hours of operation under controlled conditions.
    Hours25.000 hours
  • Efficiency of the LEDs, measured as the amount of light generated per unit of energy consumed (lumens per watt). High efficiency ensures energy savings without losing light quality.
    LED Performance120 lm/W
  • Light ColourCool White
  • Lumen950 lm
  • Ratio between light output (lumens) and energy consumed (watts). A high value indicates better efficiency, ideal for saving energy without compromising lighting.
    Luminous Efficiency95 lm/W
  • Number of LEDs15
  • Number of switch-on cycles20000
  • Power Factor0.9
  • Standard colour deviation (MacAdam)SDCM ≤ 6

• Mechanical Features

  • Temperature range in which the product can operate optimally, ensuring its performance without overheating or damage.
    Ambient Working Temperature-20 °C~+50 °C
  • Protection grade that the product offers against physical impacts. It is measured on a scale from IK00 to IK10, with IK10 being the highest level of resistance to impact and mechanical damage.
    IK ProtectionIK04
  • InstallationSurface
  • Installation of the bracketOn-wall base with U-bracket
  • The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
    IP RatingIP65
  • LocationOutdoor, Indoor
  • Special Installation EnvironmentHigh ambient temperature

• Product Information

  • CertificatesCE, RoHS, UKCA
  • Guarantee3 years
  • Product SeriesS-ECO

• Materials and Finishes

  • ColourBlack
  • Fitting MaterialGlass, Aluminium

• Driver Information

  • Driver Intensity0.042 A - 0.047 A
  • Driver Power9 W-10.5 W
  • Voltage level that the driver uses to power the LEDs or electrical components of the product, ensuring their proper functioning.
    Driver Tension216 V - 222 V
  • WifiNo
