This product is discontinued

Below you can find the substitute product or some equivalents.

If you have any queries, please call us on telephone 020 3739 1978.

Range Advanced

Wattage 15 W
Voltage Range 220-240V AC
Lumen 1400 lm
Cut Out Dimensions Ø90 mm

1 / 4

Wattage
15 W
Voltage Range
220-240V AC
Lumen
1400 lm
Cut Out Dimensions
Ø90 mm
Diameter
105 mm
Power Factor
0.9
Glare Factor
UGR <19
IP Rating
IP20
Battery Operated
No
Dimensions
110 mm x Ø105 mm
Height
110 mm
IK Protection
IK02

Dimensions

Diameter105 mm
Height110 mm
Cut Out DimensionsØ90 mm

Downloads

Technical Data Sheet PDF
DoC_73213_148901
DoC_73213_148901

Certificates and Stamps

Technical Specifications

Electrical Features
- Electrical Insulation ClassII
- Frequency50-60 Hz
- Light SourceCOB
- Minimum and maximum voltage fluctuation that the product can withstand momentarily.
  Nominal Voltage180 V - 265 V
- Voltage level required for the product to function correctly.
  Voltage Range220-240V AC
- Wattage15 W
LED Features
- Measures in degrees how light spreads from the source. A wide angle covers more area, while a narrow one is ideal for highlighting details.
  Beam Angle45º
- Measures how accurately a light source displays colours compared to natural light. A high CRI (close to 100) ensures accurate colour rendering.
  Colour Rendering Index92
- Defines the light tone, from warm white to cool white, measured in Kelvin (K).
  Colour Temperature4000K
- Low-glare products offer more comfortable lighting, suitable for extended use.
  Glare FactorUGR <19
- Estimated lifespan of the product before it loses performance. Based on optimal, non-continuous use, and measured in hours of operation under controlled conditions.
  Hours50.000 hours
- Light ColourCool White
- Lumen1400 lm
- Ratio between light output (lumens) and energy consumed (watts). A high value indicates better efficiency, ideal for saving energy without compromising lighting.
  Luminous Efficiency92 lm/W
- Technology that ensures stable, flicker-free light. It improves visual experience and reduces eye fatigue.
  No FlickerNo Flicker
- Power Factor0.9
Mechanical Features
- Temperature range in which the product can operate optimally, ensuring its performance without overheating or damage.
  Ambient Working Temperature-20 °C~+40 °C
- Ability to move or rotate the spotlight to direct the light as desired.
  DirectionalYes
- Indicates whether the product or its materials are fire-resistant, enhancing safety in high-temperature or flame-risk areas.
  Fire RatedNo
- Protection grade that the product offers against physical impacts. It is measured on a scale from IK00 to IK10, with IK10 being the highest level of resistance to impact and mechanical damage.
  IK ProtectionIK02
- InstallationRecessed
- The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
  IP RatingIP20
- LocationIndoor
- ShapeCircular
Materials and Finishes
- ColourWhite / Silver
- Fitting MaterialPC, Aluminium
- IncludesDriver
Product Information
- CertificatesCE, RoHS, UKCA
- Guarantee3 years
Driver Information
- Driver Intensity350 mA
- Driver Power9 W-25 W
- Voltage level that the driver uses to power the LEDs or electrical components of the product, ensuring their proper functioning.
  Driver Tension36 V
- WifiNo

Description

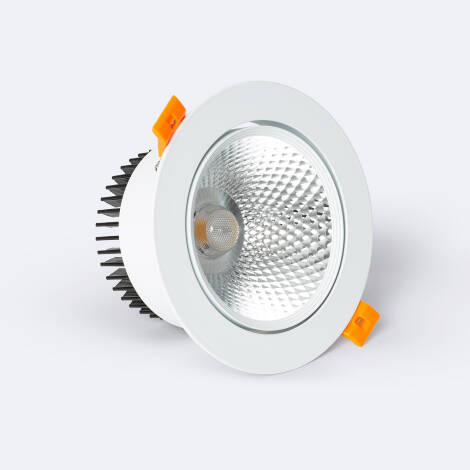

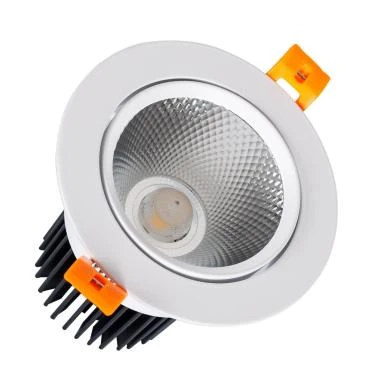

This 15 W LED Downlight features a high-performance COB light source with a CRI of 92 and a selectable 45º beam angle. It incorporates a built-in driver delivering efficient lighting with a luminous efficiency of 92 lm/W, designed for directional illumination in professional indoor environments.

General information about Round 15W COB CRI90 LED Downlight Ø90mm Cut Out

The Round 15W COB CRI90 LED Downlight Ø90mm Cut Out is constructed with a robust aluminium and PC fitting, ensuring durability and heat dissipation. It is designed for recessed installation, featuring a circular format with compact dimensions of 110 mm x Ø105 mm and a cut-out diameter of Ø90 mm. This downlight operates with an electrical insulation class II and includes a driver with a power range of 9 W to 25 W and a tension output of 36 V. It offers a glare control factor UGR <19, providing visual comfort in workspaces. The protection against impacts is rated IK02, while the IP20 rating indicates suitability for indoor environments. The product is directional, allowing precise light placement, and functions within an ambient temperature range of -20 °C to +40 °C. It complies with CE, RoHS, and UKCA certifications, ensuring quality and safety standards.

Use and applications

This LED downlight is a solution oriented to indoor lighting needs, particularly effective in office settings where visual comfort is essential due to its UGR <19 control. It suits commercial environments by delivering high colour fidelity with a CRI of 92, enhancing the appearance of products and spaces. Additionally, it fits technical rooms where reliable and directional lighting is required, thanks to its integrated driver and directional COB source.

The downlight operates safely within a voltage range of 180 V to 265 V and a frequency compatible with 220-240 V AC networks, ensuring stable performance. Its recessed installation system facilitates integration into ceilings, providing a clean aesthetic. This product is non-dimmable, designed for environments where constant light output is preferred. The aluminium and PC materials contribute to its robustness, making it a practical solution for professional indoor applications.

Key benefits

High luminous efficiency of 92 lm/W, ensuring effective light output thanks to the COB module.
Visual comfort with UGR <19, reducing glare in professional indoor spaces.
Accurate colour rendering with a CRI of 92, enhancing colour fidelity for commercial and office use.
Directional lighting capability, allowing targeted illumination where needed.
Durable construction with aluminium and PC materials, providing heat management and mechanical protection.

Highlighted specifications

Power factor: 0.90; Ambient working temperature: -20 °C to +40 °C; Electrical insulation class: II; Protection against impacts: IK02.

Installation and maintenance

The downlight is designed for recessed mounting, following the indicated installation system to ensure secure fitting and optimal performance. It includes a driver compatible with the light source and requires a cut-out diameter of Ø90 mm for installation. The product must be installed by qualified personnel, respecting electrical safety standards.

Disconnect the power supply before any intervention.

Maintenance involves periodic cleaning of the fitting to avoid dust accumulation on the optical components and heat sink, preserving luminous efficiency and thermal performance. The aluminium heat sink assists in passive cooling, reducing maintenance needs.

Specialized lighting distribution in United Kingdom. If you are looking to buy Round 15W COB CRI90 LED Downlight Ø90mm Cut Out with a professional warranty, it is a leading choice for durability and efficiency. Check price and availability here.

Frequently asked questions

Is this downlight dimmable? — This product is not dimmable and operates at a fixed light output.
What type of installation does it require? — It is designed for recessed mounting with a cut-out diameter of Ø90 mm.
Can it be used outdoors? — It has an IP20 rating, suitable only for indoor environments.
Does it include a driver? — Yes, the downlight comes with an integrated driver compatible with the COB light source.
What is the expected lifespan? — The product offers a lifespan of 50,000 hours under recommended operating conditions.
