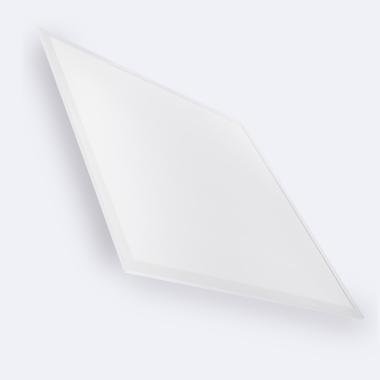

600x600mm 40W Microprismatic UGR17 LED Panel 4000lm LIFUD

The 600x600mm 40W Microprismatic UGR17 LED Panel delivers 4000 lumens with a reliable LIFUD driver and a microprismatic lens designed to provide UGR below 17 for enhanced visual comfort. This LED panel combines efficient 40 W power consumption with a luminous efficacy of 100 lm/W, making it a practical choice for professional indoor lighting.

General information about 600x600mm 40W Microprismatic UGR17 LED Panel 4000lm LIFUD

This LED panel features a robust construction with an aluminium frame and PC diffuser, ensuring durability and quality. It is rated with IK05 impact protection and IP40 resistance, suitable for indoor environments where moderate protection is required. The panel incorporates a microprismatic lens (opal type) that optimises light distribution while maintaining a low glare factor (UGR <17). Designed to operate within an ambient temperature range from -20 °C to +50 °C, it supports a voltage range of 220–240 V AC with a nominal voltage between 85 V and 265 V. The electrical insulation is class II, enhancing safety in professional installations. The panel is finished in white, with a slim profile of 30 mm depth, facilitating installation in false ceilings.

Use and applications

This LED panel is conceived to provide effective lighting solutions in office environments, where precise visual comfort is essential due to extended working hours and the need for glare control, supported by its UGR<17 rating and high CRI of 80 for accurate colour rendering. It is particularly suitable for indoor zones such as workstations, meeting rooms, and reception areas, where uniform and efficient lighting improves productivity and ambience. Additionally, it fits well in customer service and training rooms, benefiting from the panel’s stable luminous output and reliable LIFUD driver technology.

Thanks to its IP40 protection and IK05 resistance, it performs reliably in controlled indoor conditions. The panel's compatibility with recessed false ceiling installation and its slim design provide flexibility in fitting diverse architectural layouts. Its operation within a wide temperature range and a power factor of 0.9 ensures stable performance under typical indoor electrical conditions, making it a solid solution for offices and commercial spaces requiring consistent, glare-controlled illumination.

Key benefits

• Low glare UGR<17 enhances visual comfort and reduces eye strain thanks to the microprismatic lens design.
• High luminous efficacy of 100 lm/W ensures efficient energy use without compromising light output.
• Durable aluminium frame and PC diffuser provide mechanical robustness and long-lasting performance.
• Reliable LIFUD driver offers stable current and compatibility with dimmable versions for environment control.
• Wide ambient temperature range (-20 °C to +50 °C) allows operation in varied indoor conditions.

Highlighted specifications

Power factor: 0.9; IK protection: IK05; IP rating: IP40; Colour rendering index (CRI): 80; Dimensions: 30 mm x 595 mm x 595 mm.

Installation and maintenance

The panel is designed for installation in false ceilings, facilitating integration into standard office infrastructures. Installation follows the recommended mounting system for recessed fitting, ensuring a secure and flush finish. Maintenance is straightforward due to the panel's slim design and durable materials. The electrical insulation class II enhances safety during installation and servicing. Disconnect the power supply before any intervention.

Frequently asked questions

• What type of mounting is recommended? — Recessed installation in false ceilings is advised for optimal integration.
• Is the panel dimmable? — Compatible versions with dimmable LIFUD drivers are available for environment control.
• What is the expected lifespan? — The panel operates reliably for up to 50,000 hours.
• Can it be used in humid environments? — This panel has IP40 rating, suitable for indoor dry conditions but not recommended for high humidity areas.
• What is the colour temperature option? — The panel includes selectable CCT options in related series but this specific model’s CCT is standard.

Specialized lighting distribution in United Kingdom. If you are looking to buy 600x600mm 40W Microprismatic UGR17 LED Panel 4000lm LIFUD with a professional warranty, it is a leading choice for durability and efficiency. Estimated shipping in 15 to 20 days (subject to stock availability). Quality certified by CE, CEE, ENEC, RoHS, TÜV for professional installations and projects. Check price and availability here.
