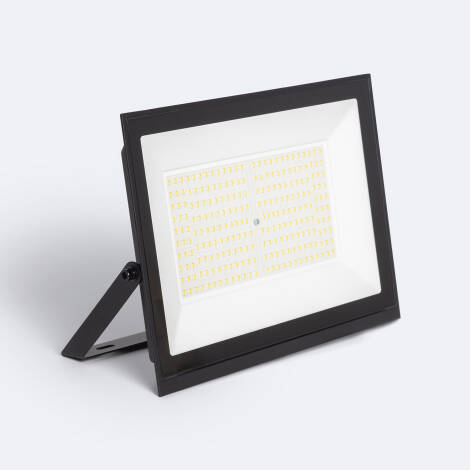

S2 Pro 150W LED Floodlight IP65

Technical Specifications

• Electrical Features

  • Electrical Insulation ClassI
  • Frequency50-60 Hz
  • Light SourceSMD2835
  • Minimum and maximum voltage fluctuation that the product can withstand momentarily.
    Nominal Voltage100 V - 265 V
  • Product's ability to withstand voltage spikes or electrical overloads, protecting internal components from potential damage due to current fluctuations.
    Overvoltage Protection2 kV
  • Voltage level required for the product to function correctly.
    Voltage Range220-240V AC
  • Wattage150 W

• LED Features

  • Measures in degrees how light spreads from the source. A wide angle covers more area, while a narrow one is ideal for highlighting details.
    Beam Angle70º
  • Measures how accurately a light source displays colours compared to natural light. A high CRI (close to 100) ensures accurate colour rendering.
    Colour Rendering Index80
  • Defines the light tone, from warm white to cool white, measured in Kelvin (K).
    Colour Temperature4500K
  • Estimated lifespan of the product before it loses performance. Based on optimal, non-continuous use, and measured in hours of operation under controlled conditions.
    Hours40.000 hours
  • Efficiency of the LEDs, measured as the amount of light generated per unit of energy consumed (lumens per watt). High efficiency ensures energy savings without losing light quality.
    LED Performance180 lm/W
  • Light ColourCool White
  • Lumen15000 lm
  • Ratio between light output (lumens) and energy consumed (watts). A high value indicates better efficiency, ideal for saving energy without compromising lighting.
    Luminous Efficiency100 lm/W
  • Number of LEDs180
  • Power Factor0.5
  • Standard colour deviation (MacAdam)SDCM ≤ 7
  • ULOR35 %

• Mechanical Features

  • Temperature range in which the product can operate optimally, ensuring its performance without overheating or damage.
    Ambient Working Temperature-20 °C~+45 °C
  • Protection grade that the product offers against physical impacts. It is measured on a scale from IK00 to IK10, with IK10 being the highest level of resistance to impact and mechanical damage.
    IK ProtectionIK10
  • InstallationSurface
  • Installation of the bracketWall with U-bracket, On-wall base with U-bracket, Suspension
  • The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
    IP RatingIP65
  • LocationIndoor
  • Type of lens that determines the distribution and quality of the light. It influences the illumination angle and light efficiency.
    Optic90º

• Product Information

  • CertificatesCE, RoHS, TÜV
  • Guarantee3 years
  • Product SeriesS-ECO

• Materials and Finishes

  • ColourWhite
  • Fitting MaterialPC
  • Not IncludedRemote

• Driver Information

  • WifiNo
