  • 75 W
    Wattage 75 W
  • 125.2 mm x 32 mm x 102 mm
    Dimensions 125.2 mm x 32 mm x 102 mm
  • 32 mm
    Width 32 mm
  • 125.2 mm
    Height 125.2 mm
Image of 12V DC Power Supply for DIN Rail
    Image of 12V DC Power Supply for DIN Rail
    Image of 12V DC Power Supply for DIN Rail
    Image of 12V DC Power Supply for DIN Rail
1 / 3
  • 75 W

    Wattage

    75 W

  • 125.2 mm x 32 mm x 102 mm

    Dimensions

    125.2 mm x 32 mm x 102 mm

  • 32 mm

    Width

    32 mm

  • 125.2 mm

    Height

    125.2 mm

  • 6.3 A

    Current Intensity

    6.3 A

  • 220-240V AC

    Voltage Range

    220-240V AC

  • IP20

    IP Rating

    IP20

  • Aluminium

    Fitting Material

    Aluminium

12V DC Power Supply for DIN Rail

Download technical datasheet

Ref. Ledkia: 173369

Wattage 75 W

£16.69

VAT included

Pre-Order, estimated shipping from 08/02/2026

PRO CLUB badge

Are you a lighting professional or a company?

  • Great discounts off PVP
  • Extended Warranty
  • Exclusive Services

Buy now, pay later

Credit payment

    • 30 Day Return

      You can renounce to this product during the first 30 calendar days from receipt, provided that the product remains in perfect condition for use.


      Custom-made products and cut-to-size strips are excluded.


      Full conditions here: After-sales service.

    • 24h Free Delivery

      If you place your order today before 2:30 pm, delivery within 24/48h (working days).


      Shipping is free on purchases over £ 49.99 (incl. VAT).


      Full conditions here: Delivery methods.

    • 100% secure payments

      payment method image 1

      payment method image 2

      At Ledkia we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation.


      More information: Payment methods.

    • Up to 5 year warranty

      Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.


      You will find the exact product warranty in the technical details.


      Full conditions here: After-sales service.

Dimensions

  • Depth102 mm
  • Height125.2 mm
  • Width32 mm

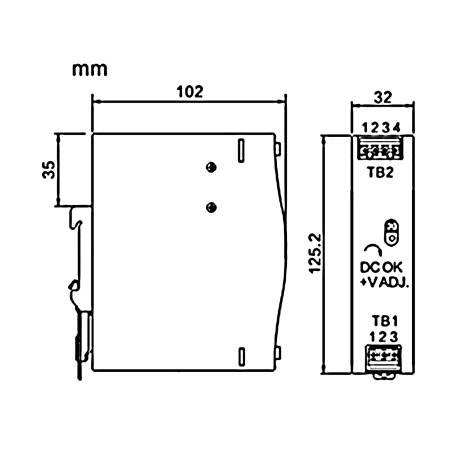

Scheme image

Downloads

  • pdf file

    Technical Data Sheet PDF

Certificates and Stamps

CertificateCertificateCertificate

Technical Specifications

  • Technical Information

    • Temperature range in which the product can operate optimally, ensuring its performance without overheating or damage.
      Ambient Working Temperature-15 °C~+65 °C
    • Current Intensity6.3 A
    • Electrical Insulation ClassI
    • Fitting MaterialAluminium
    • Frequency50-60 Hz
    • The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
      IP RatingIP20
    • Minimum and maximum voltage fluctuation that the product can withstand momentarily.
      Nominal Voltage100 V - 240 V
    • It is the amount of voltage the product delivers to its components, such as LEDs or connected devices, for operation. This value is crucial to ensure safe and efficient operation.
      Output Voltage12V AC
    • Voltage level required for the product to function correctly.
      Voltage Range220-240V AC
    • Wattage75 W

  • Product Data

    • CertificatesCE, RoHS, UKCA
    • Guarantee3 years

  • Product Information

    • LocationIndoor

Description

The 12V DC Power Supply for DIN Rail is a professional device designed to provide a stable continuous voltage in control systems, automation, and industrial electronic equipment. Its compact format and direct mounting on a standard 35 mm DIN rail make it an ideal solution for electrical panels, automation cabinets, advanced home automation, or LED installations requiring precise and safe 12V DC power supply.

Industrial design and build reliability

Manufactured with a housing of anodised aluminium and self-extinguishing technical polycarbonate, this power supply combines mechanical strength, lightness, and excellent thermal dissipation. Its modular design allows for neat integration into any electrical system, optimising space and facilitating maintenance. The top and side vents ensure efficient passive ventilation, maintaining stable operating temperatures even under continuous load.

The professional finish and front terminal layout ensure easy connection and ergonomic handling, contributing to a quick and safe installation in demanding work environments.

Electrical performance and output stability

With a 12V DC output and power ratings available from 30W to 480W, this power supply guarantees a precise and ripple-free continuous voltage, even with fluctuations in the electrical network. The universal input range of 85-264V AC allows its use in both domestic and industrial environments, automatically adapting to the available supply voltage.

Its high efficiency above 88% minimises energy losses and reduces operating temperature, extending the lifespan of internal components. The electronic output regulation system maintains a constant voltage level even under load variations, ensuring stable performance in sensitive electronic devices or control systems.

Integrated protections

The 12V DC Power Supply for DIN Rail includes a set of essential electronic protections to guarantee system safety and reliability:

• Overload protection: prevents damage to the power supply or connected equipment through automatic shutdown.
• Overvoltage protection: stabilises the output against transient power spikes.
• Thermal protection: stops operation in case of excessive temperature and automatically resets once a safe value is restored.
• Short-circuit protection: automatic recovery circuit that prevents permanent system failures.

These protections ensure continuous, risk-free operation even in industrial environments where electrical conditions are variable or demanding.

Installation and connectivity

Mounting on the DIN rail is done via a rear metal clip for quick fastening, ensuring a firm anchor even in the presence of vibrations. The screw connection terminals allow secure cable fixing and a clean installation. Its modular design facilitates parallel connection of multiple units to power different circuits or increase the total available power.

It also supports integration with redundancy modules, very useful in critical systems where continuity of electrical service is a priority, such as in PLCs, alarm systems, or industrial automation.

Regulatory compliance and certifications

It complies with major safety and electromagnetic compatibility standards, including CE, RoHS, EN61000, and EN62368-1. The galvanic isolation between input and output provides an additional layer of protection against interference and discharges, meeting the safety standards required in professional control and signalling applications.

Professional applications

The 12V DC Power Supply for DIN Rail is especially suited for powering PLCs, relays, controllers, sensors, communication modules, security systems, CCTV cameras, and LED strips. Its robust construction and stable performance guarantee continuous operation in high-demand environments such as industrial installations, building automation, or advanced home automation.

Its combination of reliability, energy efficiency, and universal compatibility makes it an indispensable solution for professionals seeking a compact, durable, and safe power supply capable of man
