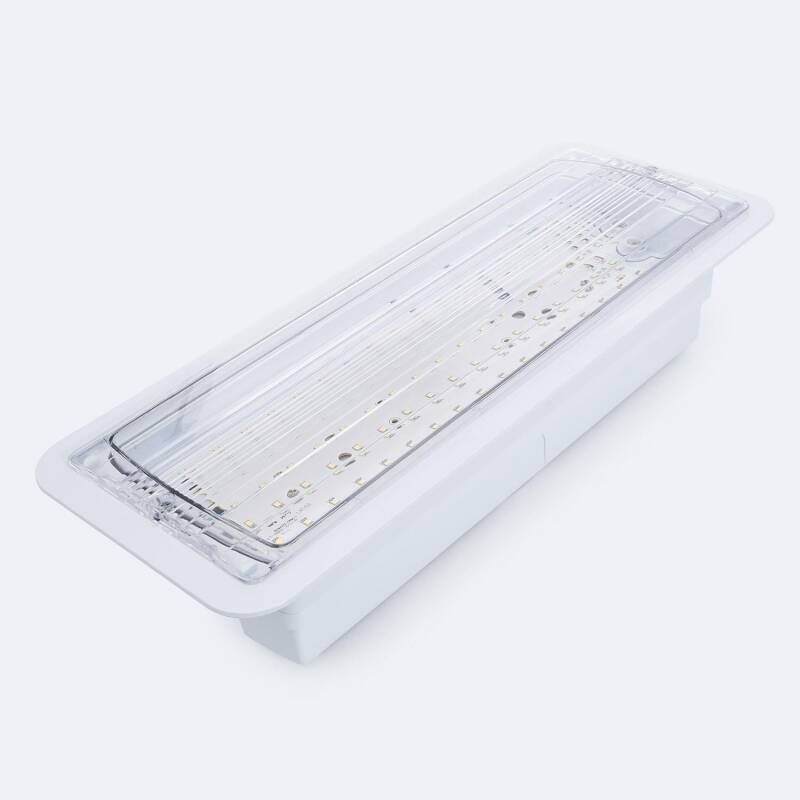

Recessed Permanent/Non Permanent LED Emergency Light 155x400mm Cut Out

Recessed emergency light solution with maintained/non-maintained operation, 160 lm and a high-uniformity SMD module. Integrates a Ni-Cd battery for automatic backup and the stated autonomy, in a rectangular format for a 155x400 mm cut-out.

General information about Recessed LED Emergency Light 160 lm Maintained/Non-Maintained 155x400 mm Cut-Out

This recessed emergency luminaire combines maintained/non-maintained operation with an SMD2835 LED module and a diffuser that distributes the light uniformly. It offers a 160 lm output in cool white (6000K) and features an integrated Ni-Cd battery for backup. The PC housing enables a lightweight, robust installation in suspended ceilings or interior surfaces.

It has an IP20 rating for indoor use and features electrical safety class II. It operates at 220–240 V AC and provides autonomy between 3 h and 6 h, suitable for basic lighting continuity in the event of a power cut. The overall dimensions are 164 mm x 420 mm x 90 mm, with a 155 x 400 mm cut-out to fit standard rectangular recesses. The service life reaches 40,000 hours.

Use and application

Designed to signal and maintain visibility during mains failures in indoor technical environments, the luminaire fits recessed installations thanks to the recessed mounting type and its 155 x 400 mm cut-out format. For professional projects requiring lighting continuity, the 3–6 h autonomy provides an operational base in case of interruption, and class II insulation adds safety to the system.

Under typical indoor conditions, the operating temperature range of -10 °C to +50 °C ensures stable performance. Connection to 220–240 V simplifies mains power supply without additional equipment, and the 160 lm output with diffuser distribution supports clear signage. Designed for projects where integrated safety and easy maintenance matter, with an accessible Ni-Cd battery.

Key benefits

• Service continuity thanks to integrated Ni-Cd battery, with specified autonomy via backup system.
• Clean installation due to recessed mounting and 155 x 400 mm cut-out.
• Homogeneous visibility thanks to SMD module and light-distribution diffuser.
• Enhanced electrical safety through class II insulation.
• Easy network integration via electrical connection at 220–240 V.
• Operational durability thanks to stated lifespan and low-maintenance PC material.

Highlighted specifications

Luminous flux: 160 lm; Colour temperature: 6000K; Voltage: 220–240 V; Autonomy: 3 h to 6 h.

Installation and maintenance

Carry out the installation by recessing the unit in a 155 x 400 mm cut-out and securing the PC body before making the connection. Connect to the 220–240 V mains power following the unit’s wiring diagram and verify the maintained/non-maintained operating mode according to the device configuration. For maintenance, periodically check the condition of the battery and the proper operation of the indicator LED, replacing components when necessary.

Disconnect the power before any intervention.

Specialised lighting distribution in Spain. If you are looking to buy Recessed LED Emergency Light 160 lm Maintained/Non-Maintained 155x400 mm Cut-Out with professional warranty, it is a leading option for durability and efficiency. Estimated shipping in 24 h (subject to stock availability). Certified quality by CE, RoHS, UKCA for professional installations and projects. Check price and availability here.

Frequently asked questions

• What dimensions are required for the recess? — It requires a 155 x 400 mm cut-out.
• What is the operating temperature range? — It operates between -10 °C and +50 °C.
• What type of battery is included? — It includes a Ni-Cd battery with 3 to 6 hours of autonomy.
• What type of electrical installation is it designed for? — It operates at 220–240 V AC.
• What is the LED module’s lifespan? — It has a service life of 40,000 hours.
