Name: 15-30W 200-240V 350-800mA 24-42V Output Flicker Free BOKE 1-10V Dimmable Driver BK-KUL030
Brand: Ledkia
Price: 9.39 GBP
Availability: InStock

Wattage 30 W

1 / 2

Wattage
30 W
Voltage Range
220-240V AC
Type Of Dimming
1-10 V
Power Factor
0.95
IP Rating
IP20
Dimensions
31 mm x 69 mm x 103 mm
Width
69 mm
Height
31 mm
Fitting Material
PC
Brand
BOKE

Wattage 30 W

30 W
In Stock, delivery in 24/48h

Before £18.19

-48% (You save £8.80)

£9.39

VAT included

In Stock, delivery in 24/48h

Are you a lighting professional or a company?

Great discounts off PVP
Extended Warranty
Exclusive Services

See alternatives

Dimensions

Height31 mm
Depth103 mm
Dimensions31 mm x 69 mm x 103 mm
Width69 mm

Downloads

Technical Data Sheet PDF

Certificates and Stamps

Technical Specifications

Technical Information
- Temperature range in which the product can operate optimally, ensuring its performance without overheating or damage.
  Ambient Working Temperature-20 °C~+50 °C
- Quality, safety and compliance certifications that the product has obtained, such as CE, RoHS or UL, which guarantees that it meets industry standards and current regulations.
  CertificatesRoHS, CE, TÜV, ENEC
- Level of electrical current that the driver is capable of handling to power components, such as LEDs, ensuring safe and efficient operation.
  Driver Intensity350 mA-800 mA
- Voltage level that the driver uses to power the LEDs or electrical components of the product, ensuring their proper functioning.
  Driver Tension24 V-38 V
- Level of electrical protection of the product against shocks. Indicates whether it is suitable for different conditions of use, guaranteeing safety in the installation.
  Electrical Insulation ClassII
- Composition of the product or its components, such as aluminum, steel, plastic or glass. The material influences the durability, design and thermal properties of the product.
  Fitting MaterialPC
- Range of cycles per second at which the product operates, measured in hertz (Hz). A standard value ensures compatibility with local electrical networks.
  Frequency50-60 Hz
- The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
  IP RatingIP20
- Specification that describes the purpose or application of the product, such as lighting, air conditioning, or security, among others.
  LocationIndoor
- Indicates the electrical efficiency of the product by measuring the relationship between the useful power and that consumed. A value close to 1 represents more efficient consumption.
  Power Factor0.95
- Voltage level required for the product to function correctly.
  Voltage Range220-240V AC
- Indicates how much energy the light source consumes, measured in watts (W). In LED lighting, the power is much lower than in traditional sources, and is related to the light intensity (lumens).
  Wattage30 W
Product Data
- Manufacturer or company responsible for designing and producing the product. A recognized name ensures quality and support.
  BrandBOKE
- Period during which the customer has the right to have their product repaired or replaced in the event of manufacturing defects or malfunctions under normal conditions of use. For more information, consult our After-sales page.
  Warranty3 years
Product Information
- System used to control product characteristics, such as intensity regulation, color temperature or speed, adjusting its performance according to the user's needs.
  Type Of Dimming1-10 V

Description

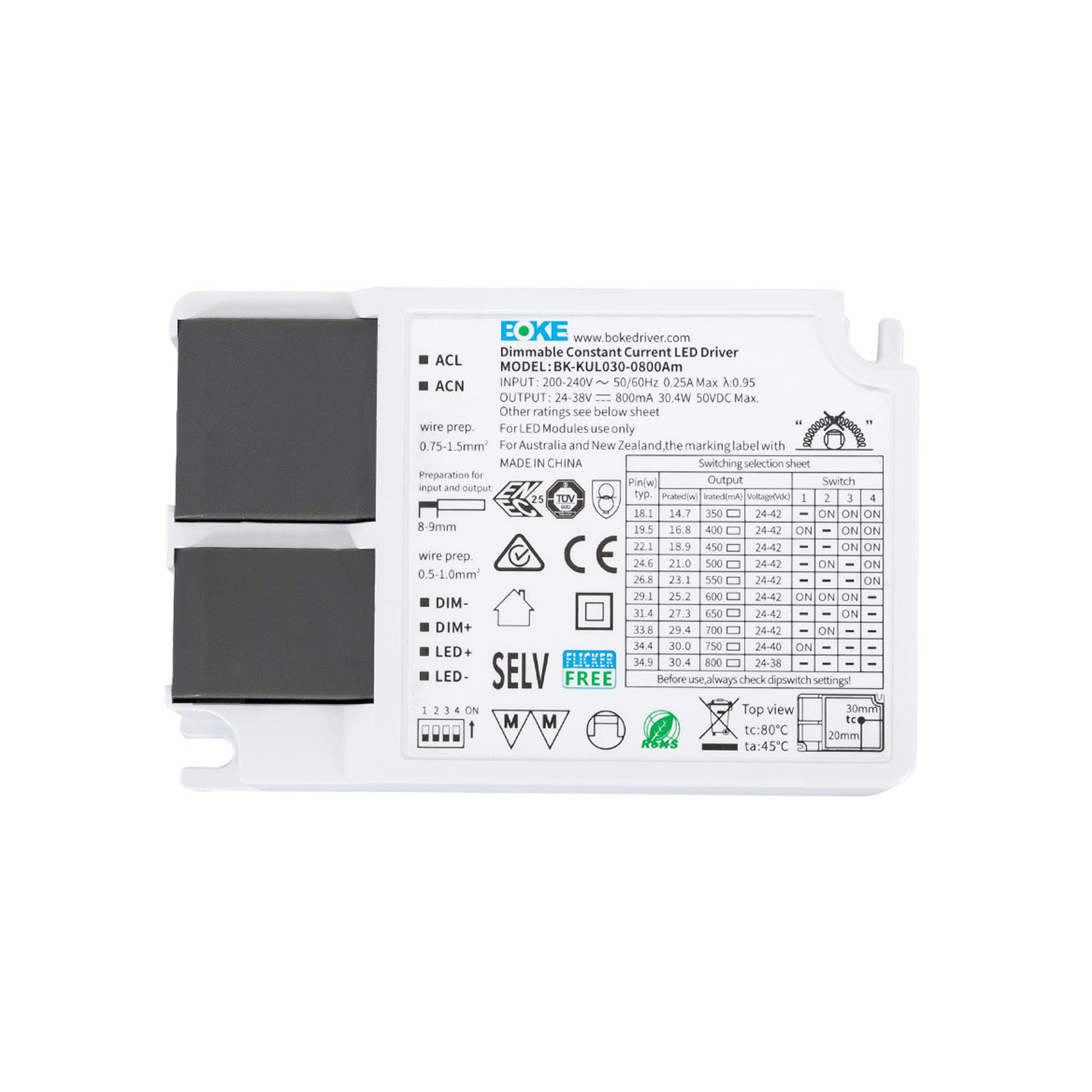

15-30W 200-240V 350-800mA 24-42V Output Flicker Free BOKE 1-10V Dimmable Driver BK-KUL030 especially designed for LED panels, LED downlights, LED panels and LED ceiling lights. A LED driver is responsible for transforming the alternating current from the mains into direct current suitable to make the LED chips glow. To find out if a driver is going to work with our luminaire, PCB or panel, verify the voltage and output current of the driver.

Characteristics of the 15-30W 200-240V 350-800mA 24-42V Output Flicker Free BOKE 1-10V Dimmable Driver BK-KUL030

This driver has a multi-voltage output which means that it can deliver a constant voltage within a range allowing the same driver to be used for a variety of applications with different current and voltage requirements. Once the driver is powered, the voltage is automatically adjusted and the output voltage is constant. Its power factor is very high, making it a very efficient driver.

Once the driver is powered, the voltage is automatically adjusted and the output voltage is constant. The 1-10V dimmable driver must be used in conjunction with a 1-10V LED dimmer which allows you to easily select the desired light intensity.

Its power factor is very high, making it a very efficient driver. In addition, it has Flicker-Free technology, avoiding light flicker and therefore reducing eye fatigue. Say goodbye to eye strain, headaches and blurred vision caused by flickering light.

In addition, it includes four contacts that allow the driver's output parameters to be adjusted, making it a highly versatile driver.

Discover our wide range of Drivers at Ledkia, our lighting online shop.
