Driver Regulable TRIAC Conexión Jack Salida 25-42 DC 18W

LIFUD Dimmable TRIAC 220-240V No Flicker Driver Output 25-40V 400-550mA 16-22W LF-GDE020YG

Ref: 72119 / LF-GDE020YG

Before £

£

Price not available

Would you like us to call you?
FREE

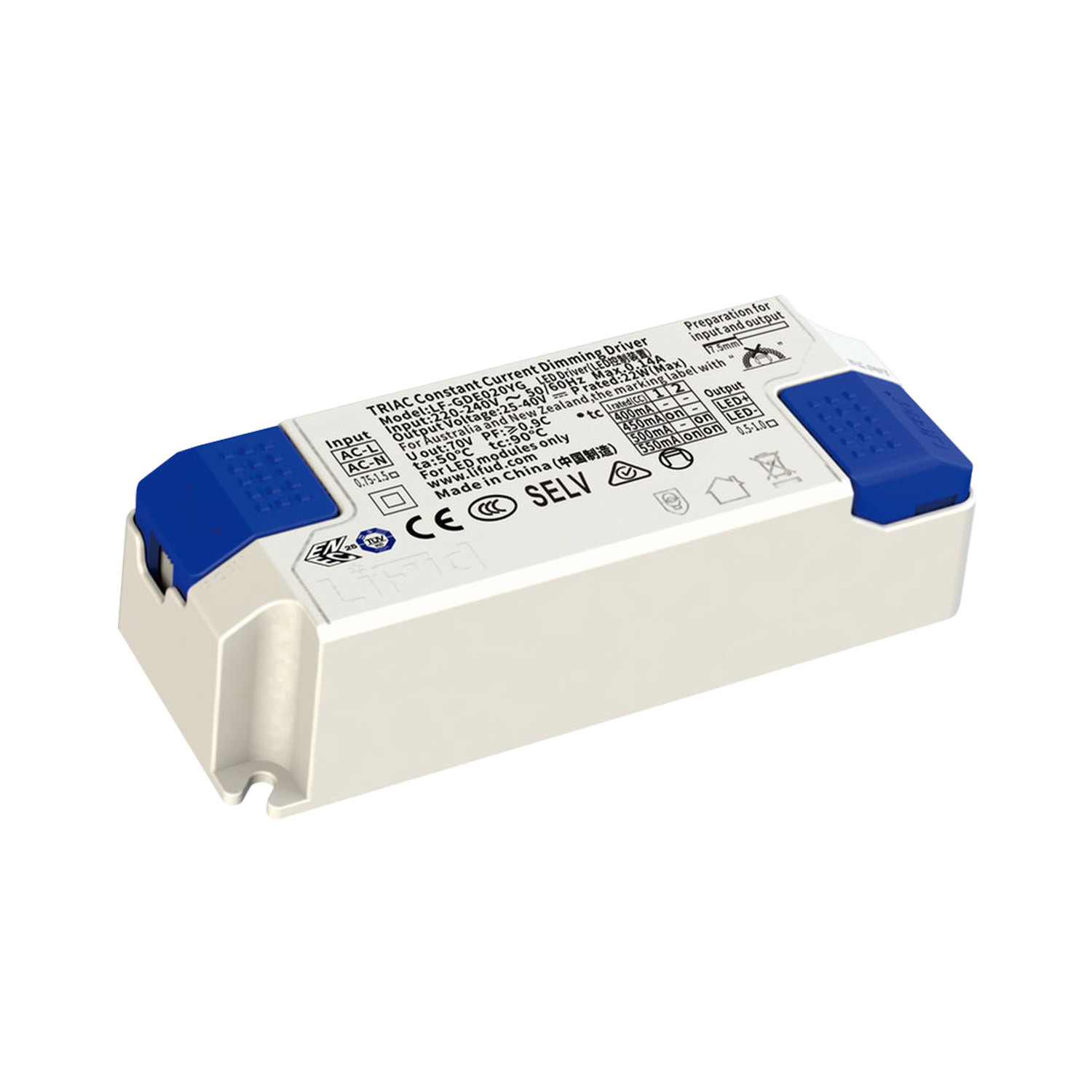

LIFUD Dimmable TRIAC 220-240V No Flicker Driver Output 25-40V 400-550mA 16-22W LF-GDE020YG

Ref: 72119 / LF-GDE020YG

  • 22 W
  • TRIAC
  • IP20
  • 50-60 Hz
  • 117x46x31 mm
  • 400-550 mA
  • 220-240V AC
  • 25-40V DC
  • 5 Years
  • UKCA
  • PC
  • 0.90

Description LIFUD Dimmable TRIAC 220-240V No Flicker Driver Output 25-40V 400-550mA 16-22W LF-GDE020YG

The LIFUD Dimmable LED Driver TRIAC 220-240V No Flicker Output 25-40 DC 16-22W LF-GDE020YG from the prestigious brand LIFUD is specially designed for LED panels, LED downlights and LED ceiling lights because it incorporates the universal Jack connector. An LED driver is responsible for transforming the alternating current of the electricity grid into direct current suitable to make the LED chips shine. To find out if a driver is going to work with our light, PCB or panel, we must consult the voltage and output current of the driver.

Characteristics of the LIFUD Dimmable TRIAC 220-240V No Flicker Driver Output 25-40 DC 16-22W LF-GDE020YG

This driver has a multi-voltage input. This means that it is able to withstand surges and dips in line voltage for a short period of time without damage. In addition, its output is also multi-voltage which means that it can deliver a constant voltage within a range allowing the same driver to be used for a variety of applications with different current and voltage requirements. Once the driver is powered, the voltage is automatically adjusted and the output voltage is constant. The dimmable TRIAC driver must be used in combination with a TRIAC LED dimmer to allow easy selection of the desired light intensity. Its power factor is very high, making it a very efficient driver.

Discover our wide range of Drivers in our online lighting shop.

Characteristics LIFUD Dimmable TRIAC 220-240V No Flicker Driver Output 25-40V 400-550mA 16-22W LF-GDE020YG

Power: 22 W
Power Factor: 0.90
Frequency: 50-60 Hz
Input: 220-240V AC
Output: 25-40V DC
Intensity Level: 400-550 mA
Protection Class: II
Dimmable: TRIAC
Energy Efficiency 2021 (UE-1369/2017): A+
Use: Indoor
IP Protection: IP20
Flicker Free: YES
Material: PC
Size: 117x46x31 mm
Warranty: 5 Years
Certifications: UKCA, CE & RoHS
Brand: LIFUD
