Range Essential
  • 6 W
    Wattage 6 W
  • 220-240V AC
    Voltage Range 220-240V AC
  • 540 lm
    Lumens 540 lm
  • Ø110 mm
    Cut Out Dimensions Ø110 mm
Image of Round Slim 6W LED Downlight Ø110mm Cut Out
    Image of Round Slim 6W LED Downlight Ø110mm Cut Out
    Image of Round Slim 6W LED Downlight Ø110mm Cut Out
    Image of Round Slim 6W LED Downlight Ø110mm Cut Out
    Image of Round Slim 6W LED Downlight Ø110mm Cut Out
1 / 4
  • 6 W

    Wattage

    6 W

  • 220-240V AC

    Voltage Range

    220-240V AC

  • 540 lm

    Lumens

    540 lm

  • Ø110 mm

    Cut Out Dimensions

    Ø110 mm

  • 120 mm

    Diameter

    120 mm

  • 0.9

    Power Factor

    0.9

  • IP20

    IP Rating

    IP20

  • No

    Battery Operated

    No

  • 35 mm x Ø120 mm

    Dimensions

    35 mm x Ø120 mm

  • 35 mm

    Height

    35 mm

  • IK05

    IK Protection

    IK05

  • 90 lm/W

    Luminous Efficiency

    90 lm/W

Round Slim 6W LED Downlight Ø110mm Cut Out

Download technical datasheet

Ref. Ledkia: 105497

Colour Temperature Cool White 5500K

Before £4.29

-12% (You save £0.50)

£3.79

VAT included
Energetic efficiency

In Stock, delivery in 15-20 days

Includes Driver

PRO CLUB badge

Are you a lighting professional or a company?

  • Great discounts off PVP
  • Extended Warranty
  • Exclusive Services

Buy now, pay later

Credit payment

  • 30 Day Returns

    You can renounce to this product during the first 30 calendar days from receipt, provided that the product remains in perfect condition for use.


    Custom-made products and cut-to-size strips are excluded.


    Full conditions here: After-sales service.

  • 24h Free Delivery

    If you place your order today before 2:30 pm, delivery within 24/48h (working days).


    Shipping is free on purchases over £ 49.99 (incl. VAT).


    Full conditions here: Delivery methods.

  • 100% secure payments

    payment method image 1

    payment method image 2

    At Ledkia we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation.


    More information: Payment methods.

  • Up to 5 year warranty

    Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.


    You will find the exact product warranty in the technical details.


    Full conditions here: After-sales service.

See alternatives

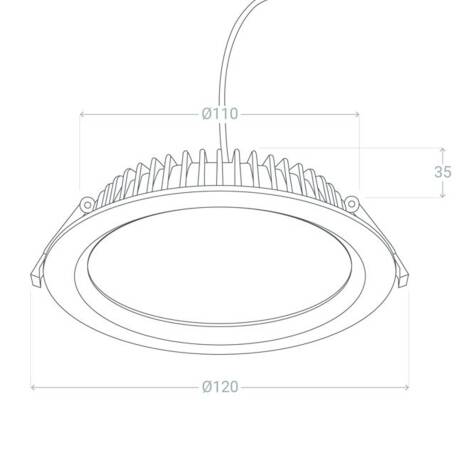

Dimensions

  • Diameter120 mm
  • Cut Out DimensionsØ110 mm
  • Height35 mm
Scheme image

Downloads

  • pdf file

    Technical Data Sheet PDF

Certificates and Stamps

CertificateCertificate

Technical Specifications

  • Technical Information

    • Temperature range in which the product can operate optimally, ensuring its performance without overheating or damage.
      Ambient Working Temperature-10 °C~+45 °C
    • Measures in degrees how light spreads from the source. A wide angle covers more area, while a narrow one is ideal for highlighting details.
      Beam Angle120º
    • Quality, safety and compliance certifications that the product has obtained, such as CE, RoHS or UL, which guarantees that it meets industry standards and current regulations.
      CertificatesRoHS, CE, UKCA
    • Defines the light tone, from warm white to cool white, measured in Kelvin (K).
      Colour Temperature5500K
    • DimmableNo
    • Electrical Insulation ClassII
    • Fitting MaterialAluminium
    • Frequency50-60 Hz
    • Estimated lifespan of the product before it loses performance. Based on optimal, non-continuous use, and measured in hours of operation under controlled conditions.
      Hours40.000 hours
    • Protection grade that the product offers against physical impacts. It is measured on a scale from IK00 to IK10, with IK10 being the highest level of resistance to impact and mechanical damage.
      IK ProtectionIK05
    • InstallationRecessed
    • The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
      IP RatingIP20
    • Light ColourCool White
    • Lumens540 lm
    • Ratio between light output (lumens) and energy consumed (watts). A high value indicates better efficiency, ideal for saving energy without compromising lighting.
      Luminous Efficiency90 lm/W
    • Minimum and maximum voltage fluctuation that the product can withstand momentarily.
      Nominal Voltage85-265V AC
    • Power Factor0.9
    • ShapeCircular
    • Voltage level required for the product to function correctly.
      Voltage Range220-240V AC
    • Wattage6 W

  • Product Information

    • Replaceable Light SourceNo
    • Type Of LensOpaal

  • Product Data

    • Guarantee3 years
    • LocationIndoor
Outdoor LED bollard

Description

The 6W Round Slim LED Panel with Ø110 mm Cut Out of power and DOB, i.e. "Driver on Board", has a flat design with a great finish and has a very low power consumption.

Its latest generation light source provides a luminosity equivalent to that of a 20W halogen luminaire. This efficiency provides significant savings in light consumption. On the other hand, it does not require any type of maintenance and it also has a multi-voltage input, which means that it is capable of withstanding voltage rises and falls for a short period of time without suffering damage. Its 120° angle of aperture is perfect for wide and effective illumination.

Applications of the 6W Round Slim LED Panel with Ø110 mm Cut Out

Given the power and performance of this LED panel, it is the ideal LED lighting element for corridors, hallways, staircases or for those spaces where a wide ambient light is required.
