Dimensions

Length1 m
Height12 mm
Width6 mm

Downloads

120576_252211_Datasheet_en_GB
manual_tiras_led_6_idiomas
DoC_120576_252211

Certificates and Stamps

Technical Specifications

LED Features
- Defines the light tone, from warm white to cool white, measured in Kelvin (K).
  Colour Temperature6000K
- Estimated lifespan of the product before it loses performance. Based on optimal, non-continuous use, and measured in hours of operation under controlled conditions.
  Hours40.000 hours
- Light ColourDaylight
- Number of LEDs Per Metre120 led/m
- Power Per Meter8 W/m
Electrical Features
- Electrical Insulation ClassIII
- LED Strip Installation10 m
- Light SourceCOB
- Mains connectionTransformer
- Remote ControlNo
- Type Of DimmingController
- Voltage level required for the product to function correctly.
  Voltage Range24V DC
Product Information
- CertificatesCE, RoHS, UKCA
- Guarantee3 years
- Product SeriesNFLEX6
Mechanical Features
- Temperature range in which the product can operate optimally, ensuring its performance without overheating or damage.
  Ambient Working Temperature-10 °C~+50 °C
- The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
  IP RatingIP65
- LocationOutdoor, Indoor
Materials and Finishes
- Fitting MaterialPVC, Silicone
Driver Information
- WifiNo

Description

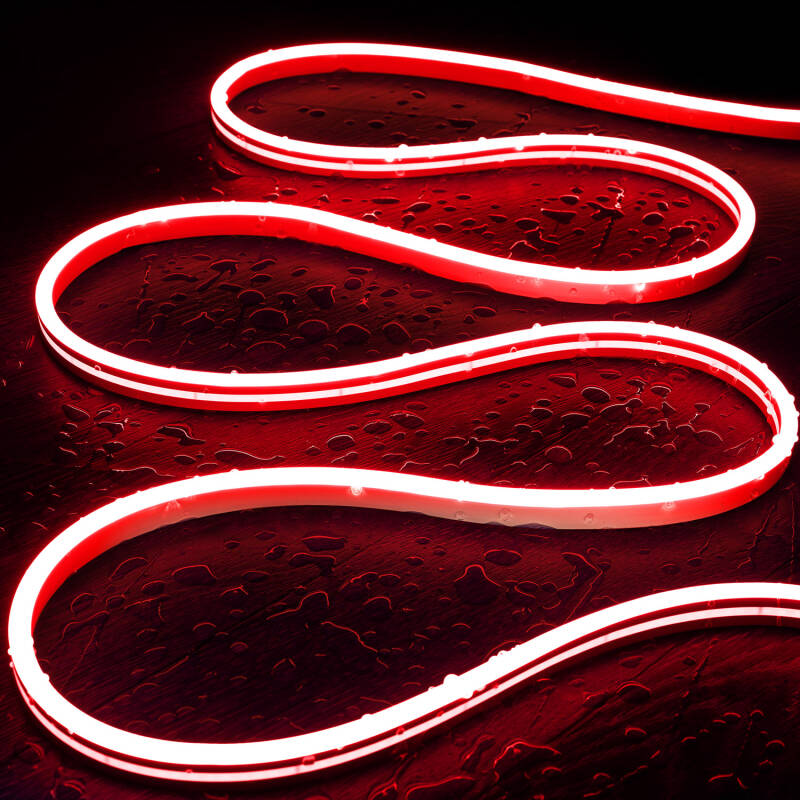

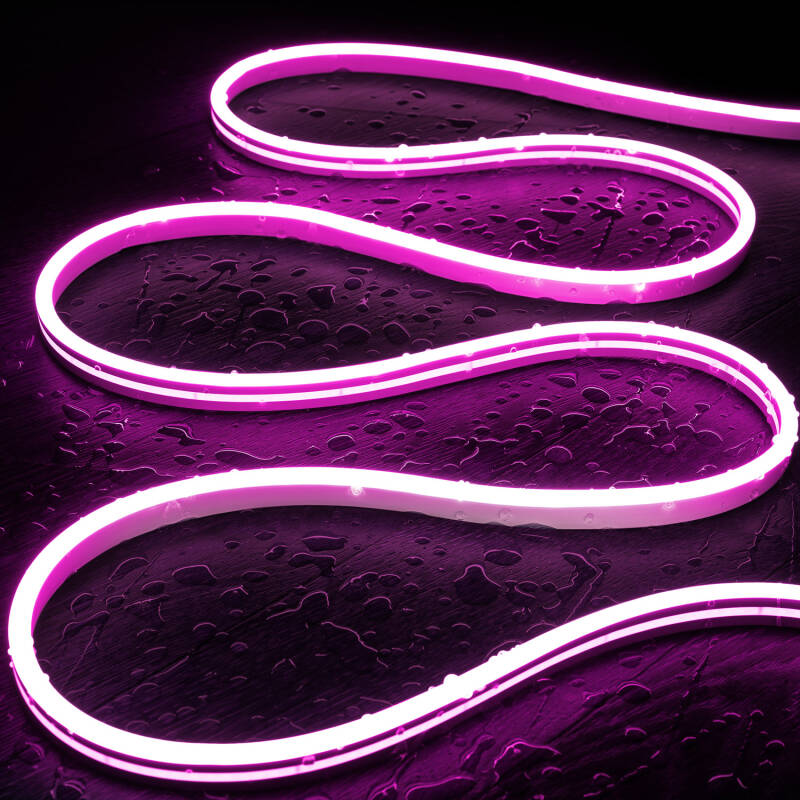

tHE 24V DC Custom Length NFLEX6 LED Strip Free Cut perfectly replicates the visual effect of traditional neon signs. Its flexible design adapts to any location, adding a touch of colour.

Each metre of this 24V DC LED neon strip integrates 120 highly efficient LEDs with a consumption of 8W. The hose has a translucent cover that provides uniform light and enhances its optical effect. Its manufacturing with high-quality materials like silicone provides great flexibility for easy installation without the need for specific tools, allowing it to adapt to various locations like logos or signs, although it cannot make right or acute angles. Additionally, thanks to its FreeCut technology, it can be cut at any point to fit the desired space.

In the accessories section, you can find a 24V DC LED intensity regulator to complement your installation, allowing you to precisely control the brightness of the neon strip. The regulator can be controlled using a conventional push-button switch or a radio frequency remote control.

The electronics of the neon strip are well protected against impacts and moisture, providing an IP65 protection rating that makes this type of LED lighting perfect not only for indoor spaces but also for outdoor areas. It is important to note that it requires a power supply to function. This neon strip is an innovative product that offers visually appealing lighting. Its versatility and high resistance allow it to bend and create shapes, making it the ideal lighting solution for any design.

* The maximum length that can be connected by powering one end of the neon strip is up to 10 continuous metres.

* For proper operation and to prevent incidents, connections must be protected with a moisture and water-resistant insulating element.

* Never turn on the strips when they are coiled up, as this could cause overheating and burn the LEDs.

* It is recommended that the strips be placed in well-ventilated areas without direct exposure to sunlight and not exceed 40ºC for correct use.

* Product made according to your specifications and therefore exempt from the right of withdrawal.

*The customer's visual perception of sizes, colours, textures, and so on, of our products, can be affected by factors such as ambient lighting, screen calibration, viewing angle or the device of each user. The customer must bear in mind that any returns made for reasons not related to the functionality of the product will be at the customer's expense.

24V LED Neon Strip NFLEX6 8W/m FreeCut Custom Length
