RGB LED Strip 10mm Wide Cut at Every 10cm with Touch Dimmer Mechanism and Power Supply
Before £
£ 20% VAT included.
20% VAT included.Price not available
Units
Sign up para ver los precios exclusivos para profesionales e interioristas
The RGB LED Strip 10mm Wide Cut at Every 10cm with Touch Dimmer Mechanism and Power Supply is the ideal solution to automate, streamline and control RGB LED strips at 12/24 VDC, as it allows us to turn on, turn off and change the colour from the switch and remotely with its corresponding Wireless Controller.
Features of the RGB LED Strip 10mm Wide Cut at Every 10cm with Touch Dimmer Mechanism and Power Supply

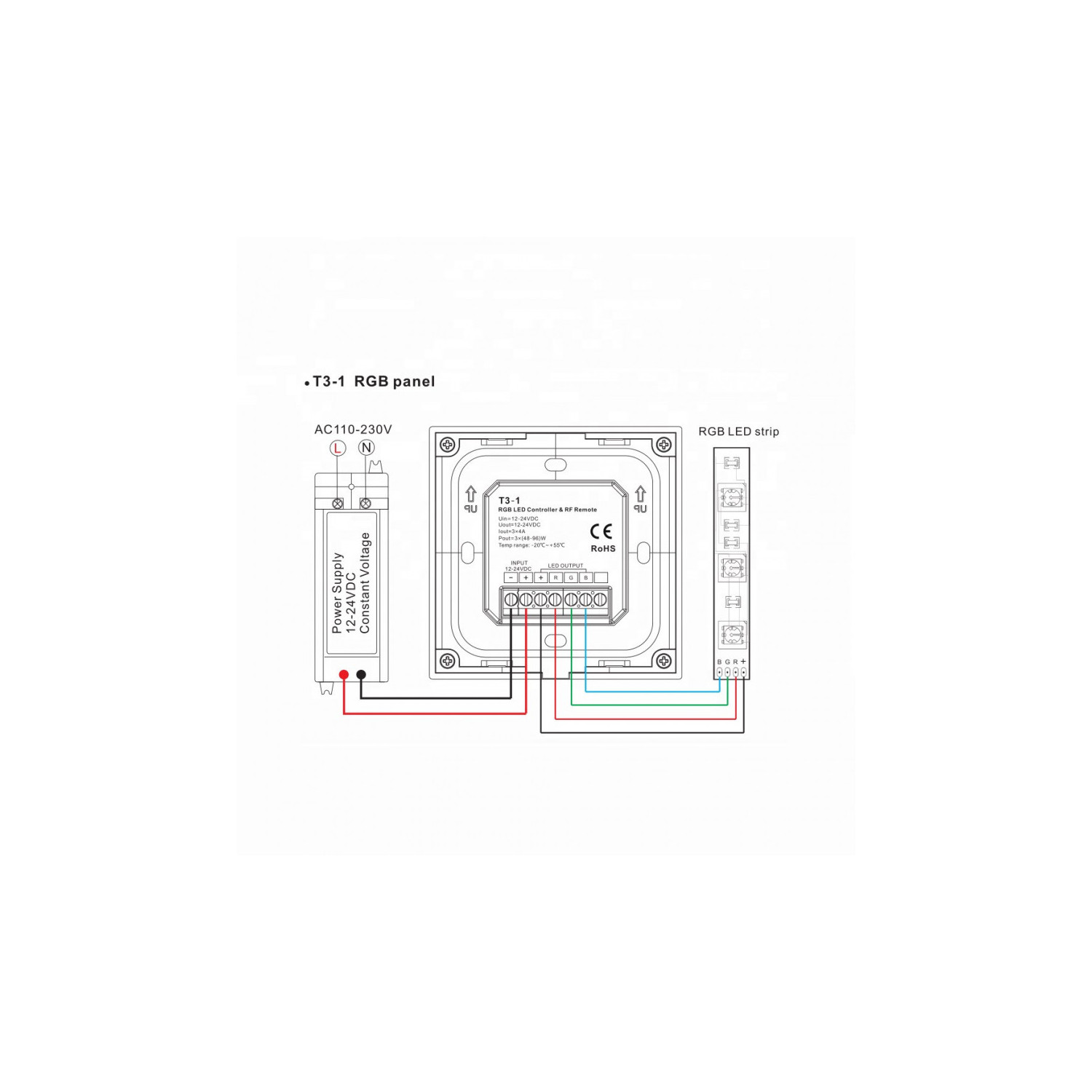

The RGB LED Strip with Touch and Power Dimmer Mechanism can be mounted in the same universal box.

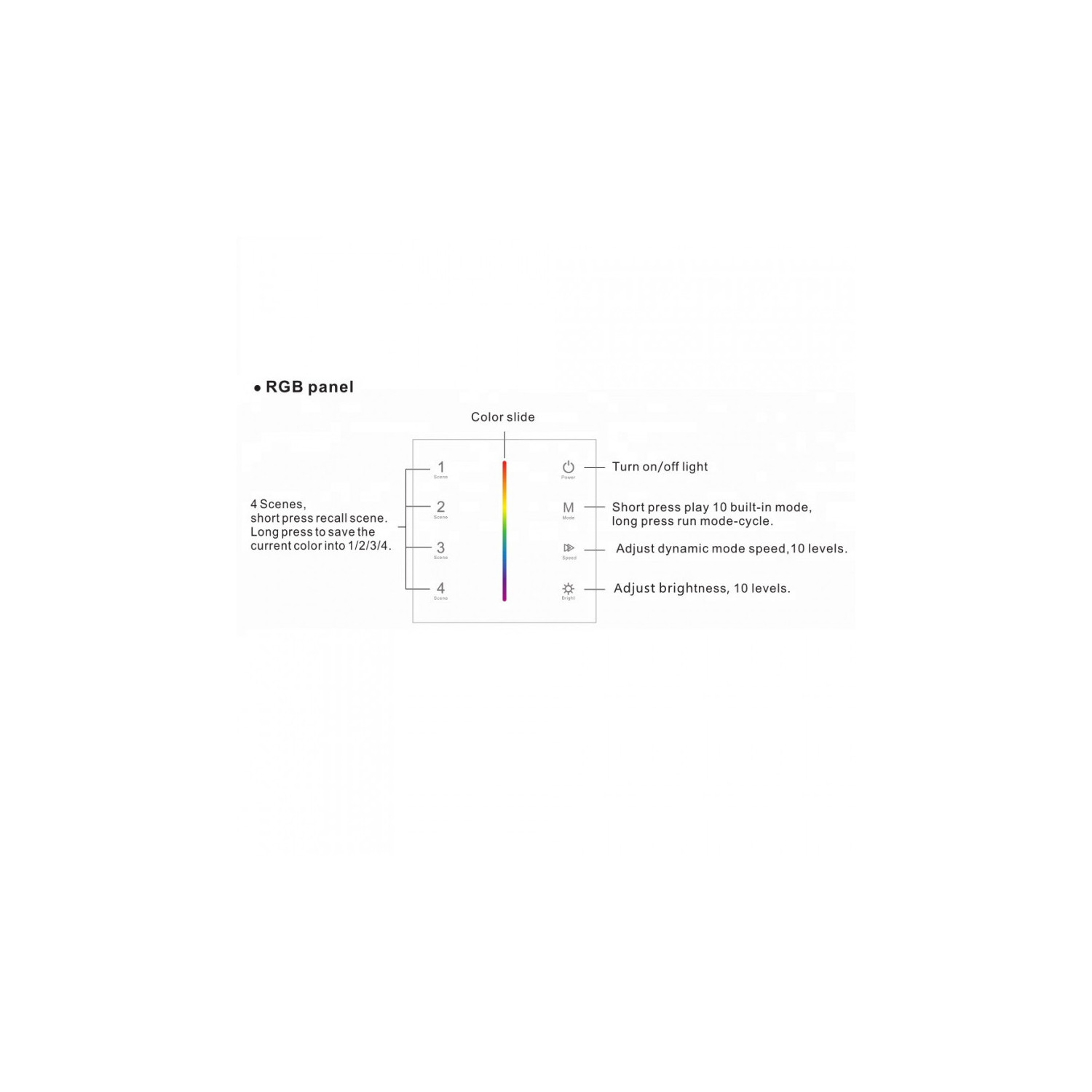

Via the front panel we can switch the luminaire on and off, select the colour, speed, mode and white colour as well as dim the brightness.

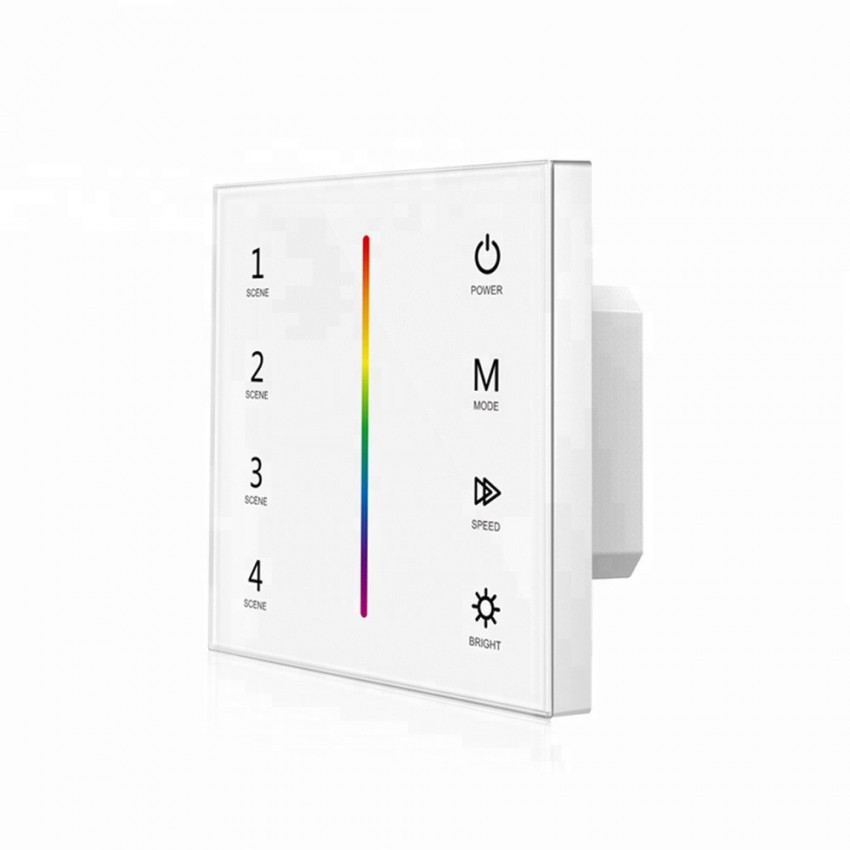

The Touch Dimmer Mechanism is a capacitive controller that will be operated only with the touch of your finger without the need to exert any pressure.

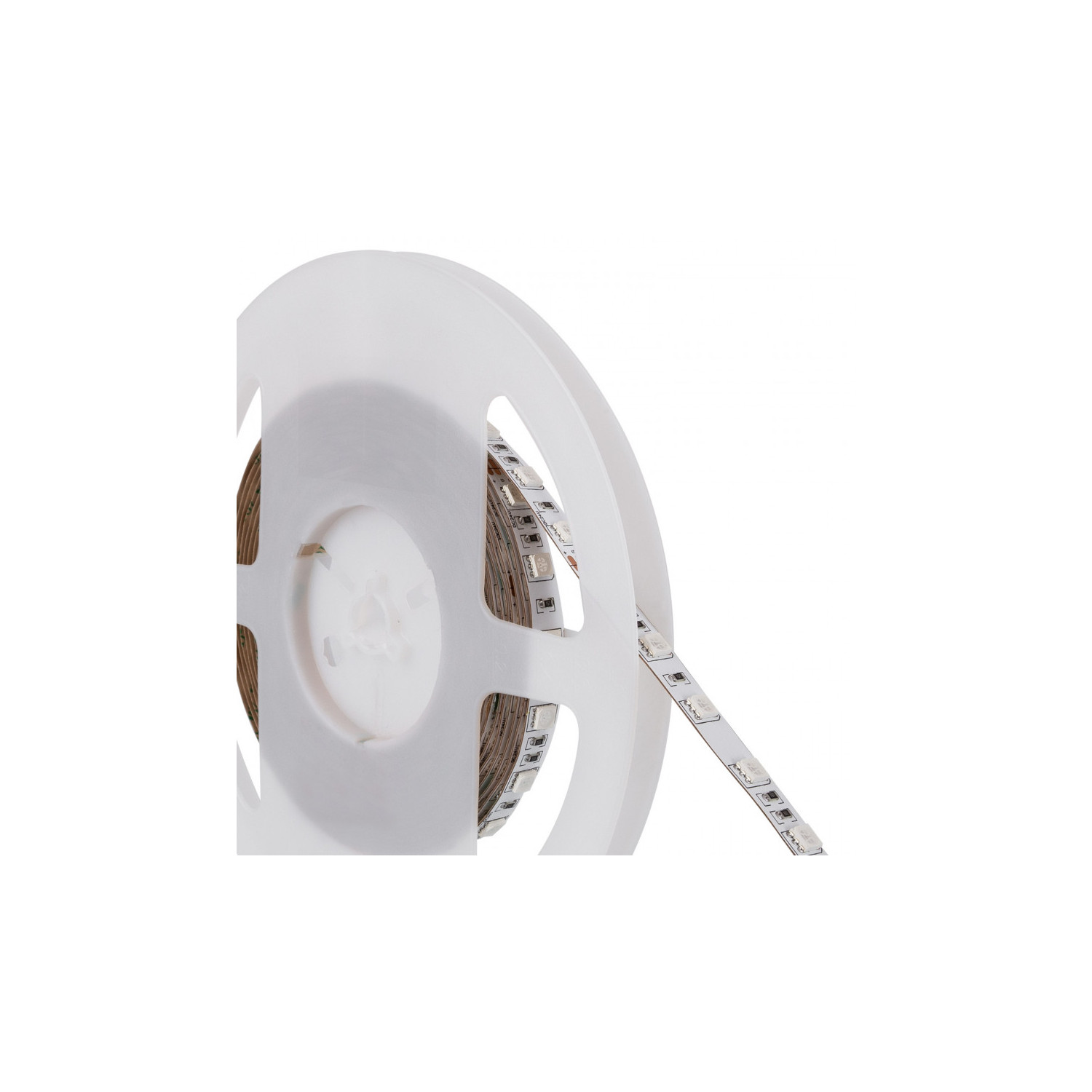

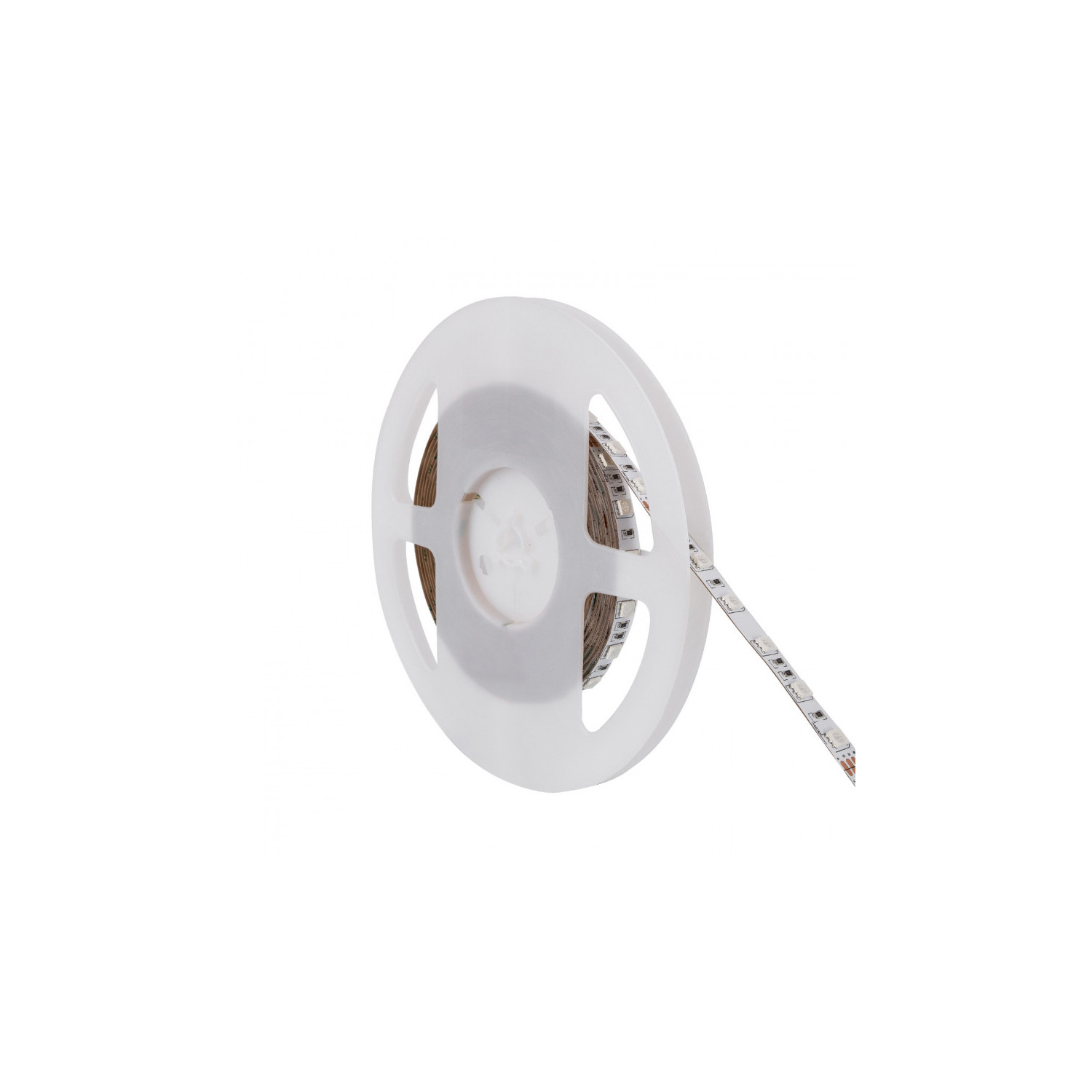

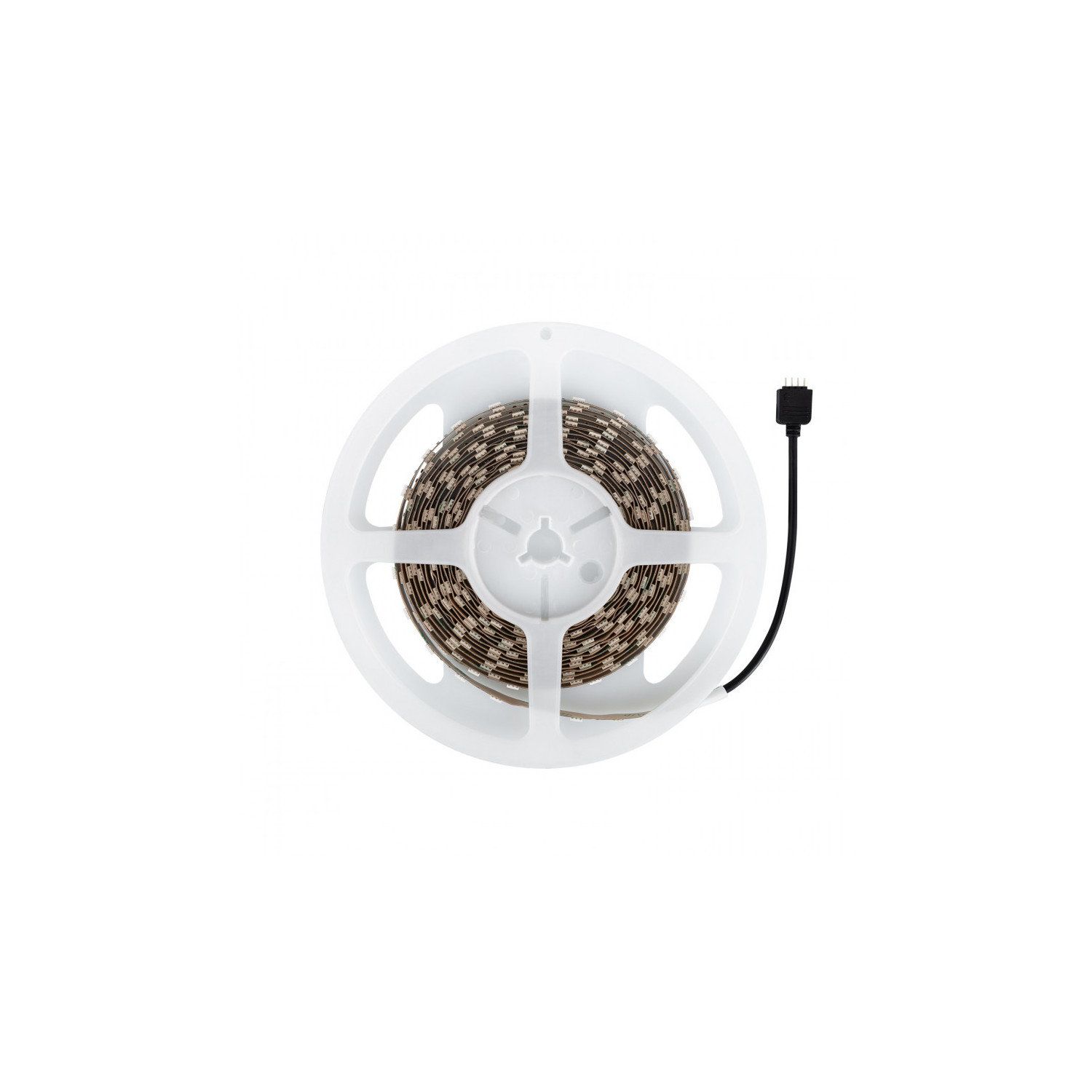

The RGB LED Strip 10mm Wide Cut at Every 10cm with Touch Dimmer Mechanism and Power Supply has a length of 5 metres and integrates 300 highly efficient SMD5050 technology LEDs which consume only 12 watts per metre. The bright and colourful light emitted is spread over an angle of 120º. It requires a power supply to operate.

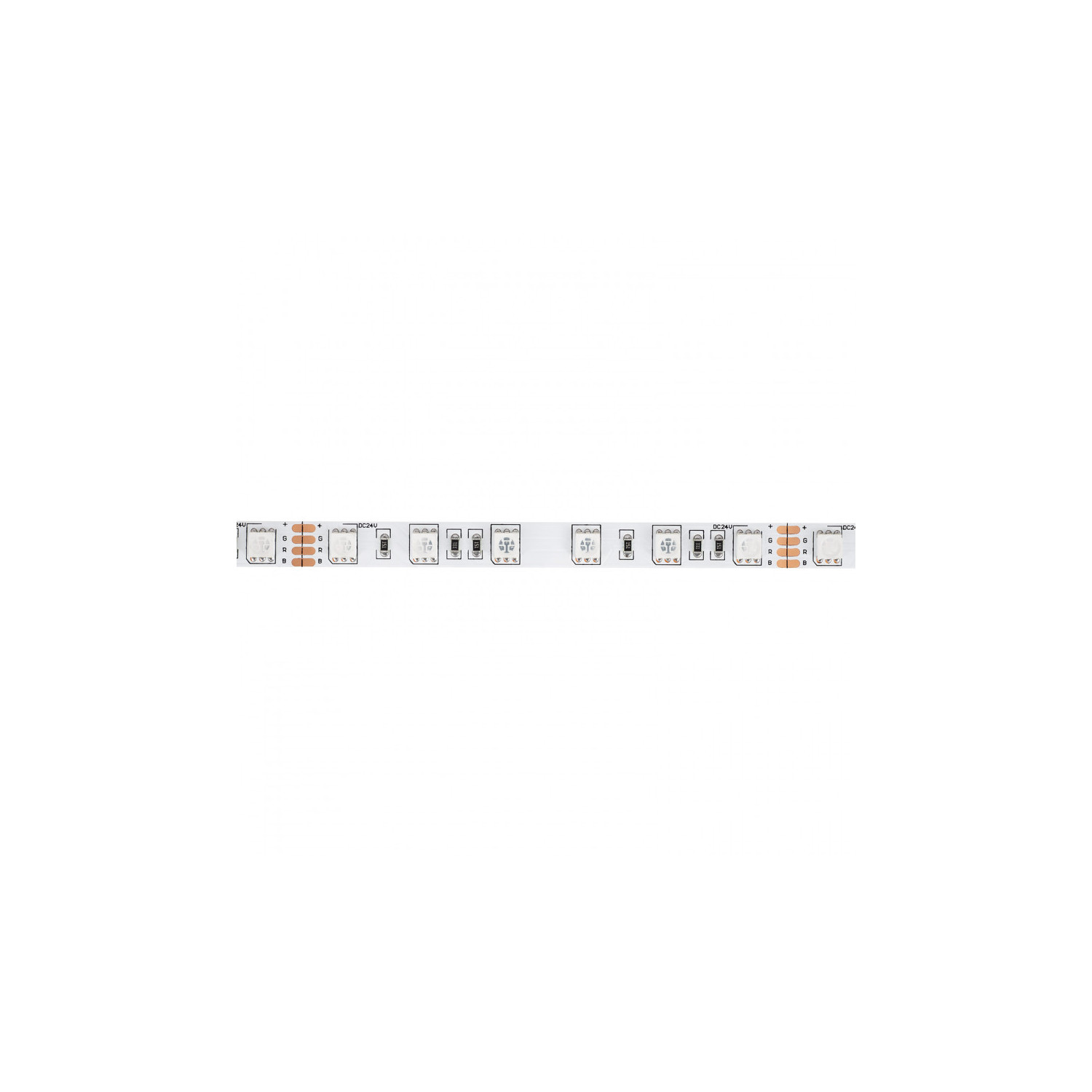

It allows cutting every 10cm, this makes it possible to place it in the desired space and adapt it to the desired measurements.
To pair your Touch Controller to the devices you will need to turn the Controller off and on and then immediately press the off/on button (to control 1 zone) or the zone button 3 times (for multiple zones). If the light flashes 3 times it means it has been paired successfully.
To remove the pairing from the Touch Controller you must turn the Controller off and on and then immediately press the off/on button (to control 1 zone) or the zone button 5 times (for multiple zones). If the light flashes 5 times it means that all pairings have been successfully cleared.
*Never turn on the LED strips when they are coiled up, this could cause overheating and burn out the LEDs.
Power: | 12 W/m |
Cut every: | 5 cm |
Led Strip Installation: | MAX. 10 m |
Voltage: | 24V DC |
Protection Class: | I |
Dimmable: | Touch |
Light Source: | SMD5050 |
Number of LEDs: | 300 |
Light Colour: | RGB |
Lumens: | 1320 lm/m |
Luminous Efficiency: | 100 lm/W |
Energy Efficiency 2021 (UE-1369/2017): | A+ |
Energy Efficiency 2023 (UE-2019/2015): | F |
Beam Angle: | 120º |
Use: | Indoor |
IP Protection: | IP20 |
Material: | Silicone, PCB, Epoxy Resin |
Size: | 3x10x5000 mm |
Height: | 3 mm |
Width: | 10 mm |
Length: | 5000 mm |
Length: | 5 m |
Working Temperature: | -20°C ~ +50°C |
Life Span: | 40,000 Hours |
Warranty: | 3 Years |
Certifications: | UKCA, CE & RoHS |
