Image of Olite 5W Outdoor Recessed LED Wall Light
Image of Olite 5W Outdoor Recessed LED Wall Light
Image of Olite 5W Outdoor Recessed LED Wall Light

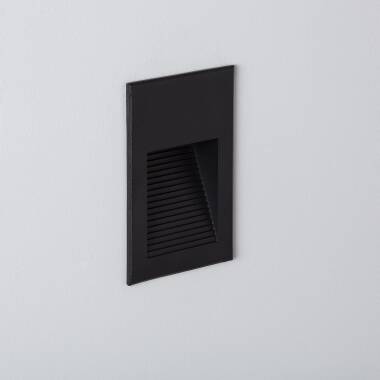

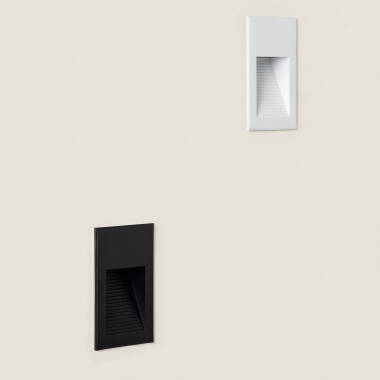

Olite 5W Outdoor Recessed LED Wall Light

Energetic efficiency

£8.39

£10.49

-20%

Ref: 173798

Colour Black

Colour Temperature Cool White 4000K

In Stock, delivery in 24/48h

Includes Driver

Buy now, pay later

Credit payment
Are you a professional? Register and enjoy special conditions.

Dimensions

  • Width100 mm
  • Height160 mm
  • Depth60 mm

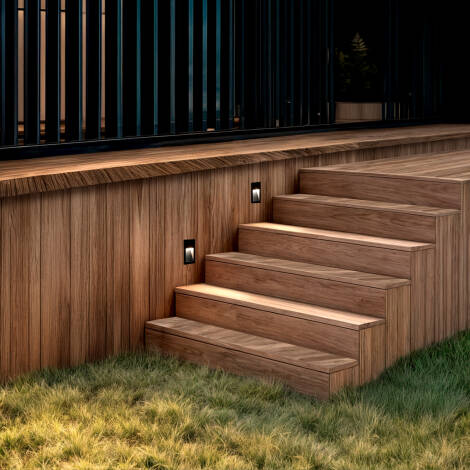

Scheme image

Downloads

  • pdf file

    Technical Data Sheet PDF

  • pdf file

    DoC_173798_352698

Certificates and Stamps

CertificateCertificateCertificate

Technical Specifications

  • Electrical Features

    • Electrical Insulation ClassI
    • No. Of Lights1
    • Minimum and maximum voltage fluctuation that the product can withstand momentarily.
      Nominal Voltage100 V - 240 V
    • Voltage level required for the product to function correctly.
      Voltage Range220-240V AC
    • Wattage5 W

  • Mechanical Features

    • InstallationRecessed, Wall
    • The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
      IP RatingIP65
    • LocationOutdoor, Indoor

  • LED Features

    • Defines the light tone, from warm white to cool white, measured in Kelvin (K).
      Colour Temperature4000K
    • Estimated lifespan of the product before it loses performance. Based on optimal, non-continuous use, and measured in hours of operation under controlled conditions.
      Hours30.000 hours
    • Light ColourCool White
    • Lumen230 lm

  • Product Information

    • CertificatesCE, RoHS, UKCA
    • Guarantee3 years
    • RangeOlite

  • Driver Information

    • Driver Intensity300 mA
    • Voltage level that the driver uses to power the LEDs or electrical components of the product, ensuring their proper functioning.
      Driver Tension15 V-15 V
    • WifiNo

  • Materials and Finishes

    • ColourBlack
    • Fitting MaterialAluminium, PC
    • IncludesDriver

Description

The Olite 5W Outdoor Recessed LED Wall Light is a compact wall marker with a clean rectangular front and recessed aperture, designed for neat architectural integration and outdoor reliability with IP65 protection.

General information about Olite 5W Outdoor Recessed LED Wall Light

This piece resolves as a recessed wall light with a defined rectangular geometry that sits flush to the surface, guiding the visual reading of the plane. It comes with LED light source and an included driver, delivering 230 lumen from 5 W of power.

Design and visual presence

The faceplate in Aluminium with an inner recess and louvred cavity creates a contained opening that integrates discreetly into vertical surfaces. The compact body (160 mm x 100 mm x 60 mm) supports ordered compositions along corridors, terraces or entrance walls where a recessed format is preferred.

Use and application

Conceived as a wall-recessed beacon for signage lighting, it suits decorative and architectural projects that require a clear visual guide in indoor or outdoor areas. The IP65 rating supports exposure to weather while maintaining a restrained presence on the wall.

Key benefits

  • The recessed wall format delivers a clean, low-profile integration that keeps surfaces visually ordered.
  • IP65
  • Efficient output of 230 lumen from 5 W with 1 light point simplifies planning for wayfinding compositions.
  • Aluminium and PC construction provides a robust, lightweight assembly suitable for repeated installations.
  • Driver included and 220–240 V AC input streamline connection to mains.

Highlighted specifications

Wattage: 5 W; Luminous flux: 230 lumen; IP rating: IP65; Voltage: 220–240 V AC; Materials: Aluminium & PC; Dimensions: 160 mm x 100 mm x 60 mm; Guarantee: 3 years.

Installation and maintenance

Wall installation in recessed format according to the indicated system. The driver is included for direct connection to 220–240 V AC. For basic care, dust with a soft dry cloth and perform periodic visual checks of the trim and aperture. Disconnect the power supply before any intervention.

Frequently asked questions

  • What type of installation does it require? — Recessed wall installation.
  • How many points of light does it have? — One light point.
  • Does it include the light source or driver? — LED configuration with driver included.
  • Is it suitable for outdoor use? — The IP65 rating supports outdoor installation.
  • What are the dimensions? — 160 mm x 100 mm x 60 mm.

Specialized decorative lighting distribution in United Kingdom. If you are looking to buy Olite 5W Outdoor Recessed LED Wall Light with a refined decorative approach, the Olite offers visual consistency and a well-resolved presence. Estimated shipping in 15 to 20 days (subject to stock availability). View price and availability here.
