This product is discontinued
Below you can find the substitute product or some equivalents.
If you have any queries, please call us on telephone 020 3739 1978.
Wattage 300 W
Voltage Range 220-240V AC
Lumen 48000 lm
Type Of Dimming 1-10 V
Wattage
300 W
Voltage Range
220-240V AC
Lumen
48000 lm
Type Of Dimming
1-10 V
Power Factor
0.96
IP Rating
IP66
Battery Operated
No
Dimensions
69 mm x 310 mm x 421 mm
Width
310 mm
Height
69 mm
IK Protection
IK08
Luminous Efficiency
160 lm/W

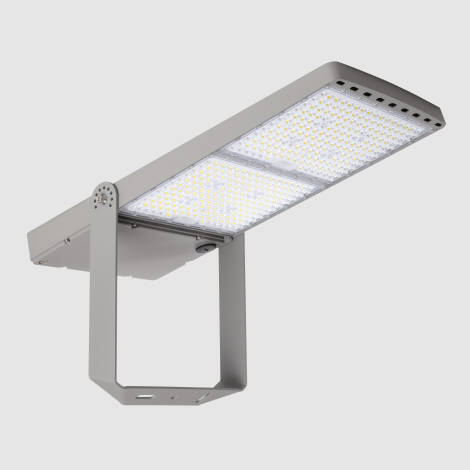

Premium 300W 1-10V Dimmable LED Floodlight INVENTRONICS 160lm/W Pyros
Ref. Ledkia: 126215
£281.99
Pyros II Premium Two Module LED Floodlight 0-10V Dimmable INVENTRONICS 160lm/W IP66
In Stock, delivery in 15-20 days
- Number of LEDs 176
- Height 421 mm
- Driver specifications Yes
Pyros II Premium Two Module LED Floodlight 0-10V Dimmable INVENTRONICS 160lm/W IP66
In Stock, delivery in 15-20 days
£374.99
Pyros II Premium Two Module LED Floodlight 0-10V Dimmable INVENTRONICS 160lm/W IP66
In Stock, delivery in 15-20 days
£395.99
Pyros II Premium Two Module LED Floodlight 0-10V Dimmable INVENTRONICS 160lm/W IP66
In Stock, delivery in 15-20 days
£281.99
Pyros II Premium Two Module LED Floodlight 0-10V Dimmable INVENTRONICS 160lm/W IP66
In Stock, delivery in 15-20 days
£291.99
Dimensions
- Weight3.21 kg
- Cable Length60 cm
- Dimensions69 mm x 310 mm x 421 mm
Downloads
PDF Datasheet 126215_262310 EN
Instruction Manual
DoC_126215_262310
Certificates and Stamps
Technical Specifications
Electrical Features
- DimmableYes
- Electrical Insulation ClassI
- Frequency50-60 Hz
- Light SourceLUMILEDS 5050
- Nominal Voltage100 V - 277 VMinimum and maximum voltage fluctuation that the product can withstand momentarily.
- Overvoltage Protection10 kVProduct's ability to withstand voltage spikes or electrical overloads, protecting internal components from potential damage due to current fluctuations.
- Type Of Dimming1-10 V
- Voltage Range220-240V ACVoltage level required for the product to function correctly.
- Wattage300 W
Mechanical Features
- Ambient Working Temperature-40 °C~+45 °CTemperature range in which the product can operate optimally, ensuring its performance without overheating or damage.
- IK ProtectionIK08Protection grade that the product offers against physical impacts. It is measured on a scale from IK00 to IK10, with IK10 being the highest level of resistance to impact and mechanical damage.
- InstallationSurface
- Installation of the bracketWall with U-bracket, Pole with U-bracket, On-wall base with U-bracket
- IP RatingIP66The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
- LocationOutdoor
- OpticType 3 S1 130x60Type of lens that determines the distribution and quality of the light. It influences the illumination angle and light efficiency.
Product Information
- CertificatesCE, RoHS, CB, ENEC, EAC
- Guarantee7 years
- Product SeriesPyros
LED Features
- Colour Rendering Index70Measures how accurately a light source displays colours compared to natural light. A high CRI (close to 100) ensures accurate colour rendering.
- Colour Temperature5000KDefines the light tone, from warm white to cool white, measured in Kelvin (K).
- Hours100.000 hoursEstimated lifespan of the product before it loses performance. Based on optimal, non-continuous use, and measured in hours of operation under controlled conditions.
- LED Performance175 lm/WEfficiency of the LEDs, measured as the amount of light generated per unit of energy consumed (lumens per watt). High efficiency ensures energy savings without losing light quality.
- Light ColourDaylight
- Lumen48000 lm
- Luminous Efficiency160 lm/WRatio between light output (lumens) and energy consumed (watts). A high value indicates better efficiency, ideal for saving energy without compromising lighting.
- Power Factor0.96
- Standard colour deviation (MacAdam)SDCM ≤ 5
Materials and Finishes
- ColourGraphite Grey
- Fitting MaterialAluminium
Driver Information
- Driver BrandINVENTRONICS
- Driver Intensity5.6 A
- Driver Power319 W
- Driver Tension18 V DC - 57 V DCVoltage level that the driver uses to power the LEDs or electrical components of the product, ensuring their proper functioning.
- WifiNo
Description
The 300W Premium 160 lm/W LED Floodlight INVENTRONICS Dimmable 1–10V Pyros is a professional luminaire designed for high-level projects requiring efficiency, robustness, and uniform lighting. It is an ideal solution for padel courts, industrial warehouses, façades, and large outdoor areas, thanks to its reliability and ability to withstand adverse environmental conditions.
Key features
This floodlight integrates LUMILEDS 5050 LED chips, owned by Philips, renowned for their performance and luminous stability, achieving an outstanding efficiency of 160 lm/W. The electronic system is powered by an INVENTRONICS driver, an industry benchmark, dimmable via 1–10V and capable of operating with input voltages from 100–277V AC. This driver includes protections against surges up to 10 kV, as well as safeguards against short circuits, overloads, and overheating, ensuring reliability even in critical installations.
The design features front maintenance, which facilitates direct access to the driver and internal components for quick and safe interventions. The aluminium body is treated with anti-saline corrosion paint, making it a luminaire especially suitable for coastal areas or industrial environments with high exposure to humidity and aggressive agents. Its 304 stainless steel fasteners enhance mechanical resistance and extend the luminaire’s service life.
Optics and light distribution
The floodlight is equipped with a Type 3 S1 (130x60) lens, developed to achieve a wide and uniform rectangular distribution. This optic is perfect for sports areas, streets, car parks, or industrial estates, reducing light spill and improving the real efficiency of the installation. Its asymmetric design allows mounting in a horizontal position without performance losses. The floodlight has an ULOR below 0.1%, ensuring virtually zero light pollution, enabling compliance with efficiency and environmental protection regulations, and avoiding nuisance in nearby residential or sports areas.
Certifications and protection
The 300W LED Floodlight Pyros has the TÜV certificate, attesting to its compliance with the most demanding European standards in quality and safety. With an IP66 protection rating, it is completely resistant to dust and powerful water jets, while its robust IK08 rating guarantees resistance to impacts. These features make it suitable for intensive outdoor use, even under extreme weather conditions. For a completely safe electrical connection, the use of IP68 connectors is recommended, available in the accessories section, as the most critical point in installations is usually the cable joint.
Applications
The 300W Premium LED Floodlight Pyros is ideal for padel courts, sports areas, roads, car parks, industrial parks, façades, and large outdoor spaces. In addition, thanks to the mounting brackets available as accessories, it can be converted into a luminaire suitable for public lighting, further expanding its range of uses.
If you need a lighting system that is efficient, durable, and equipped with cutting-edge technology, the 300W LED Floodlight Pyros is the perfect choice for high-level industrial, sports, or urban projects.
