Voltage Range 220-240V AC
Max Wattage 300 W
IP Rating IP44
Dimensions 95 mm x 60 mm x 85 mm

1 / 8

Voltage Range
220-240V AC
Max Wattage
300 W
IP Rating
IP44
Dimensions
95 mm x 60 mm x 85 mm
Width
60 mm
Height
95 mm
Fitting Material
PC

£7.79

VAT included

In Stock, delivery in 24/48h

Are you a lighting professional or a company?

Great discounts off PVP
Extended Warranty
Exclusive Services

See alternatives

Dimensions

Height95 mm
Depth85 mm
Dimensions95 mm x 60 mm x 85 mm
Width60 mm

Downloads

Technical Data Sheet PDF

Certificates and Stamps

Technical Specifications

Technical Information
- Temperature range in which the product can operate optimally, ensuring its performance without overheating or damage.
  Ambient Working Temperature-20 °C~+50 °C
- Quality, safety and compliance certifications that the product has obtained, such as CE, RoHS or UL, which guarantees that it meets industry standards and current regulations.
  CertificatesRoHS, CE, UKCA
- Defines the sensitivity area of a sensor in degrees. A wider angle will detect motion over a larger area.
  Detection Range180 °
- Composition of the product or its components, such as aluminum, steel, plastic or glass. The material influences the durability, design and thermal properties of the product.
  Fitting MaterialPC
- Range of cycles per second at which the product operates, measured in hertz (Hz). A standard value ensures compatibility with local electrical networks.
  Frequency50-60 Hz
- Information on how the product should be placed or mounted, such as instructions on whether it requires professional installation or is easy to do by the end user.
  InstallationSurface
- The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
  IP RatingIP44
- Specification that describes the purpose or application of the product, such as lighting, air conditioning, or security, among others.
  LocationIndoor
- The maximum amount of power that the product can safely consume, indicated in watts. It is important to ensure proper installation and avoid overloading.
  Max Wattage300 W
- Component that identifies changes in the environment, such as movement, light or sound, activating an automatic response, ideal for security or intelligent lighting systems.
  SensorPIR
- Description of the type of sensor included in the product, such as a motion, light, temperature or presence sensor, which can activate or modify the operation of the product according to specific conditions.
  Sensor TypePIR
- Voltage level required for the product to function correctly.
  Voltage Range220-240V AC
Product Data
- Period during which the customer has the right to have their product repaired or replaced in the event of manufacturing defects or malfunctions under normal conditions of use. For more information, consult our After-sales page.
  Warranty3 years

Description

This wall mounted Motion Sensor has a 180° coverage angle and a 12 metre detection radius when at a height of 1.8 to 2.5 metres. It's ccapable of detecting infrared emissions from any heat source without emitting any radiation.

_x000D_

The detector activates its output circuit when a heat source moves in front of the sensor and deactivates when the heat is no longer detected and some time has passed.

_x000D_

Detection Angle: 180°

_x000D_

Detection Distance: 12 metres.

_x000D_

Minimum ON time: 10 seconds ±3 seconds.

_x000D_

Maximum ON time: 7 minutes ±2 minutes.

_x000D_

Installation Height: 1.8 to 2.5 metres.

_x000D_

Detection Speed: 0.6-1.5 m/s.

_x000D_

Charges: 300W LED and 1200W Incandescent.

*The customer's visual perception of sizes, colours, textures, and so on, of our products, can be affected by factors such as ambient lighting, screen calibration, viewing angle or the device of each user. The customer must bear in mind that any returns made for reasons not related to the functionality of the product will be at the customer's expense.

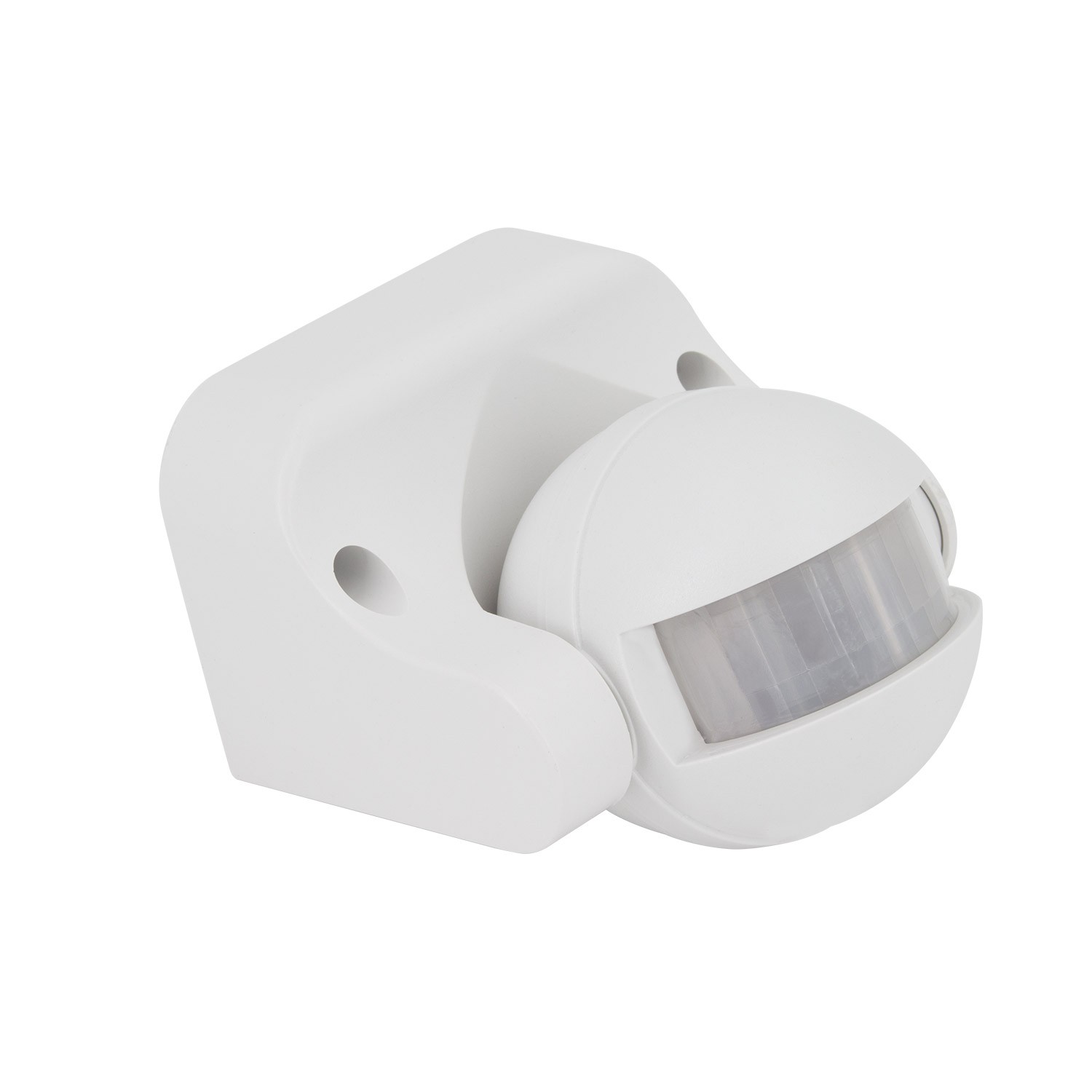

180° PIR Motion Sensor
