Dimensions

Length1 m
Width12 mm

Downloads

126136_262425_Datasheet_en_GB
manual_tiras_led_6_idiomas
DoC_126136_262425

Certificates and Stamps

Technical Specifications

LED Features
- Measures how accurately a light source displays colours compared to natural light. A high CRI (close to 100) ensures accurate colour rendering.
  Colour Rendering Index80
- Defines the light tone, from warm white to cool white, measured in Kelvin (K).
  Colour Temperature2700K
- Estimated lifespan of the product before it loses performance. Based on optimal, non-continuous use, and measured in hours of operation under controlled conditions.
  Hours40.000 hours
- Light ColourWarm White
- Ratio between light output (lumens) and energy consumed (watts). A high value indicates better efficiency, ideal for saving energy without compromising lighting.
  Luminous Efficiency100 lm/W
- Number of LEDs Per Metre120 led/m
- Power Per Meter10 W/m
Electrical Features
- Electrical Insulation ClassII
- Frequency50-60 Hz
- LED Strip Installation50 m
- Light SourceSMD2835
- Mains connectionDirect to mains
- Type Of DimmingTRIAC
- Voltage level required for the product to function correctly.
  Voltage Range220-240V AC
Mechanical Features
- Temperature range in which the product can operate optimally, ensuring its performance without overheating or damage.
  Ambient Working Temperature-10 °C~+45 °C
- Measurement at which the product can be cut.
  Cut Points10 cm
- The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
  IP RatingIP65
- LocationOutdoor, Indoor
Product Information
- CertificatesCE, RoHS, UKCA
- Guarantee3 years
- Product SeriesEDGE-12
Materials and Finishes
- Fitting MaterialPC
Driver Information
- WifiNo

Description

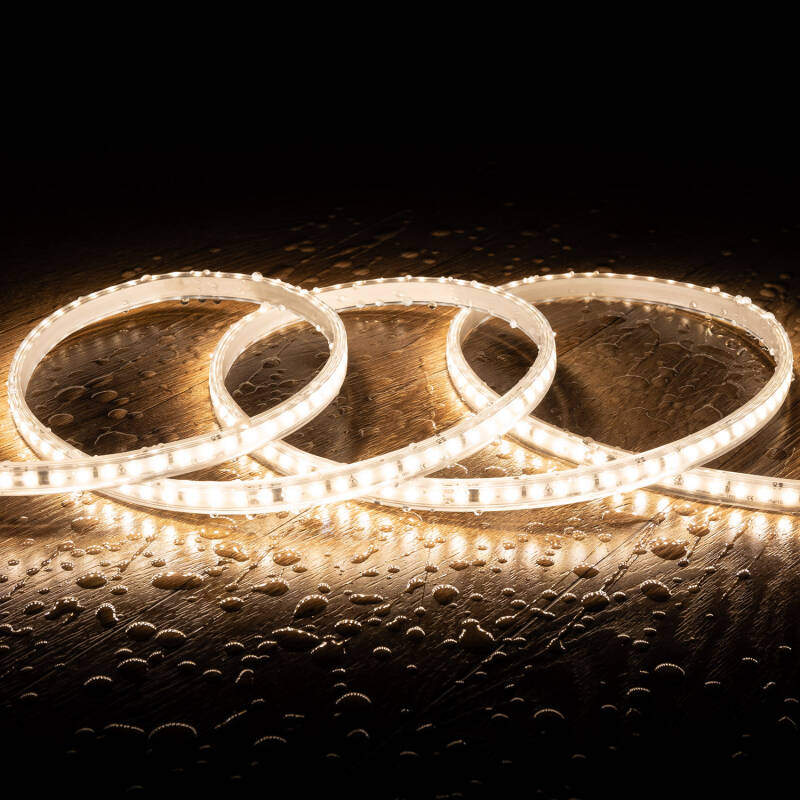

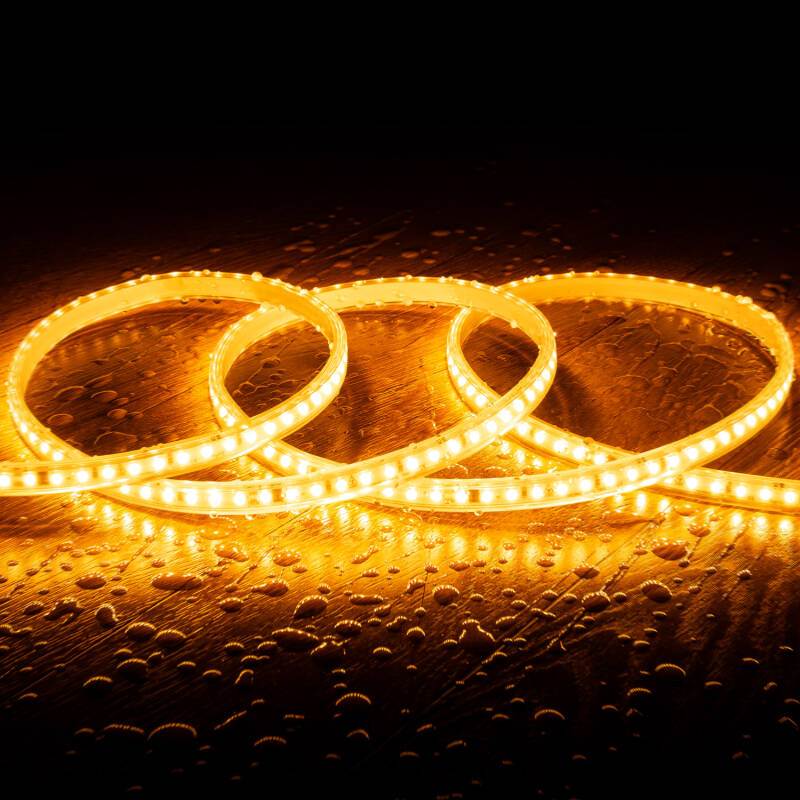

The Custom Length 220V Dimmable Autorectified SMD2835 LED Strip 120LED/m 1000lm/m 12mm Wide Cut at Every 10cm IP65 does not require any power supply as it connects directly to the mains. Its flexibility allows it to adapt to almost any surface.

Features of the Custom Length 220V Dimmable Autorectified SMD2835 LED Strip 120LED/m 1000lm/m 12mm Wide Cut at Every 10cm IP65

This strip integrates highly efficient SMD2835 technology LEDs. The bright light it emits is distributed at an angle of 120º. Moreover, as it is manufactured with top quality materials, it has the maximum protection against solid external agents and a magnificent protection against liquids, which is summarised in a protection factor of IP65 and makes it suitable for both indoor and outdoor use. Its great flexibility means that it can be adjusted to the particularities of the space or element to be illuminated, although it is not possible to make right or acute angles.

Advantages of the Dimmable LED Strip 220V SMD2835 Self-certified 120 LED/m 1000 lm/m Width 12 mm IP65 Cut to size 10 cm

The versatility of this type of LED lighting means that it is widely used as secondary lighting and/or decorative elements on façades, ceilings, display cabinets and cupboards, shelves, shop windows, pictures and mirrors, and even for marking staircases and corridors. The options are endless.

* For correct operation and to avoid incidents, the connections must be protected with an insulating element against humidity and water.

* Never turn on the LED strips when they are coiled up, this could cause overheating and burn the LEDs.

* Product made according to your specifications, therefore exempt from the right of withdrawal.

Strip height 6 mm.

*The customer's visual perception of sizes, colours, textures, and so on, of our products, can be affected by factors such as ambient lighting, screen calibration, viewing angle or the device of each user. The customer must bear in mind that any returns made for reasons not related to the functionality of the product will be at the customer's expense.

220V LED Strip Autorectified SMD Dimmable 120LED/m 10W/m 1000lm/m 12mm Wide Cut at Every 10cm IP65 Custom Length
