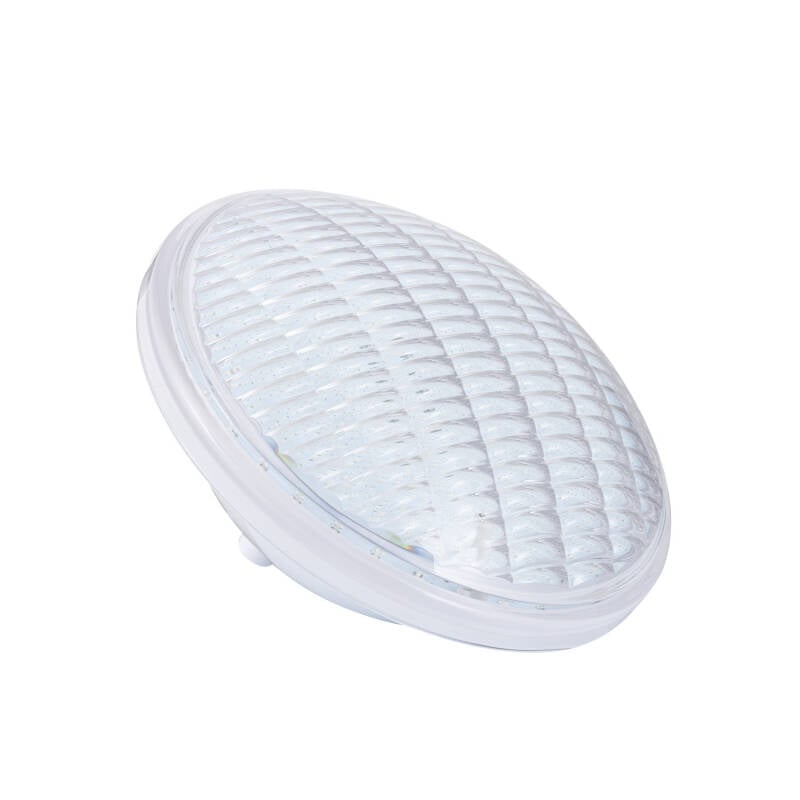

12V AC/DC 18W PAR56 Submersible LED Pool Bulb IP68
£47.70
£63.62
Ref: 62676
(1)5 out of 5 stars
Colour Temperature Daylight 6000K
In Stock, delivery in 24/48h
Buy now, pay later
Credit paymentDimensions
- Height105 mm
- Diameter178 mm
Downloads
Technical Data Sheet PDF
DoC_62676_122909
Certificates and Stamps
Technical Specifications
Electrical Features
- Light SourceSMD2835
- Voltage Range12V AC, 12V DCVoltage level required for the product to function correctly.
- Wattage18 W
Mechanical Features
- Ambient Working Temperature-20 °C~+50 °CTemperature range in which the product can operate optimally, ensuring its performance without overheating or damage.
- InstallationNiche
- IP RatingIP68The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
- LocationOutdoor
- Maximum Depth Of Immersion1 m
LED Features
- Colour Temperature6000KDefines the light tone, from warm white to cool white, measured in Kelvin (K).
- Hours40.000 hoursEstimated lifespan of the product before it loses performance. Based on optimal, non-continuous use, and measured in hours of operation under controlled conditions.
- Light ColourDaylight
- Lumen1400 lm
- Number of LEDs48
Product Information
- CertificatesCE, RoHS, UKCA
- Guarantee3 years
Materials and Finishes
- Fitting MaterialPC
Description
This submersible LED pool bulb offers 18 W power with a reliable 12V AC/DC driver, designed specifically for underwater lighting applications. Its robust construction and high lumen output make it a solid choice for aquatic environments requiring efficient illumination.
General information about 12V AC/DC 18W PAR56 Submersible LED Pool Bulb IP68
The pool bulb features a durable PC fitting material and incorporates 48 SMD2835 LEDs to deliver a luminous flux of 1400 lumens. It is rated with a protection degree IP68, ensuring complete waterproofing for submersion. The product dimensions are 105 mm in height by 178 mm in diameter, suitable for installation in a niche mounting system. It operates reliably within an ambient temperature range from -20 °C to +50 °C. The bulb is certified under CE, RoHS, and UKCA standards, reflecting compliance with key safety and environmental requirements.
Use and applications
This LED pool bulb is designed for outdoor aquatic environments, providing effective illumination for pools and water features. Its robust IP68 rating ensures protection against water ingress, making it ideal for installations where submersion is required. The 12V AC/DC power supply allows flexible integration into various pool electrical systems, supporting safe and stable operation.
Thanks to its niche mounting, it fits securely in recessed pool fixtures, facilitating maintenance and replacement. The operating temperature range supports use in diverse climates, while the high lumen output guarantees sufficient lighting levels. This product suits professional installers and pool maintenance sectors seeking reliable submersible lighting with controlled power and robust protection.
Key benefits
- High luminous efficiency thanks to 48 SMD2835 LEDs for bright and consistent lighting.
- Excellent waterproof protection with IP68 rating, suitable for permanent submersion.
- Durable PC material housing providing mechanical resistance and longevity.
- Wide ambient temperature tolerance ensuring stable performance in varying outdoor conditions.
- Certified with CE, RoHS, and UKCA for safety and environmental compliance.
Highlighted specifications
Wattage: 18 W; Protection degree: IP68; Operating temperature: -20 °C to +50 °C; Dimensions: 105 mm x Ø178 mm.
Installation and maintenance
The LED pool bulb is installed using a niche mounting system, designed for secure and flush placement within pool walls. Installation must ensure proper sealing to maintain the IP68 protection. Regular inspection is recommended to verify the integrity of the waterproof enclosure and electrical connections.
Disconnect the power supply before any intervention. Maintenance should be performed by qualified personnel following established safety protocols to guarantee reliable operation and longevity of the lighting system.
Specialized lighting distribution in United Kingdom. If you are looking to buy 12V AC/DC 18W PAR56 Submersible LED Pool Bulb IP68 with a professional warranty, it is a leading choice for durability and efficiency. Estimated shipping in 15 to 20 days (subject to stock availability). Check price and availability here.
