Image of LED Panel 600x600mm 100lm/W
    Image of LED Panel 600x600mm 100lm/W
    Image of LED Panel 600x600mm 100lm/W
    Image of LED Panel 600x600mm 100lm/W
    Image of LED Panel 600x600mm 100lm/W
    Image of LED Panel 600x600mm 100lm/W
    Image of LED Panel 600x600mm 100lm/W
    Image of LED Panel 600x600mm 100lm/W
    Image of LED Panel 600x600mm 100lm/W
1 / 8
  • No

    Battery Operated

    No

  • 42 W

    Wattage

    42 W

  • 220-240V AC

    Voltage Range

    220-240V AC

  • 4200 lm

    Lumens

    4200 lm

  • UGR 19

    Glare Factor

    UGR 19

  • IP20

    IP Rating

    IP20

  • 30 mm x 595 mm x 595 mm

    Dimensions

    30 mm x 595 mm x 595 mm

  • 595 mm

    Width

    595 mm

  • 30 mm

    Height

    30 mm

  • 60x60 cm

    Frame

    60x60 cm

  • IK05

    IK Protection

    IK05

  • 100 lm/W

    Luminous Efficiency

    100 lm/W

  • Aluminium, PC

    Fitting Material

    Aluminium, PC

LED Panel 600x600mm 100lm/W

Download technical datasheet

Ref. Ledkia: 167753

Colour Temperature Warm White 3000K

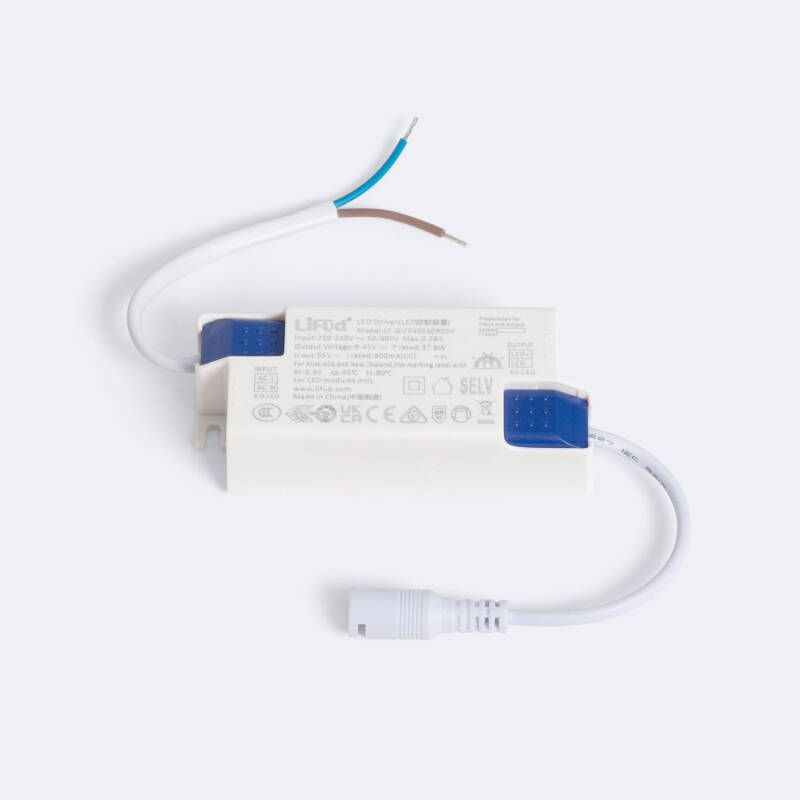

Type Of Driver LIFUD

Box Format Industrial

In Stock, delivery in 24/48h

£12.29

VAT included
Energetic efficiency

Minimum order 10 units

In Stock, delivery in 24/48h

PRO CLUB badge

Are you a lighting professional or a company?

  • Great discounts off PVP
  • Extended Warranty
  • Exclusive Services

Buy now, pay later

Credit payment

  • 30 Day Returns

    You can renounce to this product during the first 30 calendar days from receipt, provided that the product remains in perfect condition for use.


    Custom-made products and cut-to-size strips are excluded.


    Full conditions here: After-sales service.

  • 24h Free Delivery

    If you place your order today before 2:30 pm, delivery within 24/48h (working days).


    Shipping is free on purchases over £ 49.99 (incl. VAT).


    Full conditions here: Delivery methods.

  • 100% secure payments

    payment method image 1

    payment method image 2

    At Ledkia we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation.


    More information: Payment methods.

  • Up to 5 year warranty

    Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.


    You will find the exact product warranty in the technical details.


    Full conditions here: After-sales service.

Dimensions

  • Depth595 mm
  • Height30 mm
  • Weight1.2 kg
  • Width595 mm

Downloads

  • pdf file

    Technical Data Sheet PDF

Certificates and Stamps

CertificateCertificateCertificateCertificate

Technical Specifications

  • Technical Information

    • Temperature range in which the product can operate optimally, ensuring its performance without overheating or damage.
      Ambient Working Temperature-20 °C~+45 °C
    • Quality, safety and compliance certifications that the product has obtained, such as CE, RoHS or UL, which guarantees that it meets industry standards and current regulations.
      CertificatesRoHS, CE, TÜV, ENEC
    • ColourWhite
    • Measures how accurately a light source displays colours compared to natural light. A high CRI (close to 100) ensures accurate colour rendering.
      Colour Rendering Index80
    • Defines the light tone, from warm white to cool white, measured in Kelvin (K).
      Colour Temperature3000K
    • Driver Intensity800 mA-1050 mA
    • Driver Power7.2 W-40 W
    • Voltage level that the driver uses to power the LEDs or electrical components of the product, ensuring their proper functioning.
      Driver Tension9 V-42 V
    • Electrical Insulation ClassII
    • Fitting MaterialAluminium, PC
    • Frame60x60 cm
    • Frequency50-60 Hz
    • Low-glare products offer more comfortable lighting, suitable for extended use.
      Glare FactorUGR 19
    • Estimated lifespan of the product before it loses performance. Based on optimal, non-continuous use, and measured in hours of operation under controlled conditions.
      Hours50.000 hours
    • Protection grade that the product offers against physical impacts. It is measured on a scale from IK00 to IK10, with IK10 being the highest level of resistance to impact and mechanical damage.
      IK ProtectionIK05
    • InstallationFalse ceiling
    • The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
      IP RatingIP20
    • Light ColourWarm White
    • Lumens4200 lm
    • Ratio between light output (lumens) and energy consumed (watts). A high value indicates better efficiency, ideal for saving energy without compromising lighting.
      Luminous Efficiency100 lm/W
    • Minimum and maximum voltage fluctuation that the product can withstand momentarily.
      Nominal Voltage85-265V AC
    • Voltage level required for the product to function correctly.
      Voltage Range220-240V AC
    • Wattage42 W

  • Product Information

    • Light SourceSMD2835
    • LocationIndoor
    • Type Of DriverLIFUD
    • Type Of LensOpaal

  • Product Data

    • Guarantee5 years
Outdoor LED bollard

Description

The 600x600 mm LED Panel  100 lm/W stands out for its energy efficiency, lighting quality, and configuration versatility, making it an optimal lighting solution for workspaces, offices, commercial areas, and residential environments. Its ultra-slim design and elegant finish allow for a clean, professional integration into Armstrong-type suspended ceilings.
This panel offers customised driver options (LIFUD, PHILIPS, BOKE, and other premium brands) to suit the specific technical requirements of each project.

Professional Lighting with Visual Comfort

Delivering 100 lumens per watt, the panel's total wattage depends on the selected driver. With a CRI ≥80, it provides natural and accurate color rendering. The integrated opal diffuser ensures uniform light distribution while minimising glare—improving visual comfort in spaces requiring long or intensive use.

Applications of the 600x600cm LED Panel

Ideal for modular ceiling installations in offices, classrooms, hospitals & clinics, hotels, meeting rooms, kitchens, retail spaces, hallways
Its minimalist and modern design also makes it suitable for residential areas. Perfect for both new projects and retrofit upgrades, it delivers significant energy savings and a sleek contemporary look.

Installation Flexibility & Compliance

Certified with ENEC and TÜV, this panel meets strict European standards, making it suitable for public tenders and regulated projects. It can be installed in recessed, surface-mounted, or suspended formats using available accessory kits. This versatility allows for seamless adaptation across diverse settings and technical requirements.

Additionally, the supply format is available in single-unit boxes or boxes of 10 units for industrial projects, optimising logistics and unit cost for large-scale installations."
