  • 100 W
    Wattage 100 W
  • 220-240V AC
    Voltage Range 220-240V AC
  • 10000 lm
    Lumen 10000 lm
  • 235.6 mm
    Diameter 235.6 mm
Image of 100W Solid UFO LED High Bay 100lm/W X3
    Image of 100W Solid UFO LED High Bay 100lm/W X3
    Image of 100W Solid UFO LED High Bay 100lm/W X3
    Image of 100W Solid UFO LED High Bay 100lm/W X3
    Image of 100W Solid UFO LED High Bay 100lm/W X3
    Image of 100W Solid UFO LED High Bay 100lm/W X3
1 / 5
  • 100 W

    Wattage

    100 W

  • 220-240V AC

    Voltage Range

    220-240V AC

  • 10000 lm

    Lumen

    10000 lm

  • 235.6 mm

    Diameter

    235.6 mm

  • 0.98

    Power Factor

    0.98

  • IP65

    IP Rating

    IP65

  • No

    Battery Operated

    No

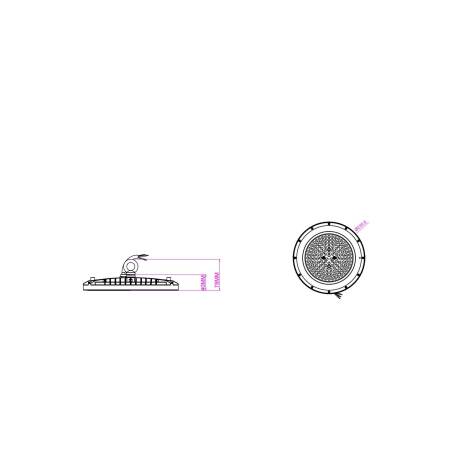

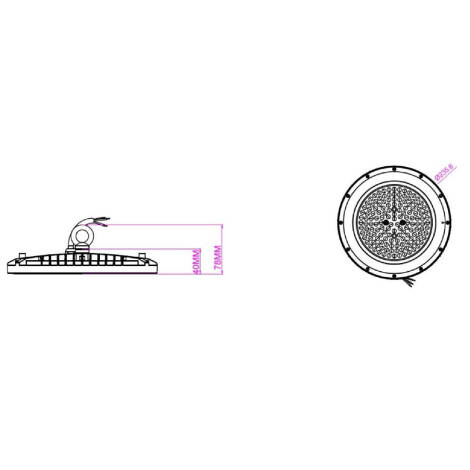

  • 78 mm x Ø235.6 mm

    Dimensions

    78 mm x Ø235.6 mm

  • 78 mm

    Height

    78 mm

  • IK07

    IK Protection

    IK07

  • 100 lm/W

    Luminous Efficiency

    100 lm/W

  • Aluminium

    Fitting Material

    Aluminium

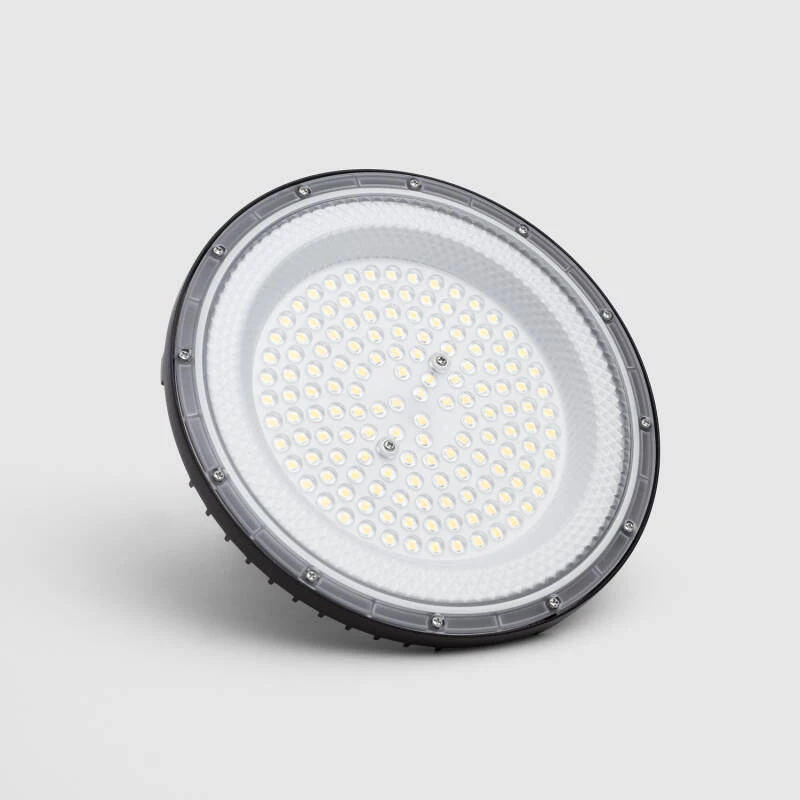

100W Solid UFO LED High Bay 100lm/W X3

Download technical datasheet

Ref. Ledkia: 177101

Colour Temperature No Flicker Cool White 5000K

£20.79

VAT included

Pre-Order, estimated shipping from 20/02/2025

PRO CLUB badge

Are you a lighting professional or a company?

  • Great discounts off PVP
  • Extended Warranty
  • Exclusive Services

Buy now, pay later

Credit payment

    • 30 Day Return

      You can renounce to this product during the first 30 calendar days from receipt, provided that the product remains in perfect condition for use.


      Custom-made products and cut-to-size strips are excluded.


      Full conditions here: After-sales service.

    • 24h Free Delivery

      If you place your order today before 2:30 pm, delivery within 24/48h (working days).


      Shipping is free on purchases over £ 49.99 (incl. VAT).


      Full conditions here: Delivery methods.

    • 100% secure payments

      payment method image 1

      payment method image 2

      At Ledkia we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation.


      More information: Payment methods.

    • Up to 5 year warranty

      Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.


      You will find the exact product warranty in the technical details.


      Full conditions here: After-sales service.

Dimensions

  • Weight1.5 kg
  • Diameter235.6 mm
  • Height78 mm

Downloads

  • pdf file

    Technical Data Sheet PDF

Certificates and Stamps

CertificateCertificateCertificate

Technical Specifications

  • Technical Information

    • Measures how accurately a light source displays colours compared to natural light. A high CRI (close to 100) ensures accurate colour rendering.
      Colour Rendering Index80
    • Defines the light tone, from warm white to cool white, measured in Kelvin (K).
      Colour Temperature5000K
    • Electrical Insulation ClassI
    • Fitting MaterialAluminium
    • Frequency50-60 Hz
    • Estimated lifespan of the product before it loses performance. Based on optimal, non-continuous use, and measured in hours of operation under controlled conditions.
      Hours40.000 hours
    • Protection grade that the product offers against physical impacts. It is measured on a scale from IK00 to IK10, with IK10 being the highest level of resistance to impact and mechanical damage.
      IK ProtectionIK07
    • InstallationPendant, Surface
    • The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
      IP RatingIP65
    • Light ColourCool White
    • Lumen10000 lm
    • Ratio between light output (lumens) and energy consumed (watts). A high value indicates better efficiency, ideal for saving energy without compromising lighting.
      Luminous Efficiency100 lm/W
    • Minimum and maximum voltage fluctuation that the product can withstand momentarily.
      Nominal Voltage100 V - 277 V
    • Type of lens that determines the distribution and quality of the light. It influences the illumination angle and light efficiency.
      Optic90º
    • Product's ability to withstand voltage spikes or electrical overloads, protecting internal components from potential damage due to current fluctuations.
      Overvoltage Protection2 kV
    • Power Factor0.98
    • Voltage level required for the product to function correctly.
      Voltage Range220-240V AC
    • Wattage100 W
    • Internal temperature range in which the product can operate efficiently and safely. It is important to ensure its reliability under different usage conditions.
      Working Temperature-20 °C~+40 °C

  • Product Information

    • LocationOutdoor, Indoor
    • Replaceable Light SourceYes

  • Product Data

    • CertificatesCE, RoHS, UKCA
    • Guarantee3 years

Description

100 W industrial LED high bay with 100 lm/W, designed to provide functional, balanced lighting in demanding environments.

Design and style

Aluminium body with a compact UFO form factor (78 mm x Ø235.6 mm) that favours heat dissipation. 90° optics for beam control and uniformity at height. Robust construction with IK07 impact protection and IP65 sealing against dust and water jets, suitable for indoor and outdoor use.

Use and application

Technical solution for warehouses, production lines and logistics areas that require reliability. The high bay delivers 10,000 lm with CRI 80 for suitable colour rendering and a 90° beam angle. Suitable for suspended or surface mounting, operating between -20 °C and +40 °C.

Key benefits

  • Luminous efficacy of 100 lm/W that optimises power consumption.
  • IP65 and IK07 protection for industrial environments and exposure to dust and water.
  • 90° optics that enable suitable lighting according to the installation.
  • Power factor 0.98 for stable and efficient power supply.
  • Service life of 40,000 hours to reduce interventions.

Technical details

Power: 100 W. Luminous flux: 10,000 lm. Efficacy: 100 lm/W. CRI: 80. Beam angle: 90°. Voltage: 220–240 V AC (also 100–277 V). Frequency: 50–60 Hz. Insulation class: I. Protection: IP65 and IK07. Surge protection: 2 kV. Operating temperature: -20 °C to +40 °C. Material: aluminium. Dimensions: 78 mm x Ø235.6 mm. Certifications: CE, RoHS, UKCA. Use: indoor and outdoor.

Installation and maintenance

Suspended or surface installation on 220–240 V AC, without integrated battery or Wi‑Fi. Designed to offer comfortable lighting according to the environment, with reduced maintenance thanks to its service life and IP65 sealing.

For specific project requirements or mounting accessories, request more information.
