  • 150 W
    Wattage 150 W
  • 220-240V AC
    Voltage Range 220-240V AC
  • 15000 lm
    Lumen 15000 lm
  • 299.3 mm
    Diameter 299.3 mm

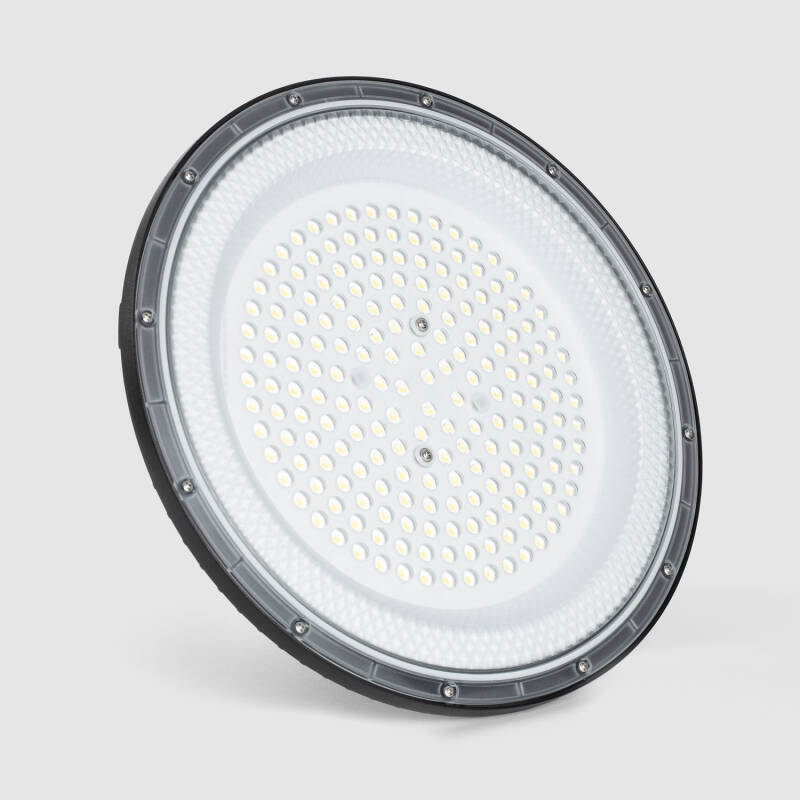

Image of 150W Solid X3 UFO LED High Bay 100lm/W
    Image of 150W Solid X3 UFO LED High Bay 100lm/W
    Image of 150W Solid X3 UFO LED High Bay 100lm/W
    Image of 150W Solid X3 UFO LED High Bay 100lm/W
    Image of 150W Solid X3 UFO LED High Bay 100lm/W
    Image of 150W Solid X3 UFO LED High Bay 100lm/W
    Image of 150W Solid X3 UFO LED High Bay 100lm/W
1 / 6
  • 150 W

    Wattage

    150 W

  • 220-240V AC

    Voltage Range

    220-240V AC

  • 15000 lm

    Lumen

    15000 lm

  • 299.3 mm

    Diameter

    299.3 mm

  • 0.9

    Power Factor

    0.9

  • IP65

    IP Rating

    IP65

  • No

    Battery Operated

    No

  • 78.5 mm x Ø299.3 mm

    Dimensions

    78.5 mm x Ø299.3 mm

  • 78.5 mm

    Height

    78.5 mm

  • IK07

    IK Protection

    IK07

  • 100 lm/W

    Luminous Efficiency

    100 lm/W

  • Aluminium

    Fitting Material

    Aluminium

150W Solid X3 UFO LED High Bay 100lm/W

Download technical datasheet

Ref. Ledkia: 177098

Colour Temperature No Flicker Cool White 6000K

£25.99

VAT included

Pre-Order, estimated shipping from 12/02/2026

PRO CLUB badge

Are you a lighting professional or a company?

  • Great discounts off PVP
  • Extended Warranty
  • Exclusive Services

Buy now, pay later

Credit payment

    • 30 Day Return

      You can renounce to this product during the first 30 calendar days from receipt, provided that the product remains in perfect condition for use.


      Custom-made products and cut-to-size strips are excluded.


      Full conditions here: After-sales service.

    • 24h Free Delivery

      If you place your order today before 2:30 pm, delivery within 24/48h (working days).


      Shipping is free on purchases over £ 49.99 (incl. VAT).


      Full conditions here: Delivery methods.

    • 100% secure payments

      payment method image 1

      payment method image 2

      At Ledkia we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation.


      More information: Payment methods.

    • Up to 5 year warranty

      Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.


      You will find the exact product warranty in the technical details.


      Full conditions here: After-sales service.

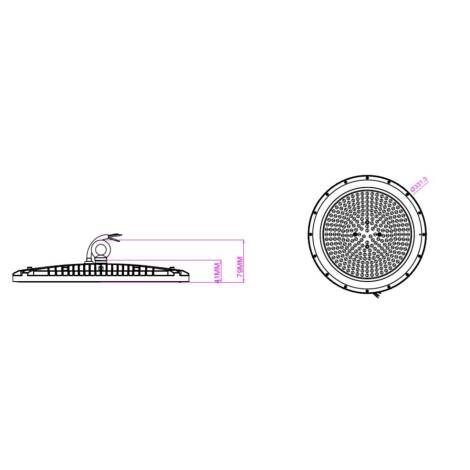

Dimensions

  • Weight2 kg
  • Diameter299.3 mm
  • Height78.5 mm

Downloads

  • pdf file

    177098_358093_Datasheet_en_GB

Certificates and Stamps

CertificateCertificateCertificate

Technical Specifications

  • Technical Information

    • Temperature range in which the product can operate optimally, ensuring its performance without overheating or damage.
      Ambient Working Temperature-20 °C~+40 °C
    • Measures how accurately a light source displays colours compared to natural light. A high CRI (close to 100) ensures accurate colour rendering.
      Colour Rendering Index80
    • Defines the light tone, from warm white to cool white, measured in Kelvin (K).
      Colour Temperature6000K
    • DimmableNo
    • Electrical Insulation ClassI
    • Fitting MaterialAluminium
    • Frequency50-60 Hz
    • Estimated lifespan of the product before it loses performance. Based on optimal, non-continuous use, and measured in hours of operation under controlled conditions.
      Hours40.000 hours
    • Protection grade that the product offers against physical impacts. It is measured on a scale from IK00 to IK10, with IK10 being the highest level of resistance to impact and mechanical damage.
      IK ProtectionIK07
    • The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
      IP RatingIP65
    • Light ColourCool White
    • Lumen15000 lm
    • Ratio between light output (lumens) and energy consumed (watts). A high value indicates better efficiency, ideal for saving energy without compromising lighting.
      Luminous Efficiency100 lm/W
    • Minimum and maximum voltage fluctuation that the product can withstand momentarily.
      Nominal Voltage100 V - 277 V
    • Type of lens that determines the distribution and quality of the light. It influences the illumination angle and light efficiency.
      Optic90º
    • Product's ability to withstand voltage spikes or electrical overloads, protecting internal components from potential damage due to current fluctuations.
      Overvoltage Protection2 kV
    • Power Factor0.9
    • Voltage level required for the product to function correctly.
      Voltage Range220-240V AC
    • Wattage150 W

  • Product Information

    • Installation of the bracketSuspension
    • LocationOutdoor, Indoor
    • Replaceable Light SourceYes
    • Special Installation EnvironmentSaline environment

  • Product Data

    • CertificatesCE, RoHS, UKCA
    • Guarantee3 years

Description

150 W industrial UFO LED high bay with 100 lm/W and 15,000 lm, designed for stable performance in demanding indoor and outdoor environments.

Design and style

Aluminium body with compact format Ø299.3 mm and height of 78.5 mm. 90° optics for focused and uniform light control. IP65 and IK07 protection for resistance against dust, water jets and impacts. Class I insulation and 0.90 power factor aimed at electrical efficiency in professional environments.

Use and application

Suitable for indoor and outdoor use, operating between -20 °C and +40 °C. The 90° optics facilitate appropriate lighting of work areas, corridors and process zones. Designed to provide comfortable lighting according to the environment, with CRI 80 for accurate colour rendering.

Key benefits

  • Luminous efficacy of 100 lm/W with 15,000 lm to reduce the number of light points.
  • IP65 and IK07 protection for reliability in demanding environments.
  • 90° optics that improve light utilisation at height.
  • Aluminium for stable thermal dissipation and a service life of 40,000 hours.
  • Operates at 220–240 V AC and 50–60 Hz, with a wide nominal range of 100–277 V.

Technical details

Power: 150 W. Luminous flux: 15,000 lm. Efficacy: 100 lm/W. Optics: 90°. CRI: 80. Voltage: 220–240 V AC (100–277 V nominal). Frequency: 50–60 Hz. Power factor: 0.90. IP65. IK07. Class I. Surge protection: 2 kV. Operating temperature: -20 °C ~ +40 °C. Material: aluminium. Dimensions: 78.5 mm x Ø299.3 mm. Certifications: CE, RoHS, UKCA.

Installation and maintenance

Suspended installation using top eye bolt. Direct connection to the mains according to the indicated voltage. Provides a functional, balanced solution for different spaces, facilitating scheduled maintenance thanks to its robust design.

For additional specifications or project advice, request more information.
