Range Essential
  • 200 W
    Wattage 200 W
  • 220-240V AC
    Voltage Range 220-240V AC
  • 24000 lm
    Lumen 24000 lm
  • 332 mm
    Diameter 332 mm

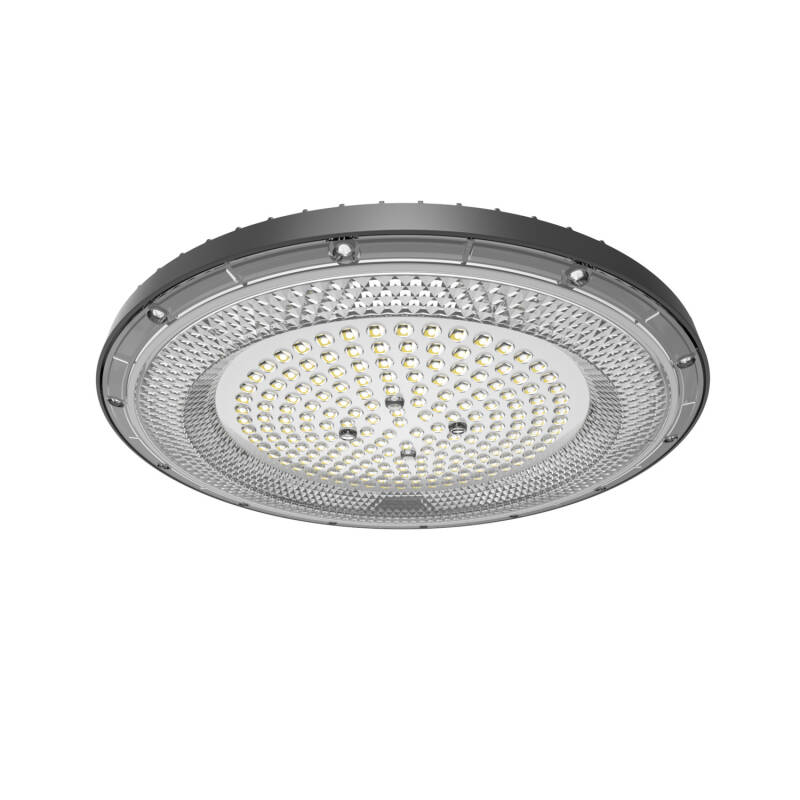

Image of Solid X3 200W UFO LED High Bay 90lm/w
    Image of Solid X3 200W UFO LED High Bay 90lm/w
    Image of Solid X3 200W UFO LED High Bay 90lm/w
    Image of Solid X3 200W UFO LED High Bay 90lm/w
    Image of Solid X3 200W UFO LED High Bay 90lm/w
1 / 4
  • 200 W

    Wattage

    200 W

  • 220-240V AC

    Voltage Range

    220-240V AC

  • 24000 lm

    Lumen

    24000 lm

  • 332 mm

    Diameter

    332 mm

  • 288

    Number of LEDs

    288

  • 0.9

    Power Factor

    0.9

  • UGR <22

    Glare Factor

    UGR <22

  • IP65

    IP Rating

    IP65

  • No

    Battery Operated

    No

  • 80 mm x Ø332 mm

    Dimensions

    80 mm x Ø332 mm

  • 80 mm

    Height

    80 mm

  • IK07

    IK Protection

    IK07

Solid X3 200W UFO LED High Bay 90lm/w

Download technical datasheet

Ref. Ledkia: 177096

Colour Temperature No Flicker Daylight 6000K

£29.69

VAT included
Energetic efficiency

In Stock, delivery in 16-21 days

PRO CLUB badge

Are you a lighting professional or a company?

  • Great discounts off PVP
  • Extended Warranty
  • Exclusive Services

Buy now, pay later

Credit payment

    • 30 calendar days to return

      You can renounce to this product during the first 30 calendar days from receipt, provided that the product remains in perfect condition for use.


      Custom-made products and cut-to-size strips are excluded.


      Full conditions here: After-Sales Service.

    • 24h Delivery

      If you place your order today before 2:30 pm, delivery within 24/48h (working days).


      Shipping is free on purchases over £49.99 (incl. VAT).


      Full conditions here: Shipping methods.

    • 100% secure payments

      payment method image 1

      payment method image 2

      At Ledkia we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation.


      More information: Payment methods.

    • Warranty up to 5 years

      Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.


      You will find the exact product warranty in the technical details.


      Full conditions here: After-Sales Service.

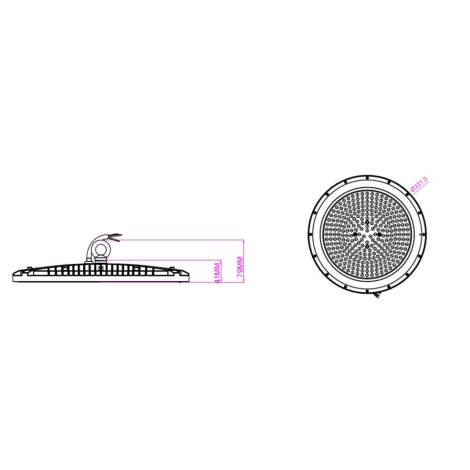

Dimensions

  • Diameter332 mm
  • Height80 mm
Scheme image

Downloads

  • pdf file

    PDF Datasheet 177096_358083 EN

  • pdf file

    DoC_177096_358083

Certificates and Stamps

CertificateCertificateCertificate

Technical Specifications

  • Electrical Features

    • Electrical Insulation ClassI
    • Frequency50-60 Hz
    • Minimum and maximum voltage fluctuation that the product can withstand momentarily.
      Nominal Voltage220 V - 240 V
    • Product's ability to withstand voltage spikes or electrical overloads, protecting internal components from potential damage due to current fluctuations.
      Overvoltage Protection2 kV
    • Voltage level required for the product to function correctly.
      Voltage Range220-240V AC
    • Wattage200 W

  • LED Features

    • Measures in degrees how light spreads from the source. A wide angle covers more area, while a narrow one is ideal for highlighting details.
      Beam Angle90º
    • Measures how accurately a light source displays colours compared to natural light. A high CRI (close to 100) ensures accurate colour rendering.
      Colour Rendering Index80
    • Defines the light tone, from warm white to cool white, measured in Kelvin (K).
      Colour Temperature6000K
    • Low-glare products offer more comfortable lighting, suitable for extended use.
      Glare FactorUGR <22
    • Estimated lifespan of the product before it loses performance. Based on optimal, non-continuous use, and measured in hours of operation under controlled conditions.
      Hours40.000 hours
    • Efficiency of the LEDs, measured as the amount of light generated per unit of energy consumed (lumens per watt). High efficiency ensures energy savings without losing light quality.
      LED Performance130 lm/W
    • Light ColourDaylight
    • Lumen24000 lm
    • Ratio between light output (lumens) and energy consumed (watts). A high value indicates better efficiency, ideal for saving energy without compromising lighting.
      Luminous Efficiency120 lm/W
    • Technology that ensures stable, flicker-free light. It improves visual experience and reduces eye fatigue.
      No FlickerNo Flicker
    • Number of LEDs288
    • Power Factor0.9
    • Standard colour deviation (MacAdam)SDCM ≤ 6

  • Mechanical Features

    • Protection grade that the product offers against physical impacts. It is measured on a scale from IK00 to IK10, with IK10 being the highest level of resistance to impact and mechanical damage.
      IK ProtectionIK07
    • InstallationPendant, Surface
    • Installation of the bracketWall with U-bracket, On-wall base with U-bracket, Ceiling with U-bracket
    • The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
      IP RatingIP65
    • LocationOutdoor, Indoor
    • Type of lens that determines the distribution and quality of the light. It influences the illumination angle and light efficiency.
      Optic90º
    • Internal temperature range in which the product can operate efficiently and safely. It is important to ensure its reliability under different usage conditions.
      Working Temperature-20 °C~+40 °C

  • Product Information

    • CertificatesCE, RoHS, UKCA
    • Guarantee3 years
    • Product SeriesUFO Solid

  • Materials and Finishes

    • ColourBlack
    • Fitting MaterialAluminium

  • Driver Information

    • WifiNo

Description

The Solid X3 200W UFO LED High Bay luminaire is a high-performance industrial lighting solution featuring a 200 W power consumption and a 90º optic for precise light distribution. It incorporates a reliable driver with a power factor of 0.9, offering efficient operation and stable performance in demanding environments.

General information about Solid X3 200W UFO LED High Bay 90lm/w

This industrial high bay luminaire is constructed with a robust aluminium body that ensures durability and heat dissipation. It features an ingress protection rating of IP65 and an impact resistance of IK07, providing reliable protection against dust, water jets, and mechanical impacts. The luminaire delivers a luminous flux of 18,000 lumens with an efficacy of 90 lm/W, supported by 288 LEDs to ensure uniform illumination. Its glare control is managed with a UGR below 22, enhancing visual comfort in workspaces. The electrical insulation class I guarantees safety in installation, while the device includes overvoltage protection of 2 kV to safeguard against electrical surges. Certified under CE, RoHS, and UKCA, it meets professional standards for industrial and logistics applications.

Use and applications

The Solid X3 200W UFO LED High Bay is designed for both indoor and outdoor environments, making it suitable for installations in warehouses and manufacturing facilities where IP65 protection ensures resistance to dust and water ingress. Its robust aluminium construction and IK07 impact resistance allow it to withstand mechanical stresses common in industrial settings. The pendant and surface mounting options facilitate flexible installation in diverse scenarios, adapting to structural requirements.

Recommended for professional sectors such as industrial and logistics businesses, this luminaire supports operational efficiency thanks to its stable driver and high luminous output. It functions within a voltage range of 220–240 V AC and maintains performance across a wide temperature spectrum. The combination of glare control (UGR <22) and a high colour rendering index of 80 contributes to visual comfort and accurate colour perception in demanding work environments. The integration of overvoltage protection and electrical insulation class I enhances safety and reliability, supporting maintenance and long-term operation.

Key benefits

  • High luminous efficiency thanks to advanced LED technology and a 90º optic for targeted illumination.
  • Robust aluminium housing provides excellent heat dissipation and mechanical protection.
  • Enhanced protection with IP65 ingress rating and IK07 impact resistance, ensuring durability in industrial environments.
  • Stable operation supported by a driver with a power factor of 0.9 and overvoltage protection of 2 kV.
  • Visual comfort ensured by glare control with UGR below 22 and good colour rendering index (CRI 80).
  • Versatile installation options including pendant and surface mounting to adapt to different industrial layouts.
  • Certified quality with CE, RoHS, and UKCA marks, suitable for professional projects.

Highlighted specifications

Power consumption: 200 W; Luminous flux: 18,000 lm; Protection rating: IP65; Impact resistance: IK07; Colour rendering index: 80; Power factor: 0.9.

Installation and maintenance

The luminaire supports installation via pendant or surface mounting, allowing adaptation to various structural configurations. Installation can be performed using the indicated methods to ensure secure fixing and optimal performance. The robust aluminium body facilitates heat management, contributing to maintenance efficiency. Electrical connections comply with class I insulation requirements, and overvoltage protection enhances operational safety. Disconnect the power supply before any intervention.
