Voltage Range 220-240V AC
IP Rating IP20
Dimensions 30 mm x 115 mm x 215 mm
Width 115 mm

1 / 2

Voltage Range
220-240V AC
IP Rating
IP20
Dimensions
30 mm x 115 mm x 215 mm
Width
115 mm
Height
30 mm
Fitting Material
Aluminium
Brand
MEAN WELL
Current Intensity
29 A

£48.99

VAT included

In Stock, delivery in 15-20 days

Are you a lighting professional or a company?

Great discounts off PVP
Extended Warranty
Exclusive Services

See alternatives

Dimensions

Height30 mm
Depth215 mm
Dimensions30 mm x 115 mm x 215 mm
Width115 mm

Downloads

Technical Data Sheet PDF

Certificates and Stamps

Technical Specifications

Technical Information
- Temperature range in which the product can operate optimally, ensuring its performance without overheating or damage.
  Ambient Working Temperature-20 °C~+50 °C
- Quality, safety and compliance certifications that the product has obtained, such as CE, RoHS or UL, which guarantees that it meets industry standards and current regulations.
  CertificatesRoHS, CE, TÜV
- Amount of electrical current that flows through the product, measured in amperes (A). It is key to ensuring safe and efficient operation.
  Current Intensity29 A
- Level of electrical protection of the product against shocks. Indicates whether it is suitable for different conditions of use, guaranteeing safety in the installation.
  Electrical Insulation ClassI
- Composition of the product or its components, such as aluminum, steel, plastic or glass. The material influences the durability, design and thermal properties of the product.
  Fitting MaterialAluminium
- Range of cycles per second at which the product operates, measured in hertz (Hz). A standard value ensures compatibility with local electrical networks.
  Frequency50-60 Hz
- The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
  IP RatingIP20
- Specification that describes the purpose or application of the product, such as lighting, air conditioning, or security, among others.
  LocationIndoor
- It is the amount of voltage the product delivers to its components, such as LEDs or connected devices, for operation. This value is crucial to ensure safe and efficient operation.
  Output Voltage12V DC
- Voltage level required for the product to function correctly.
  Voltage Range220-240V AC
Product Data
- Manufacturer or company responsible for designing and producing the product. A recognized name ensures quality and support.
  BrandMEAN WELL
- Period during which the customer has the right to have their product repaired or replaced in the event of manufacturing defects or malfunctions under normal conditions of use. For more information, consult our After-sales page.
  Warranty3 years

Description

The 12V power supply is ideal for connecting interior lighting systems that cannot be used with direct connection to the electrical network. It transforms the alternating supply of the electrical network, to 12V in continuous.

It has a nominal power of 350W. Use indicated for permanent loads of up to 280W . Its output current is 29A.

Manufactured by the prestigious brand Mean Well, it is light and compact. Its aluminum casing gives it great resistance. It has the CE and RoHS certificates that guarantee the quality and safety of the product, and also confirm that it does not contain toxic or dangerous materials.

It has a regulator through which we can adjust the continuous output voltage between a minimum of 10V and a maximum of 15V.

*The customer's visual perception of sizes, colours, textures, and so on, of our products, can be affected by factors such as ambient lighting, screen calibration, viewing angle or the device of each user. The customer must bear in mind that any returns made for reasons not related to the functionality of the product will be at the customer's expense.

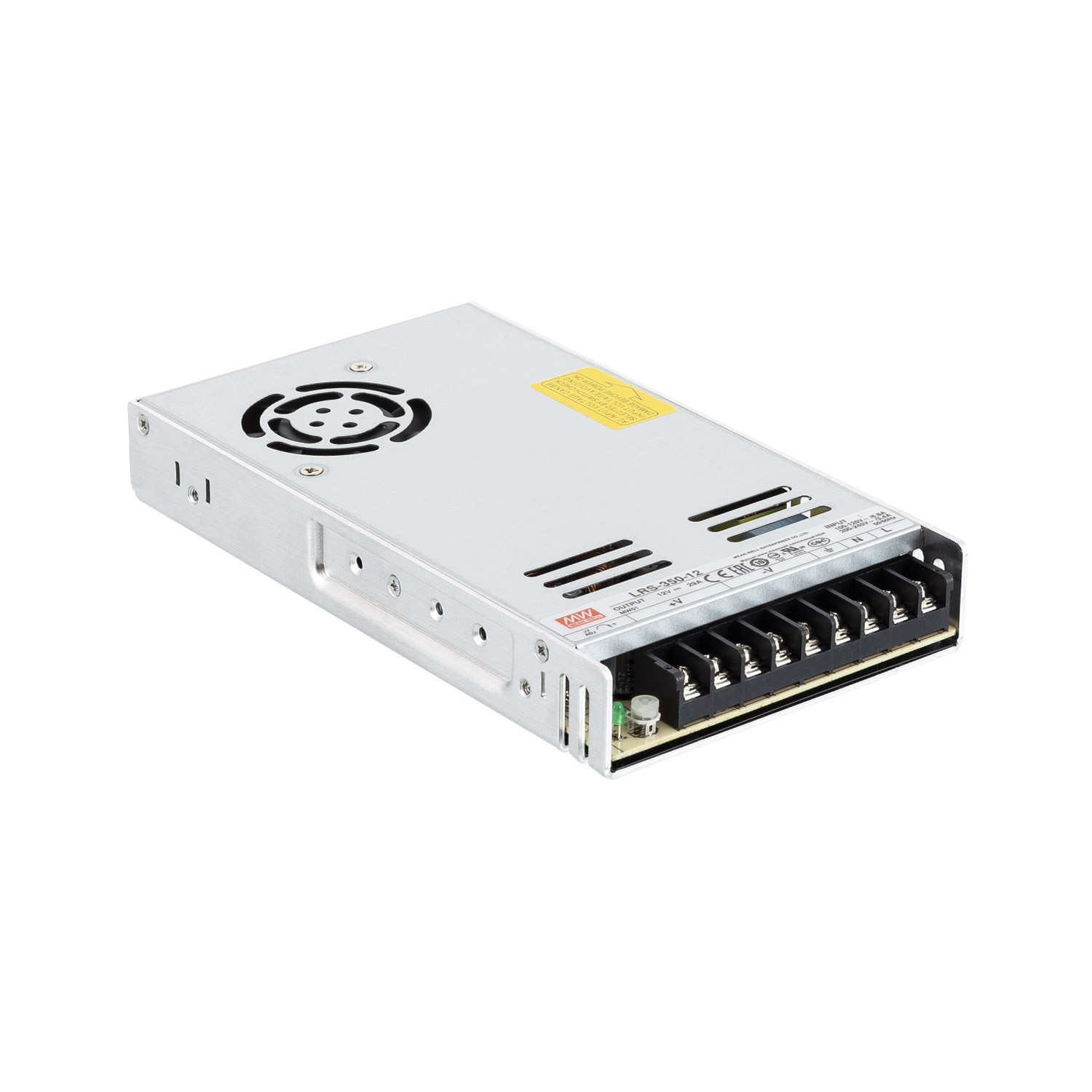

12V DC 350W 29A MEAN WELL LRS-350 Power Supply
