Wattage 60 W
Voltage Range 220-240V AC
Lumen 9000 lm
Number of LEDs 24
Wattage
60 W
Voltage Range
220-240V AC
Lumen
9000 lm
Number of LEDs
24
Type Of Dimming
1-10 V
Power Factor
0.95
IP Rating
IP66
Battery Operated
No
Dimensions
766 mm x 440 mm x 440 mm
Width
440 mm
Height
766 mm
IK Protection
IK09
60W LED Streetlight 1-10V Dimmable LUMILEDS PHILIPS Xitanium Villa
Ref. Ledkia: 70521
Colour Temperature Candlelight 2200K
Optic Asymmetrical 140ºx60º
- Available in other selections.
In Stock, delivery in 16-21 days
Before £272.99
£241.99
VAT included
In Stock, delivery in 16-21 days
Are you a lighting professional or a company?
- Great discounts off PVP
- Extended Warranty
- Exclusive Services
Buy now, pay later
Credit payment30 calendar days to return
You can renounce to this product during the first 30 calendar days from receipt, provided that the product remains in perfect condition for use.
Custom-made products and cut-to-size strips are excluded.
Full conditions here: After-Sales Service.
24h Delivery
If you place your order today before 2:30 pm, delivery within 24/48h (working days).
Shipping is free on purchases over £49.99 (incl. VAT).
Full conditions here: Shipping methods.
100% secure payments
At Ledkia we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation.
More information: Payment methods.
Warranty up to 5 years
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.
You will find the exact product warranty in the technical details.
Full conditions here: After-Sales Service.

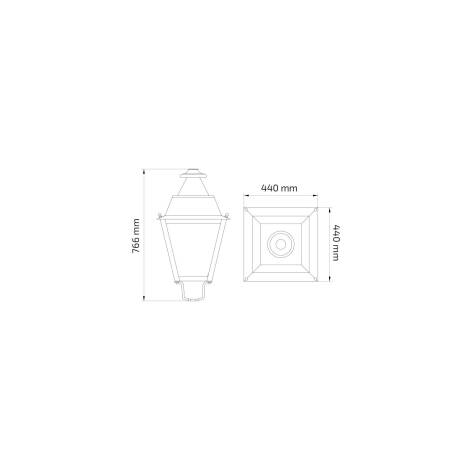

Dimensions
- Weight10.2 kg
- Dimensions766 mm x 440 mm x 440 mm
- Fixing DiameterØ76 mm
Downloads
PDF Datasheet 70521_213249 EN
DoC_70521_213249
Certificates and Stamps
Technical Specifications
Electrical Features
- DimmableYes
- Electrical Insulation ClassI
- Frequency50-60 Hz
- Light SourceLUMILEDS SMD5050
- Nominal Voltage100 V - 240 VMinimum and maximum voltage fluctuation that the product can withstand momentarily.
- Overvoltage Protection6 kVProduct's ability to withstand voltage spikes or electrical overloads, protecting internal components from potential damage due to current fluctuations.
- Type Of Dimming1-10 V
- Voltage Range220-240V ACVoltage level required for the product to function correctly.
- Wattage60 W
LED Features
- Colour Temperature2200KDefines the light tone, from warm white to cool white, measured in Kelvin (K).
- Hours100.000 hoursEstimated lifespan of the product before it loses performance. Based on optimal, non-continuous use, and measured in hours of operation under controlled conditions.
- LED Performance160 lm/WEfficiency of the LEDs, measured as the amount of light generated per unit of energy consumed (lumens per watt). High efficiency ensures energy savings without losing light quality.
- Light ColourCandlelight
- Lumen9000 lm
- Luminous Efficiency150 lm/WRatio between light output (lumens) and energy consumed (watts). A high value indicates better efficiency, ideal for saving energy without compromising lighting.
- Number of LEDs24
- Power Factor0.95
- UlorLess than 0.1%Percentage of light emitted upwards by the product when installed. A low ULOR reduces light pollution.
Product Information
- CertificatesCE, RoHS, ENEC
- Guarantee5 years
- Product SeriesVilla
Mechanical Features
- Ambient Working Temperature-20 °C~+45 °CTemperature range in which the product can operate optimally, ensuring its performance without overheating or damage.
- IK ProtectionIK09Protection grade that the product offers against physical impacts. It is measured on a scale from IK00 to IK10, with IK10 being the highest level of resistance to impact and mechanical damage.
- IP RatingIP66The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
- LocationOutdoor
- OpticAsymmetrical 140ºx60ºType of lens that determines the distribution and quality of the light. It influences the illumination angle and light efficiency.
Materials and Finishes
- ColourBlack
- Fitting MaterialAluminium, Glass
Driver Information
- Driver BrandPHILIPS Xitanium
- WifiNo
Description
The 60W Villa LUMILEDS PHILIPS Xitanium 1–10V Dimmable LED Street Light is one of the latest-generation luminaires, offering instant start-up thanks to its LED technology, as well as high output. It is the ideal replacement for old discharge lamp posts, improving light quality and significantly reducing energy consumption.
Features of the 60W Villa LUMILEDS PHILIPS Xitanium 1–10V Dimmable LED Street Light
It incorporates the LUXEON 5050 2D light source. The light source is protected by tempered glass with an IP66 protection rating, making it weather-resistant. Lumileds technology guarantees high luminous performance with extreme durability. Lumileds is a company dedicated to the development, manufacture, and distribution of lighting and holds more than 200 patents related to LED technology.
The luminaire body is manufactured using injection moulding to ensure optimal heatsink quality, in high-grade aluminium. It features an internal hinge that enhances its aesthetics without sacrificing versatility. A chemical and mechanical anti-corrosion treatment, UV-resistant, has been applied to further improve its aesthetic durability. In addition, for greater safety, the luminaire includes surge protection.
Features of the XITANIUM 1–10V Dimmable Driver
An LED driver converts the AC from the mains into DC suitable for powering LED chips. The integrated Xitanium driver is from the prestigious company PHILIPS, one of the most innovative and renowned brands in the lighting industry; this driver is designed especially for Street Lighting. This range of drivers offers unique reliability and flexibility, delivering high performance and optimal LED efficiency. The entire Xitanium driver range includes an IP65 housing that protects against moisture, vibrations, and temperature, ensuring maximum durability. It also includes both over-temperature and surge protection.
There are two types of mounting for this 60W Villa LUMILEDS PHILIPS Xitanium 1–10V Dimmable LED Luminaire. The mounting to the luminaire support will be a diameter of 27 mm.
This version can be dimmed via 1–10V control, meaning the voltage of an AC circuit is modified to regulate the light intensity of the luminaire.
Reducing energy consumption provides significant savings for any urban area. Enjoy the best road lighting with the different options of our Villa Luminaire at your online store efectoLED.
* The colour code of the luminaire is RAL 9011.
* To install the Villa LED Luminaire on certain columns, the ‘Villa LED Column Mounting Bracket’ is required (see accessories).
