Wattage 15 W
Voltage Range 220-240V AC
Type Of Dimming TRIAC
IP Rating IP20

Wattage
15 W
Voltage Range
220-240V AC
Type Of Dimming
TRIAC
IP Rating
IP20
Dimensions
23 mm x 35 mm x 116 mm
Width
35 mm
Height
23 mm
Fitting Material
PC
Dimmable
Yes

Type Of Driver TRIAC dimmable

TRIAC dimmable
In Stock, delivery in 24/48h

Before £8.89

-10% (You save £0.90)

£7.99

VAT included

In Stock, delivery in 24/48h

Are you a lighting professional or a company?

Great discounts off PVP
Extended Warranty
Exclusive Services

See alternatives

Dimensions

Height23 mm
Depth116 mm
Dimensions23 mm x 35 mm x 116 mm
Width35 mm

Downloads

Technical Data Sheet PDF

Certificates and Stamps

Technical Specifications

Technical Information
- Temperature range in which the product can operate optimally, ensuring its performance without overheating or damage.
  Ambient Working Temperature-20 °C~+40 °C
- Quality, safety and compliance certifications that the product has obtained, such as CE, RoHS or UL, which guarantees that it meets industry standards and current regulations.
  CertificatesRoHS, CE, UKCA
- It indicates that the product allows parameters such as light intensity, speed or color temperature to be adjusted, providing greater flexibility and customization.
  DimmableYes
- Level of electrical current that the driver is capable of handling to power components, such as LEDs, ensuring safe and efficient operation.
  Driver Intensity350 mA
- Voltage level that the driver uses to power the LEDs or electrical components of the product, ensuring their proper functioning.
  Driver Tension27 V-42 V
- Level of electrical protection of the product against shocks. Indicates whether it is suitable for different conditions of use, guaranteeing safety in the installation.
  Electrical Insulation ClassII
- Composition of the product or its components, such as aluminum, steel, plastic or glass. The material influences the durability, design and thermal properties of the product.
  Fitting MaterialPC
- Range of cycles per second at which the product operates, measured in hertz (Hz). A standard value ensures compatibility with local electrical networks.
  Frequency50-60 Hz
- The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
  IP RatingIP20
- Specification that describes the purpose or application of the product, such as lighting, air conditioning, or security, among others.
  LocationIndoor
- Voltage level required for the product to function correctly.
  Voltage Range220-240V AC
- Indicates how much energy the light source consumes, measured in watts (W). In LED lighting, the power is much lower than in traditional sources, and is related to the light intensity (lumens).
  Wattage15 W
Product Information
- System used to control product characteristics, such as intensity regulation, color temperature or speed, adjusting its performance according to the user's needs.
  Type Of DimmingTRIAC
- It reflects the type of driver used in the product, which regulates the energy that powers the LEDs or electrical components. It can be constant current, voltage, or with other configurations.
  Type Of DriverTRIAC dimmable
Product Data
- Period during which the customer has the right to have their product repaired or replaced in the event of manufacturing defects or malfunctions under normal conditions of use. For more information, consult our After-sales page.
  Warranty3 years

Description

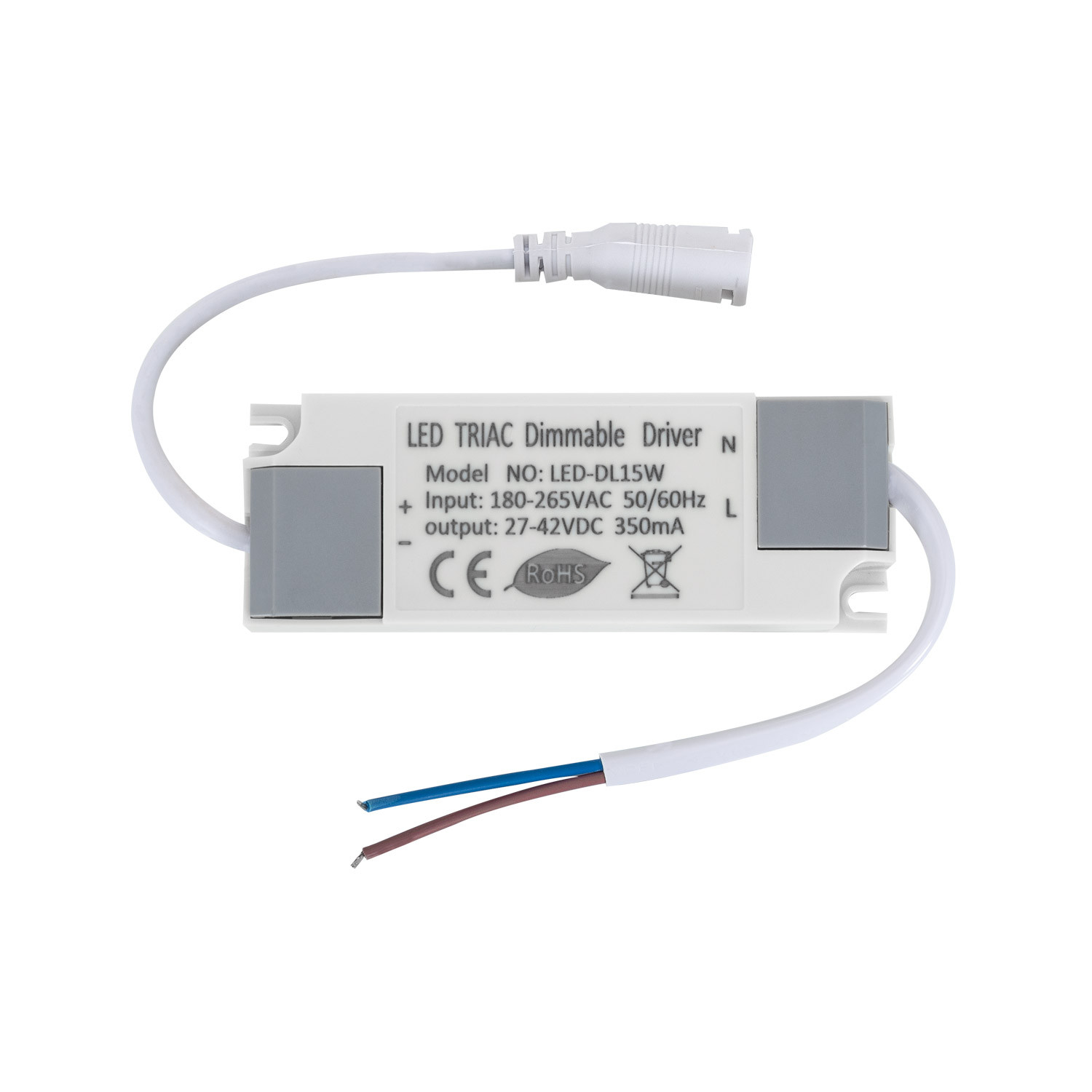

Universal driver specially designed for LED panels, LED downlights, LED panels and LED ceiling lights because it has a jack plug. An LED driver is responsible for transforming the alternating current from the mains into direct current suitable to make the LED chips shine. To find out if a driver is going to work with our luminaire, PCB or panel we should consult the voltage and output current of the driver.

Characteristics of the Dimmable Driver TRIAC 180-265V No Flicker Output 27-42V 350mA 15W

This driver has a multi-voltage input. This means that it is able to withstand surges and dips in line voltage for a short period of time without damage. In addition, its output is also multi-voltage which means that it can deliver a constant voltage within a range allowing the same driver to be used for a variety of applications with different current and voltage requirements. Once the driver is powered, the voltage is automatically adjusted and the output voltage is constant. The dimmable TRIAC driver must be used in conjunction with a TRIAC LED dimmer, which allows the desired light intensity to be easily selected. Its power factor is very high, making it a very efficient driver.

This LIFUD Driver has Flicker-Free technology, avoiding light flickering and therefore reducing eye fatigue.

Discover our wide range of Drivers in our online lighting shop.
