  • 220-240V AC
    Voltage Range 220-240V AC
  • 1-10 V
    Type Of Dimming 1-10 V
  • 0.93
    Power Factor 0.93
  • IP20
    IP Rating IP20

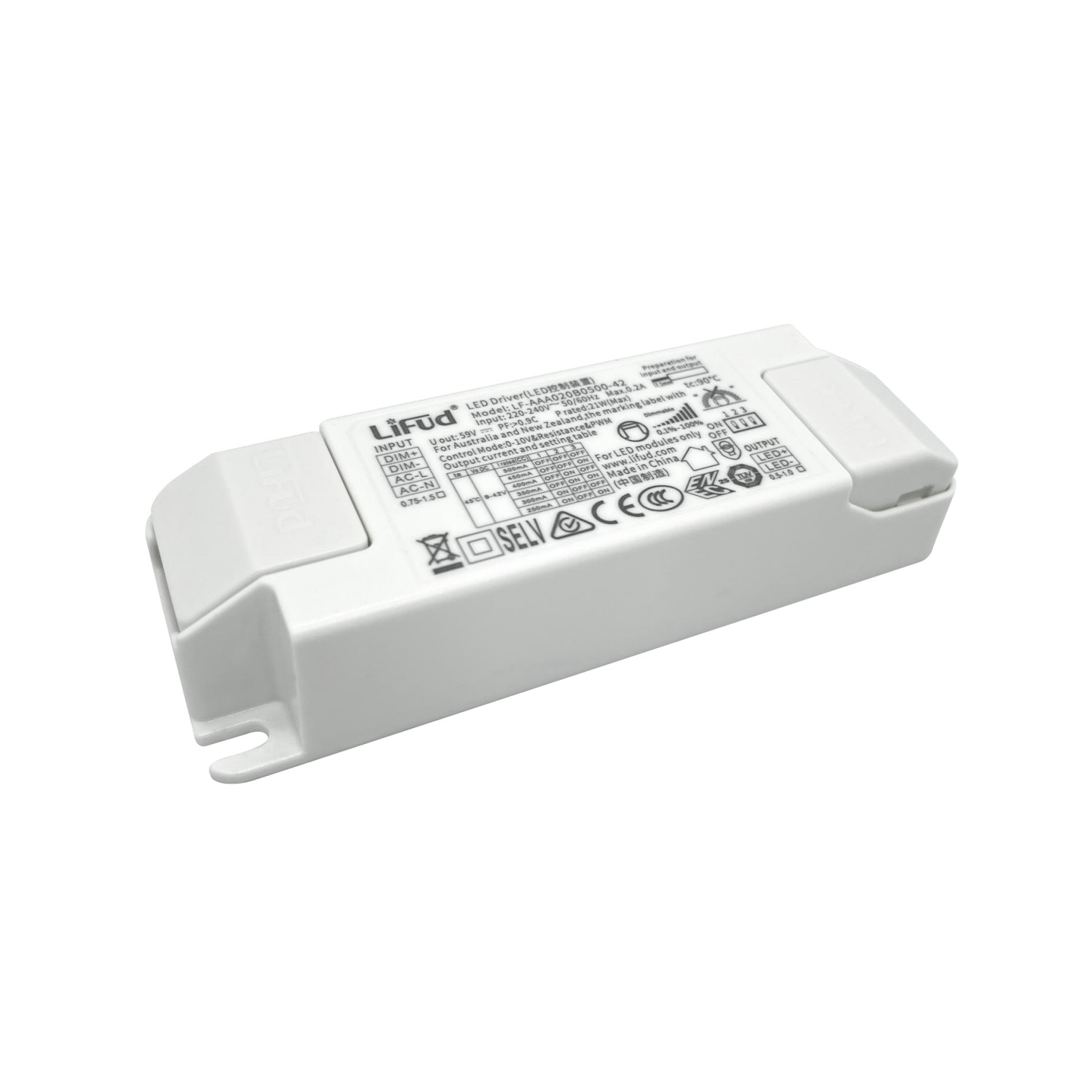

Image of 220-240V LIFUD 1-10V Dimmable NO Flicker Driver 9-42V Output 250-500mA 21W LF-AAA020B0500-42
    Image of 220-240V LIFUD 1-10V Dimmable NO Flicker Driver 9-42V Output 250-500mA 21W LF-AAA020B0500-42
    Image of 220-240V LIFUD 1-10V Dimmable NO Flicker Driver 9-42V Output 250-500mA 21W LF-AAA020B0500-42
1 / 2
  • 220-240V AC

    Voltage Range

    220-240V AC

  • 1-10 V

    Type Of Dimming

    1-10 V

  • 0.93

    Power Factor

    0.93

  • IP20

    IP Rating

    IP20

  • 25 mm x 40 mm x 122 mm

    Dimensions

    25 mm x 40 mm x 122 mm

  • 40 mm

    Width

    40 mm

  • 25 mm

    Height

    25 mm

  • PC

    Fitting Material

    PC

  • LIFUD

    Brand

    LIFUD

  • -20 °C~+40 °C

    Working Temperature

    -20 °C~+40 °C

LIFUD

220-240V LIFUD 1-10V Dimmable NO Flicker Driver 9-42V Output 250-500mA 21W LF-AAA020B0500-42

LIFUD
Download technical datasheet

Ref. Ledkia: 1181

Ref. Fab: LF-AAA020B0500-42

Before £12.99

-8% (You save £1.00)

£11.99

VAT included

In Stock, delivery in 24/48h

PRO CLUB badge

Are you a lighting professional or a company?

  • Great discounts off PVP
  • Extended Warranty
  • Exclusive Services

Buy now, pay later

Credit payment

  • 30 Day Returns

    You can renounce to this product during the first 30 calendar days from receipt, provided that the product remains in perfect condition for use.


    Custom-made products and cut-to-size strips are excluded.


    Full conditions here: After-sales service.

  • 24h Free Delivery

    If you place your order today before 2:30 pm, delivery within 24/48h (working days).


    Shipping is free on purchases over £ 49.99 (incl. VAT).


    Full conditions here: Delivery methods.

  • 100% secure payments

    payment method image 1

    payment method image 2

    At Ledkia we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation.


    More information: Payment methods.

  • Up to 5 year warranty

    Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.


    You will find the exact product warranty in the technical details.


    Full conditions here: After-sales service.

See alternatives

Dimensions

  • Height25 mm
  • Depth122 mm
  • Dimensions25 mm x 40 mm x 122 mm
  • Width40 mm

Downloads

  • pdf file

    Technical Data Sheet PDF

Certificates and Stamps

CertificateCertificateCertificateCertificate

Technical Specifications

  • Technical Information

    • Temperature range in which the product can operate optimally, ensuring its performance without overheating or damage.
      Ambient Working Temperature-40 °C~+75 °C
    • Quality, safety and compliance certifications that the product has obtained, such as CE, RoHS or UL, which guarantees that it meets industry standards and current regulations.
      CertificatesRoHS, CE, TÜV, ENEC
    • Level of electrical current that the driver is capable of handling to power components, such as LEDs, ensuring safe and efficient operation.
      Driver Intensity250 mA-500 mA
    • Ability of the driver to supply power to the system, measured in watts (W). Determines the compatibility and performance of the product with connected components.
      Driver Power21 W
    • Voltage level that the driver uses to power the LEDs or electrical components of the product, ensuring their proper functioning.
      Driver Tension9 V-42 V
    • Level of electrical protection of the product against shocks. Indicates whether it is suitable for different conditions of use, guaranteeing safety in the installation.
      Electrical Insulation ClassII
    • Composition of the product or its components, such as aluminum, steel, plastic or glass. The material influences the durability, design and thermal properties of the product.
      Fitting MaterialPC
    • Range of cycles per second at which the product operates, measured in hertz (Hz). A standard value ensures compatibility with local electrical networks.
      Frequency50-60 Hz
    • The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
      IP RatingIP20
    • Specification that describes the purpose or application of the product, such as lighting, air conditioning, or security, among others.
      LocationIndoor
    • Indicates the electrical efficiency of the product by measuring the relationship between the useful power and that consumed. A value close to 1 represents more efficient consumption.
      Power Factor0.93
    • Voltage level required for the product to function correctly.
      Voltage Range220-240V AC
    • Internal temperature range in which the product can operate efficiently and safely. It is important to ensure its reliability under different usage conditions.
      Working Temperature-20 °C~+40 °C

  • Product Data

    • Manufacturer or company responsible for designing and producing the product. A recognized name ensures quality and support.
      BrandLIFUD
    • Period during which the customer has the right to have their product repaired or replaced in the event of manufacturing defects or malfunctions under normal conditions of use. For more information, consult our After-sales page.
      Warranty5 years

  • Product Information

    • System used to control product characteristics, such as intensity regulation, color temperature or speed, adjusting its performance according to the user's needs.
      Type Of Dimming1-10 V
Illuminate your outdoor spaces

Description

Driver of the prestigious company LIFUD specially designed for any application because at its exit it does not incorporate any connector. An LED driver is responsible for transforming the alternating current of the mains into direct current suitable for the LED chips to shine. To find out if a driver will work with our luminaire, PCB or panel we will have to check the voltage and output current of the driver.

Features of the 18W 27-42V Output 100-277V 500mA Flicker-Free 1-10V Dimmable LIFUD Driver LF-GDE023YF

This Driver has multi-voltage input. This means that it is able to withstand ups and downs of the line voltage for a short period of time without suffering damage. In addition, its output is also multi-voltage which means that it can deliver a constant voltage within a range allowing the use of the same driver for various applications with different current and voltage requirements. Once the driver is powered, the voltage will be adjusted automatically and the voltage to the output will be constant. The 1-10V Dimmable driver should be used in conjunction with a 1-10V LED dimmer that will allow us to easily select the desired light intensity. Its power factor is very high, making it a very efficient driver.
