Inversor Trifásico R5 Series MPPT

Three-Phase Solar Inverter SAJ R5 Grid Injection 4-17 kW

Ref: 73981 / INVR-TRIF-R5-SR

Before £

£

Price not available

Would you like us to call you?
FREE

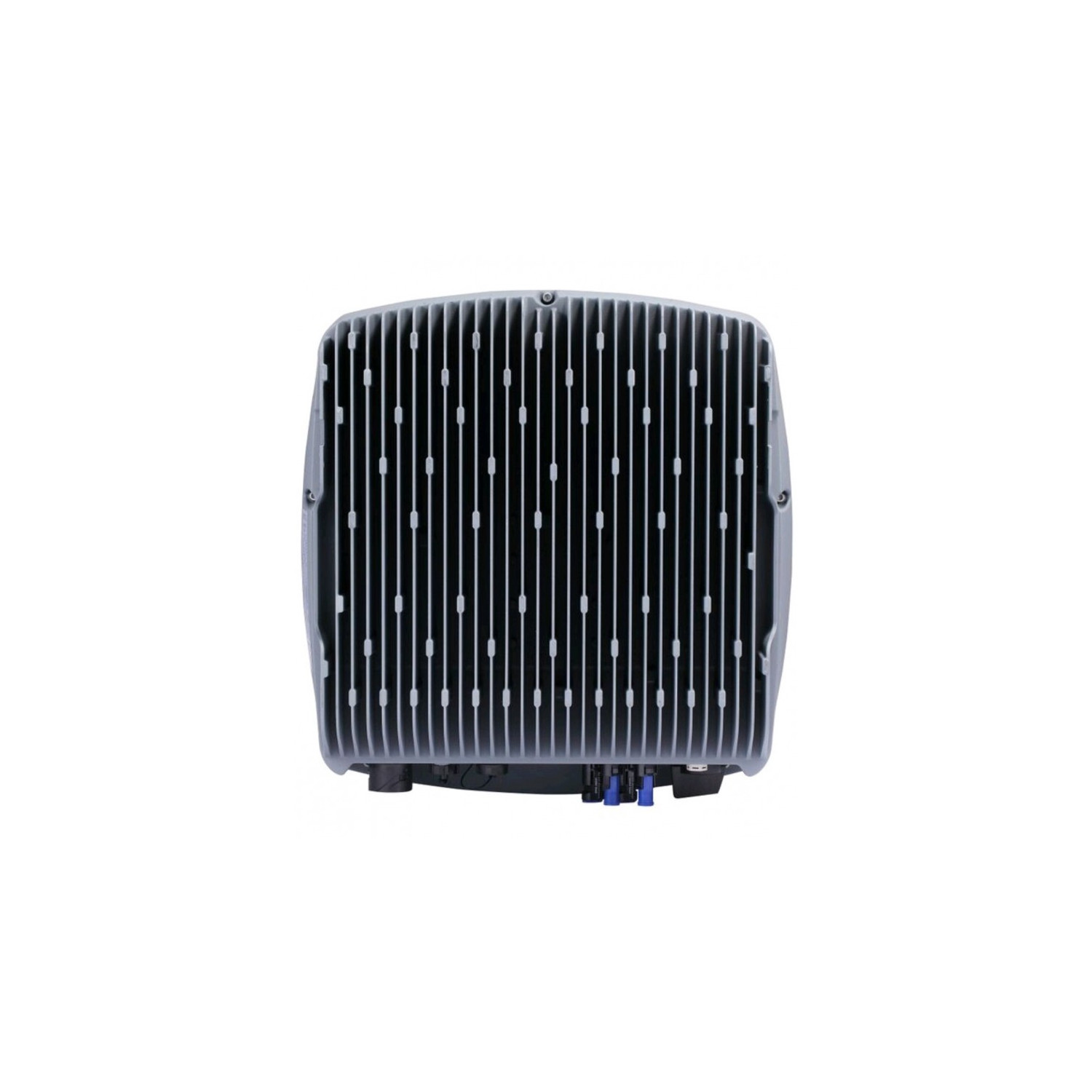

Three-Phase Solar Inverter SAJ R5 Grid Injection 4-17 kW

Ref: 73981 / INVR-TRIF-R5-SR

  • 4-17 kW
  • IP65
  • 230-400V AC
  • 220-240V AC, 400V AC
  • 50-60 Hz
  • 430x418x177 mm
  • 3 Years
  • 19 Kg
  • UKCA
  • Aluminium, PC
  • 0.80
  • Outdoor, Indoor

Similar products

Description Three-Phase Solar Inverter SAJ R5 Grid Injection 4-17 kW

This Three-Phase Solar Inverter SAJ R5 Grid Injection 4-17 kW is a device that allows us to convert the direct current provided by the solar panels of a photovoltaic installation into alternating current with three-phase output for consumption in the home, commercial premises or industry.

It has a wide range and efficient MPPT (Maximum Power Point Tracking) tracker. This technology ensures that the optimum balance between voltage and current is sought so that the solar panels operate at their maximum power.

The grid connection inverters are specially designed for homes that already have a connection to the electricity network. The inverter can directly deliver the energy generated by the photovoltaic panels to the home's electrical installation. At night, when there is no energy generation, the inverter takes the energy from the electricity grid. Grid connection photovoltaic systems are the ones that pay off best because they provide savings on the electricity bill with a low investment.

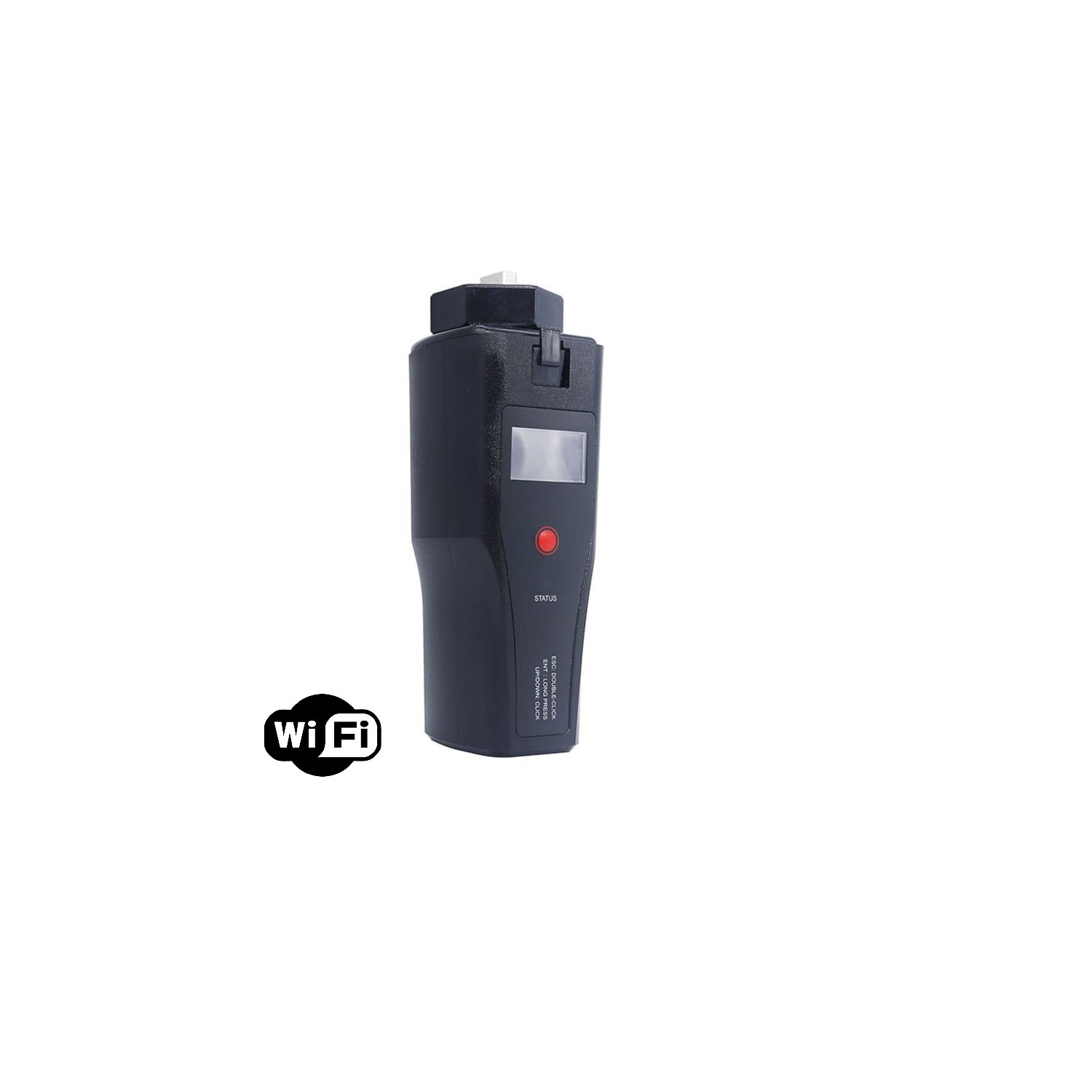

The R5 Series MPPT Three-phase WiFi Inverter has eSolar Portal, a platform developed by SAJ which, by means of a WiFi connection, allows you to monitor data, for remote maintenance and with which you can manage the energy.

To configure and start up the system, we need the eSolar SET app available for Android and iOS. The password for local connection to the inverter is 123456. The inverter can be started up using the Bluetooth connection.

It does not have a fan.

IP65 protection (indoor and outdoor installation)

WiFi included, USB connector and Plug & Play AC connector.

MC4 photovoltaic connectors.

RS-485 communication.

Optional injection system.

Characteristics Three-Phase Solar Inverter SAJ R5 Grid Injection 4-17 kW

Power: 4-17 kW
Power Factor: 0.80
Voltage: 220-240V AC, 400V AC
Multi-Voltage: 230-400V AC
MPPT Voltage Range: 160-950 V DC
MPPT Maximum Intensity 12.5-25 A
Number of MPPT Trackers: 2
Frequency: 50-60 Hz
Protection Class: I
Use: Outdoor, Indoor
IP Protection: IP65
Material: Aluminium, PC
Installation: Surface
Size: 430x418x177 mm
Total Weight: 19 Kg
Battery operated: No
Wi-Fi: IEEE 802.11 / 2.4GHz
Connectivity: Wi-Fi, Bluetooth
Warranty: 3 Years
Certifications: UKCA, CE & RoHS
Brand: SAJ
