  • 75 W
    Wattage 75 W

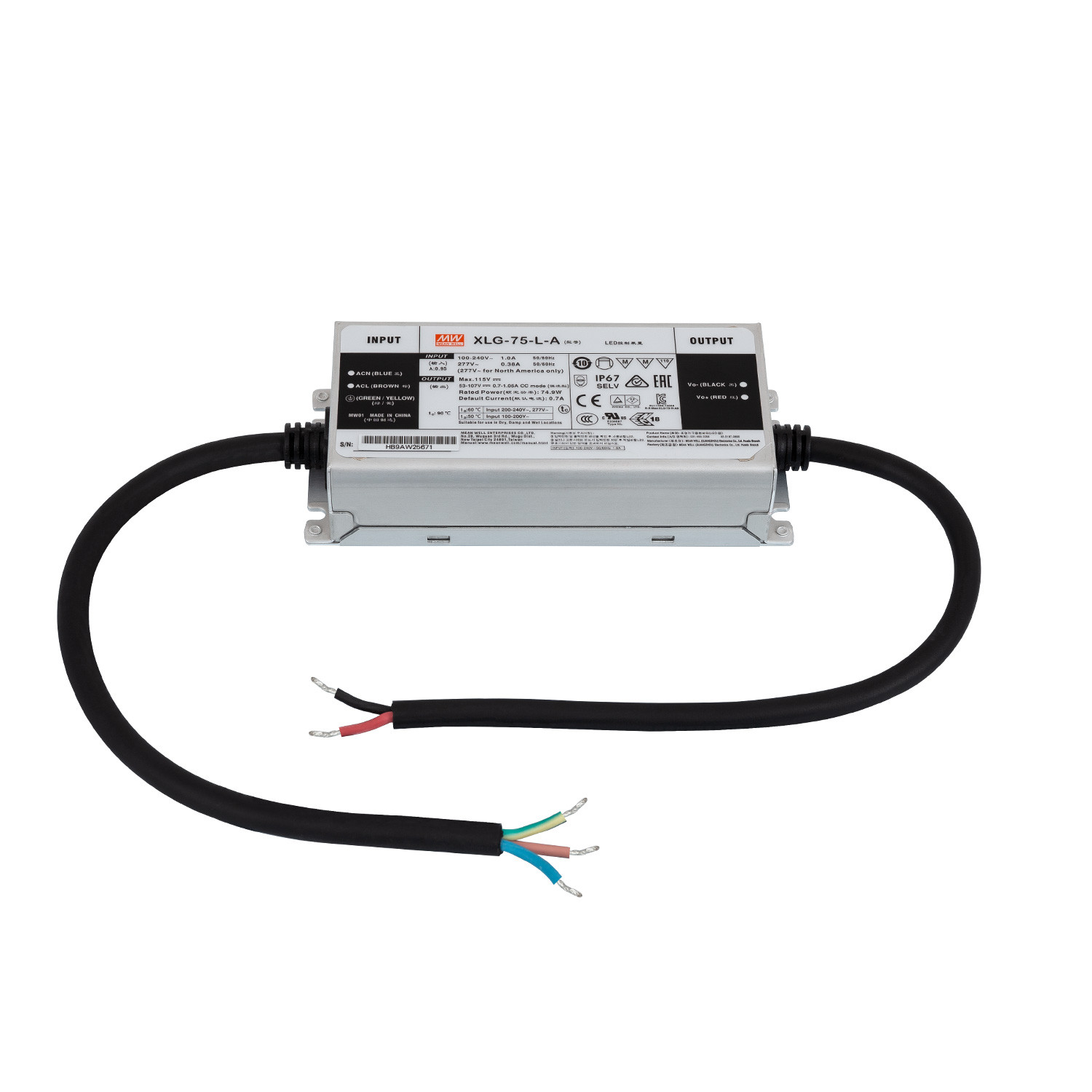

Image of 75W 53-107V Output 100-240V 700-1050mA IP67 MEAN WELL Driver XLG-75-L-A
  • 75 W

    Wattage

    75 W

  • 220-240V AC, 110V AC

    Voltage Range

    220-240V AC, 110V AC

  • 0.95

    Power Factor

    0.95

  • IP67

    IP Rating

    IP67

  • 140 mm x 63 mm x 32 mm

    Dimensions

    140 mm x 63 mm x 32 mm

  • 63 mm

    Width

    63 mm

  • 140 mm

    Height

    140 mm

  • Aluminium, PC

    Fitting Material

    Aluminium, PC

  • MEAN WELL

    Brand

    MEAN WELL

  • Yes

    Dimmable

    Yes

MEAN WELL

75W 53-107V Output 100-240V 700-1050mA IP67 MEAN WELL Driver XLG-75-L-A

MEAN WELL
Download technical datasheet

Ref. Ledkia: 63769

Ref. Fab: DRVR-MNWLL-XLG-15-24-75

Wattage 75 W

Before £36.99

-39% (You save £14.50)

£22.49

VAT included

In Stock, delivery in 15-20 days

PRO CLUB badge

Are you a lighting professional or a company?

  • Great discounts off PVP
  • Extended Warranty
  • Exclusive Services

Buy now, pay later

Credit payment

  • 30 Day Returns

    You can renounce to this product during the first 30 calendar days from receipt, provided that the product remains in perfect condition for use.


    Custom-made products and cut-to-size strips are excluded.


    Full conditions here: After-sales service.

  • 24h Free Delivery

    If you place your order today before 2:30 pm, delivery within 24/48h (working days).


    Shipping is free on purchases over £ 49.99 (incl. VAT).


    Full conditions here: Delivery methods.

  • 100% secure payments

    payment method image 1

    payment method image 2

    At Ledkia we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation.


    More information: Payment methods.

  • Up to 5 year warranty

    Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.


    You will find the exact product warranty in the technical details.


    Full conditions here: After-sales service.

See alternatives

Dimensions

  • Height140 mm
  • Depth32 mm
  • Dimensions140 mm x 63 mm x 32 mm
  • Width63 mm

Downloads

  • pdf file

    Technical Data Sheet PDF

Certificates and Stamps

CertificateCertificateCertificate

Technical Specifications

  • Technical Information

    • Temperature range in which the product can operate optimally, ensuring its performance without overheating or damage.
      Ambient Working Temperature-30 °C~+50 °C
    • Quality, safety and compliance certifications that the product has obtained, such as CE, RoHS or UL, which guarantees that it meets industry standards and current regulations.
      CertificatesRoHS, CE, CB, ENEC
    • It indicates that the product allows parameters such as light intensity, speed or color temperature to be adjusted, providing greater flexibility and customization.
      DimmableYes
    • Level of electrical current that the driver is capable of handling to power components, such as LEDs, ensuring safe and efficient operation.
      Driver Intensity700 mA-1050 mA
    • Ability of the driver to supply power to the system, measured in watts (W). Determines the compatibility and performance of the product with connected components.
      Driver Power75 W
    • Voltage level that the driver uses to power the LEDs or electrical components of the product, ensuring their proper functioning.
      Driver Tension53 V - 107 V
    • Level of electrical protection of the product against shocks. Indicates whether it is suitable for different conditions of use, guaranteeing safety in the installation.
      Electrical Insulation ClassI
    • Composition of the product or its components, such as aluminum, steel, plastic or glass. The material influences the durability, design and thermal properties of the product.
      Fitting MaterialAluminium, PC
    • Range of cycles per second at which the product operates, measured in hertz (Hz). A standard value ensures compatibility with local electrical networks.
      Frequency50-60 Hz
    • The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
      IP RatingIP67
    • Specification that describes the purpose or application of the product, such as lighting, air conditioning, or security, among others.
      LocationOutdoor, Indoor
    • Indicates the electrical efficiency of the product by measuring the relationship between the useful power and that consumed. A value close to 1 represents more efficient consumption.
      Power Factor0.95
    • Voltage level required for the product to function correctly.
      Voltage Range220-240V AC, 110V AC
    • Indicates how much energy the light source consumes, measured in watts (W). In LED lighting, the power is much lower than in traditional sources, and is related to the light intensity (lumens).
      Wattage75 W

  • Product Data

    • Manufacturer or company responsible for designing and producing the product. A recognized name ensures quality and support.
      BrandMEAN WELL
    • Period during which the customer has the right to have their product repaired or replaced in the event of manufacturing defects or malfunctions under normal conditions of use. For more information, consult our After-sales page.
      Warranty5 years
Illuminate your outdoor spaces

Description

Driver from the renowned MEAN WELL company, specially designed for street lighting. An LED driver is responsible for transforming the alternating current from the mains into direct current suitable for making the LED chips illuminate. To find out if a driver is going to work with your luminaire, PCB or panel we must verify the voltage and output current of the driver.

Characteristics of the 75W 53-107V Output 100-305V 700-1050mA IP67 MEAN WELL Driver XLG-75-L-A

This driver has a multi-voltage input. This means that it is able to withstand surges and dips in line voltage for a short period of time without damage. In addition, its output is also multi-voltage which means that it can deliver constant voltage within a range allowing the same driver to be used for various applications with different current and voltage requirements. This Driver allows you to control the luminaire and program the brightness level of the luminaire according to the number of hours the luminaire has been on. This is useful for saving energy and adapting to different night-time scenarios. Its power factor is very high, making it a very efficient driver.

It incorporates protection against overloads, short circuits, temperature, high input voltage and output voltage of 6KV between Line-Earth and 4KV between Line-Line making it a very safe driver.
