Range Expert

Wattage 30 W
Voltage Range 220-240V AC
Lumen 3000 lm
Diameter 55 mm

1 / 5

Wattage
30 W
Voltage Range
220-240V AC
Lumen
3000 lm
Diameter
55 mm
Power Factor
0.9
Glare Factor
UGR <19
IP Rating
IP20
Dimensions
171 mm x Ø55 mm
Height
171 mm
Luminous Efficiency
100 lm/W
Beam Angle
38º
Fitting Material
Aluminium, PC

New

Before £67.99

-60% (You save £40.70)

£27.29

VAT included

In Stock, delivery in 15-20 days

Are you a lighting professional or a company?

Great discounts off PVP
Extended Warranty
Exclusive Services

Dimensions

Height171 mm
Diameter55 mm

Downloads

PDF Datasheet 128524_269614 EN
DoC_128524_269614

Certificates and Stamps

Technical Specifications

Electrical Features
- Frequency50-60 Hz
- Light SourceBRIDGELUX COB
- Voltage level required for the product to function correctly.
  Voltage Range220-240V AC
- Wattage30 W
LED Features
- Measures in degrees how light spreads from the source. A wide angle covers more area, while a narrow one is ideal for highlighting details.
  Beam Angle38º
- Measures how accurately a light source displays colours compared to natural light. A high CRI (close to 100) ensures accurate colour rendering.
  Colour Rendering Index90
- Defines the light tone, from warm white to cool white, measured in Kelvin (K).
  Colour Temperature2700K - 4000K - 6000K
- Low-glare products offer more comfortable lighting, suitable for extended use.
  Glare FactorUGR <19
- Estimated lifespan of the product before it loses performance. Based on optimal, non-continuous use, and measured in hours of operation under controlled conditions.
  Hours40.000 hours
- Light ColourCCT
- Lumen3000 lm
- Ratio between light output (lumens) and energy consumed (watts). A high value indicates better efficiency, ideal for saving energy without compromising lighting.
  Luminous Efficiency100 lm/W
- Technology that ensures stable, flicker-free light. It improves visual experience and reduces eye fatigue.
  No FlickerNo Flicker
- Power Factor0.9
Mechanical Features
- Temperature range in which the product can operate optimally, ensuring its performance without overheating or damage.
  Ambient Working Temperature-20 °C~+40 °C
- Ability to move or rotate the spotlight to direct the light as desired.
  DirectionalYes
- InstallationTrack
- The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
  IP RatingIP20
- LocationIndoor
- Type of lens that determines the distribution and quality of the light. It influences the illumination angle and light efficiency.
  Optic38º
- Type Of TrackThree Phase
Product Information
- CertificatesCE, RoHS, SAA, UKCA
- Guarantee3 years
- Product SeriesMisoh
Materials and Finishes
- ColourWhite / Silver
- Fitting MaterialAluminium, PC
Driver Information
- WifiNo

Description

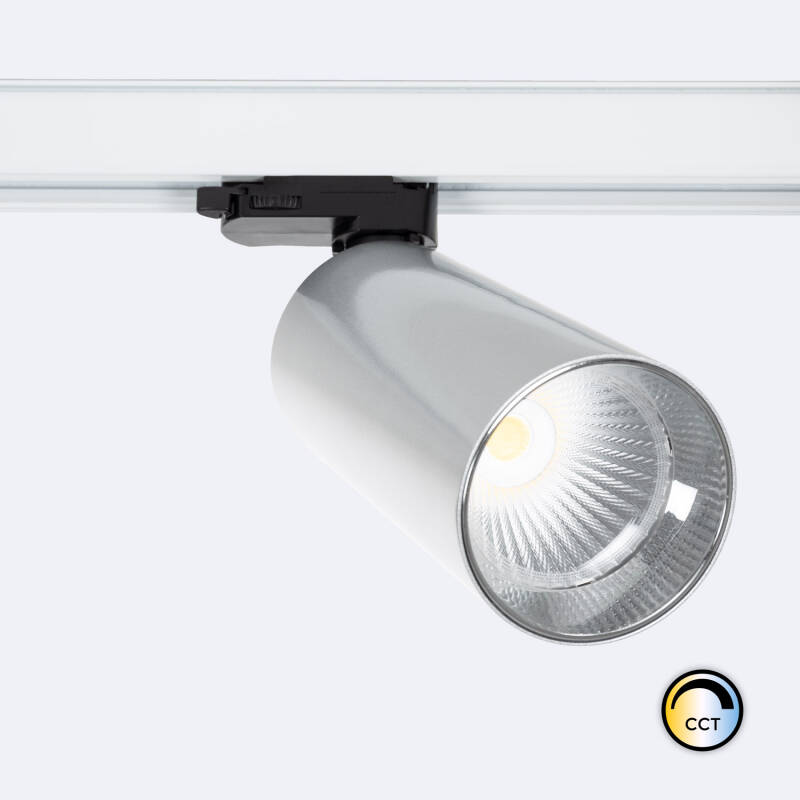

The Misoh CCT 30W LED Track Spotlight for 3-Circuit Track is the perfect choice for illuminating both commercial and residential spaces with a modern and efficient approach. This spotlight, designed for three-phase track systems, allows for versatile installation and the flexibility to adapt the lighting to different configurations and needs.

Features of the Misoh CCT 30W LED Track Spotlight for 3-Circuit Track

With an output of 30W, this spotlight offers high quality lighting with reduced energy consumption. Its CCT (Colour Correlated Temperature) feature allows the colour temperature to be adjusted, providing a light that varies from warm to cool tones, adapting to any type of environment.

The integrated Bridgelux LED stands out for its high colour rendering index (CRI 90), ideal for clothing shops, photo studios, museums and any space where the real colours of the illuminated objects need to be shown. In addition, its LIFUD driver ensures long life and optimal performance, avoiding flickering and guaranteeing stable light.

Design and Materials

The minimalist design of the Misoh CCT 30W LED Track Spotlight for 3-Circuit Track is complemented by its aluminium body, which not only adds a modern aesthetic touch, but also improves heat dissipation. This helps to extend the life of the spotlight and maintain consistent performance over time.

Applications of the Misoh CCT 30W LED Track Spotlight for 3-Circuit Track

This spotlight is perfect for use in commercial environments such as shops, showrooms and galleries, where its precise, high quality light highlights products and exhibits. It is also ideal for residential environments, providing adaptable and efficient light for living rooms, dining rooms and workspaces. Its directional capability allows light to be directed where it is most needed, providing accent lighting that enhances the atmosphere of any space.

The Misoh CCT 30W LED Track Spotlight for 3-Circuit Track combines efficiency, versatility and design, making it a key piece for lighting projects that seek a perfect balance between functionality and aesthetics.

*For safety reasons and to avoid damage to the LEDs, the product must be turned off before changing the colour temperature selector.

*The customer’s visual perception of sizes, colors, or textures may be affected by factors such as lighting, screen calibration, or the device used. For this reason, the images are merely illustrative and may not fully reflect the product’s actual characteristics. Please note that some of the ambient photographs shown on the website correspond to real environments, while others may have been generated or edited using artificial intelligence. In no case do they constitute an exact representation of the product or intend to mislead. To learn about the product’s real characteristics, please refer to the technical sheet and product description.
