Ellis Square 3W Outdoor Aluminium Recessed LED Wall Light White
£22.39
Ref: 87845
Colour Temperature Warm White 2700K
In Stock, delivery in 15-20 days
Buy now, pay later
Credit paymentDimensions
- Height80 mm
- Width80 mm
- Depth87 mm
- Cut Out DimensionsØ75 mm
Downloads
Technical Data Sheet PDF
DoC_87845_182914
Certificates and Stamps
Technical Specifications
Electrical Features
- Electrical Insulation ClassI
- Frequency50-60 Hz
- Light SourceCREE
- No. Of Lights1
- Voltage Range220-240V ACVoltage level required for the product to function correctly.
- Wattage3 W
Mechanical Features
- IK ProtectionIK08Protection grade that the product offers against physical impacts. It is measured on a scale from IK00 to IK10, with IK10 being the highest level of resistance to impact and mechanical damage.
- InstallationRecessed, Wall
- IP RatingIP65The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
- LocationOutdoor, Indoor
LED Features
- Colour Rendering Index80Measures how accurately a light source displays colours compared to natural light. A high CRI (close to 100) ensures accurate colour rendering.
- Colour Temperature2700KDefines the light tone, from warm white to cool white, measured in Kelvin (K).
- Hours40.000 hoursEstimated lifespan of the product before it loses performance. Based on optimal, non-continuous use, and measured in hours of operation under controlled conditions.
- Light ColourWarm White
- Lumen210 lm
- Luminous Efficiency70 lm/WRatio between light output (lumens) and energy consumed (watts). A high value indicates better efficiency, ideal for saving energy without compromising lighting.
Materials and Finishes
- ColourWhite
- Fitting MaterialAluminium
Product Information
- CertificatesCE, RoHS, UKCA
- Guarantee3 years
Driver Information
- WifiNo
Description
The Ellis Square 3W recessed LED wall light presents a compact and streamlined form in aluminium, designed to integrate discreetly into architectural spaces while providing focused illumination.
General information about Ellis Square 3W Outdoor Aluminium Recessed LED Wall Light White
This recessed wall light is crafted in aluminium with a clean square profile and features a single light point. It delivers 210 lumens with a 3 W power consumption, suitable for both indoor and outdoor environments, supported by an IP65 rating for protection.
Design and visual presence

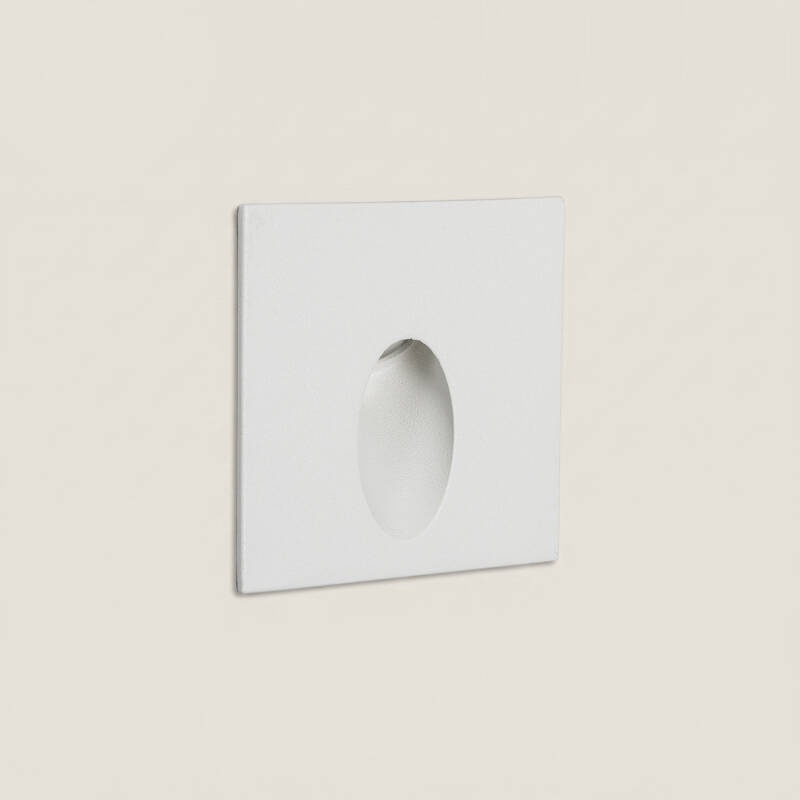

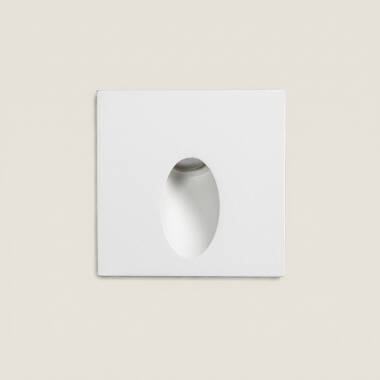

The square geometry of this wall light is defined by its minimalist volume and a recessed oval aperture that houses the light source. Its white finish offers a neutral yet refined material presence that integrates smoothly into various architectural compositions.
Use and application

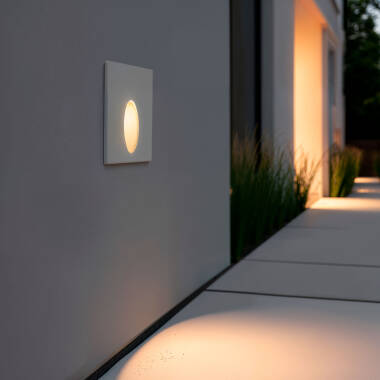

Suitable for gardens, hallways, terraces, and balconies, this wall light supports decorative and functional lighting needs in diverse interior and exterior settings. Its recessed installation on walls ensures a subtle visual impact while enhancing the spatial composition.
Key benefits
- The compact recessed format contributes to a clean and unobtrusive architectural integration.
- Aluminium construction provides durability and a refined material texture.
- Single light point delivers focused illumination with efficient 3 W power consumption.
- IP65 rating ensures suitability for outdoor conditions, expanding its application range.
- Installation on walls allows for versatile use in decorative and signalling lighting projects.
Highlighted specifications
Material: Aluminium; Power: 3 W; Lumen output: 210 Lumen; Number of lights: 1; Dimensions: 80 mm x 80 mm x 87 mm; Cut out dimensions: Ø75 mm; Voltage: 220–240 V AC; IP Rating: IP65.
Installation and maintenance
Installation is recessed into walls according to the indicated system. The dimensions and cut-out size facilitate precise mounting. Maintenance involves basic cleaning with a soft, dry cloth to preserve the finish and performance. Disconnect the power supply before any intervention.
Frequently asked questions
- What type of installation does this wall light require? — Recessed wall installation.
- How many points of light does it have? — It has one point of light.
- Is the light suitable for outdoor use? — Yes, it is rated IP65 for outdoor environments.
- Does it include the light source? — It features a CREE light source integrated into the design.
Specialized decorative lighting distribution in United Kingdom. If you are looking to buy Ellis Square 3W Outdoor Aluminium Recessed LED Wall Light White with a refined decorative approach, it is designed to integrate naturally into different projects. Estimated shipping in 15 to 20 days (subject to stock availability). View price and availability here.
