Image of Occulare 3W Square Recessed LED Wall Light Black
Image of Occulare 3W Square Recessed LED Wall Light Black
Image of Occulare 3W Square Recessed LED Wall Light Black
Image of Occulare 3W Square Recessed LED Wall Light Black

Occulare

Occulare 3W Square Recessed LED Wall Light Black

Energetic efficiency

£3.69

£6.29

-41%

Ref: 87700

Colour Temperature Warm White 2700K

In Stock, delivery in 15-20 days

Buy now, pay later

Credit payment
Are you a professional? Register and enjoy special conditions.

Dimensions

  • Depth60 mm
  • Height61 mm
  • Width61 mm
  • Cut Out DimensionsØ55 mm
Scheme image

Downloads

  • pdf file

    Technical Data Sheet PDF

  • pdf file

    DoC_87700_182578

Certificates and Stamps

CertificateCertificateCertificate

Technical Specifications

  • Electrical Features

    • Electrical Insulation ClassII
    • Frequency50-60 Hz
    • No. Of Lights1
    • Minimum and maximum voltage fluctuation that the product can withstand momentarily.
      Nominal Voltage100 V - 240 V
    • Voltage level required for the product to function correctly.
      Voltage Range220-240V AC
    • Wattage3 W

  • Mechanical Features

    • Indicates whether the product or its materials are fire-resistant, enhancing safety in high-temperature or flame-risk areas.
      Fire RatedNo
    • InstallationRecessed, Wall
    • The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
      IP RatingIP20
    • LocationIndoor

  • LED Features

    • Defines the light tone, from warm white to cool white, measured in Kelvin (K).
      Colour Temperature2700K
    • Estimated lifespan of the product before it loses performance. Based on optimal, non-continuous use, and measured in hours of operation under controlled conditions.
      Hours40.000 hours
    • Light ColourWarm White
    • Lumen220 lm

  • Materials and Finishes

    • ColourBlack
    • Fitting MaterialAluminium

  • Product Information

    • CertificatesCE, RoHS, UKCA
    • Guarantee3 years
    • RangeOcculare

  • Driver Information

    • Driver Intensity270 mA
    • Voltage level that the driver uses to power the LEDs or electrical components of the product, ensuring their proper functioning.
      Driver Tension3 V-12 V
    • WifiNo

Description

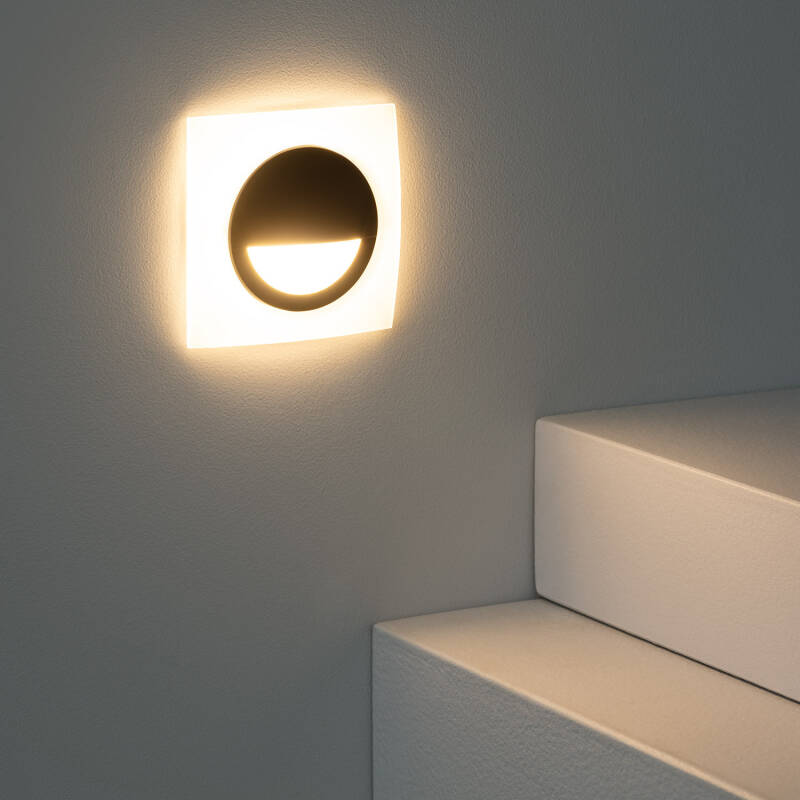

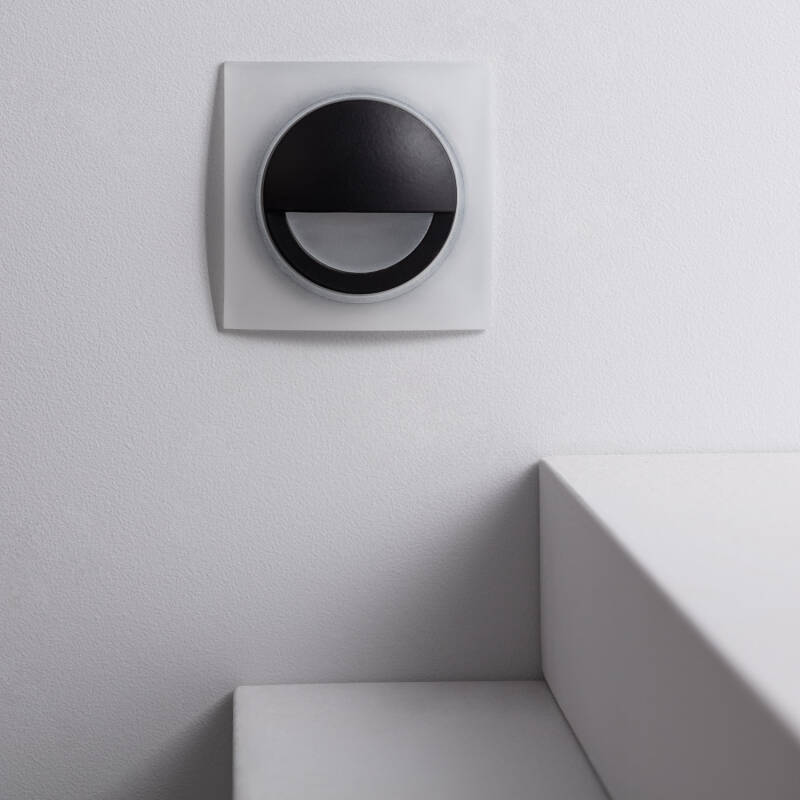

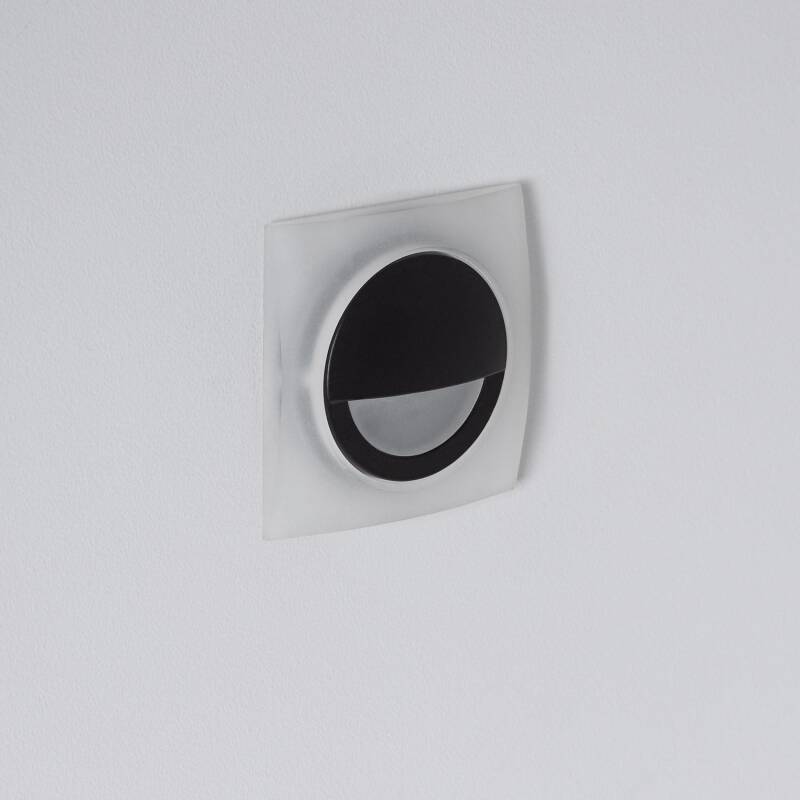

The Occulare 3W Square Recessed LED Wall Light presents a compact, square front and a clean, flush finish in black, designed for recessed wall installation and delivering 220 lumen from a 3 W LED setup.

General information about Occulare 3W Square Recessed LED Wall Light Black

This recessed wall light resolves into a discreet square aperture that reads clearly on the surface while keeping the body hidden within the wall. Made of aluminium with a black finish, it offers a single point of light and operates on 220–240 V AC for indoor applications.

Design and visual presence

The square geometry (61 mm x 61 mm) sits flush, minimising visual noise and favouring an ordered composition on the wall. The aluminium body gives a defined, robust outline, while the recessed construction keeps the technical presence contained for a neat, integrated result.

Use and application

Conceived for indoor projects where visual guidance and discrete signalling are required, this piece supports lighting compositions that need a clear reading on passage walls and transitions without dominating the scene.

Key benefits

  • The compact 61 mm square front supports subtle integration in architectural surfaces.
  • Recessed wall installation delivers a clean, flush appearance with minimal projection.
  • Aluminium construction contributes to a precise, well-defined look and durable feel.
  • Single point of light helps organise signage or guidance schemes with clear emphasis.
  • 3 W LED with 220 lumen balances visibility and discretion for accent or wayfinding roles.

Highlighted specifications

Material: Aluminium; Installation: Recessed wall (indoor); Dimensions: 61 mm x 61 mm x 60 mm; Cut-out: Ø55 mm; Wattage: 3 W; Luminous flux: 220 lumen; Voltage: 220–240 V AC; Colour: Black.

Installation and maintenance

Installation according to the indicated recessed wall system and the specified cut-out (Ø55 mm). Verify available depth (60 mm) before preparing the niche and connection at 220–240 V AC. For basic care, remove dust with a dry, soft cloth and perform periodic visual checks of the trim and flush alignment. Disconnect the power supply before any intervention.

Frequently asked questions

  • What type of installation does it use? — Recessed wall installation with a Ø55 mm cut-out.
  • How many points of light does it have? — One point of light.
  • Does it include a light source? — It is an LED-based wall light; no separate bulb type is specified.
  • Is it suitable for indoor use? — Yes, it is specified for indoor applications.

Specialized decorative lighting distribution in United Kingdom. If you are looking to buy Occulare 3W Square Recessed LED Wall Light Black with a refined decorative approach, the Occulare offers visual consistency and a well-resolved presence. Estimated shipping in 15 to 20 days (subject to stock availability). View price and availability here.
