Range Essential
  • 9 W
    Wattage 9 W
  • 220-240V AC
    Voltage Range 220-240V AC
  • 720 lm
    Lumens 720 lm
  • 130 mm x 130 mm
    Cut Out Dimensions 130 mm x 130 mm

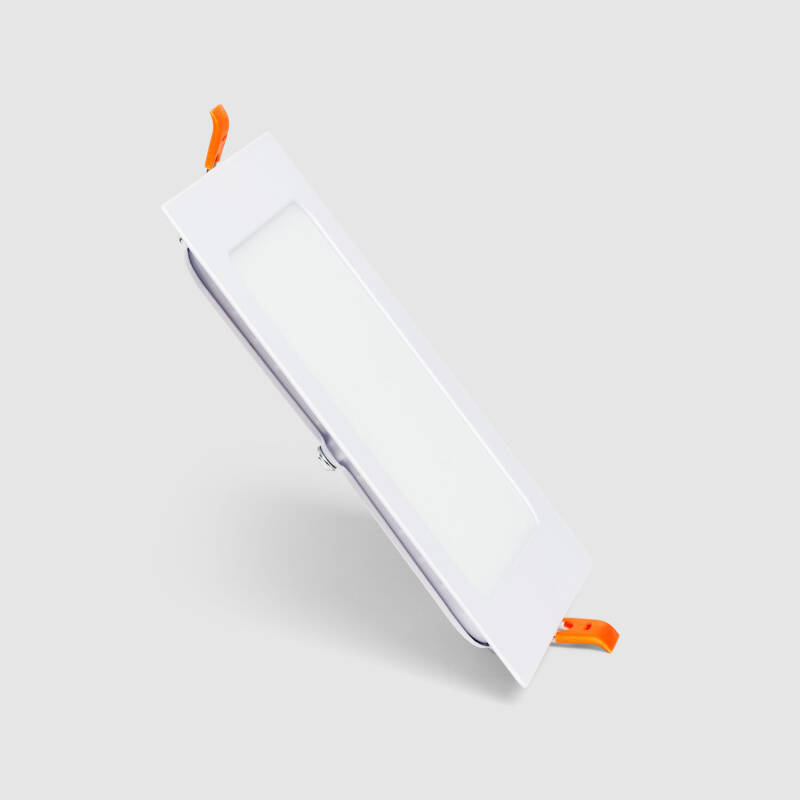

Image of Square SuperSlim 9W LED Downlight 130x130mm Cut Out
    Image of Square SuperSlim 9W LED Downlight 130x130mm Cut Out
    Image of Square SuperSlim 9W LED Downlight 130x130mm Cut Out
    Image of Square SuperSlim 9W LED Downlight 130x130mm Cut Out
    Image of Square SuperSlim 9W LED Downlight 130x130mm Cut Out
    Image of Square SuperSlim 9W LED Downlight 130x130mm Cut Out
1 / 5
  • 9 W

    Wattage

    9 W

  • 220-240V AC

    Voltage Range

    220-240V AC

  • 720 lm

    Lumens

    720 lm

  • 130 mm x 130 mm

    Cut Out Dimensions

    130 mm x 130 mm

  • IP20

    IP Rating

    IP20

  • No

    Battery Operated

    No

  • 20 mm x 148 mm x 148 mm

    Dimensions

    20 mm x 148 mm x 148 mm

  • 148 mm

    Width

    148 mm

  • 20 mm

    Height

    20 mm

  • IK05

    IK Protection

    IK05

  • 80 lm/W

    Luminous Efficiency

    80 lm/W

  • 120º

    Beam Angle

    120º

Square SuperSlim 9W LED Downlight 130x130mm Cut Out

Download technical datasheet

Ref. Ledkia: 413

5 reviews stars(4)

5 out of 5 stars

Trustpilot summary stars
Reviews

Colour Temperature Cool White 5000K

£3.79

VAT included
Energetic efficiency

In Stock, delivery in 24/48h

Includes Driver

PRO CLUB badge

Are you a lighting professional or a company?

  • Great discounts off PVP
  • Extended Warranty
  • Exclusive Services

Buy now, pay later

Credit payment

  • 30 Day Returns

    You can renounce to this product during the first 30 calendar days from receipt, provided that the product remains in perfect condition for use.


    Custom-made products and cut-to-size strips are excluded.


    Full conditions here: After-sales service.

  • 24h Free Delivery

    If you place your order today before 2:30 pm, delivery within 24/48h (working days).


    Shipping is free on purchases over £ 49.99 (incl. VAT).


    Full conditions here: Delivery methods.

  • 100% secure payments

    payment method image 1

    payment method image 2

    At Ledkia we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation.


    More information: Payment methods.

  • Up to 5 year warranty

    Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.


    You will find the exact product warranty in the technical details.


    Full conditions here: After-sales service.

See alternatives

Dimensions

  • Cut Out Dimensions130 mm x 130 mm
  • Height20 mm
  • Depth148 mm
  • Width148 mm

Downloads

  • pdf file

    Technical Data Sheet PDF

Certificates and Stamps

CertificateCertificate

Technical Specifications

  • Technical Information

    • Temperature range in which the product can operate optimally, ensuring its performance without overheating or damage.
      Ambient Working Temperature-30 °C~+50 °C
    • Measures in degrees how light spreads from the source. A wide angle covers more area, while a narrow one is ideal for highlighting details.
      Beam Angle120º
    • Quality, safety and compliance certifications that the product has obtained, such as CE, RoHS or UL, which guarantees that it meets industry standards and current regulations.
      CertificatesRoHS, CE, UKCA
    • Measures how accurately a light source displays colours compared to natural light. A high CRI (close to 100) ensures accurate colour rendering.
      Colour Rendering Index80
    • Defines the light tone, from warm white to cool white, measured in Kelvin (K).
      Colour Temperature5000K
    • DimmableNo
    • Driver Intensity300 mA
    • Voltage level that the driver uses to power the LEDs or electrical components of the product, ensuring their proper functioning.
      Driver Tension54 V-75 V
    • Electrical Insulation ClassII
    • Indicates whether the product or its materials are fire-resistant, enhancing safety in high-temperature or flame-risk areas.
      FireproofNo
    • Fitting MaterialAluminium
    • Frequency50-60 Hz
    • Estimated lifespan of the product before it loses performance. Based on optimal, non-continuous use, and measured in hours of operation under controlled conditions.
      Hours40.000 hours
    • Protection grade that the product offers against physical impacts. It is measured on a scale from IK00 to IK10, with IK10 being the highest level of resistance to impact and mechanical damage.
      IK ProtectionIK05
    • InstallationRecessed
    • The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
      IP RatingIP20
    • Light ColourCool White
    • Lumens720 lm
    • Ratio between light output (lumens) and energy consumed (watts). A high value indicates better efficiency, ideal for saving energy without compromising lighting.
      Luminous Efficiency80 lm/W
    • Minimum and maximum voltage fluctuation that the product can withstand momentarily.
      Nominal Voltage85-265V AC
    • ShapeSquare
    • Voltage level required for the product to function correctly.
      Voltage Range220-240V AC
    • Wattage9 W

  • Product Data

    • LocationIndoor
    • Product SeriesSuperSlim
    • Warranty3 years

  • Product Information

    • Light SourceOSRAM
    • Replaceable Light SourceNo
    • Type Of LensOpaal
Outdoor LED bollard

Description

The 9W Square SuperSlim LED Downlight with 130x130 mm Cut-Out is widely used as a general lighting element in any type of space, whether in homes or businesses.

Features of the 9W Square SuperSlim LED Downlight with 130x130 mm Cut-Out

Its source incorporates SMD 2835 LEDs with an output of 80 lm/W. As it is a class II luminaire, it is directly connected to 220-240V AC and does not need to be grounded. It has a useful life span of 30,000 hours, which is ten times more than a conventional downlight.

Thanks to the aluminium heatsink it has, the 9W Square SuperSlim LED Downlight with 130x130 mm Cut-Out removes the heat it generates quickly, despite its small size. In this way, despite being an indoor lighting element, it works perfectly in a temperature range from -22º to 45ºC.

At our online lighting shop Ledkia we have a wide range of LED downlight plates so that you can choose the one that best suits your needs.
