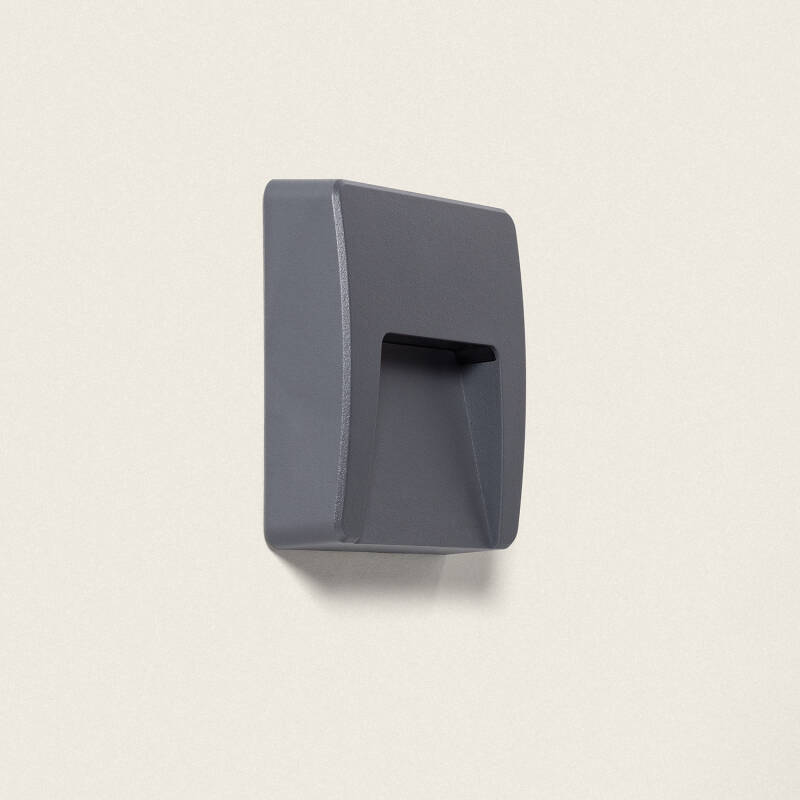

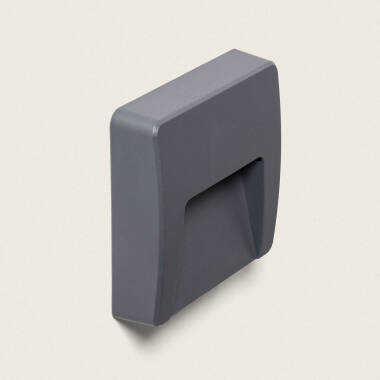

Nilsa 3W Surface Mounted Square LED Wall Light
£12.29
Ref: 174154
Colour Temperature 2700K
- Available in other selections.
Light Colour Warm White
- Available in other selections.
Colour White
In Stock, delivery in 15-20 days
Buy now, pay later
Credit paymentDimensions
- Depth32 mm
- Height120 mm
- Width120 mm
Downloads
Technical Data Sheet PDF
Certificates and Stamps
Technical Specifications
Technical Information
- CertificatesRoHS, CE, UKCAQuality, safety and compliance certifications that the product has obtained, such as CE, RoHS or UL, which guarantees that it meets industry standards and current regulations.
- ColourWhite
- Colour Rendering Index80Measures how accurately a light source displays colours compared to natural light. A high CRI (close to 100) ensures accurate colour rendering.
- Colour Temperature2700KDefines the light tone, from warm white to cool white, measured in Kelvin (K).
- Electrical Insulation ClassII
- Fitting MaterialABS, PC
- Frequency50-60 Hz
- Hours40.000 hoursEstimated lifespan of the product before it loses performance. Based on optimal, non-continuous use, and measured in hours of operation under controlled conditions.
- IK ProtectionIK06Protection grade that the product offers against physical impacts. It is measured on a scale from IK00 to IK10, with IK10 being the highest level of resistance to impact and mechanical damage.
- InstallationSurface, Wall
- IP RatingIP65The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
- Light ColourWarm White
- Lumens270 lm
- Luminous Efficiency90 lm/WRatio between light output (lumens) and energy consumed (watts). A high value indicates better efficiency, ideal for saving energy without compromising lighting.
- No. Of Lights1
- Number of LEDs11
- Voltage Range220-240V ACVoltage level required for the product to function correctly.
- Wattage3 W
Product Data
- Guarantee3 years
Product Information
- LocationOutdoor, Indoor
- RangeNilsa
Description
The Nilsa 3W LED Exterior Beacon Surface Wall Square is an architectural lighting solution designed to enhance walkways, entrances, and façades in residential and professional projects. Its surface mounting eliminates the need for wall cut-outs, offering a simpler and cleaner installation. Designed to integrate into contemporary architecture, it combines minimalist aesthetics with technical functionality, ensuring efficient performance and very low consumption.
LED Technology and Components
Equipped with a 3W LED module, this beacon provides a constant, uniform, and flicker-free light emission, resulting in greater visual comfort and reliable long-term operation. The optical assembly is optimised to project light towards the ground, avoiding glare and maximising luminous efficiency on pedestrian routes. The integrated driver supports multi-voltage (85-265V AC), ensuring compatibility with electrical installations under different network conditions. Additionally, heat dissipation is enhanced thanks to the use of metal materials in the housing, which extends the LED’s lifespan.
Installation and Mounting Options
Specifically designed for surface mounting, the Nilsa beacon simplifies the installation process by avoiding deep drilling into walls or cladding. Its fixing is firm and secure, even on concrete or brick supports. It is recommended to use IP68 waterproof connectors to protect electrical joints, ensuring maximum durability against moisture and weather conditions. Its compact size and square design allow it to integrate discreetly into façades, plinths, and garden walls without disrupting the aesthetic harmony of the architectural ensemble.
Light Performance
With an approximate luminous flux of 180-200 lumens, the Nilsa LED Beacon produces a soft, directional light, ideal for marking pathways and enhancing outdoor safety. Its neutral colour temperature (4000K) provides a clean and modern effect, although warm versions (3000K) are also available for projects seeking a cozier atmosphere. The controlled emission angle prevents unnecessary dispersion, optimising luminous uniformity over the walking plane and minimising light pollution to other areas.
Materials and Protection
The body is made of die-cast aluminium with a high-resistance powder coating, ensuring excellent protection against corrosion and UV exposure. The diffuser, made of high-quality opal polycarbonate, offers uniform light transmission and maintains its transparency over time without yellowing. With an IP65 protection rating, the luminaire is completely dust-tight and resistant to water jets, making it suitable for outdoor installations exposed to the elements. The IK07 mechanical protection rating adds resistance to accidental impacts.
Professional Applications
The Nilsa 3W LED Exterior Beacon Surface Wall Square is the perfect choice for architects, installers, and interior designers seeking a technical and aesthetic solution to mark outdoor routes. It is highly effective in residential entrances, gardens, terraces, hotels, communal areas of housing developments, exterior corridors, and modern façades. Its combination of low consumption, long lifespan, and contemporary design makes it an ideal luminaire for outdoor lighting projects that prioritise both safety and architectural integration.
