  • 21 W
    Wattage 21 W
  • 220-240V AC
    Voltage Range 220-240V AC
  • 1470 lm
    Lumen 1470 lm
  • 75 mm x 235 mm
    Cut Out Dimensions 75 mm x 235 mm

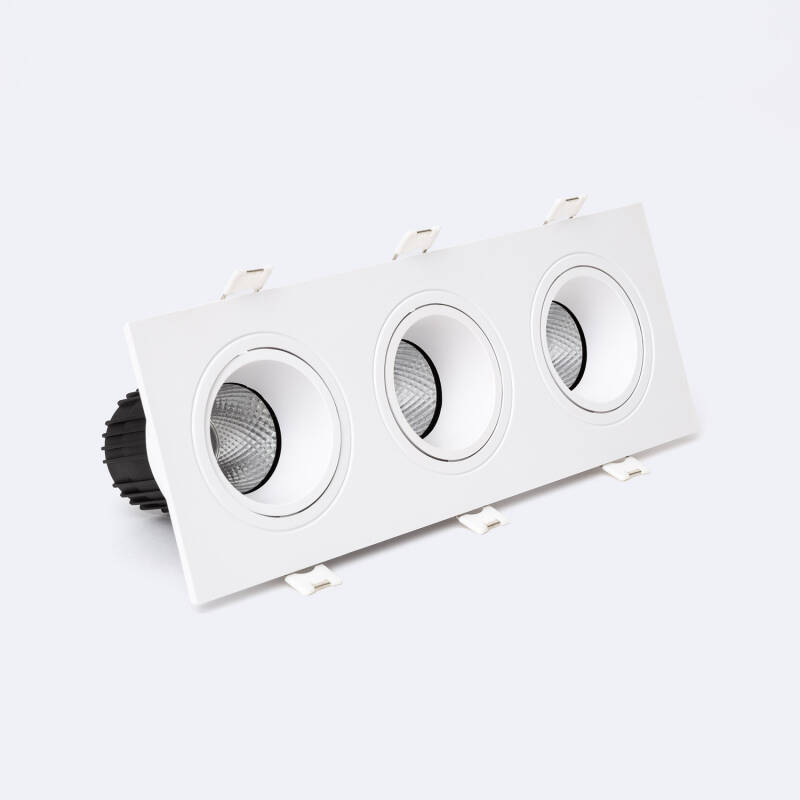

Image of Square 27W Tilting LED Downlight 235x75mm Cut Out
    Image of Square 27W Tilting LED Downlight 235x75mm Cut Out
    Image of Square 27W Tilting LED Downlight 235x75mm Cut Out
1 / 2
  • 21 W

    Wattage

    21 W

  • 220-240V AC

    Voltage Range

    220-240V AC

  • 1470 lm

    Lumen

    1470 lm

  • 75 mm x 235 mm

    Cut Out Dimensions

    75 mm x 235 mm

  • TRIAC

    Type Of Dimming

    TRIAC

  • UGR <11

    Glare Factor

    UGR <11

  • IP20

    IP Rating

    IP20

  • No

    Battery Operated

    No

  • 50 mm x 93 mm x 253 mm

    Dimensions

    50 mm x 93 mm x 253 mm

  • 93 mm

    Width

    93 mm

  • 50 mm

    Height

    50 mm

  • 70 lm/W

    Luminous Efficiency

    70 lm/W

Square 27W Tilting LED Downlight 235x75mm Cut Out

Download technical datasheet

Ref. Ledkia: 174034

Colour Temperature Warm White 2700K

Colour White

Pre-Order, estimated shipping from 03/07/2026

£25.99

VAT included
Energetic efficiency

Pre-Order, estimated shipping from 03/07/2026

PRO CLUB badge

Are you a lighting professional or a company?

  • Great discounts off PVP
  • Extended Warranty
  • Exclusive Services

Buy now, pay later

Credit payment

    • 30 calendar days to return

      You can renounce to this product during the first 30 calendar days from receipt, provided that the product remains in perfect condition for use.


      Custom-made products and cut-to-size strips are excluded.


      Full conditions here: After-Sales Service.

    • 24h Delivery

      If you place your order today before 2:30 pm, delivery within 24/48h (working days).


      Shipping is free on purchases over £49.99 (incl. VAT).


      Full conditions here: Shipping methods.

    • 100% secure payments

      payment method image 1

      payment method image 2

      At Ledkia we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation.


      More information: Payment methods.

    • Warranty up to 5 years

      Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.


      You will find the exact product warranty in the technical details.


      Full conditions here: After-Sales Service.

Dimensions

  • Depth253 mm
  • Height50 mm
  • Cut Out Dimensions75 mm x 235 mm
  • Width93 mm

Downloads

  • pdf file

    Technical Data Sheet PDF

  • pdf file

    DoC_174034_353349

Certificates and Stamps

CertificateCertificateCertificate

Technical Specifications

  • Electrical Features

    • Frequency50-60 Hz
    • Light SourceBRIDGELUX
    • No. Of Lights3
    • Type Of DimmingTRIAC
    • Voltage level required for the product to function correctly.
      Voltage Range220-240V AC
    • Wattage21 W

  • LED Features

    • Measures in degrees how light spreads from the source. A wide angle covers more area, while a narrow one is ideal for highlighting details.
      Beam Angle38º
    • Defines the light tone, from warm white to cool white, measured in Kelvin (K).
      Colour Temperature2700K
    • Low-glare products offer more comfortable lighting, suitable for extended use.
      Glare FactorUGR <11
    • Estimated lifespan of the product before it loses performance. Based on optimal, non-continuous use, and measured in hours of operation under controlled conditions.
      Hours40.000 hours
    • Light ColourWarm White
    • Lumen1470 lm
    • Ratio between light output (lumens) and energy consumed (watts). A high value indicates better efficiency, ideal for saving energy without compromising lighting.
      Luminous Efficiency70 lm/W

  • Mechanical Features

    • The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
      IP RatingIP20
    • LocationIndoor
    • ShapeSquare

  • Product Information

    • CertificatesRoHS, CE, UKCA
    • Guarantee3 years

  • Materials and Finishes

    • ColourWhite
    • Fitting MaterialPC, Aluminium

  • Driver Information

    • WifiNo

Description

The 21W LED Square Tilt Downlight with 235x75 mm Cut-out combines a functional and elegant design, ideal for installation in indoor spaces. Measuring 50 mm x 93 mm x 253 mm with a cut-out of 75 mm x 235 mm, this downlight fits perfectly into false ceilings and offers a modern finish that complements any décor style.

This product has a power of 21 W and provides exceptional brightness of 1470 lm. Its 38º beam angle allows for an even distribution of light, enhancing visibility in specific areas and creating a cosy, well-lit atmosphere.

The downlight is designed for indoor use and features an IP rating of IP20, making it suitable for normal use conditions in enclosed environments. This ensures reliable performance across various applications, from homes to offices.

In terms of energy efficiency, this LED downlight not only delivers high luminous output but is also compatible with TRIAC dimmers, allowing the light intensity to be adjusted according to user needs. This feature promotes efficient energy use, contributing to reduced electricity consumption.

With a design that prioritises both aesthetics and functionality, the 21W LED Square Tilt Downlight with 235x75 mm Cut-out is the ideal solution for those seeking quality and efficiency in the lighting of their indoor spaces.
